Drawing Basics

Things to Know about Drawings...

​When setting up your drawing, ensure equal space between views, and between the edges of the views and the border.

Dropdown

When placing dimensions, you should always place dimensions ​

Select answer

the views.

Multiple Select

When dimension an object such as a circular hole, what should you do?

• Dimension the radius of the circle.

• Dimension the diameter of the circle

• Dimension the size AND location of the circle.

• Dimension only the size of the circle.

Multiple Choice

When dimensioning a circular hole, you should always dimension its location from the __ of the circle to a specific __ of the object.

• edge of the circle to the edge of the object

• center of the circle to the corner of the object

• edge of the circle to a corner of the object

• tangent point of the circle to the closest corner of the object

Multiple Choice

You should always place size dimensions closest to the view that shows the most descriptive features of the object in that particular view.

• True

• False

Multiple Choice

Which is the BEST example of how to place dimensions.

• A

• B

• Neither

Dropdown

When placing dimensions, the ​

Select answer

dimension should always be placed closest to the object.

Multiple Choice

The largest dimension should always be placed where?

• Top of the page

• Closest to the object in a stack of dimensions

• Farthest away in a stack of dimensions from the object

• To the outside of the views.

Multiple Choice

You should always stack dimensions in order of smallest to largest, with the smallest dimension placed closest to the object.

• TRUE

• FALSE

​When setting up your drawing, ensure equal space between views, and between the edges of the views and the border.

​1.5 to 2 inches of space

​

​

​When setting up your drawing, ensure equal space between views, and between the edges of the views and the border.

​equal distance

​When placing dimensions, the first dimension away from any object should be 3/8in away from the object. Any other dimensions should be 1/4in away from closest dimensions.

​When placing dimensions, the first dimension away from any object should be 3/8in away from the object. Any other dimensions should be 1/4in away from closest dimensions.

​

​When placing dimensions, the first dimension away from any object should be 3/8in away from the object. Any other dimensions should be 1/4in away from closest dimensions.

​

3/8 in away (.375)

​

1/4 in away (.25)

​When placing dimensions, the first dimension away from any object should be 3/8in away from the object. Any other dimensions should be 1/4in away from closest dimensions.

​

3/8 in away (.375)

​When placing dimensions, the first dimension away from any object should be 3/8in away from the object. Any other dimensions should be 1/4in away from closest dimensions.

​

3/8 in away (.375)

​

​When placing dimensions, the first dimension away from any object should be 3/8in away from the object. Any other dimensions should be 1/4in away from closest dimensions.

​

3/8 in away (.375)

​

​When placing dimensions, the first dimension away from any object should be 3/8in away from the object. Any other dimensions should be 1/4in away from closest dimensions.

​

3/8 in away (.375)

​

1/4 in away (.25)

​When placing dimensions, the first dimension away from any object should be 3/8in away from the object. Any other dimensions should be 1/4in away from closest dimensions.

​

3/8 in away (.375)

​

1/4 in away (.25)

​When placing dimensions, the first dimension away from any object should be 3/8in away from the object. Any other dimensions should be 1/4in away from closest dimensions.

​

3/8 in away (.375)

​

1/4 in away (.25)

​3/8 + 2/8 (1/4) = 5/8

​3/8 in

​3/8 in

1/4 in

​3/8 in

1/4 in

1/4 in

​3/8 in

1/4 in

1/4 in

1/4 in

​3/8 in

1/4 in

1/4 in

1/4 in

​3/8 in

1/4 in

1/4 in

1/4 in

​5/8 in

​7/8 in

​1 and 1/8 in

Multiple Choice

How far away should the dimension be placed that is closest to the object?

• 1/8th of an inch

• 3/8ths of an inch

• 1/4th of an inch

• 5/8ths of an inch

Multiple Choice

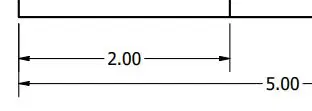

In this example, how far away should the 2.00 dimension be from the object it is referencing?

• 1/8th of an inch

• 3/8ths of an inch

• 1/4th of an inch

• 5/8ths of an inch

Multiple Choice

In this example, how far away should the 5.00 dimension be from the object it is referencing?

• 1/8th of an inch

• 3/8ths of an inch

• 1/4th of an inch

• 5/8ths of an inch

Multiple Choice

In this example, what should the distance between the 2.00 dimension and the 5.00 dimension be?

• 1/8th of an inch

• 3/8ths of an inch

• 1/4th of an inch

• 5/8ths of an inch

Multiple Choice

In this example, what should the distance between the 3.00 dimension and the 3.62 dimension be?

• 1/8th of an inch

• 5/8ths of an inch

• 1/4th of an inch

• 7/8ths of an inch

Multiple Choice

In this example, what should the distance between the 2.38 dimension and the 3.62 dimension be?

• 1/2 of an inch

• 5/8ths of an inch

• 1/4th of an inch

• 3/8ths of an inch

Multiple Choice

In this example, what should the distance between the 2.38 dimension and the 4.25 dimension be?

• 1/2 of an inch

• 5/8ths of an inch

• 3/4ths of an inch

• 7/8ths of an inch

Multiple Choice

In this example, how far away from the object should the 3.00 be placed?

• 1/4th of an inch

• 5/8ths of an inch

• 3/8ths of an inch

• 7/8ths of an inch

Multiple Choice

In this example, how far away from the object should the 2.38 be placed?

• 1/4th of an inch

• 5/8ths of an inch

• 3/8ths of an inch

• 7/8ths of an inch

Multiple Choice

In this example, how far away from the object should the 3.62 be placed?

• 1/4th of an inch

• 5/8ths of an inch

• 3/8ths of an inch

• 7/8ths of an inch

Multiple Choice

In this example, how far away from the object should the 4.25 be placed?

• 1.125 inches away

• 1.25 inches away

• .75 inches away

• 1 inch away
