PPT Subnetting Ip address V4

Multiple Choice

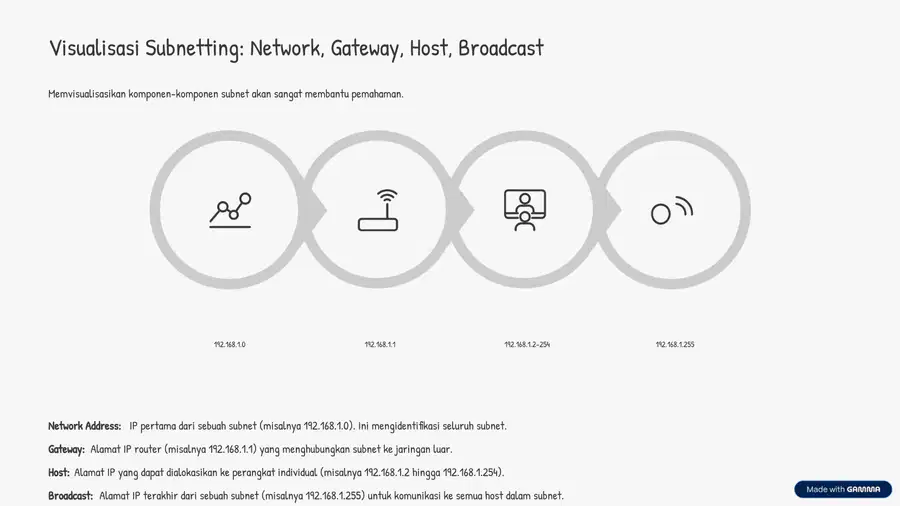

What are the key components of IPv4 subnetting as illustrated in the image?

• Host Count

• Subnet

• IP Gateway

• IP Broadcast

Multiple Choice

What is the default subent mask for the Class C network?

• 255.255.254.0

• 255.255.252.0

• 255.255.255.128

• 255.255.255.0

Multiple Choice

Which of the following is the valid host range for the IP address 192.168.168.188 255.255.255.192 ?

• 192.168.168.129–190

• 192.168.168.129–191

• 192.168.168.128–190

• 192.168.168.128–192

Multiple Choice

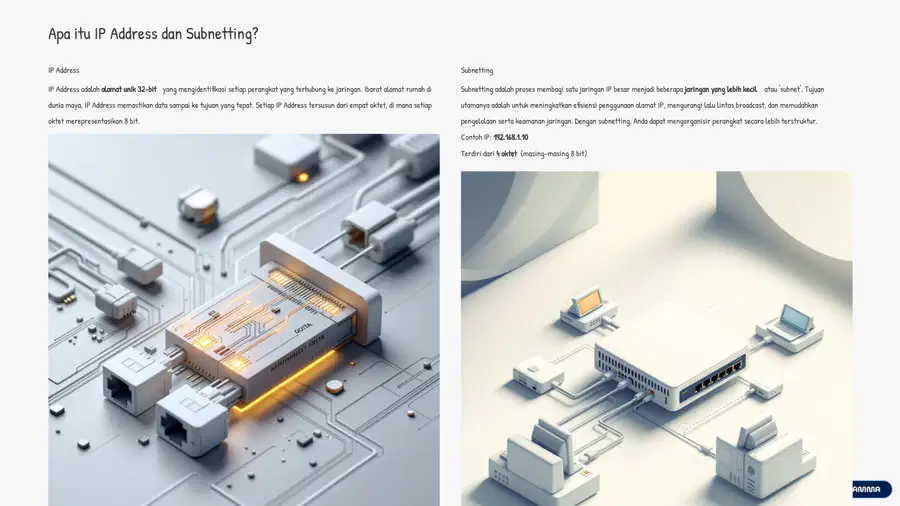

What is the purpose of subnetting in IP networks?

• To increase IP address efficiency

• To reduce network security

• To eliminate the need for IP addresses

• To simplify network hardware

Multiple Choice

In binary representation, what does the number 255 equal?

• 11111111

• 00000000

• 11111110

• 11111101

Multiple Choice

What does the CIDR notation /24 indicate about the subnet mask?

• It shows the number of bits for the host

• It indicates the total number of IP addresses

• It specifies the number of bits for the network

• It represents the subnet mask in binary

Multiple Choice

What is the role of a subnet mask in determining the parts of an IP address?

• To identify the host ID

• To determine the network ID

• To convert binary to decimal

• To assign IP addresses

Multiple Choice

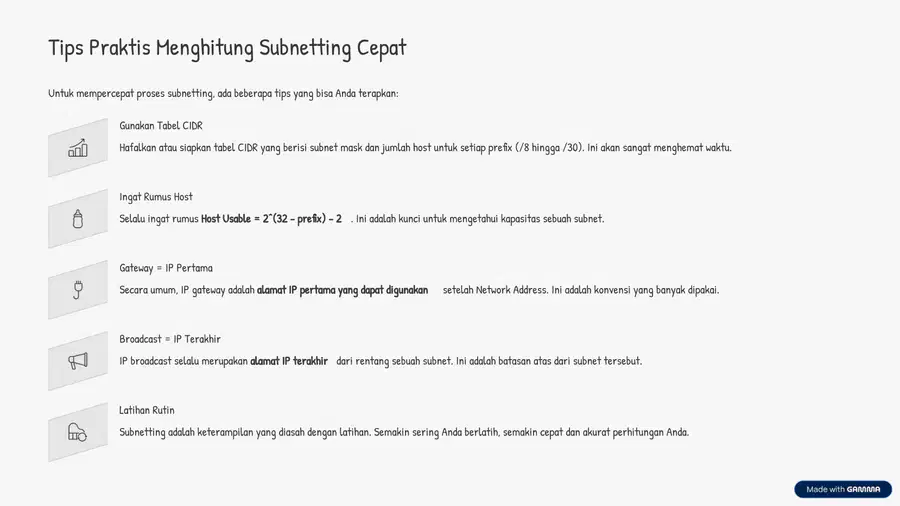

What is the formula to calculate the number of usable hosts in a subnet?

• Jumlah Host Usable = 2^(jumlah bit host) - 2

• Jumlah Host Usable = 2^(jumlah bit network) - 2

• Jumlah Host Usable = 2^(jumlah bit host) + 2

• Jumlah Host Usable = 2^(jumlah bit network) + 2

Multiple Choice

What is the function of an IP Gateway?

• To connect devices within a subnet

• To provide internet access

• To act as a bridge for data traffic

• To assign IP addresses

Multiple Choice

What is the broadcast address for the subnet 192.168.1.0/24?

• 192.168.1.1

• 192.168.1.254

• 192.168.1.255

• 192.168.1.0

Multiple Choice

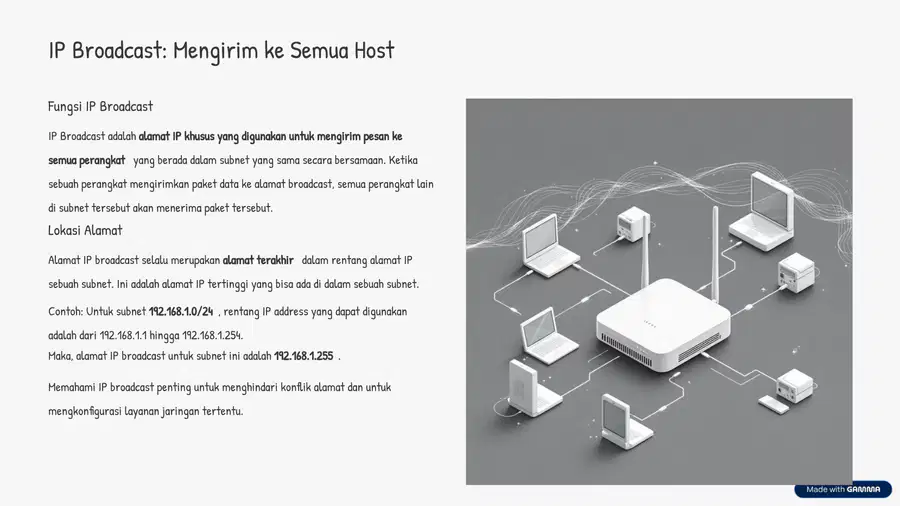

What is the purpose of an IP broadcast?

• To send messages to all devices in a subnet

• To send messages to a single device

• To receive messages from all devices

• To configure network settings

Multiple Choice

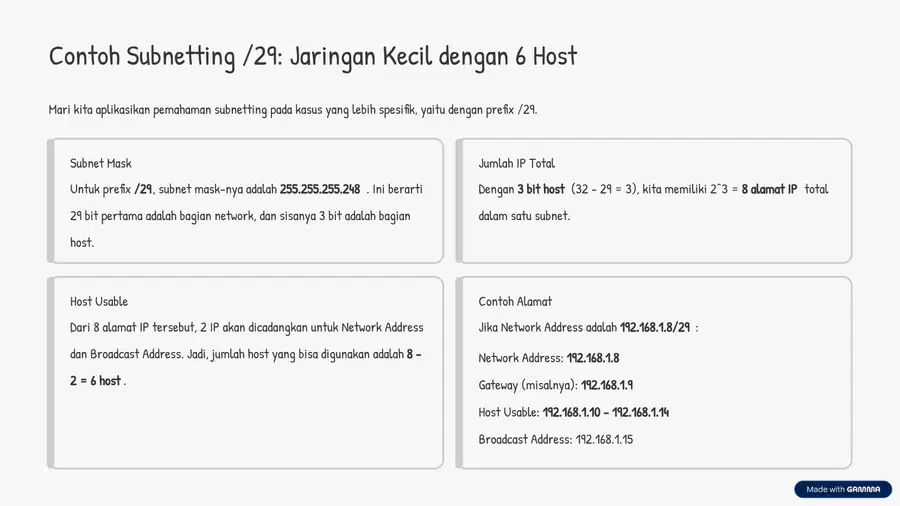

How many usable hosts are available in a subnet with a prefix of /29?

• 2

• 4

• 6

• 8

Multiple Choice

What is the significance of the Broadcast address in a subnet?

• It identifies the first IP address of a subnet

• It connects the subnet to the external network

• It allocates IP addresses to individual devices

• It communicates with all hosts in the subnet

Multiple Choice

What is the function of the Host in a subnet?

• To identify the first IP address of a subnet

• To connect the subnet to the external network

• To allocate IP addresses to individual devices

• To communicate with all hosts in the subnet

Multiple Choice

What role does the Gateway play in a subnet?

• It identifies the first IP address of a subnet

• It connects the subnet to the external network

• It allocates IP addresses to individual devices

• It communicates with all hosts in the subnet

Multiple Choice

What is the purpose of the Network Address in a subnet?

• To identify the first IP address of a subnet

• To connect the subnet to the external network

• To allocate IP addresses to individual devices

• To communicate with all hosts in the subnet

Multiple Choice

What is the formula for calculating usable hosts in a subnet?

• 2^(32 - prefix) - 2

• 2^(32 + prefix) - 2

• 2^(32 - prefix) + 2

• 2^(prefix) - 2

Multiple Choice

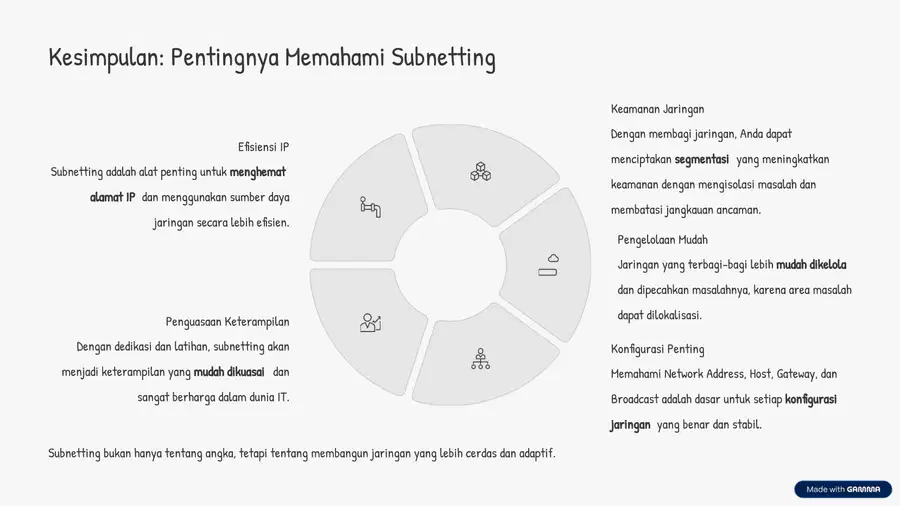

What is the importance of subnetting in network management?

• To save IP addresses

• To increase network speed

• To reduce network costs

• To simplify network design

Multiple Choice

Mana yang BUKAN langkah dalam mengamankan jaringan Anda?

• Memasang Firewall

• Memberikan saran untuk berhati-hati di internet

• Menempatkan kata sandi di media sosial

• Melindungi jaringan dengan kata sandi
