Untitled Presentation

Multiple Choice

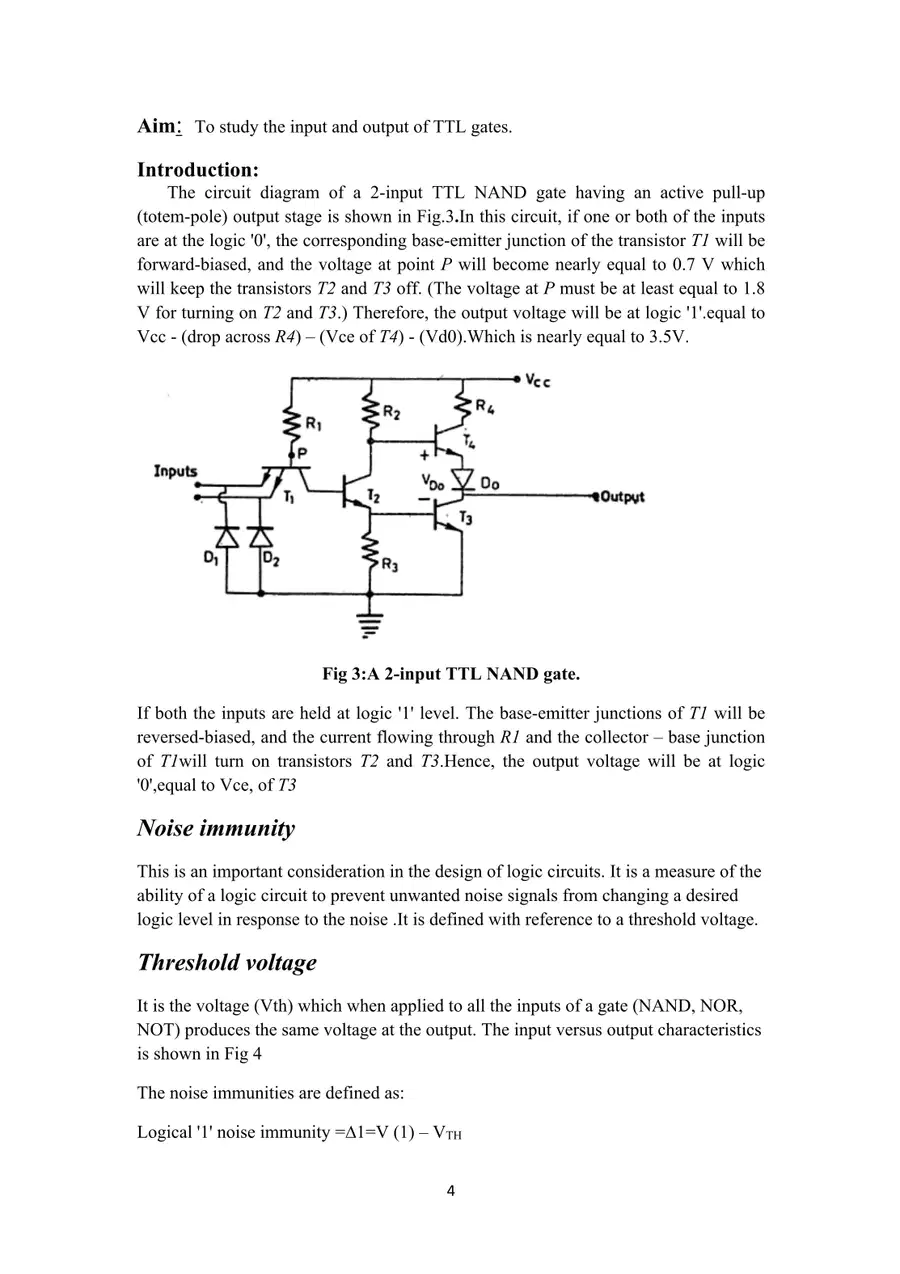

Why is the NAND gate considered the basic building block of the TTL logic family?

• Because it is easy to manufacture

• Because it can be used to construct any other logic gate

• Because it consumes less power

• Because it is the fastest gate

Open Ended

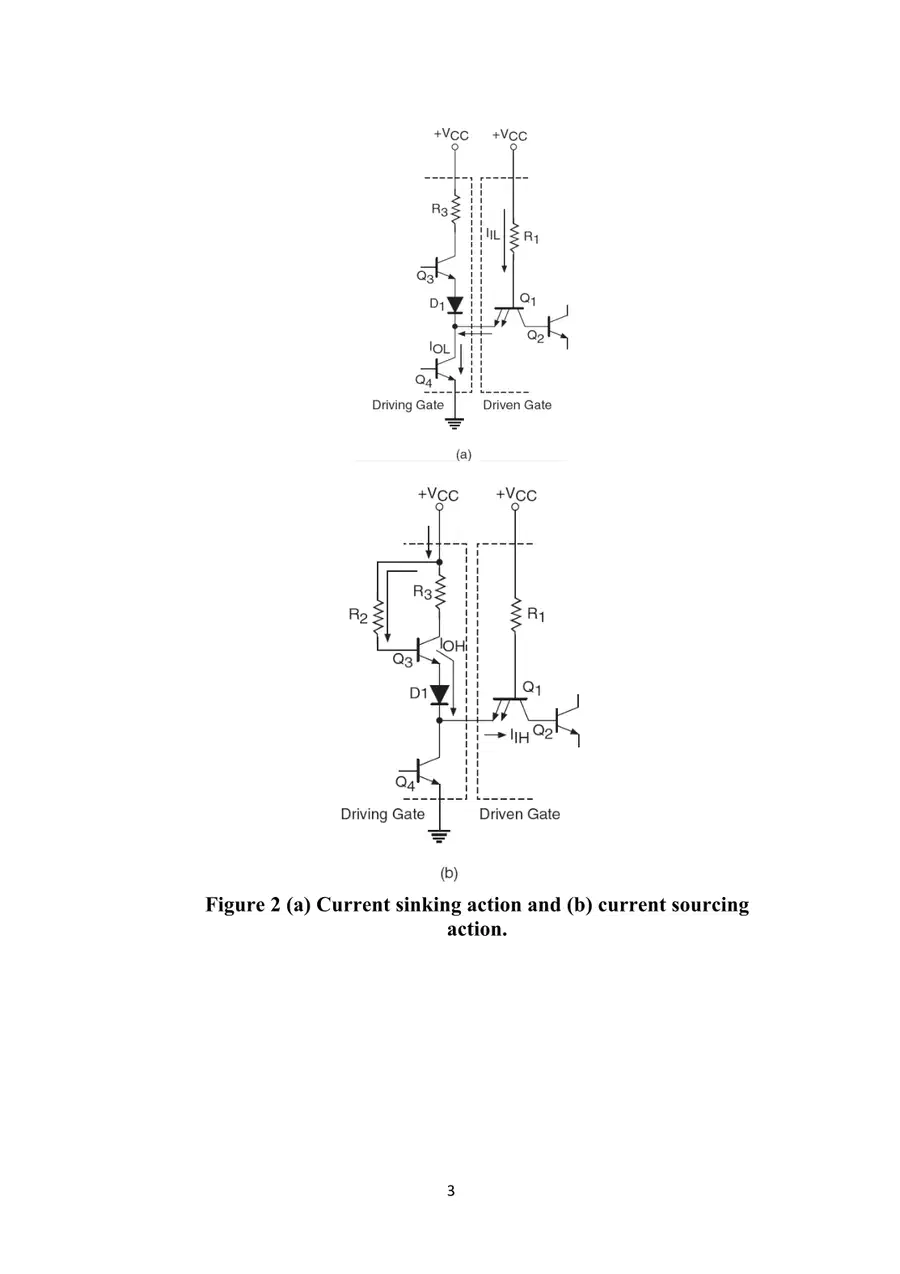

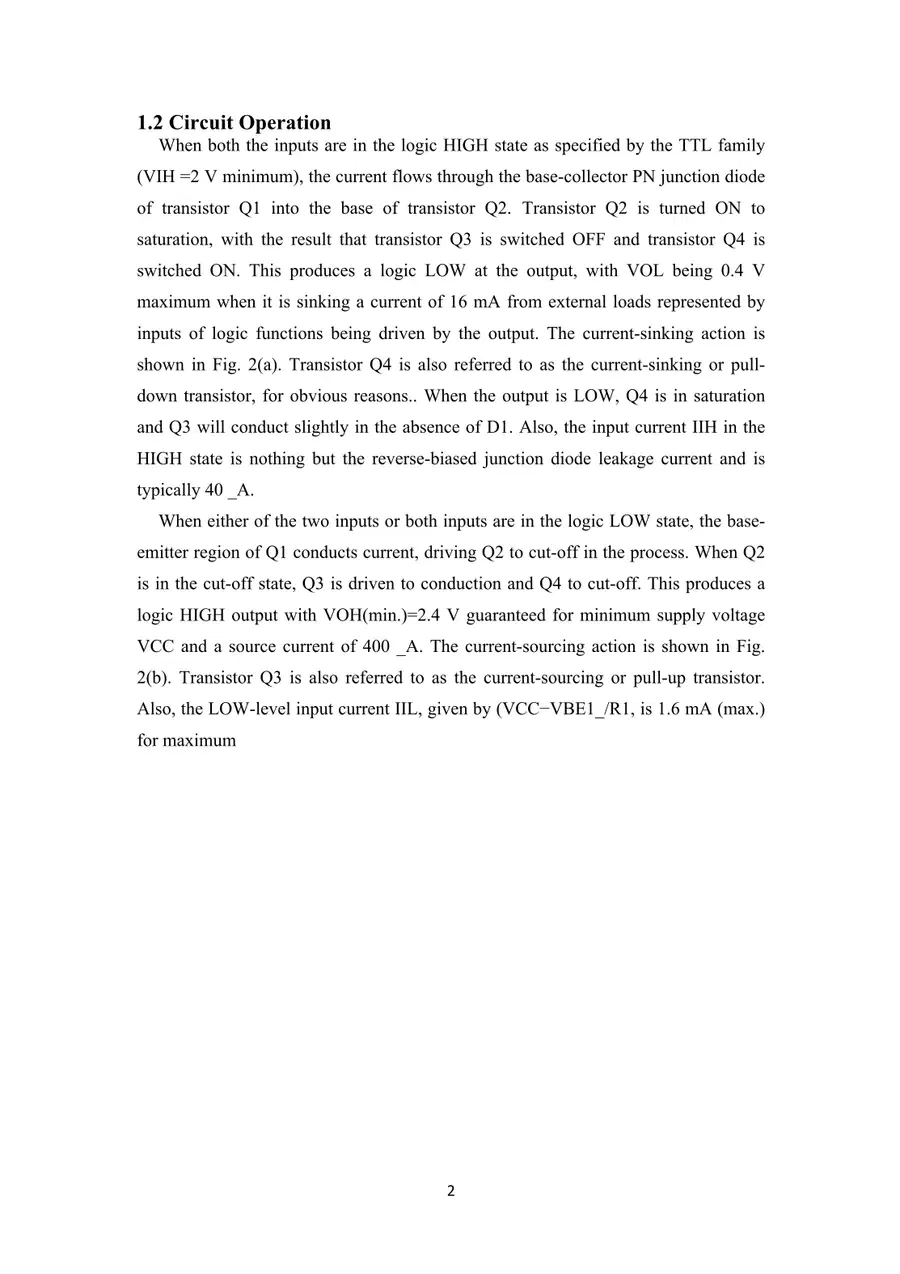

Explain how the current-sinking and current-sourcing actions occur in a standard TTL NAND gate circuit.

Multiple Choice

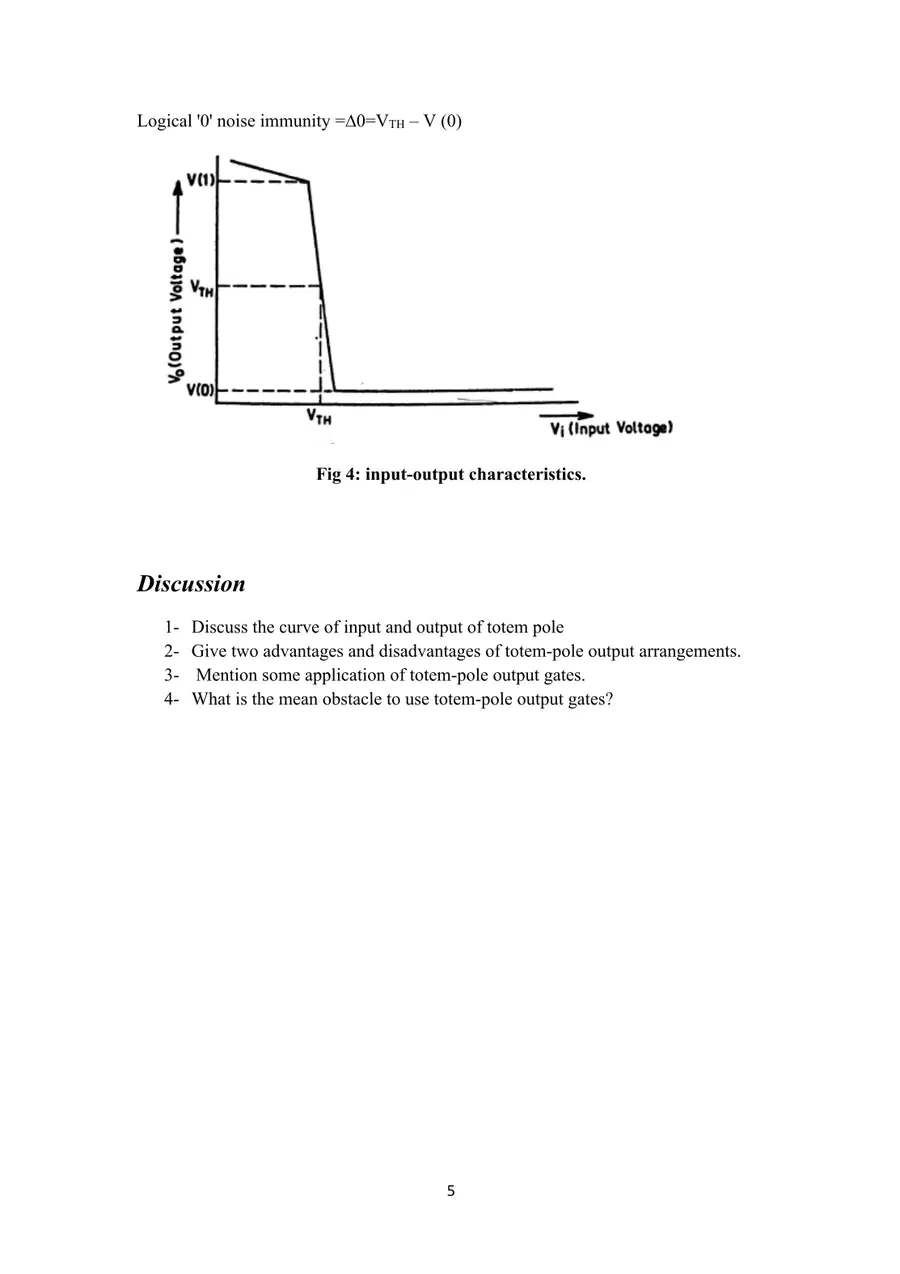

Which of the following statements about noise immunity in TTL circuits is correct?

• Noise immunity is the ability to amplify noise signals.

• Noise immunity is the ability to prevent unwanted noise signals from changing a desired logic level.

• Noise immunity is the ability to increase the threshold voltage.

• Noise immunity is the ability to reduce the supply voltage.

Open Ended

Do you have any questions or would you like to know more about TTL gates and their totem-pole output characteristics?
