Open Ended

What factors do you think could influence the efficiency of a photovoltaic panel beyond just the quality of the panel itself?

Multiple Choice

Why is the efficiency of solar panels significant in the context of photovoltaic solar systems?

• It determines how much sunlight is converted into usable electricity

• It affects the color of the solar panels

• It influences the cost of installation only

• It is only important for large-scale solar farms

Multiple Choice

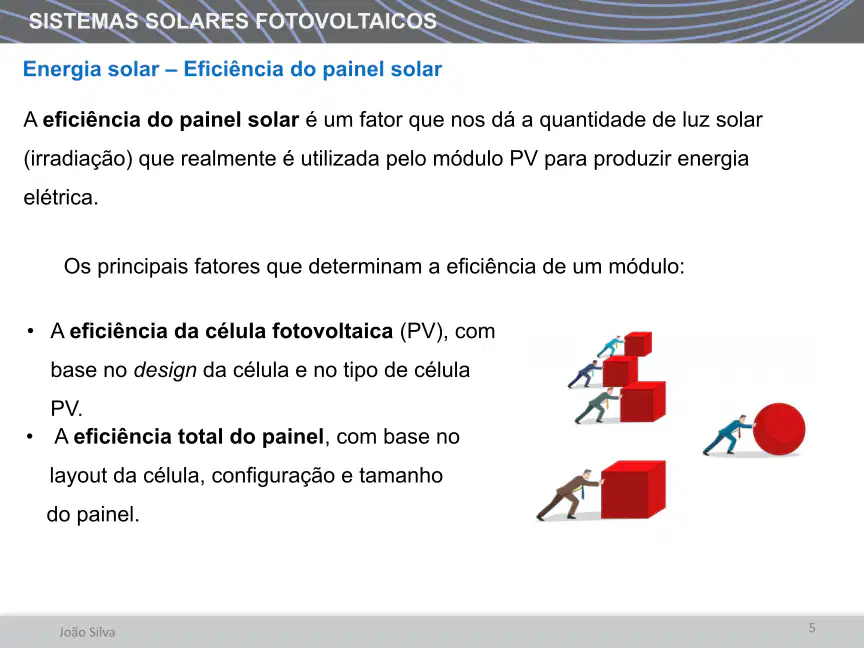

Which of the following factors determine the efficiency of a solar panel module?

• Efficiency of the photovoltaic cell and total panel efficiency

• Only the efficiency of the photovoltaic cell

• Only the total panel efficiency

• The color of the panel

Open Ended

Describe the role of air mass in the measurement of solar panel efficiency and why it is important.

Open Ended

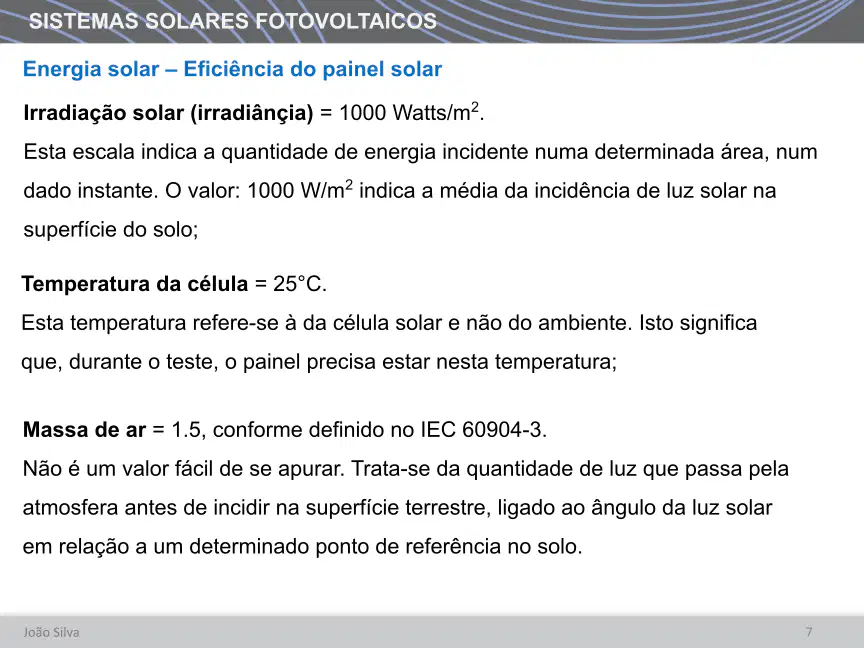

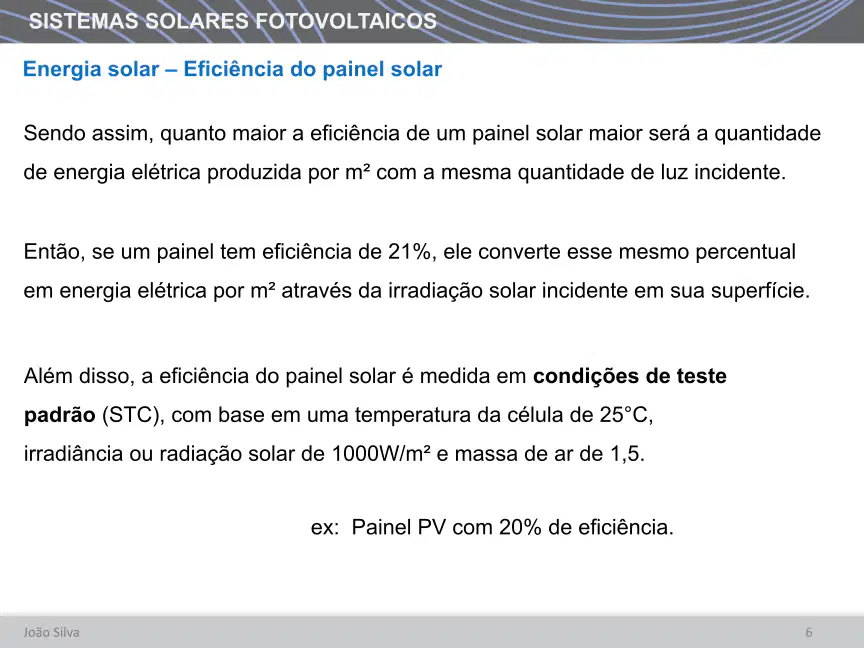

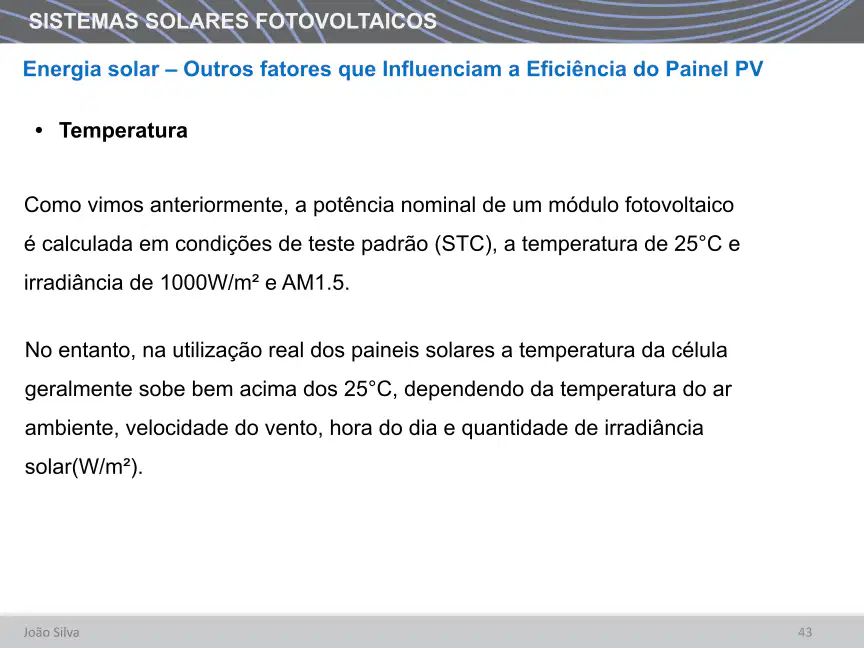

Explain how the efficiency of a solar panel is measured under standard test conditions (STC).

Multiple Select

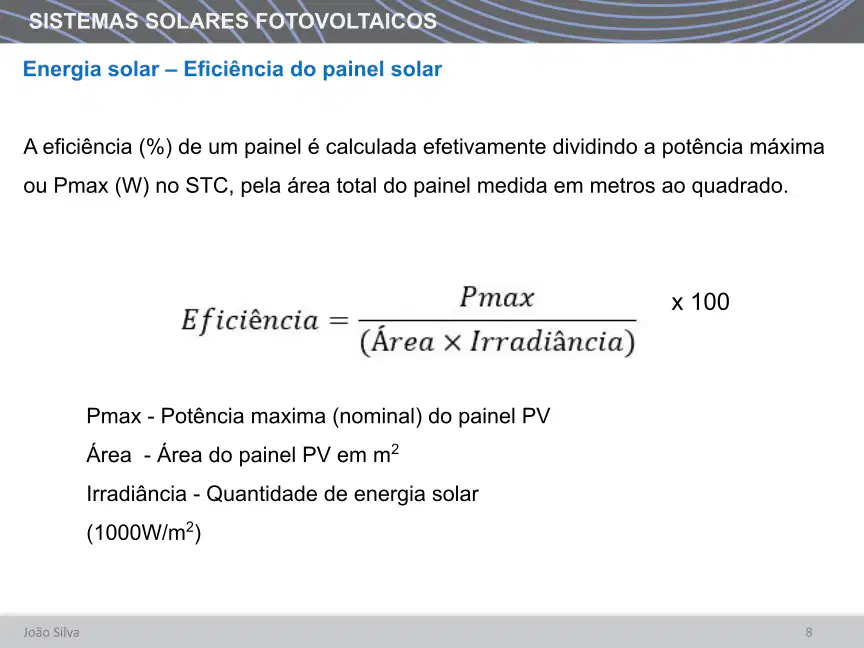

Which of the following are required to calculate the efficiency of a photovoltaic (PV) panel?

• Maximum power (Pmax)

• Panel area

• Solar irradiance

• Panel thickness

Multiple Choice

What is the value of solar irradiance used in standard test conditions (STC) for measuring solar panel efficiency?

• 500 W/m²

• 1000 W/m²

• 1500 W/m²

• 2000 W/m²

Multiple Choice

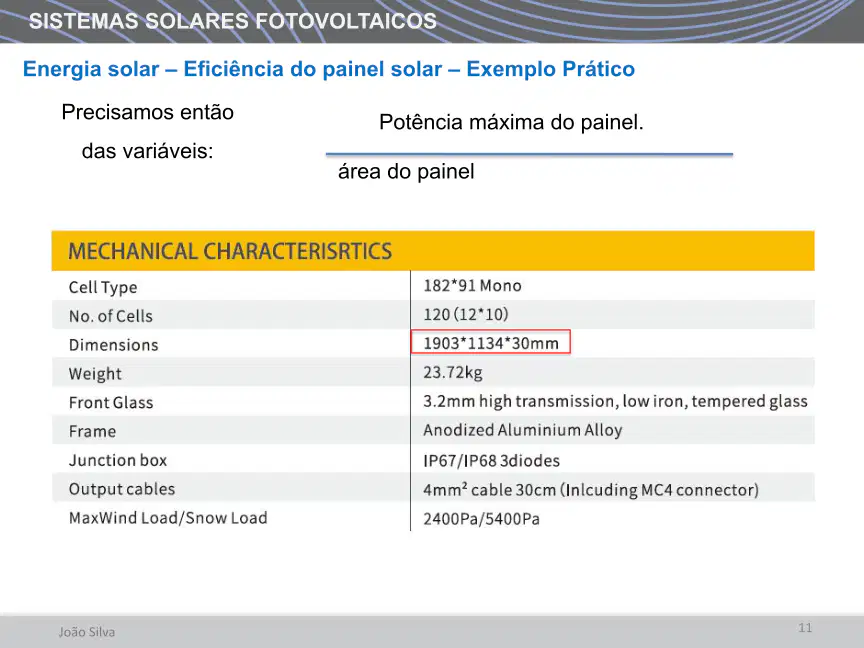

Which mechanical characteristic is necessary to determine the area of the solar panel?

• Dimensions

• Weight

• Frame type

• Number of cells

Multiple Select

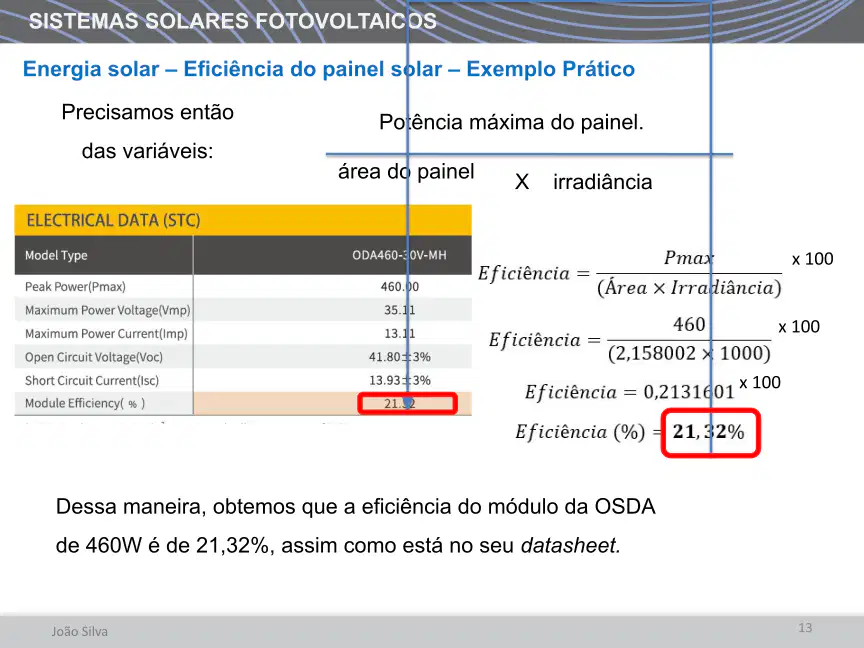

Which of the following variables are needed to calculate the efficiency of a solar panel?

• Peak Power (Pmax)

• Area of the panel

• Irradiance

• Weight of the panel

Open Ended

Explain how the area of a solar panel and irradiance affect the calculation of its efficiency.

Multiple Choice

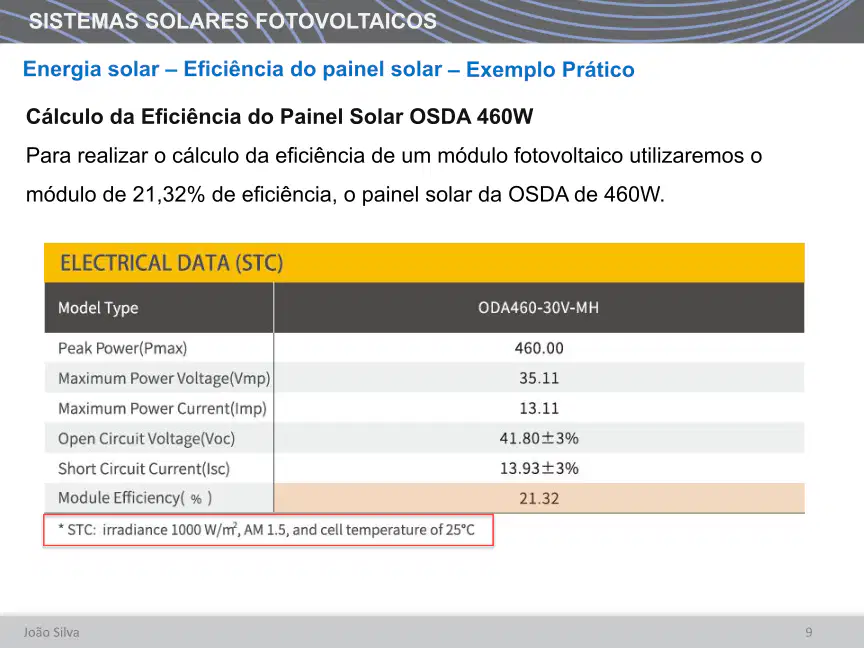

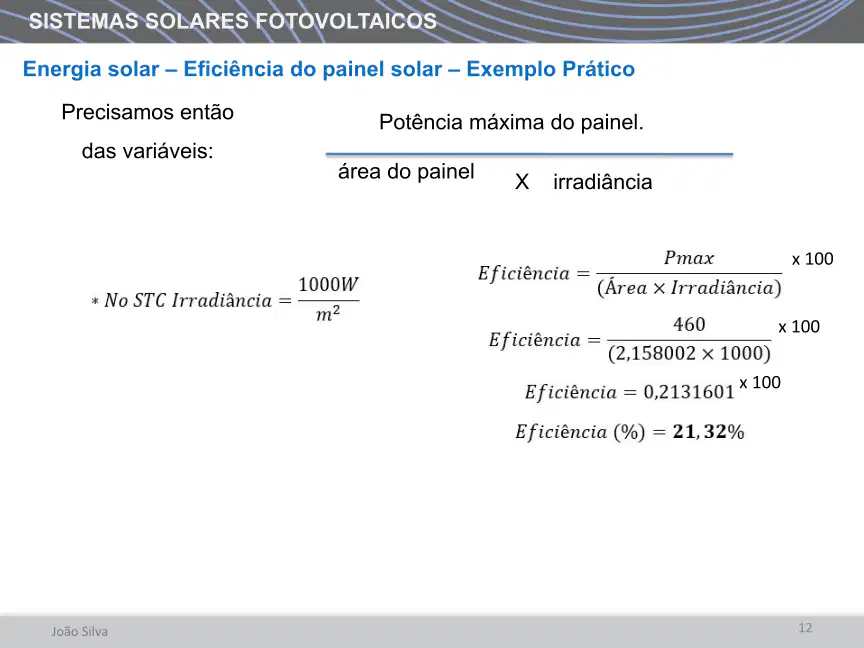

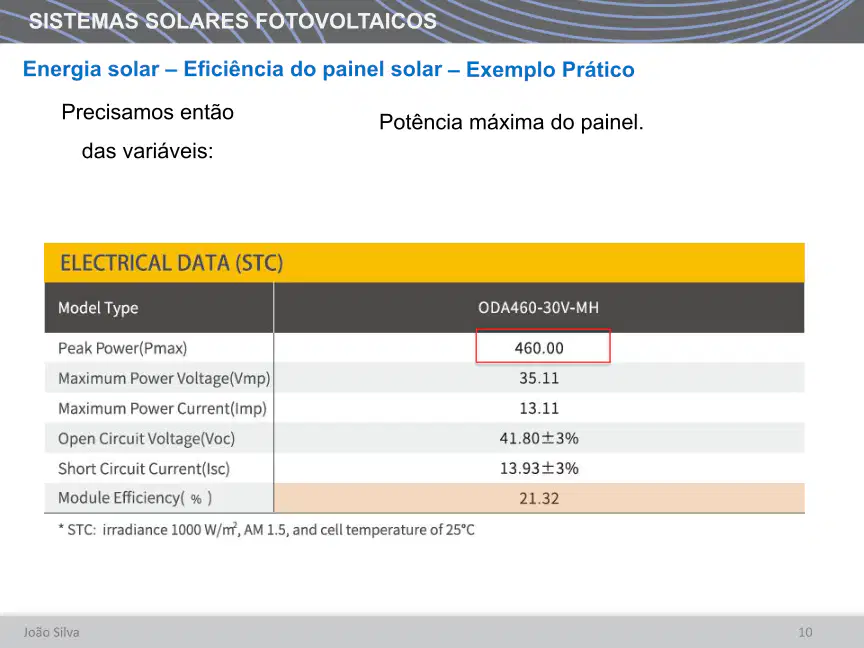

What is the efficiency percentage of the OSDA 460W solar panel as mentioned in its datasheet?

• 21.32%

• 18.50%

• 25.00%

• 19.75%

Open Ended

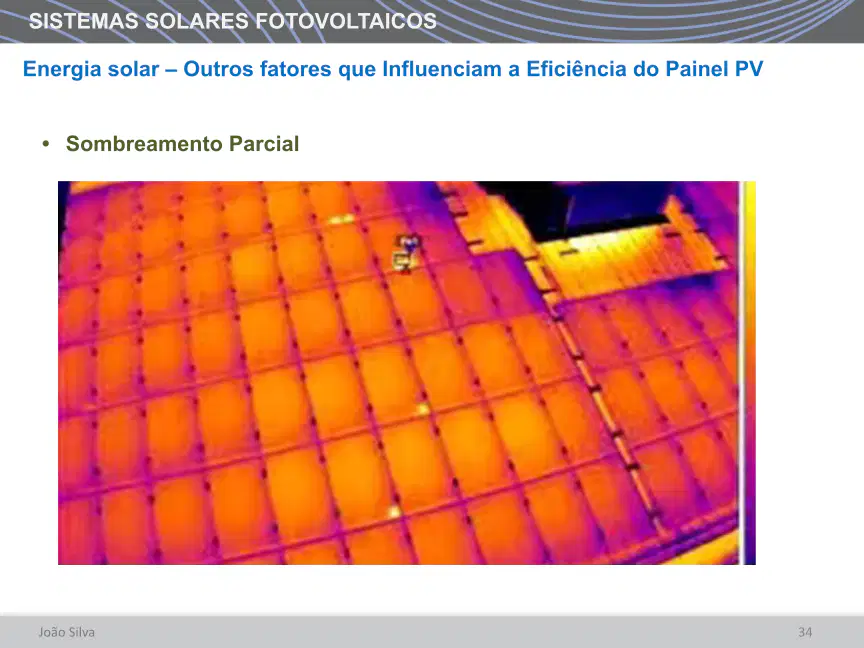

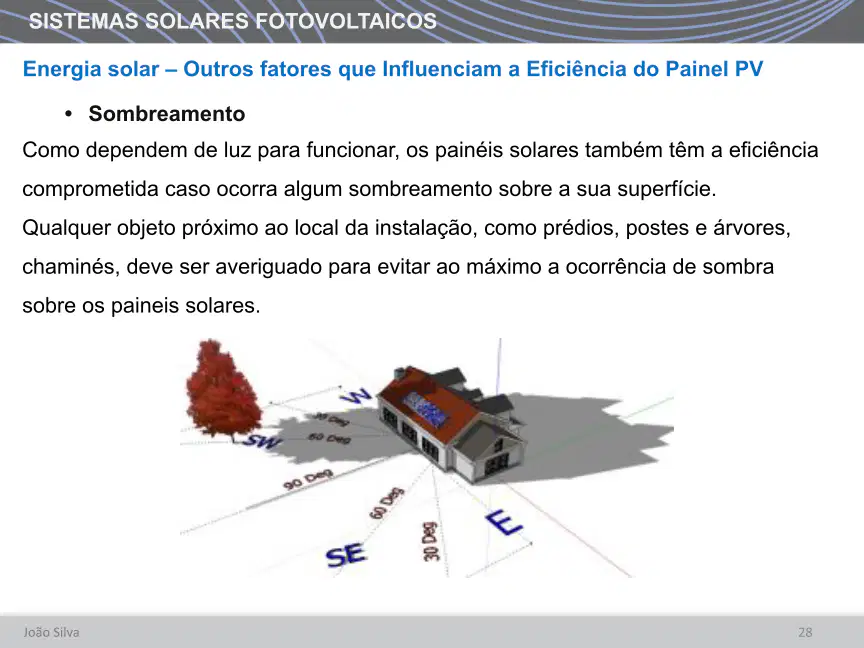

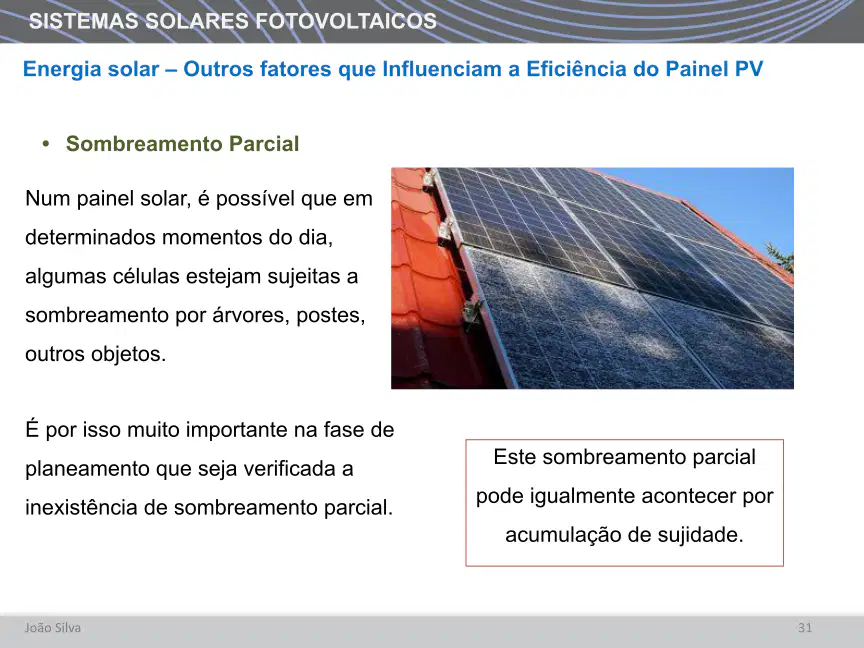

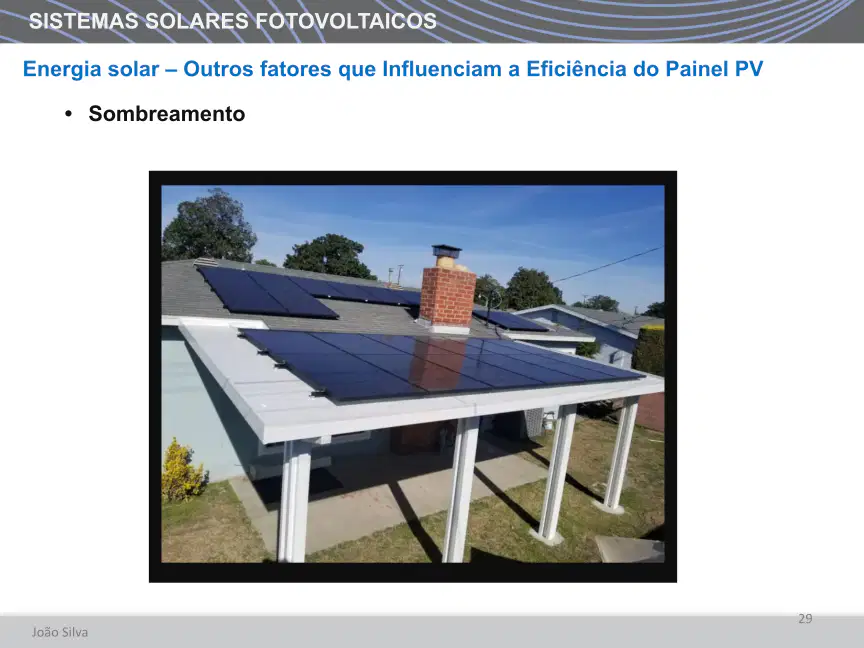

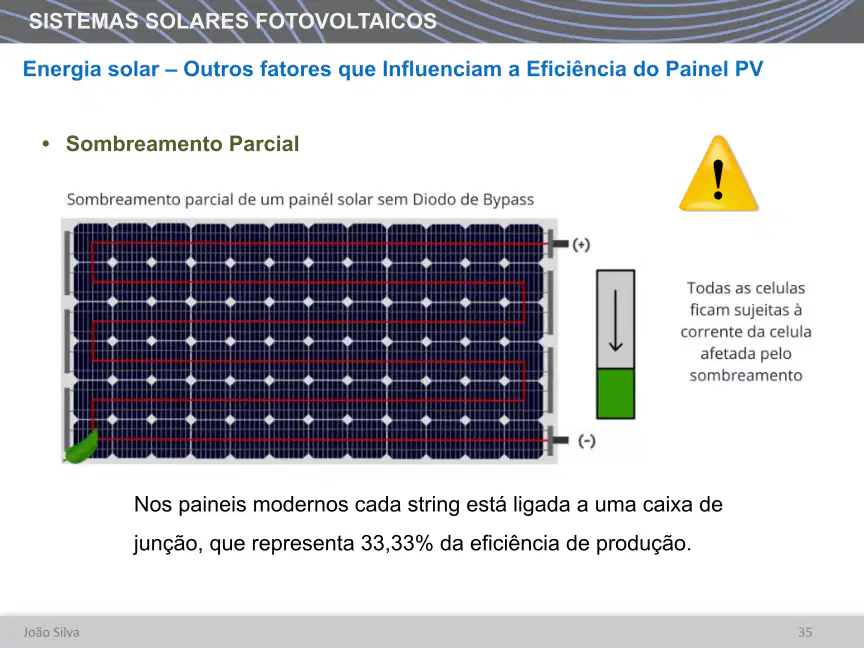

Describe two external factors that can influence the efficiency of a photovoltaic panel installed on a house.

Multiple Choice

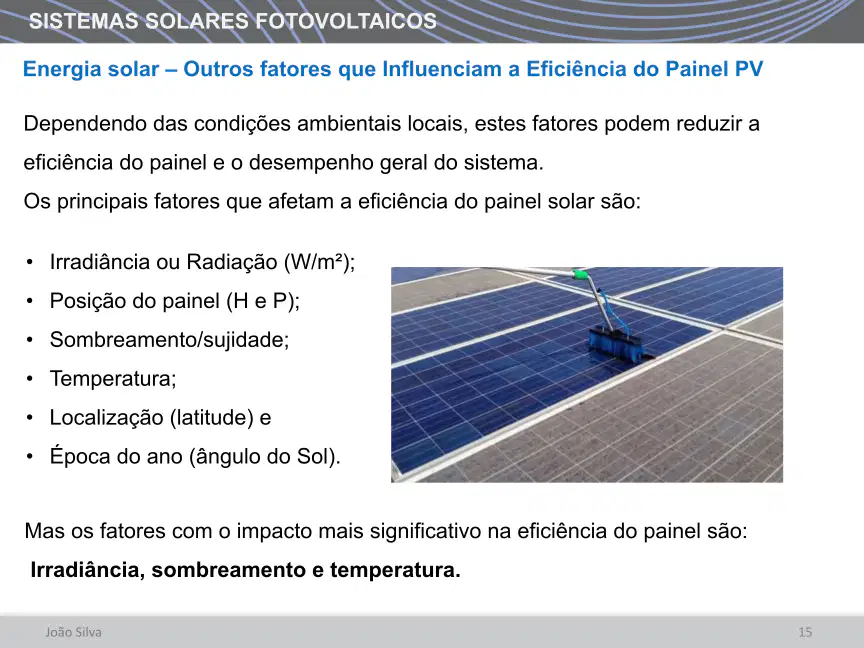

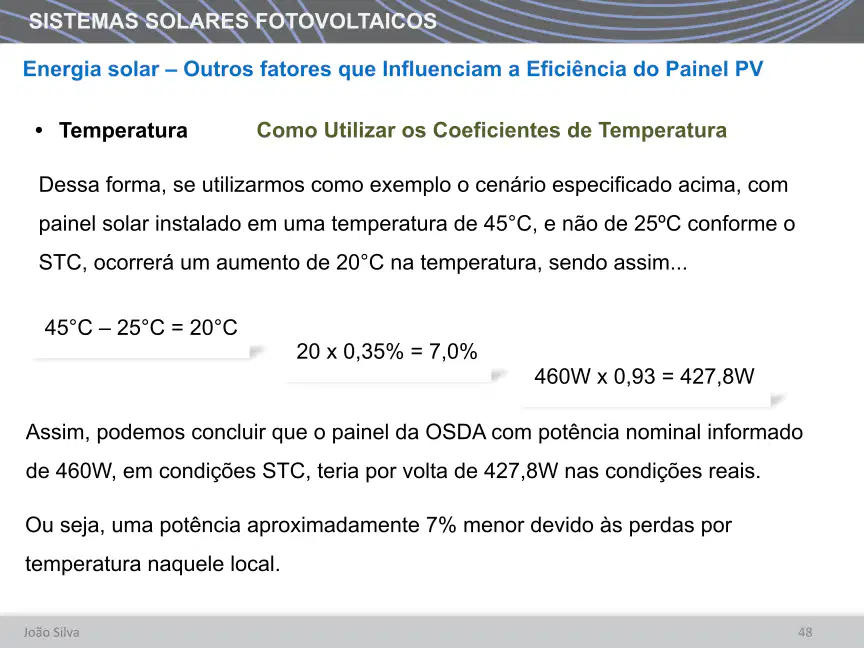

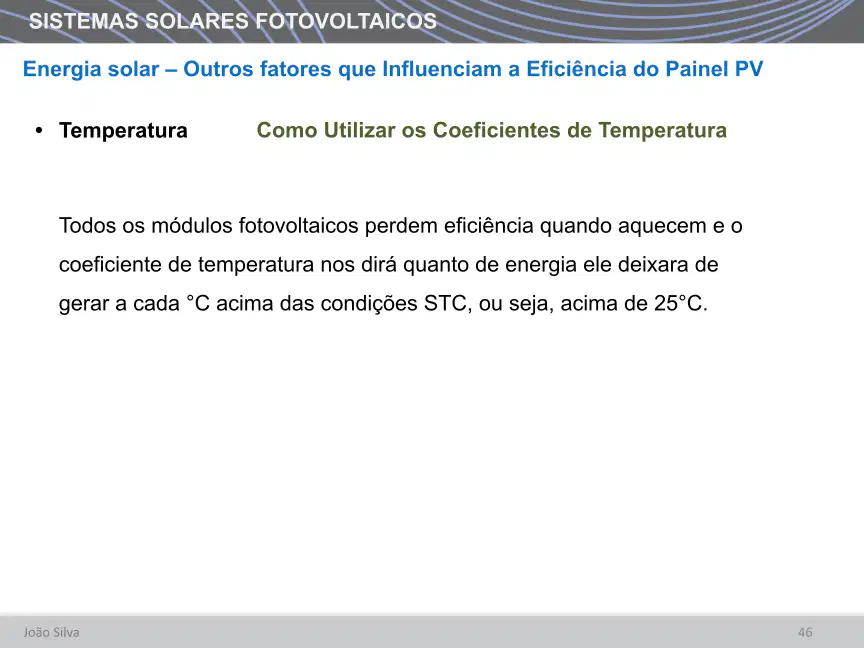

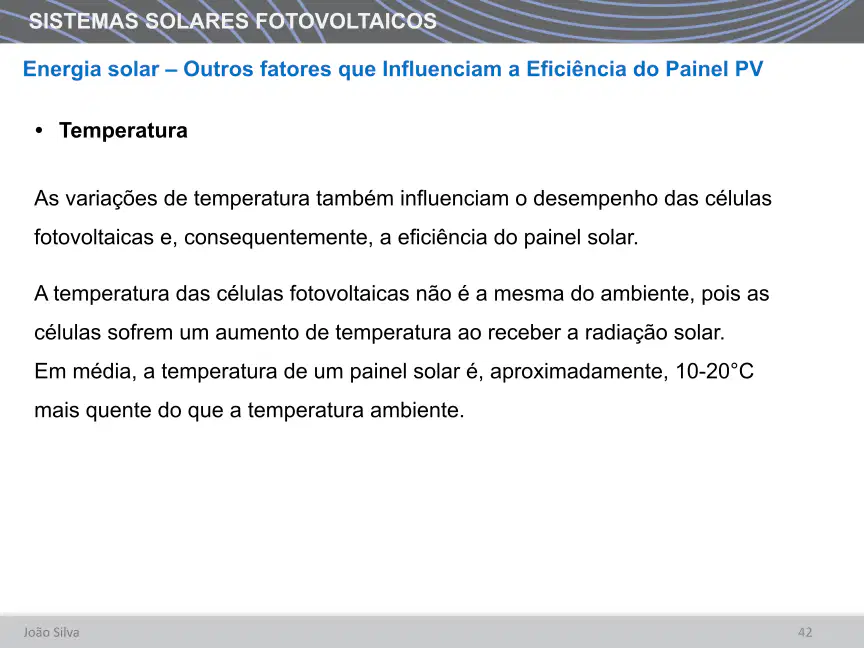

Which of the following factors has the most significant impact on the efficiency of a solar panel?

• Panel position

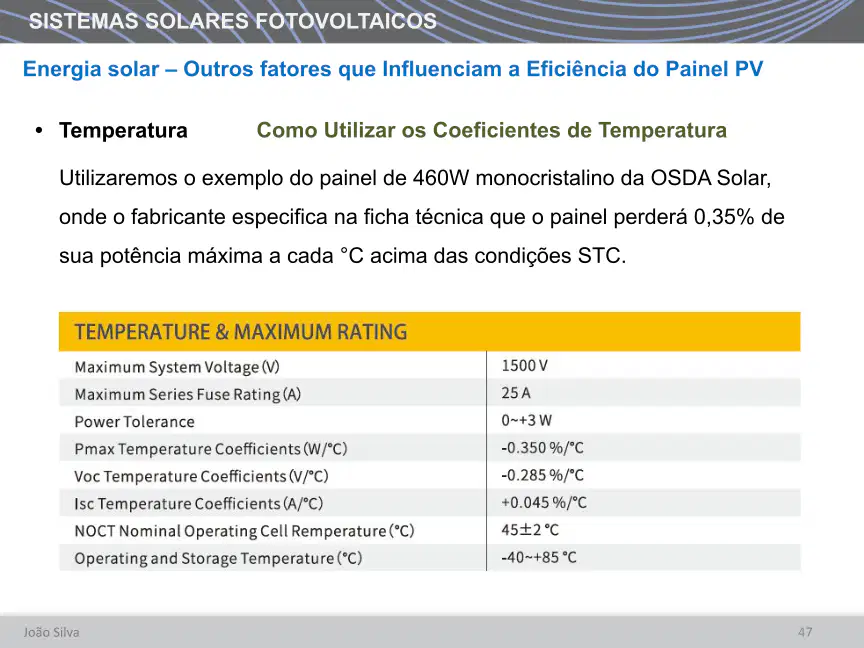

• Temperature

• Irradiance

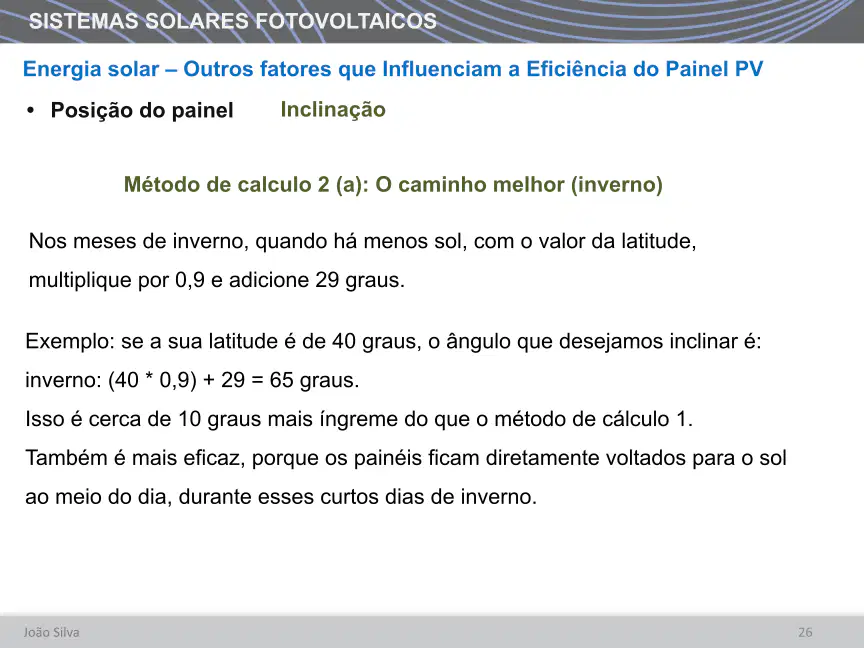

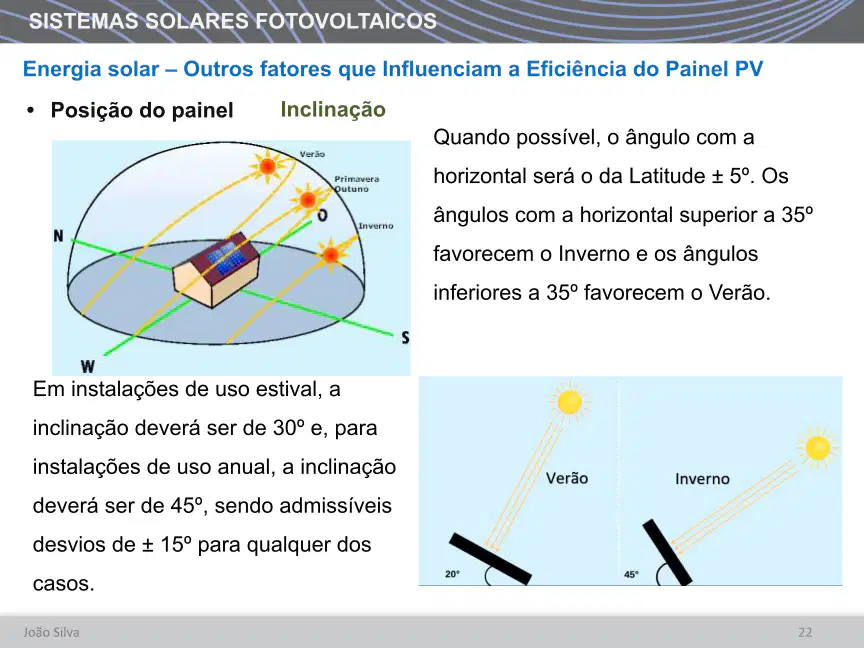

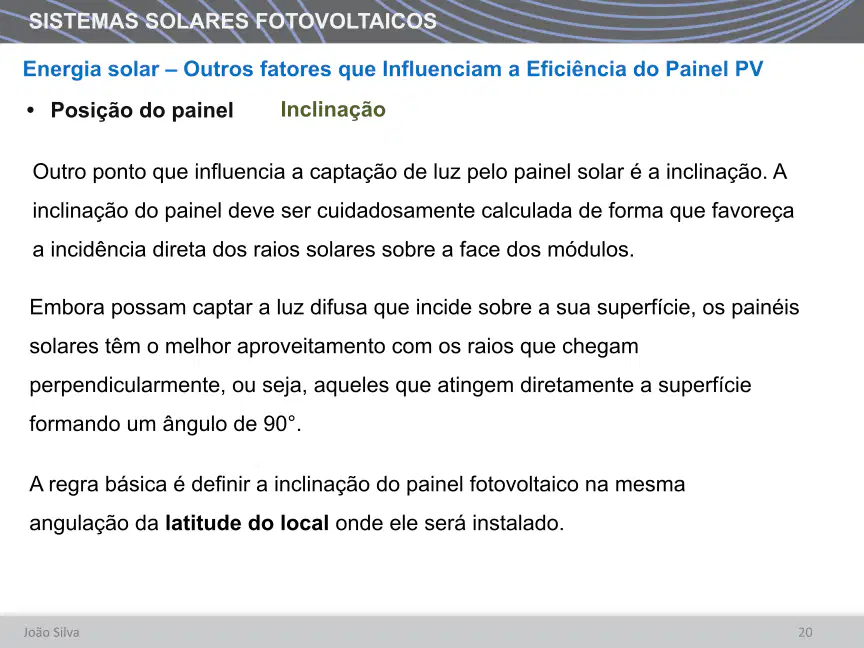

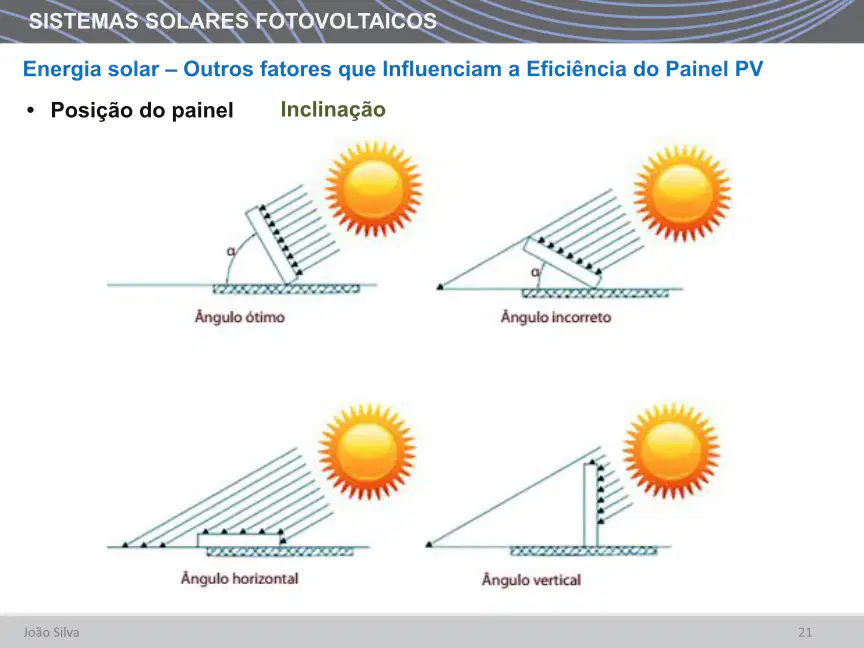

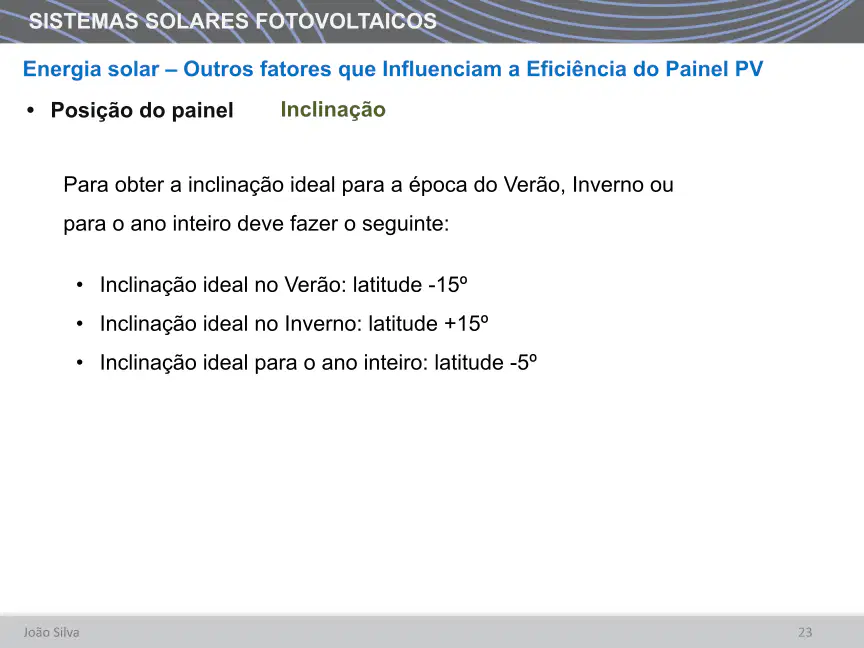

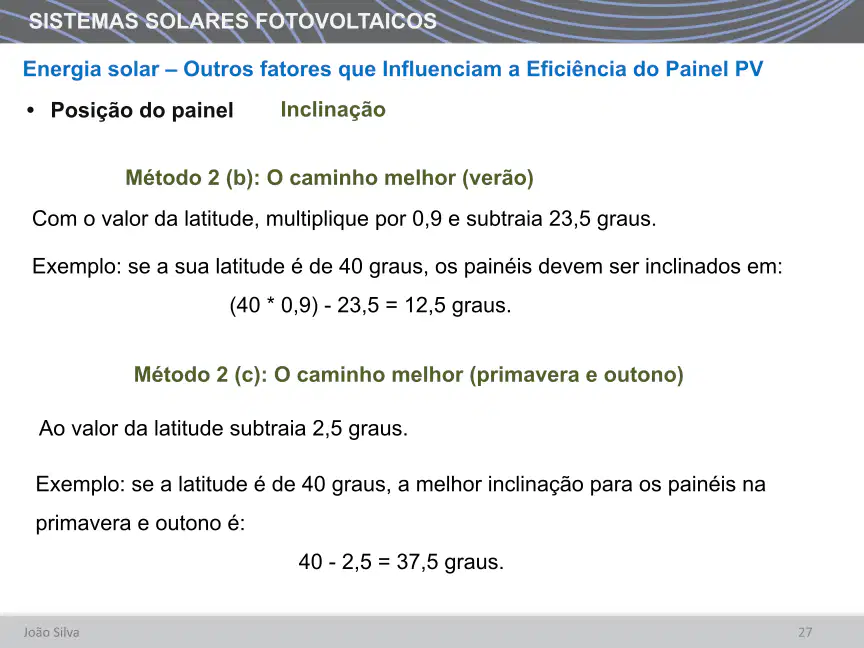

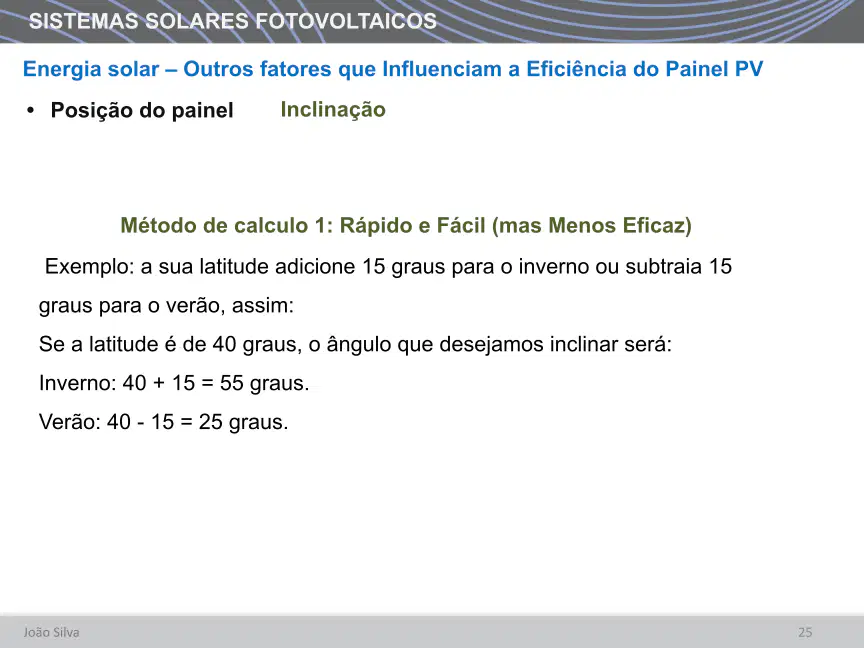

• Panel inclination

Multiple Select

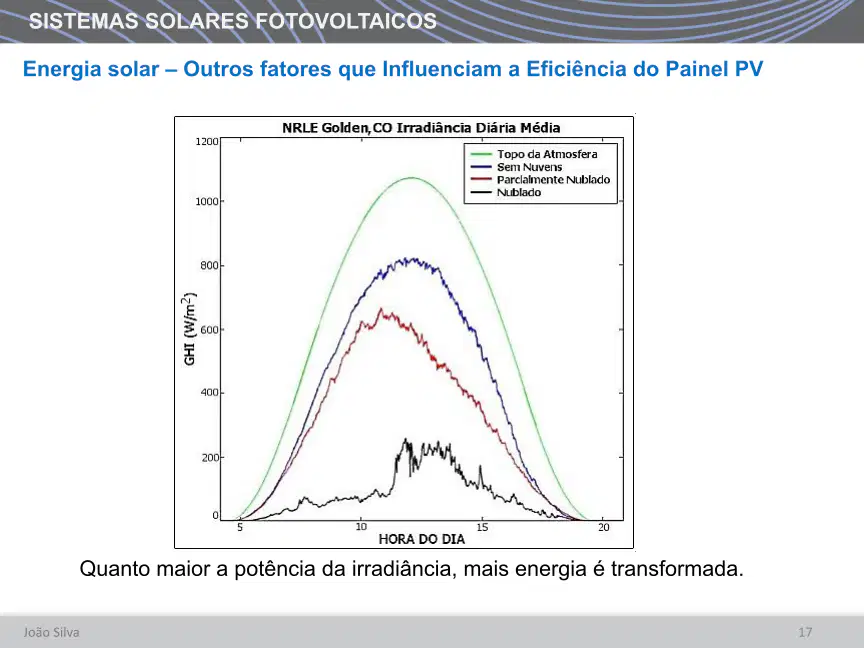

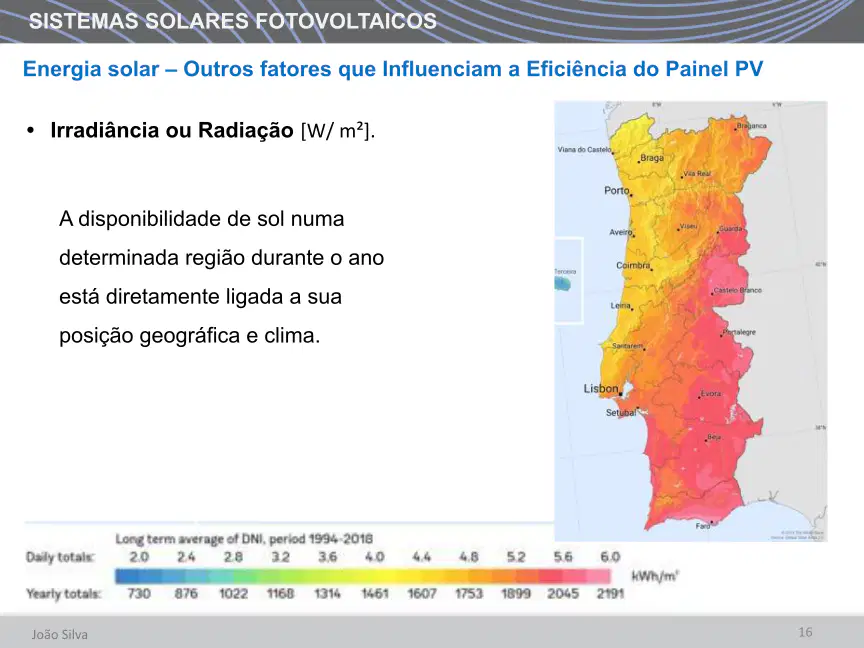

Which of the following conditions would result in higher solar irradiance and energy transformation according to the daily irradiance graph?

• Clear sky (no clouds)

• Partially cloudy

• Cloudy

• Top of the atmosphere

Multiple Choice

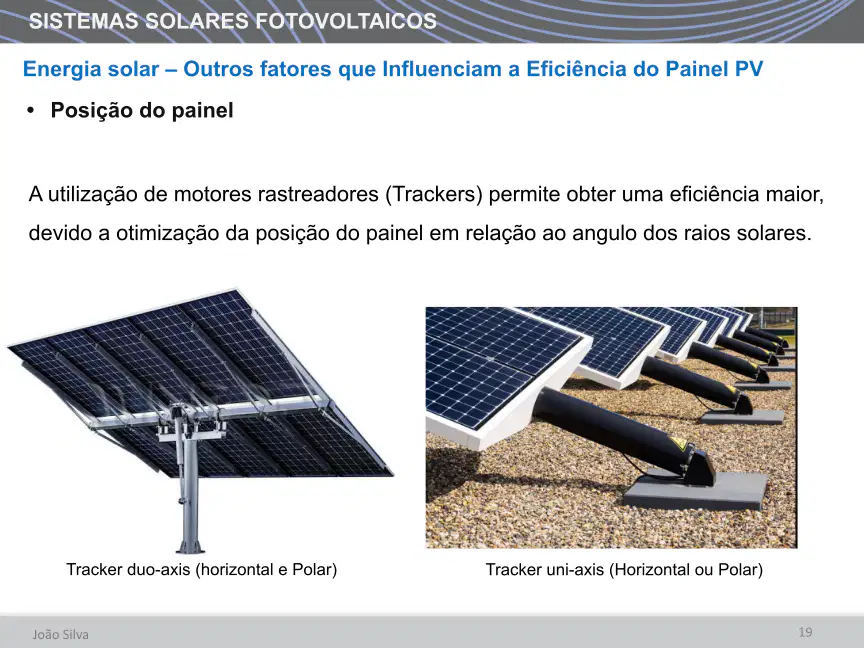

What is the main advantage of using solar panel trackers?

• They reduce panel maintenance costs

• They optimize the panel's position for maximum solar exposure

• They increase the panel's lifespan

• They decrease the need for cleaning
