joint fit up

Multiple Choice

What is the focus of Module 29110?

• Welding Techniques

• Joint Fit-Up and Alignment

• Safety Procedures

• Material Selection

Multiple Choice

What are the key tools used for joint fit-up and alignment in welding?

• Welding machine

• Clamps

• Measuring tape

• All of the above

Multiple Choice

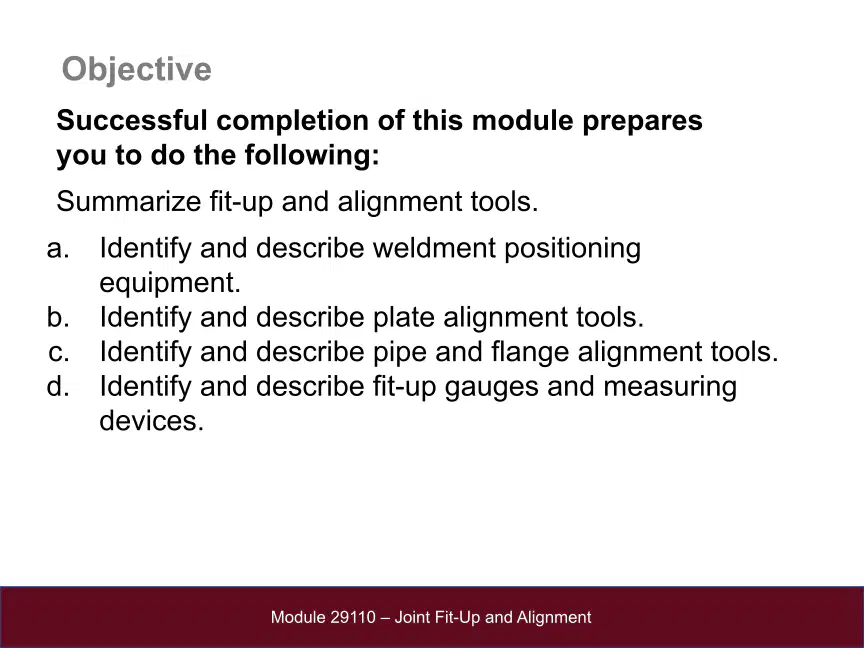

What are the key objectives of this module on fit-up and alignment tools?

• Identify weldment positioning equipment

• Describe plate alignment tools

• Identify pipe and flange alignment tools

• Describe fit-up gauges and measuring devices

Multiple Choice

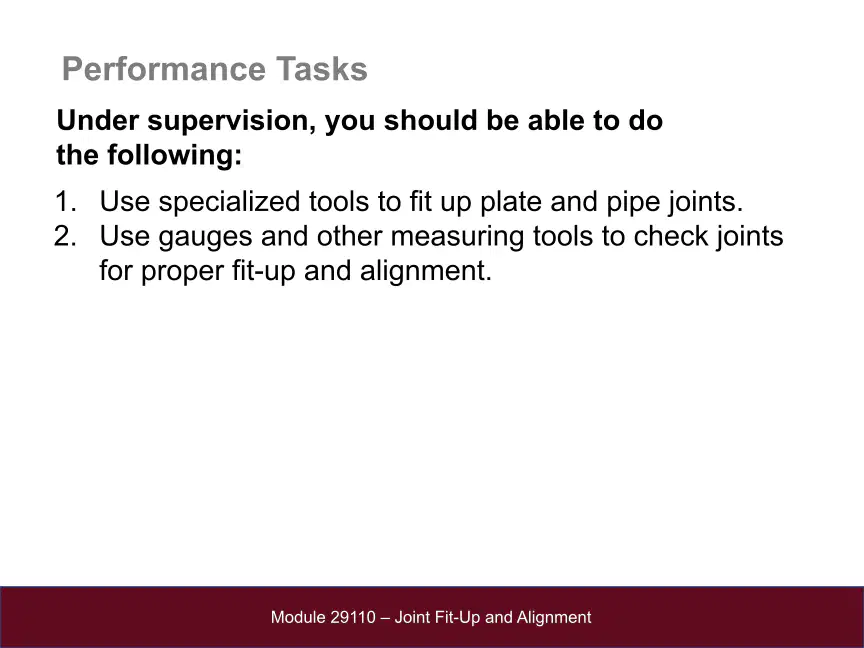

What are the two performance tasks you should be able to do under supervision?

• Use specialized tools to fit up plate and pipe joints.

• Use gauges and other measuring tools to check joints for proper fit-up and alignment.

• Use hand tools for general maintenance.

• Inspect tools for safety compliance.

Multiple Choice

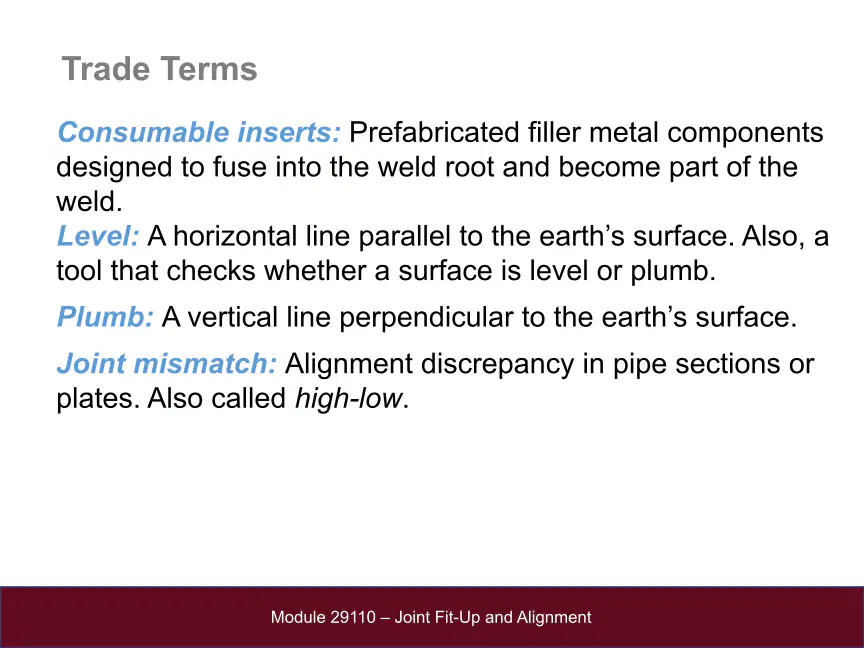

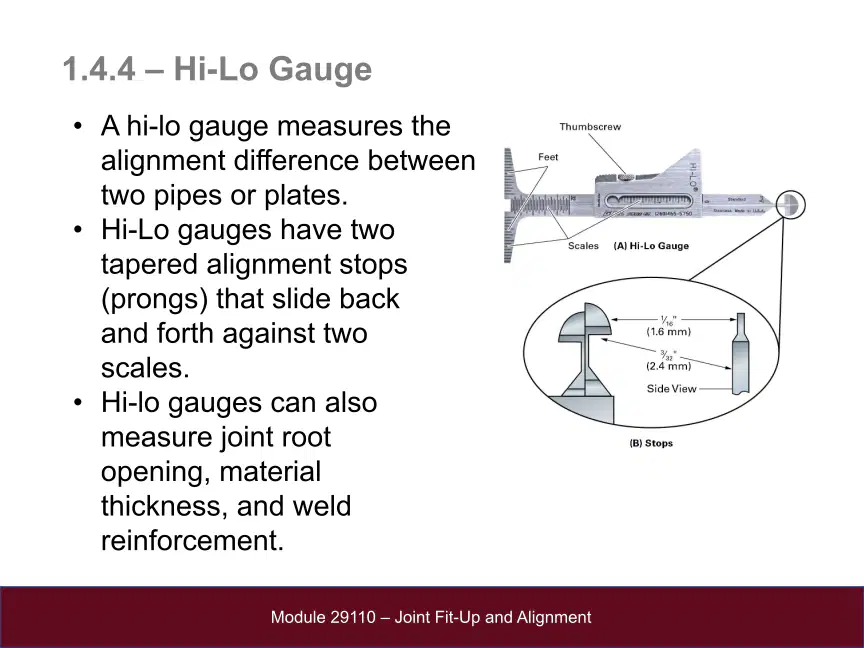

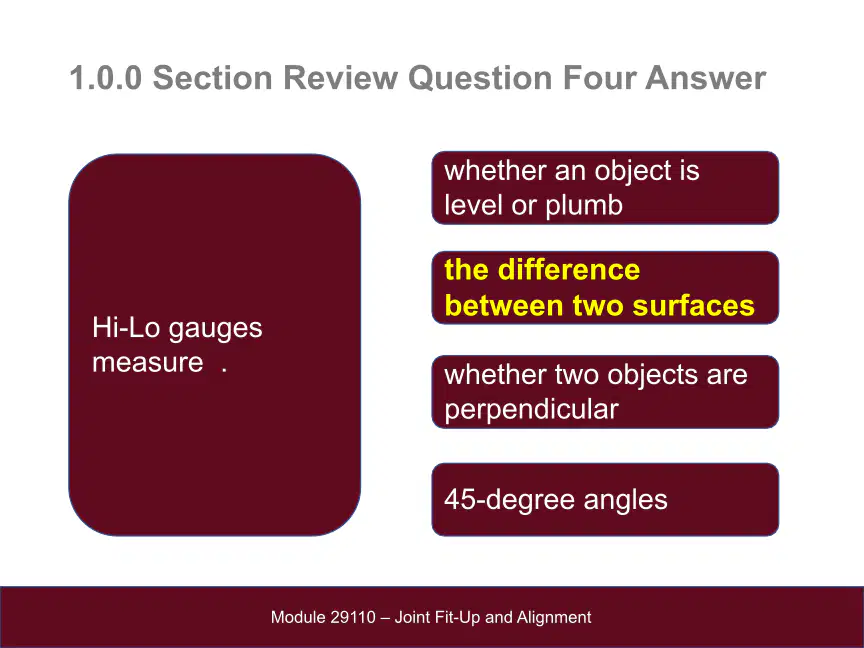

What is the definition of 'Joint mismatch'?

• Alignment discrepancy in pipe sections or plates

• A horizontal line parallel to the earth’s surface

• A vertical line perpendicular to the earth’s surface

• Prefabricated filler metal components

Multiple Choice

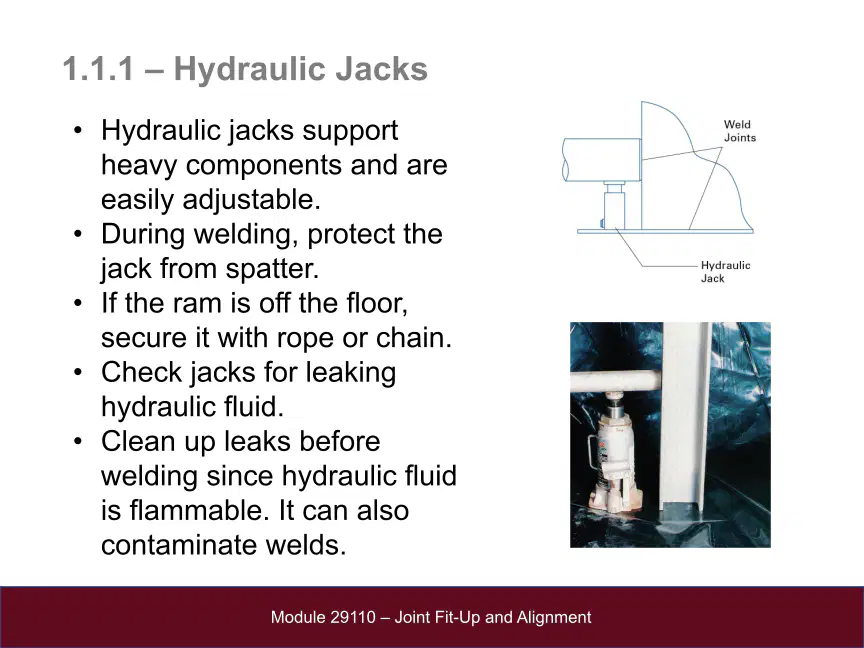

What precautions should be taken when using hydraulic jacks during welding?

• Protect the jack from spatter

• Leave the ram off the floor

• Ignore leaking hydraulic fluid

• Use any type of fluid

Multiple Choice

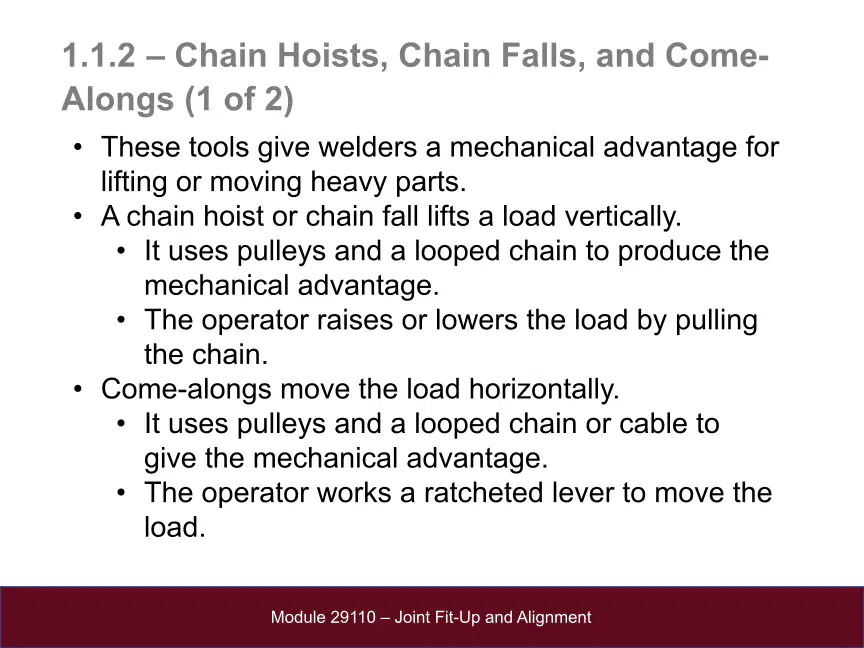

What mechanism does a come-along use to move the load?

• A straight chain

• A looped chain or cable

• A pulley system without a chain

• A hydraulic system

Multiple Choice

What is the purpose of a chain hoist or chain fall?

• To lift loads vertically

• To move loads horizontally

• To provide a mechanical disadvantage

• To lift loads using a straight chain

Multiple Choice

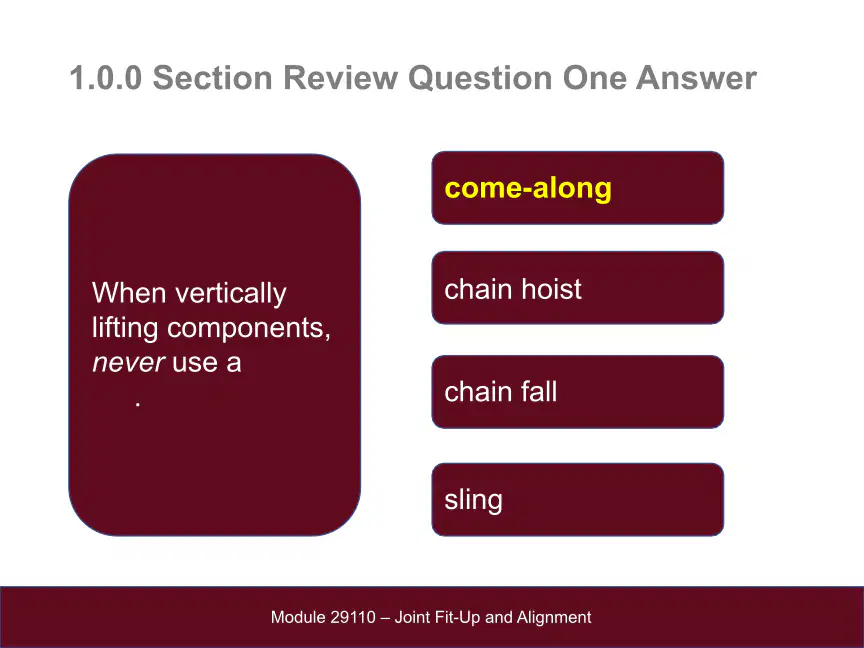

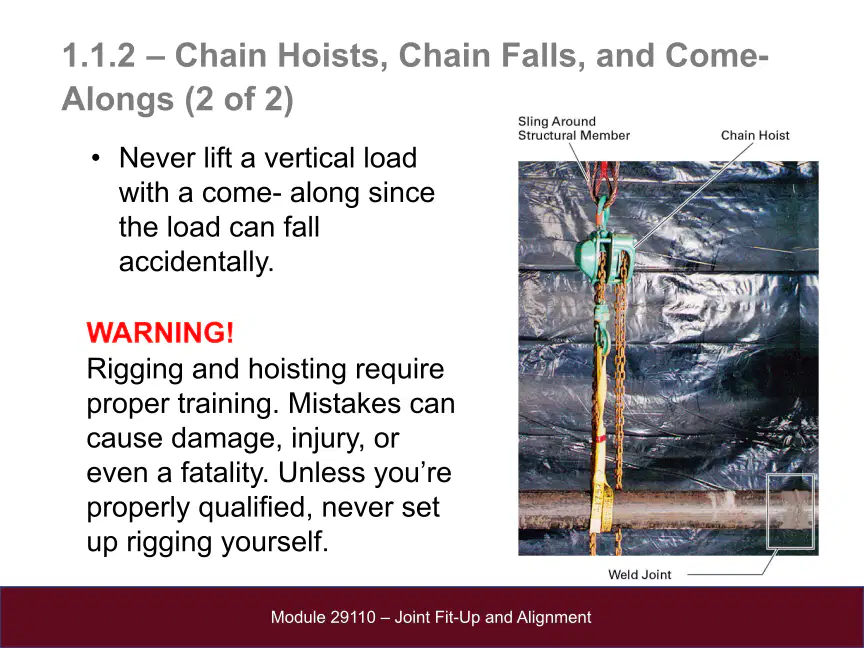

What should you never do when using a come-along?

• Lift a vertical load

• Lift a horizontal load

• Lift a load with a chain hoist

• Lift a load with a crane

Multiple Choice

The proper method for lifting is to lift with ______muscles.

• leg

• back

• arm

• abdominal

Multiple Choice

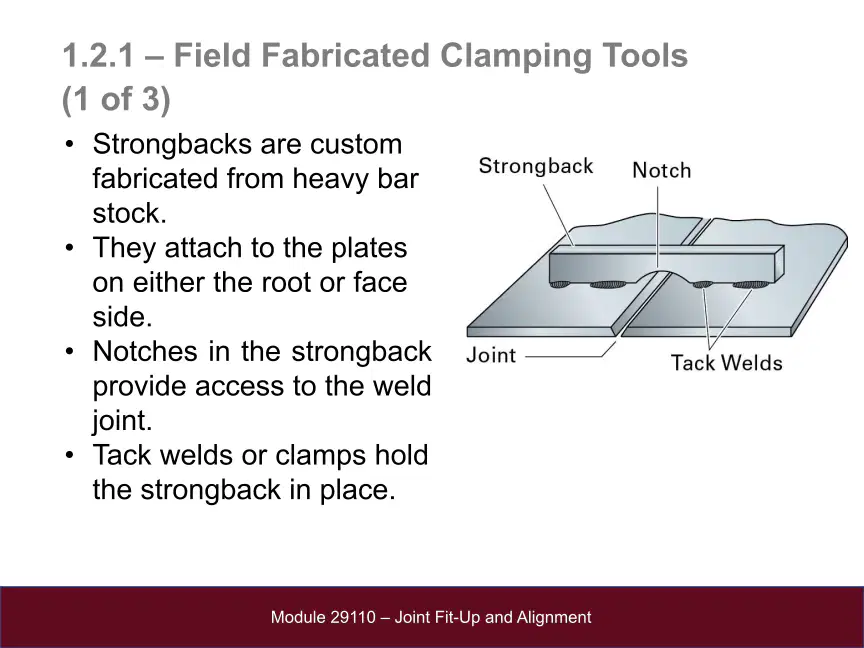

What are strongbacks fabricated from?

• Wood

• Plastic

• Heavy bar stock

• Aluminum

Multiple Choice

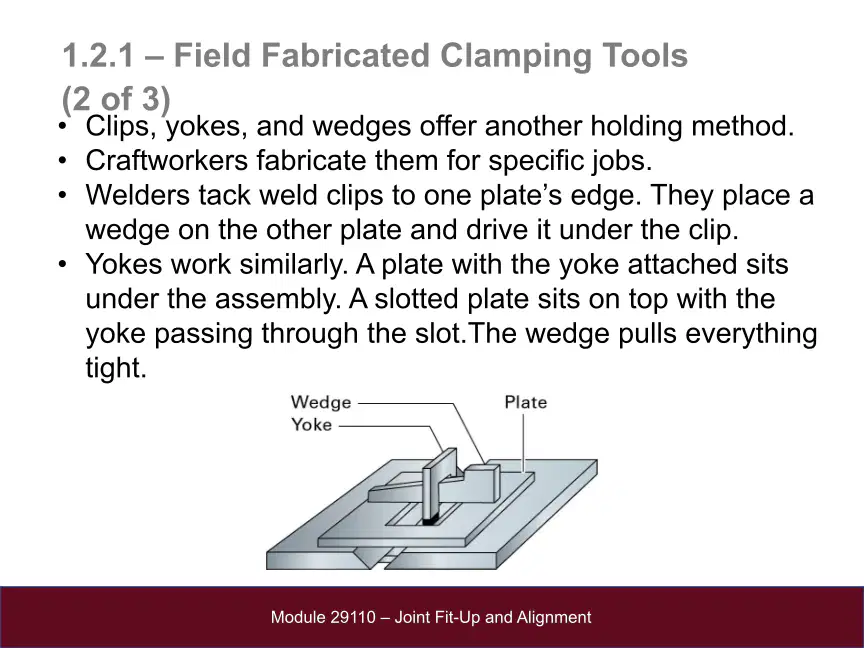

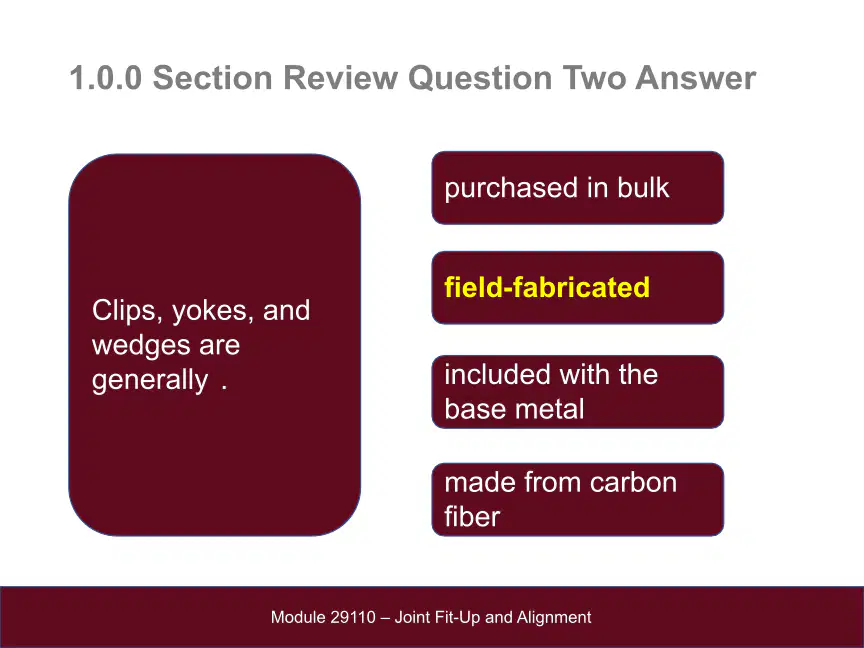

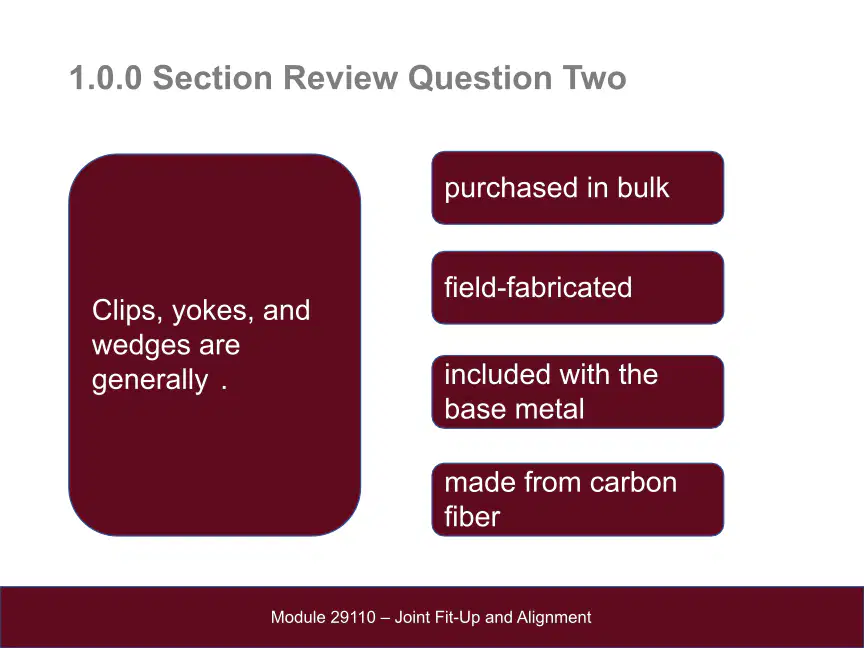

What are the components of the field fabricated clamping tools mentioned in the image?

• Clips

• Wedges

• Yokes

• All of the above

Multiple Choice

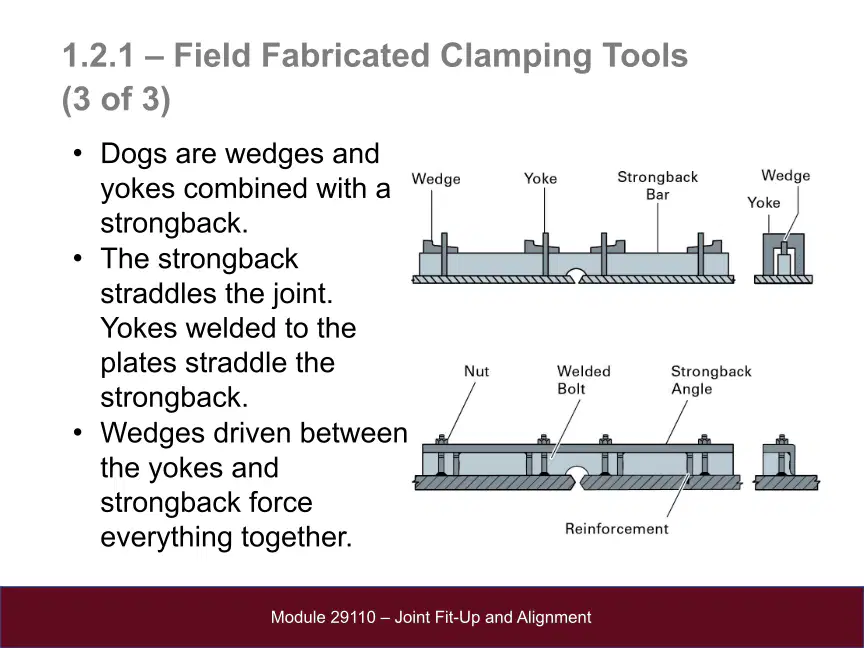

What are the components of dogs in field fabricated clamping tools?

• Wedges and yokes

• Nuts and bolts

• Strongback and yokes

• Welded angles

Multiple Choice

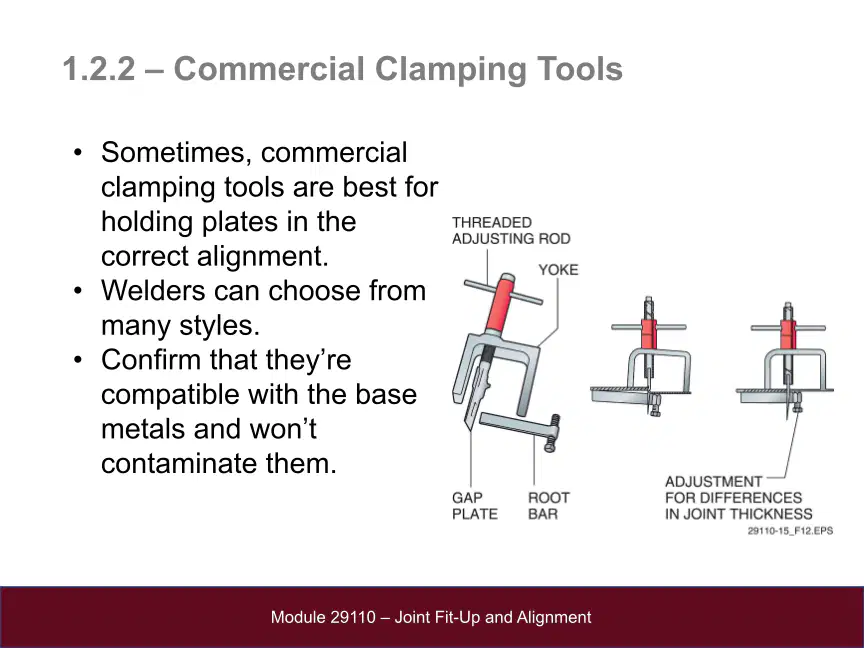

What are the key features of commercial clamping tools used for holding plates in the correct alignment?

• Compatibility with base metals

• Adjustable yoke

• Multiple styles available

• Contamination risk

Multiple Choice

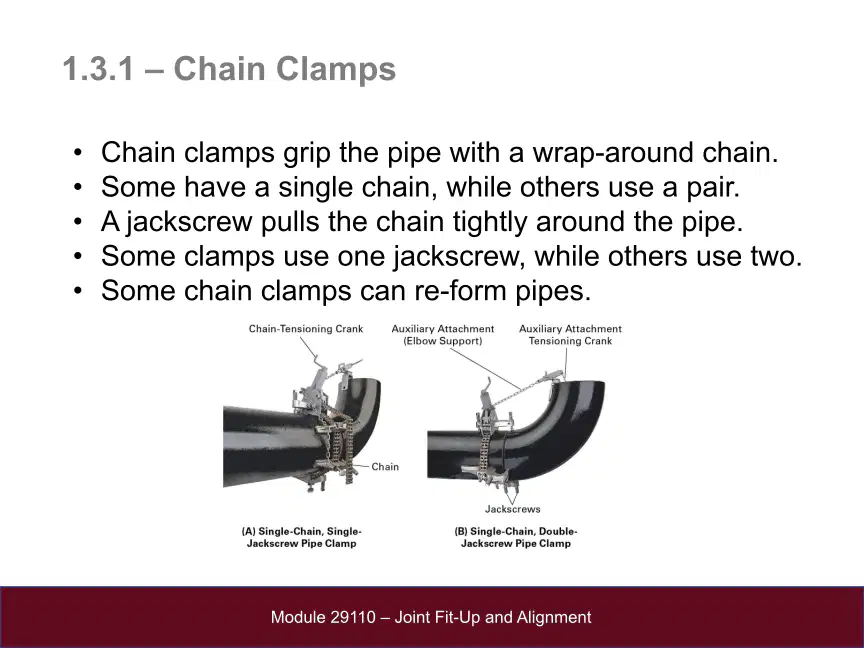

What are the different types of chain clamps mentioned in the text?

• Single-chain, single-jackscrew

• Double-chain, double-jackscrew

• Single-chain, double-jackscrew

• Triple-chain, single-jackscrew

Multiple Choice

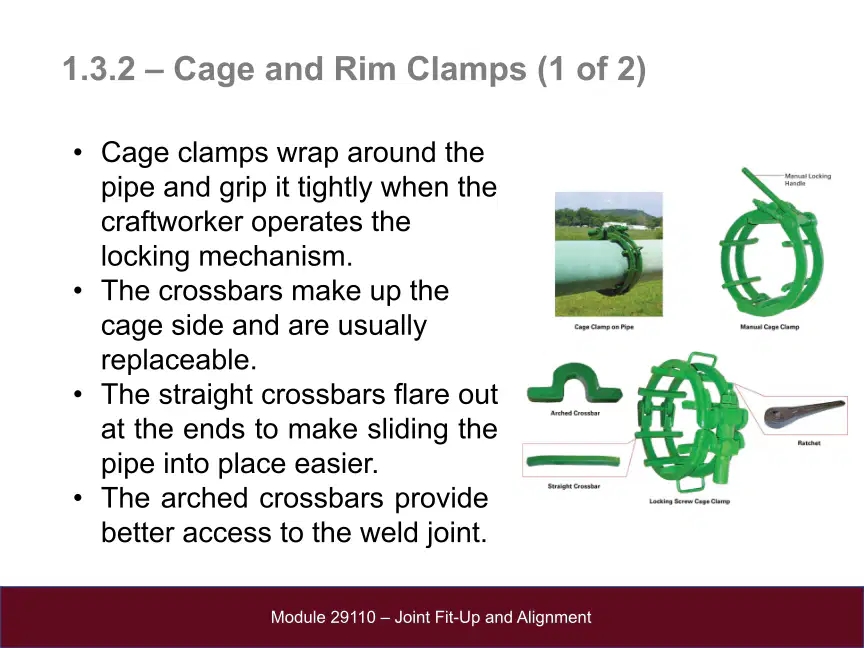

What is the function of cage clamps in pipe fitting?

• To hold the pipe in place

• To cut the pipe

• To measure the pipe length

• To paint the pipe

Multiple Choice

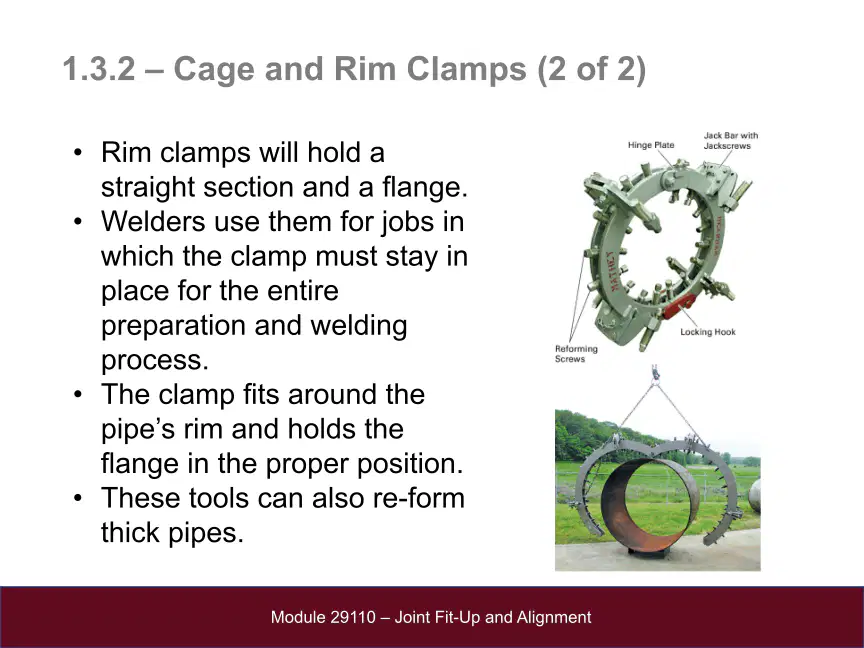

What is the purpose of rim clamps in welding?

• To hold a straight section and a flange

• To cut pipes

• To measure pipe thickness

• To paint pipes

Multiple Choice

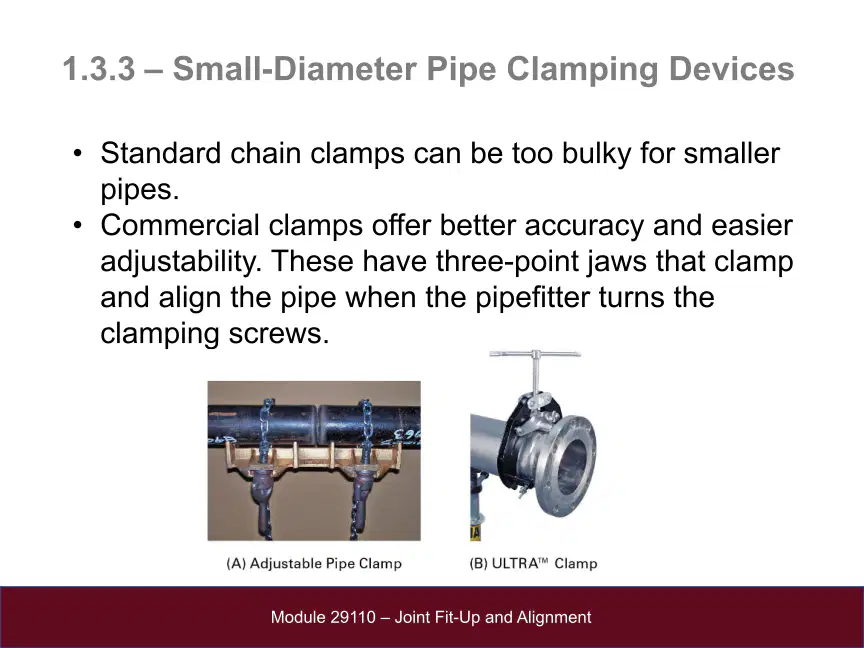

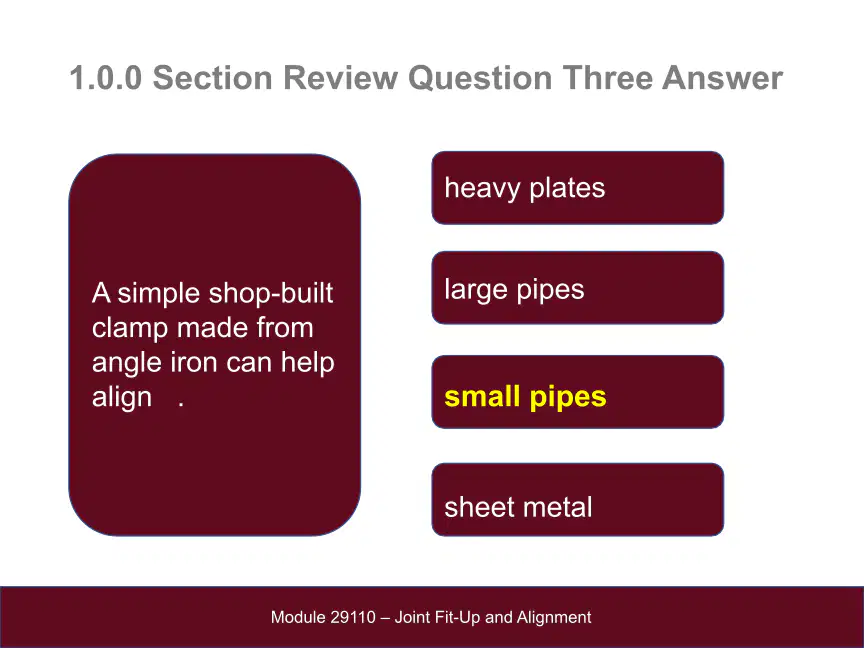

What are the advantages of using commercial clamps over standard chain clamps for small-diameter pipes?

• Better accuracy

• Easier adjustability

• More bulk

• Less expensive

Multiple Choice

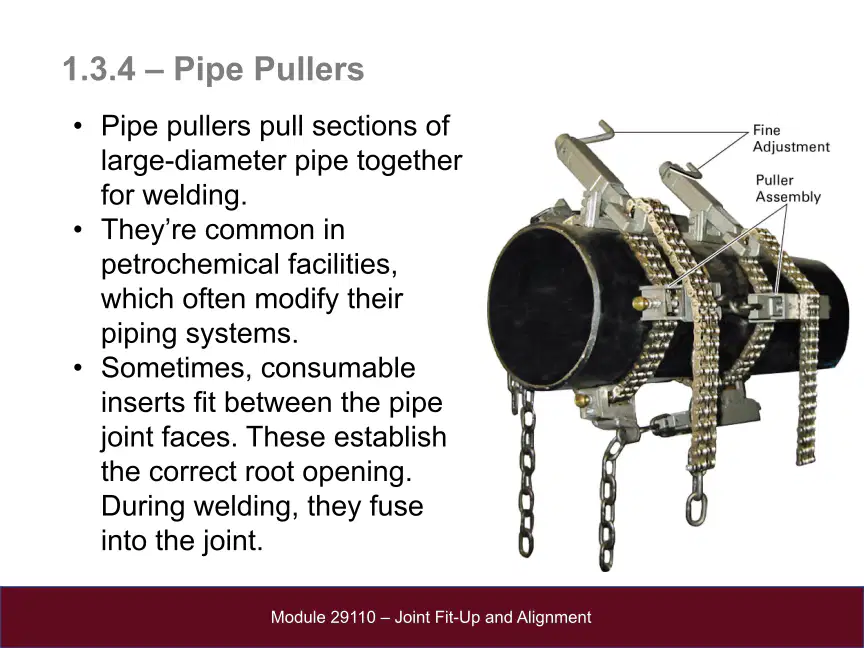

What is the primary function of pipe pullers in welding?

• To cut pipes

• To pull sections of large-diameter pipe together

• To measure pipe diameter

• To clean pipe surfaces

Multiple Choice

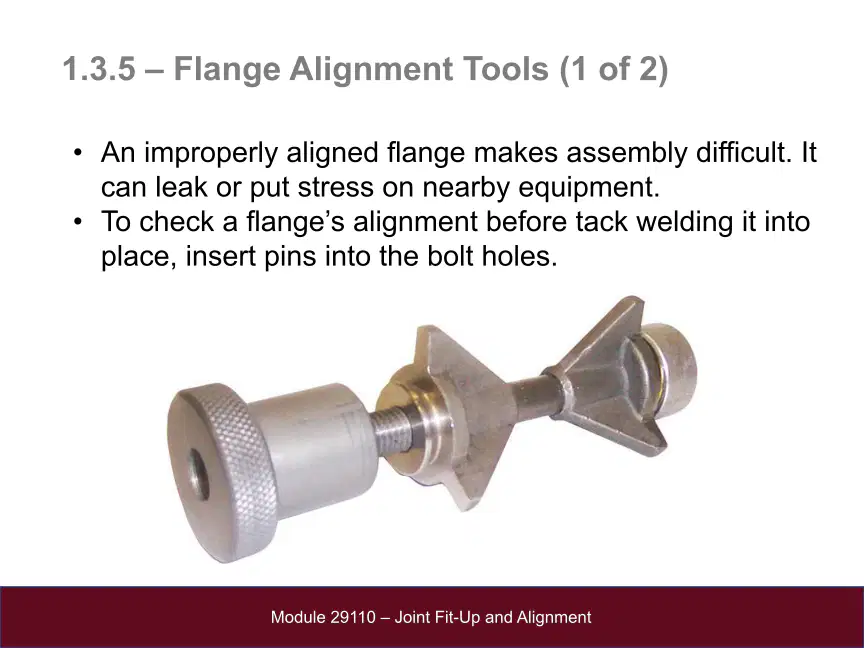

What can happen if a flange is improperly aligned?

• It can leak

• It can improve assembly

• It can reduce stress on equipment

• It can increase efficiency

Multiple Choice

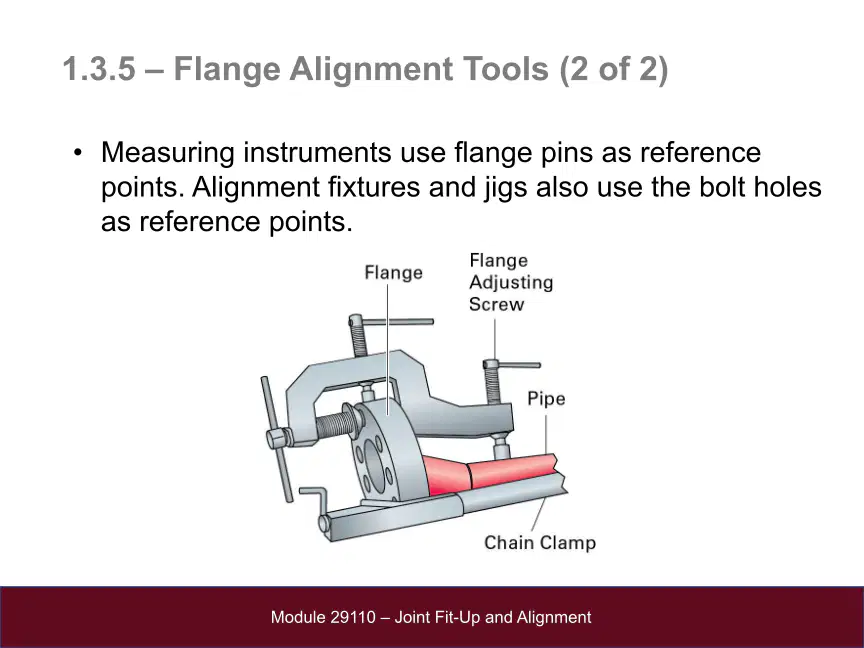

What are the reference points used by measuring instruments and alignment fixtures in flange alignment?

• Flange pins

• Bolt holes

• Chain clamps

• Flange adjusting screws

Multiple Choice

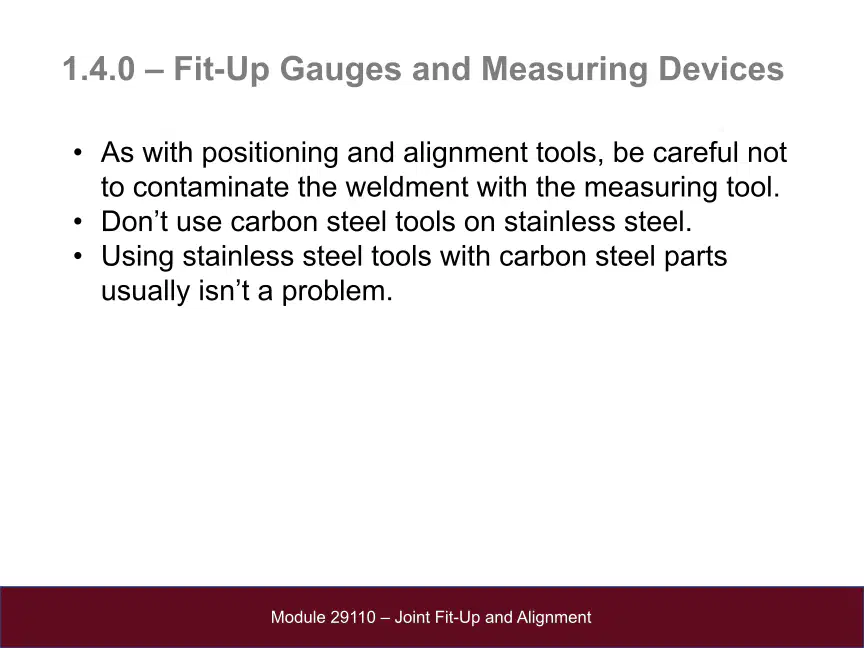

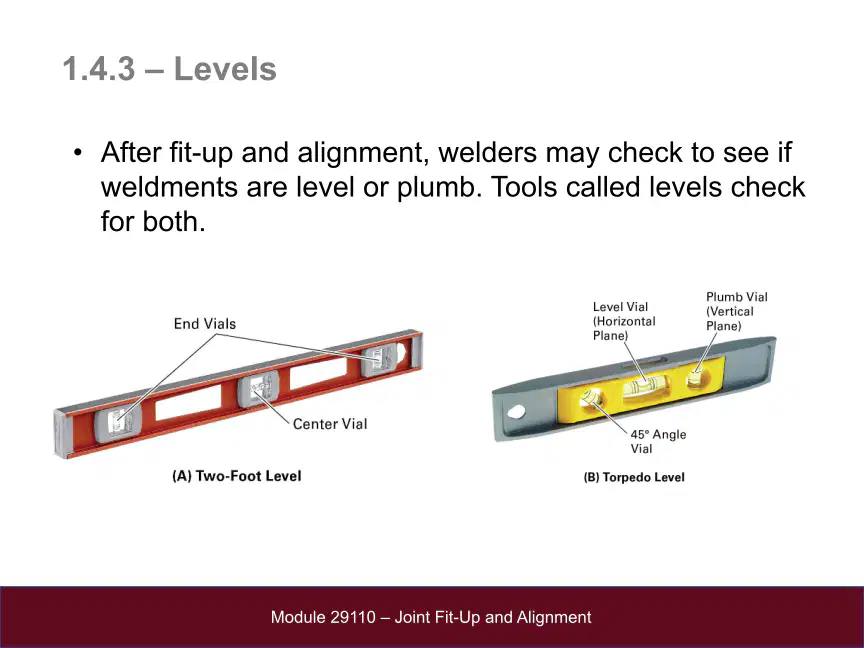

What should you be careful about when using measuring tools with weldments?

• Contaminating the weldment

• Using carbon steel tools

• Using stainless steel tools

• None of the above

Multiple Choice

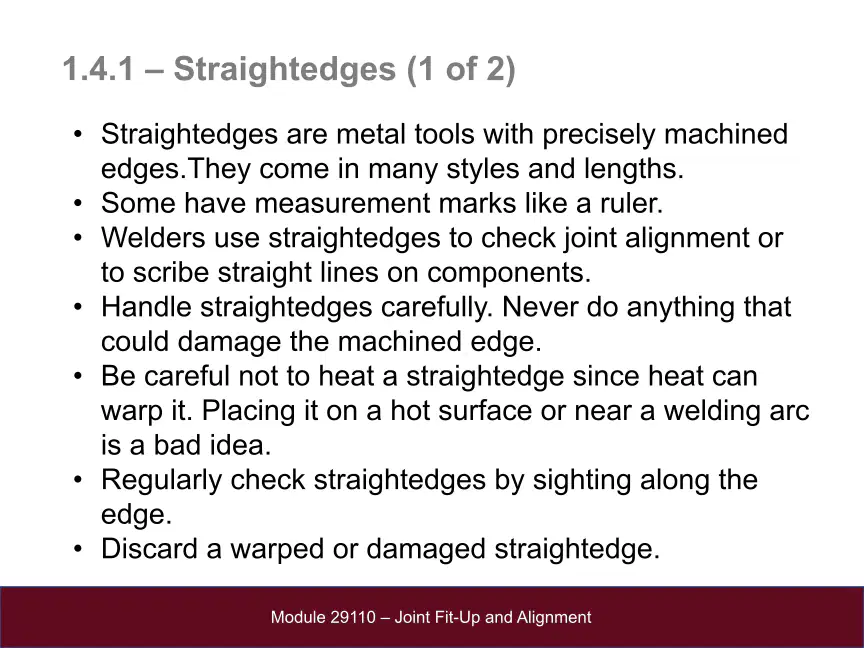

What are straightedges used for in welding?

• To measure angles

• To check joint alignment

• To cut materials

• To scribe curved lines

Multiple Choice

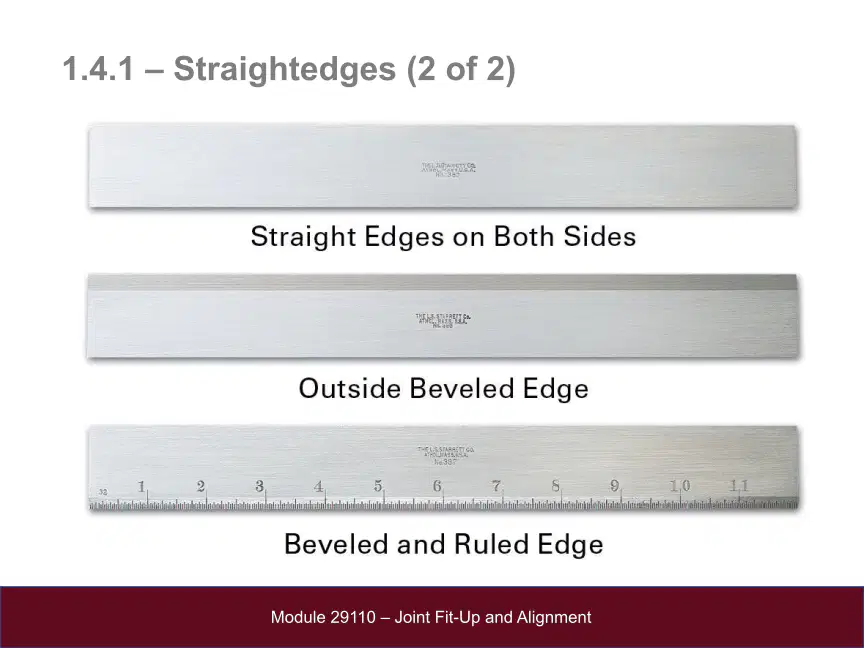

What are the three types of straightedges shown in the image?

• Straight Edges on Both Sides

• Outside Beveled Edge

• Beveled and Ruled Edge

• Curved Edge

Multiple Choice

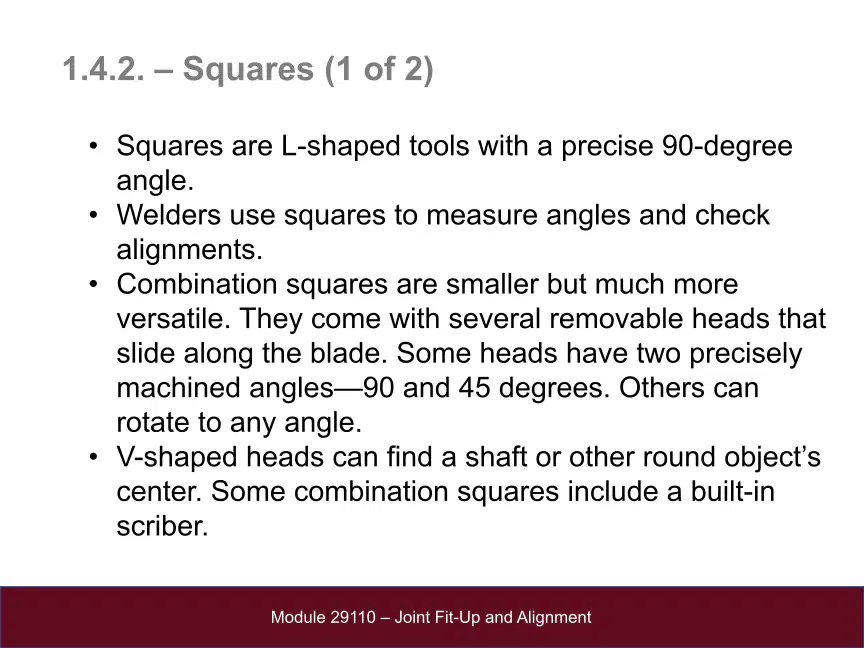

What are the uses of squares in welding?

• To measure angles

• To cut materials

• To check alignments

• To draw lines

Multiple Choice

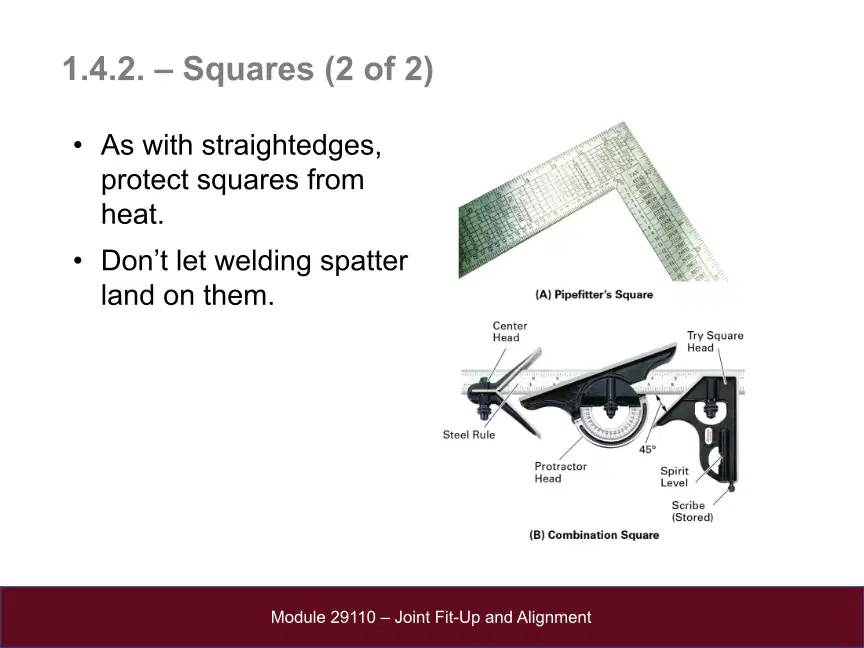

What precautions should be taken to protect squares during welding?

• Keep them away from heat

• Use them only on cold surfaces

• Store them in a dry place

• Use them for cutting
