​Connecting and Programming a servo motor in Arduino UNO

By Dania Mouawad

Multiple Choice

LCD Screen
An LCD screen with Arduino is used whenever you want the Arduino to display information to the user.

• Inout

• Output

Multiple Choice

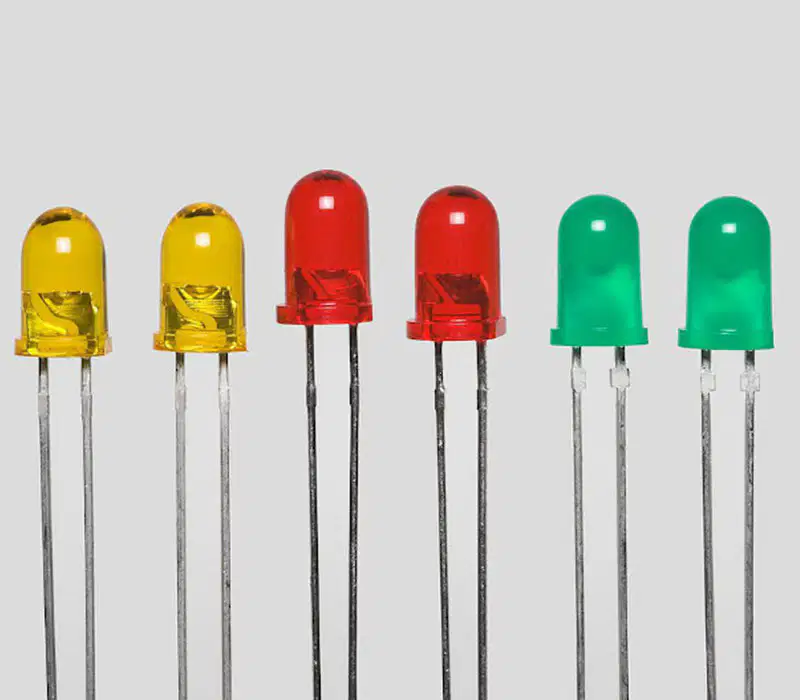

LED

• Inout

• OutPut

Multiple Choice

A PIR Motion Sensor (Passive Infrared Sensor) is used to detect human or animal movement by sensing changes in infrared (heat) levels.

• Input

• Outout

Multiple Choice

Joy stick

• Input

• Output

Multiple Choice

Ultrasonic Sensor, measure distance without touching anything. It works like a bat: it sends a sound wave and measures how long it takes to bounce back.

• Input

• Output

Multiple Choice

Servo Motor

• Output

• Input

Objectives:

1- Understand what a servo motor and identify the three main wires of a servo (VCC, GND, Signal) and their roles.
2-Connect a servo motor correctly to an Arduino board.
3- Using the laibrary to extract the codes that control servo motor.
4- Relate the project to real-life technologies.

5- Test and adjust the circuit for correct response.

A servo motor is a special type of motor that can rotate to a specific angle (like 0°, 90°, 180°) accurately and smoothly.

What is a Servo motor?

Why Do We Use a Servo Motor?

​Robotic arms - Smart door locks - Moving parts of robots - Automatic gates

https://youtube.com/shorts/eTVKQiQo_-o?si=QNS0Cw0FHwsbdY3C

Fill in the Blanks

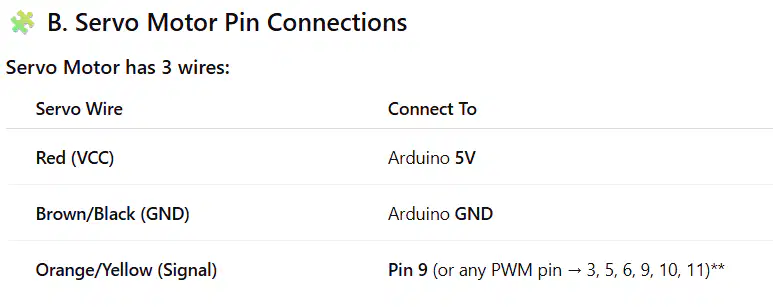

Which color do you think connects to the Arduino’s 5V in Servo Motor ?

💻 Sample Arduino Code:

1- Include the servo Library:

This line tells the Arduino to use the servo library, which contains all the instructions needed to communicate with the servo motor.

• Sketch → Include Library → Manage Libraries → Search “servo” → Install.

• File → example → sweep → connect → upload.

Open Ended

Now that you’ve learned to Connecting and Programming a Servo motor, how could you use this skill to create something useful or fun in real life?

Poll

⭐ Rate Your Learning (1–5)

• ⭐⭐⭐⭐⭐
  I completely understood and I can teach it to a friend!

• ⭐⭐⭐⭐
  I understood most parts

• ⭐⭐⭐
  I understood some, but I need more practice

• ⭐⭐
  I need more help

• ⭐
  I felt lost today.
