Domestic Hot Water 4 - Installation

Multiple Choice

Why is it important to understand the installation requirements of domestic hot water plumbing systems?

• To ensure safety and efficiency in the home

• To reduce the cost of installation

• To make the system look more attractive

• To avoid using any plumbing tools

Open Ended

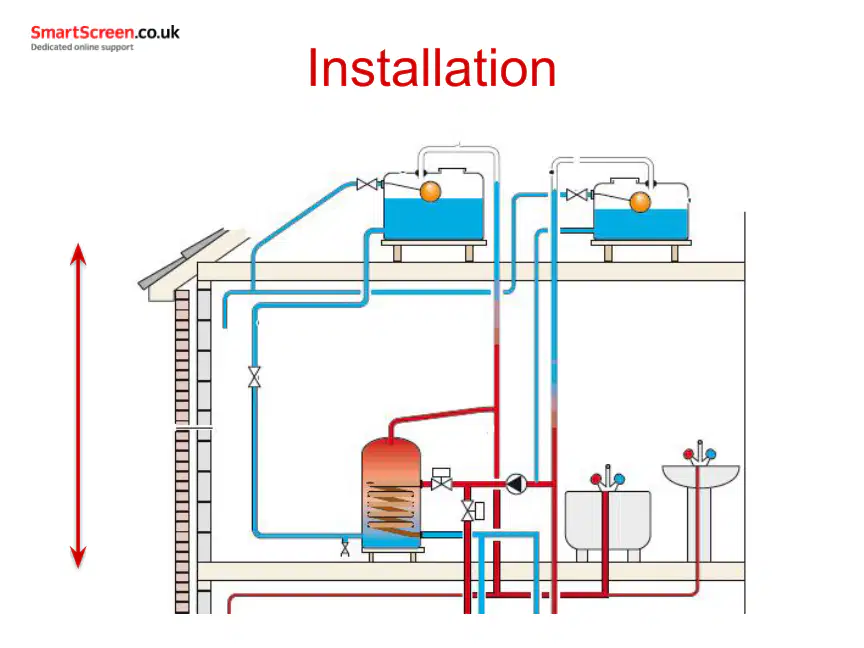

How does the height difference between the cold water storage cistern and the hot water cylinder affect the performance of a gravity fed hot water system?

Multiple Choice

Which component in the installation diagram is responsible for heating the water before it is distributed to the outlets?

• Cold Water Storage Cistern (CWSC)

• Hot Water Cylinder

• Float Operated Valve

• Service Valve

Open Ended

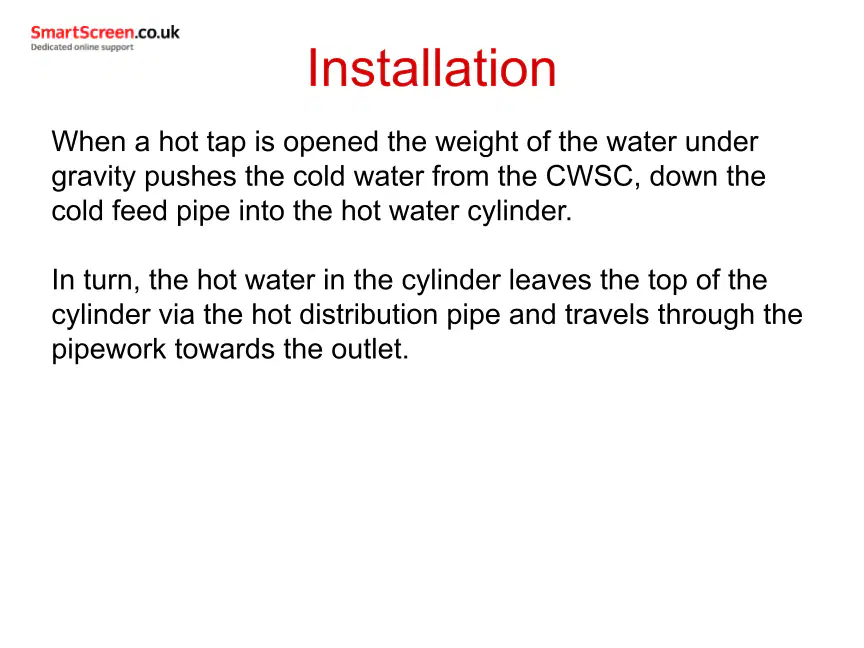

Explain the process that occurs when a hot tap is opened in a gravity-fed hot water system, referring to the movement of water through the system.

Multiple Select

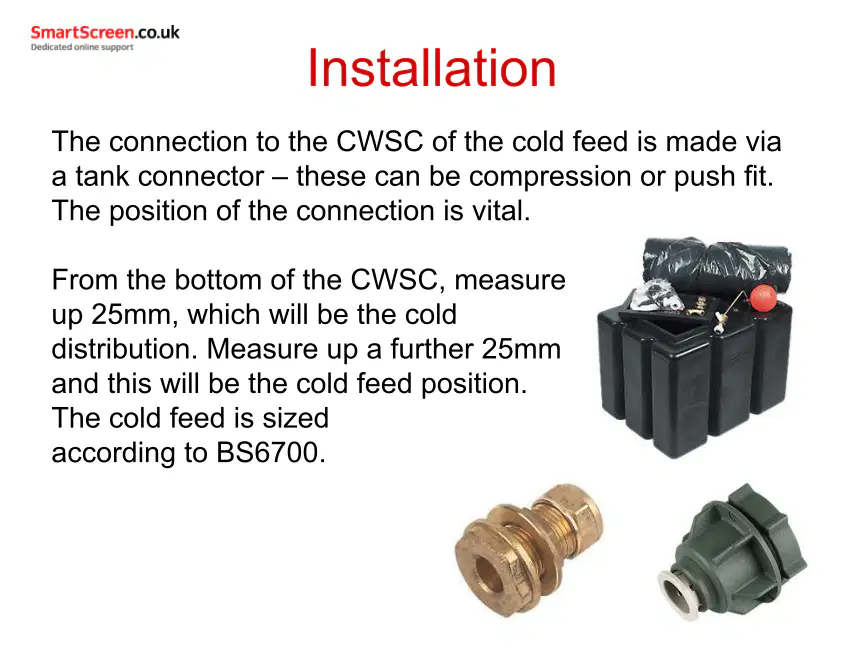

Which of the following are correct steps for connecting the cold feed to the CWSC according to the installation guidelines?

• Measure 25mm from the bottom for cold distribution, then another 25mm for cold feed

• Connect the cold feed at any height

• Use a tank connector for the cold feed connection

• Size the cold feed according to BS6700

Multiple Choice

Why is the cold feed positioned above the cold distribution in a CWSC installation?

• To prevent scalding if the hot water runs out first

• To ensure the cistern refills with water

• To avoid airlocks in the system

• To allow maintenance on the float operated valve

Open Ended

Describe the purpose and location of the fullway gate valve in a gravity-fed hot water system.

Open Ended

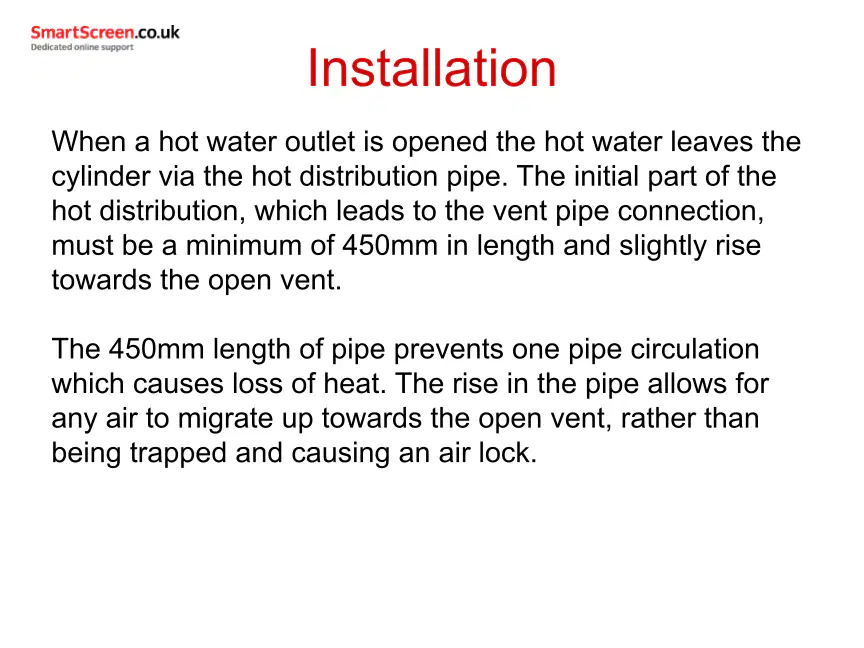

Explain why the initial part of the hot distribution pipe must be a minimum of 450mm in length and slightly rise towards the open vent.

Multiple Select

Which of the following are consequences of not having a 450mm long, slightly rising pipe in the hot water system?

• Air lock formation

• Loss of heat due to one pipe circulation

• Increased water pressure

• Reduced water flow

Multiple Choice

Which component in the hot water installation system is responsible for preventing air locks by allowing air to escape through the open vent?

• Service valve prior to the float operated valve

• Fullway gate valve on the cold feed

• 450mm long rising pipe

• Hot water cylinder

Open Ended

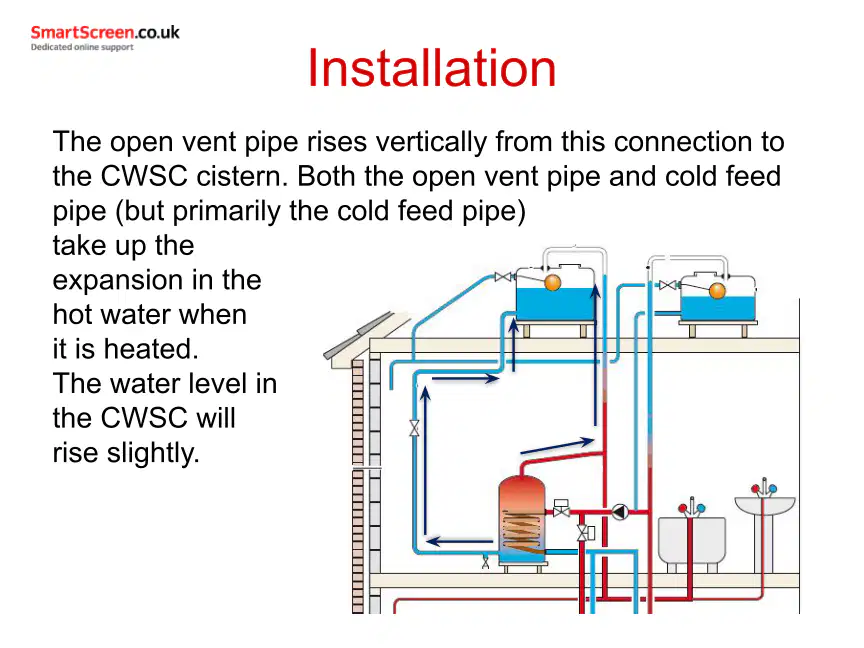

Describe the role of the open vent pipe and cold feed pipe in accommodating the expansion of hot water in the system.

Multiple Choice

What is the minimum diameter that the open vent pipe must have, and why must it not have any valves connected to it?

• Minimum 15mm, to ensure water flow

• Minimum 22mm, for safety in case of overheating

• Minimum 28mm, to reduce pressure

• Minimum 10mm, to prevent leaks

Multiple Choice

How is the height of the open vent pipe over the CWSC calculated for a secondary hot water system?

• 150mm + 40mm per metre of system height

• 100mm + 30mm per metre of system height

• 200mm + 50mm per metre of system height

• 120mm + 20mm per metre of system height

Multiple Choice

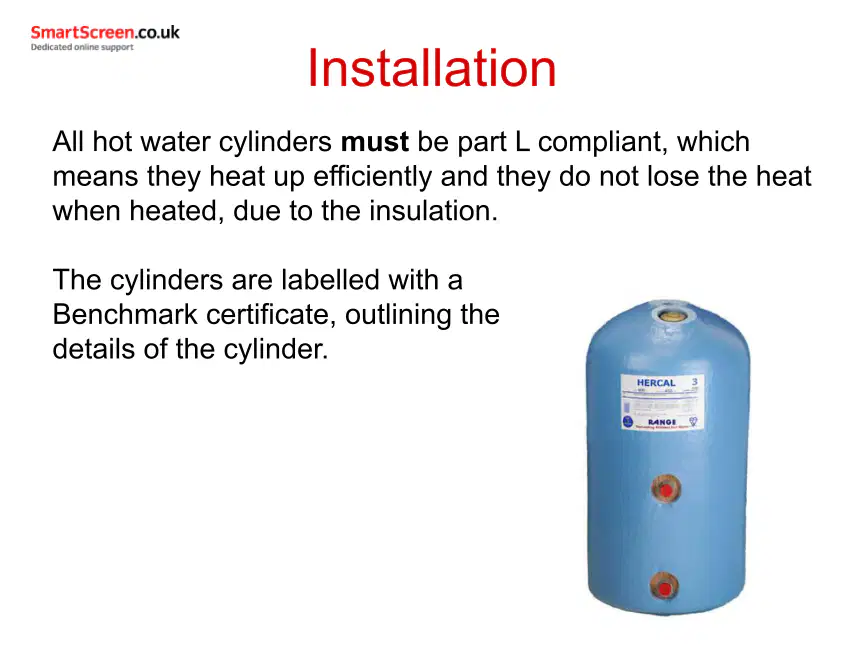

Why must all hot water cylinders be part L compliant?

• To ensure they heat up efficiently and retain heat due to insulation

• To reduce the cost of installation

• To allow for easier maintenance

• To increase the size of the cylinder

Multiple Choice

If a hot water cylinder needs to be installed in a loft with restricted height, what type of cylinder may be suitable?

• Horizontal cylinder

• Vertical cylinder

• Rectangular tank

• Spherical tank

Open Ended

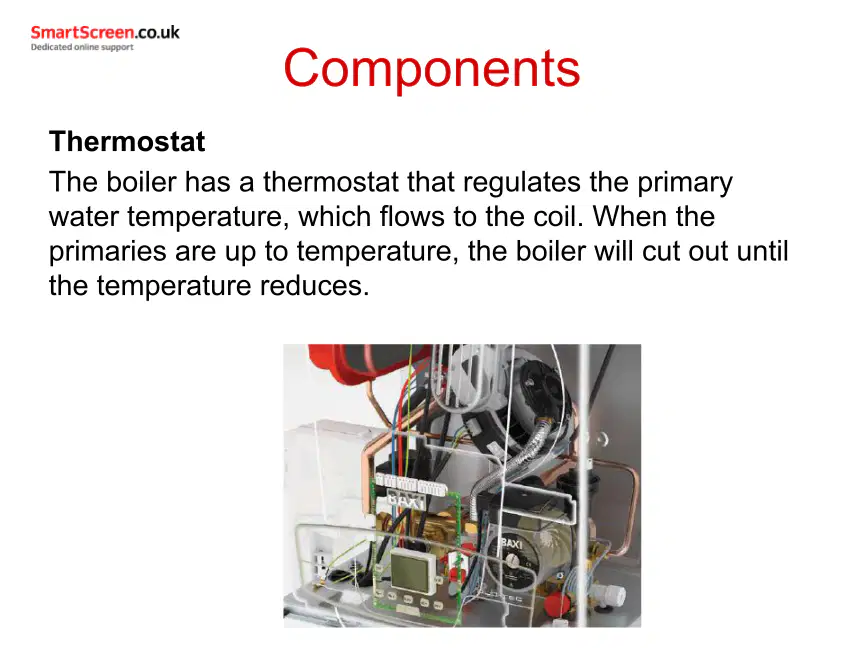

Explain the role of the thermostat in a boiler system and how it affects the operation of the boiler.

Open Ended

With reference to the images, compare how temperature control differs between gas/electric boilers and solid fuel boilers.

Multiple Choice

What is temperature stratification in hot water cylinders and why is a baffle sometimes installed?

• A difference in temperature between the top and bottom of the cylinder; to prevent cold water mixing with hot water

• A method to increase water pressure; to improve water flow

• A process to clean the cylinder; to remove impurities

• A way to reduce installation cost; to save energy

Open Ended

After learning about the installation requirements of domestic hot water plumbing systems, what questions do you still have or what would you like to know more about?

Multiple Choice

What are two key factors that affect the pressure and flow rate in a standard gravity-fed hot water system?

• Head height and pipe diameter

• Water temperature and pipe material

• Cylinder size and water color

• Cistern location and water hardness

Open Ended

When recommending a hot water system to a customer, what factors should an engineer consider and why are these factors important?
