WorksheetsMindstorm Quiz Review 2022-23
Total questions: 11
Worksheet time: 7mins
______________ are used to connect the Large motors
Ports 1-2
Ports 3-4
Ports A-B
Ports B-C
______________ are used to connect all the Sensors
Ports 1-4
Ports A-D
Large Motors
Medium Motor
What is this Mindstorm part?
large motor
ultrasonic sensor
touch sensor
medium motor
What does this Mindstorm part do?
Measures distance from an object
Reacts if it touches something
Reacts if it sees a certain color
Used to move other Lego pieces attached to the robot
What does this Mindstorm part do?
Recognizes and reacts to color
It is the brains of the robot that controls all programming
Controls the robots motors
Recognizes when the robot touches something
Which code below will make the robot go straight and then stop?
How do you turn off the EV3 brick properly?
Press the Back button until a Shut Down dialog box appears, then select the check with the Center button
Insert the Shut Down USB adapter into the USB port
Remove the rechargeable battery pack
Press and hold the Left and Right buttons for 5 seconds
What is the first thing you should do if the Mindstorm code is not working?
Turn the robot off and then turn it on again
Delete the entire code and start over
Check that the wires are plugged in correctly
Ask Mrs. McDonnell for help
Which port is the Medium Motor connected to?
A
B
C
D
What does the "B" button do in this image?
Allows you to download the program and run the code without the USB cable
Allows you to download the program and run the code with the USB cable connected
Allows you to save the code on the Mindstorm app
Allows you to send the code to someone else

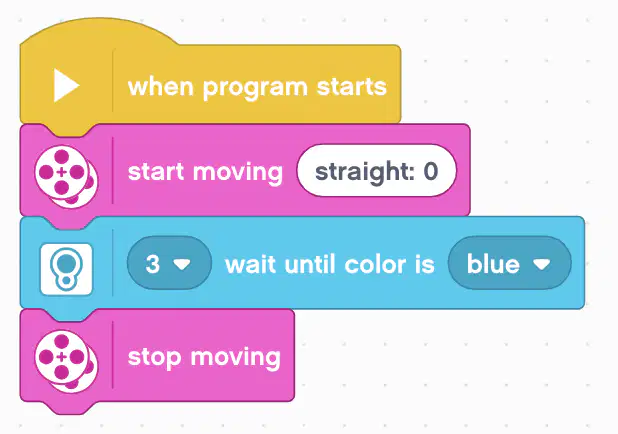

What will this code have the robot do?
Move straight
Move straight/ Wait until it sees the color Red/ Stop
Move straight/ Wait until it sees the color Blue/ Stop
Move straight/ Wait until it sees the color Blue
