Automotive 1 exam pt 1 Tools and Fasteners

Total questions: 175

Worksheet time: 2hrs 50mins

Name
Class
Date
1.

Wrenches

a)

Cut or remove metal

b)

Turning sockets

c)

Turning hard to reach bolt heads when better grip is needed

d)

Gripping or twisting

e)

Loosening and tightening of fasteners

2.

Sockets

a)

Cut or remove metal

b)

Turning sockets

c)

Turning hard to reach bolt heads when better grip is needed

d)

Gripping or twisting

e)

Loosening and tightening of fasteners

3.

Bars

a)

Cut or remove metal

b)

Turning sockets

c)

Turning hard to reach bolt heads when better grip is needed

d)

Gripping or twisting

e)

Loosening and tightening of fasteners

4.

Screwdrivers

a)

Cut or remove metal

b)

Turning sockets

c)

Turning hard to reach bolt heads when better grip is needed

d)

Turning Screws

e)

Loosening and tightening of fasteners

5.

Pliers

a)

Cut or remove metal

b)

Turning sockets

c)

Turning hard to reach bolt heads when better grip is needed

d)

Gripping or Twisting

e)

Loosening and tightening of fasteners

6.

Hammers

a)

Cut or remove metal

b)

Turning sockets

c)

Turning hard to reach bolt heads when better grip is needed

d)

Gripping or Twisting

e)

Driving and aligning objects

7.

Punches

a)

Cut or remove metal

b)

driving out fasteners

c)

Turning hard to reach bolt heads when better grip is needed

d)

Gripping or Twisting

e)

Driving and aligning objects

8.

Chisels

a)

Cut or remove metal

b)

driving out fasteners

c)

Turning hard to reach bolt heads when better grip is needed

d)

Gripping or Twisting

e)

Driving and aligning objects

9.

Fill in the Blank: The _____ wrench is used in places that are inaccessible to common wrenches.

a)

Flare End

b)

Socket

c)

Open-end

d)

Combination-end

10.

What type of wrench surrounds and grips all corners when loosening and tightening bolts and nuts?

a)

Adjustable

b)

Combination-end

c)

Box-End

d)

Socket

11.

What type of blade does the standard screwdriver have?

a)

Straight blade

b)

Crossed slot

c)

6-point tip

d)

Square

12.

Fill in the Blank: The _____ is a heavier hammer designed to drive a large amount of power.

a)

Ball Peen

b)

Rubber Mallet

c)

Hand-held Sledgehammer

d)

Dead Blow

13.

What type of pliers are used to grip tiny pins or parts?

a)

Long-nose

b)

Locking

c)

Diagonal-cutting

d)

Slip-Joint

14.

Fill in the Blank: The _____ punch is used to make a small dimple in metal before drilling.

Brass/Bronze Center Taper Pin

a)

Brass/Bronze

b)

Center

c)

Taper

d)

Pin

15.

Fill in the Blank: _____ sockets have a universal joint built into the socket drive that allows bolts and nuts to be turned when it is not possible to get straight onto the head.

a)

Swivel

b)

Hex

c)

Impact

d)

Deep

16.

Which type of punch should be used if you need to tap on something but do not want to leave any marks behind?

a)

Center

b)

Brass/Bronze

c)

Taper

d)

Pin

17.

Fill in the Blank: The ____ is the most common type of driver; when rotated back and forth it turns nuts and bolts without having to remove after each turn.

a)

Breaker Bar

b)

Speed Handle

c)

Extension

d)

Ratchet

18.

Fill in the Blank: The ____ screwdriver is similar to a Phillips but has four additional points of contact.

a)

Torx

b)

Nut

c)

Pozidriv

d)

Offset

19.

Which type of hammer has a relatively large head used for soft blows and installing wheel covers?

Soft-Faced Ball Peen Rubber Mallet Plastic-Tip

a)

Soft-Faced

b)

Ball Peen

c)

Rubber Mallet

d)

Plastic-Tip

20.

Fill in the Blank: When using a standard cold chisel, be sure the end is grounded to a sharp point at a _____ degree angle.

a)

90

b)

60

c)

45

d)

75

21.

Fill in the Blank: The _____ has a very sturdy handle with good leverage for tightening nuts and bolts. It can be used to apply more torque to a fastener than other bars.

a)

Breaker Bar

b)

Speed

c)

Handle

d)

Ratchet

22.

A fastener with internal threads is known as a _________.

a)

bolt

b)

nut

c)

tap

d)

lock washer

23.

In the bolt description 3/8-16 UNC -2A, the number 16 represents the

a)

Thread Tolerance

b)

Threads Per Inch

c)

Major Diameter

d)

Class of Fit

24.

In the bolt description 1/4-28 UNF -2A, the fraction 1/4 represents the

a)

Class of fit

b)

Diameter

c)

Length

d)

Pitch

25.
What is D?
a)
Pitch
b)
Pitch Diameter
c)
Major Diameter
d)
Minor Diameter
26.
The higher the grade number of a bolt or nut, the higher the :
a)
flexibility of the bolt or nut
b)
weight of the bolt or nut
c)
None of the answers listed
d)
tensile strength of the bolt or nut
27.

U.S. customary bolts are marked with __________ to indicate bolt grade. Metric bolts are marked with ______________.

a)

Lines; Numbers

b)

Numbers; Lines

c)

Lines; Symbols

d)

Symbols; Lines

28.

Badly smashed or stripped threads may be repaired with either a _______ or __________

a)

Tap; Die

b)

Plug; Tap

c)

File; Lock-Tite

d)

They can't be fixed

29.

The bolt head shown is from a _____________ bolt.

a)

U.S. Customary

b)

UNF

c)

metric

d)

medium

30.
What type of tool is shown in the illustration?
a)
Die
b)
Tap
c)
Fillister
d)
Hex
31.

What bolt grade is shown in the illustration?

a)

Grade 2

b)

Grade 3

c)

Grade 5

d)

Grade 8

32.
What do the letters UNC refer to with threading?
a)
Unified National Fine
b)
Unexpected National Course
c)
Unified National Class
d)
Unified National Course
33.
What do the letters UNF refer to with threading?
a)
Unified National Fine
b)
Unexpected National Fine
c)
Unified National Fixed
d)
Unified National Furnished
34.

Which are correct to measure the bolt length?

a)

D

b)

C

c)

B

d)

A

35.

The threaded plug shown has a thread pitch of _________.

a)

24 mm

b)

24 threads per inch

c)

24 inches

d)

24 teeth

36.

Which are correct to measure the bolt Diamter?

a)

D

b)

C

c)

B

d)

A

37.

In the bolt description 1/4-28 UNF -2A, 28 represents the...

a)

Class of fit

b)

Diameter

c)

Length

d)

Pitch

38.

In the bolt description 1/4-28 UNF -2A, 2A represents the...

a)

Class of fit

b)

Diameter

c)

Length

d)

Pitch

39.

In the bolt description 1/4-28 UNF -2A, 2A represents the...

a)

Class of fit

b)

Diameter

c)

Length

d)

Pitch

40.

a)

Button Hex nut

b)

Acorn nut

c)

Cap nut

41.

a)

Cap nut

b)

Acorn nut

c)

Flange nut

42.

a)

Square bolt

b)

Flange nut

c)

Square nut

43.

a)

Acorn nut

b)

Lock washer

c)

Nyloc (Nylon) insert nut

44.

a)

Coupling nut

b)

Nylon insert nut

c)

Stud

45.

a)

Nylon insert nut

b)

Jam nut

c)

Coupling nut

46.

a)

Washer

b)

Hex nut

c)

Knurled nut

47.

a)

Knurled nut

b)

T- nut

c)

Flange nut

48.

a)

Flange nut

b)

Wing nut

c)

K-lock nut

49.

a)

Kep K-lock nut

b)

Wing nut

c)

Jam nut

50.

a)

Flat internal washer

b)

External tooth washer

c)

Internal tooth washer

51.

a)

Flat washher

b)

Internal tooth washer

c)

Lock washer

52.

a)

Nut

b)

Flat bolt

c)

Flat washer

53.

a)

Compression spring

b)

Extension spring

c)

Torsion spring

54.

a)

Compression spring

b)

Torsion spring

c)

Extension spring

55.

a)

Nose bolt

b)

Eye bolt

c)

Ring bolt

56.

a)

Wing nut

b)

Cotter Pin

c)

Slotted clip

57.

a)

Nut

b)

Bolt

c)

Screw

58.

a)

Eye bolt

b)

Carriage bolt

c)

Button Hex

59.

a)

Hex bolt

b)

Knurled Cap hex bolt

c)

Cap phillips bolt

60.

a)

Hex head bolt & nut

b)

Carriage bolt & nut

c)

Eye bolt & nut

61.

a)

Cheesehead slotted

b)

Hex head slotted

c)

Stud

62.

a)

Fillister slotted

b)

Button slotted

c)

Fillister phillips

63.

a)

Countersink Flat head phillips screw

b)

Countersink Flat head slotted screw

c)

Pan head screw

64.

a)

Flathead slotted

b)

Flathead phillips

c)

Hexhead phillips

65.

a)

Hex bolt

b)

Wing nut

c)

Cheesehead bolt

66.

Can a magnet be a fastener?

a)

Yes

b)

No

67.

What type of automotive tools is shown in the picture?

a)

Pneumatic Tools

b)

Hand Tools

c)

Electric Tools

d)

Hydraulic Tools

68.

A mechanism that consists of a bar or wheel having inclined teeth into which a pawl drops so that motion can be imparted to the wheel or bar, governed, or prevented and that is used in a hand tool (such as a wrench or screwdriver) to allow effective motion in one direction only

a)

RACHET

b)

SOCKET

c)

POWER HANDLE

d)

SCREWDRIVER

69.
A socket is used to _____.
a)
grip a nut or bolt
b)
hold a cheater pipe
c)
adjust the wrench
d)
turn the rachet
70.
Which tool is pictured?
a)
Diagonal cutting pliers
b)
Needle-nose pliers
c)
Side-cutting pliers
d)
Slip-joint pliers
71.
a)
box end wrench
b)
crescent/ajustable wrench
c)
open end wrench
d)
combination wrench
72.
a)
box end wrench
b)
crescent/ajustable wrench
c)
open end wrench
d)
combination wrench
73.
a)
box end wrench
b)
allen wrench
c)
open wrench
d)
combination wrench
74.
a)

linesman pliers

b)

channel lock or tongue & grove pliers

c)

adjustable pliers

d)

needle nose pliers

75.

This tool is an example of a _________________________________ .

a)

Adjustable wrench

b)

Locking pliers or vise-grips

c)

Cresent wrench

d)

Pipe wrench

76.
a)
Rip Hammer
b)
Sledge Hammer
c)
Ball Peen Hammer
d)
Claw Hammer
77.
what type of tool is this
a)
wooden rasp
b)
nail file
c)
metal file
d)
wood file
78.

This is a pry bar.

a)

true

b)

maybe true

c)

definitely true

d)

false

79.

The tool displayed is...

a)

box wrench

b)

torque wrench

c)

ratchet

d)

socket

80.

The tool displayed is...

a)

box wrench

b)

torque wrench

c)

screw driver

d)

socket

81.

The tool displayed is a ....

a)

chrome deep socket

b)

chrome shallow socket

c)

deep impact socket

d)

shallow impact socket

82.

The tool displayed is a ....

a)

chrome deep socket

b)

chrome shallow socket

c)

deep impact socket

d)

shallow impact socket

83.
a)
Bar
b)
Extension
c)
Socket
d)
Rachet
84.
a)
crow bar
b)
flat bar
c)
pry bar
d)
torque bar
85.

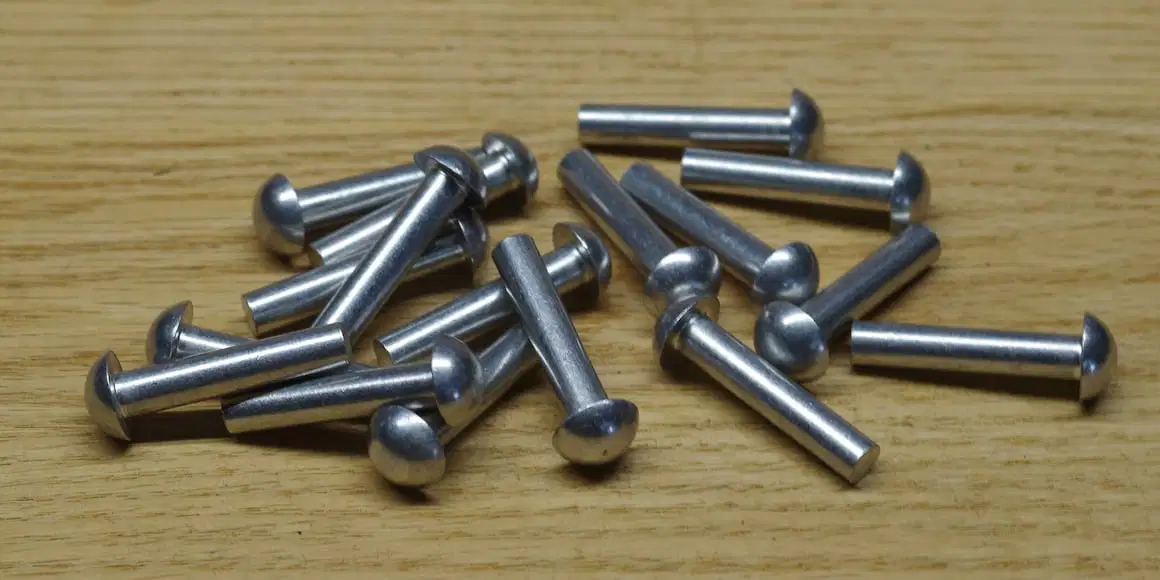

A solid shank rivet is a metal pin with a ______ on one side.

a)

formed head

b)

flat end

c)

pointed tip

d)

grooved surface

86.

Solid shank rivets create a union at least as strong as the material being ______.

a)

joined

b)

welded

c)

glued

d)

epoxy bonded

87.

Fender washers are large outside diameter flat washers used to clamp soft materials such as mud flaps or inner fender panels.

a)

True

b)

False

88.

Thread damage can occur due to the following:

a)

Excessive tightening of bolts, nuts, and screws

b)

Corrosion caused by rusting or galvanic action when dissimilar, incompatible metals are used together.

c)

Worn threads caused by overuse.

d)

All of the above

89.

Technician A says a spring washer is used to prevent fasteners from loosening. Technician B say a serrated edge toothed washer prevent fasteners from loosening. Who is correct?

a)

Technician A

b)

Technician B

c)

Both Technician A and Technician B

d)

Neither Technician A nor Technician B

90.

Which of the following tightening methods produces the most accurate preload force on a threaded fastener?

a)

Using a torque stick

b)

Using an accurately calibrated torque wrench

c)

Technician experience

d)

Torque-turn method

91.

A fastener with internal threads is known as a _________.

a)

bolt

b)

nut

c)

tap

d)

lock washer

92.

In the bolt description 3/8"- 16 X 1", the number 16 represents the

a)

Thread Tolerance

b)

Threads Per Inch

c)

Major Diameter

d)

Class of Fit

93.

In the bolt description 1/4" - 28 X 2" , the fraction 1/4" represents the

a)

Class of fit

b)

Diameter

c)

Length

d)

Pitch

94.
The higher the grade number of a bolt or nut, the higher the :
a)
flexibility of the bolt or nut
b)
weight of the bolt or nut
c)
None of the answers listed
d)
tensile strength of the bolt or nut
95.

Damaged threads in bolts or nuts may be repaired with either a _______ or __________

a)

Tap; Die

b)

Plug; Tap

c)

File; Lock-Tite

d)

They can't be fixed

96.

The bolt head shown is from a _____________ bolt.

a)

Standard/Imperial

b)

UNF

c)

Metric

d)

medium

97.

Which letter represents the bolt lenght for this specific fastener?

a)

D

b)

C

c)

B

d)

A

98.

The threaded plug shown has a thread pitch of _________.

a)

24 mm

b)

24 threads per inch

c)

24 inches

d)

24 cm

99.

Which letter represent the diameter of this fastener ?

a)

D

b)

C

c)

B

d)

A

100.

Choose the Nyloc nut

a)
b)
c)
d)
101.

In the bolt description M8 - 1.25 X 45mm , M8 represents the fasteners

a)

Class of fit

b)

Diameter

c)

Length

d)

Pitch

102.

Choose the hex bolt

a)
b)
c)
d)
103.

Choose the lock/slpit washer

a)
b)
c)
d)
104.

Choose the flat washer

a)
b)
c)
d)
105.

Choose the standard hex nut

a)
b)
c)
d)
106.

In the bolt description M8 - 1.25 X 45mm , 1.25 represents the fasteners

a)

Class of fit

b)

Diameter

c)

Length

d)

Pitch

107.

What type of bolt is this?

a)

Hex

b)

Allen

c)

Flange

d)

Torx

108.

What type of bolt is this?

a)

Hex

b)

Allen

c)

Flange

d)

Torx

109.

What type of bolt is this?

a)

Hex

b)

Allen

c)

Flange

d)

Torx

110.

a)

Nose bolt

b)

Eye bolt

c)

Ring bolt

111.
a)

J-Bolt

b)

Eye Bolt

c)

U-Bolt

112.
a)

U-bolt

b)

J-bolt

c)

I-bolt

113.
a)

wood Screw

b)

Machine Screw

c)

Thread cutting Machine Screws

d)

Sheet Metal screws

e)

Self drilling screws

114.

Given the picture Which choice cooriates best?

a)

wood Screw

b)

Machine Screw

c)

Thread cutting Machine Screws

d)

Sheet Metal screws

e)

Self drilling screws

115.
a)

wood Screw

b)

Machine Screw

c)

Thread cutting Machine Screws

d)

Sheet Metal screws

e)

Self drilling screws

116.

Given the picture Which choice cooriates best?

a)

wood Screw

b)

Machine Screw

c)

Thread cutting Machine Screws

d)

Sheet Metal screws

e)

Self drilling screws

117.

Given the picture Which choice cooriates best?

a)

Plow bolts

b)

Socket Screws

c)

Lag bolts

d)

Shoulder bolts

e)

Elevator bolts

118.

Given the picture Which choice cooriates best?

a)

Plow bolts

b)

Socket Screws

c)

Lag bolts

d)

Shoulder bolts

e)

Elevator bolts

119.

Given the picture Which choice cooriates best?

a)

Plow bolts

b)

Socket Screws

c)

Lag bolts

d)

Shoulder bolts

e)

Elevator bolts

120.

Given the picture Which choice cooriates best?

a)

Plow bolts

b)

Socket Screws

c)

Lag bolts

d)

Shoulder bolts

e)

Elevator bolts

121.

Given the picture Which choice cooriates best?

a)

Hanger bolts

b)

set screws

c)

cotter pins

d)

Rivets

122.

Given the picture Which choice cooriates best?

a)

Hanger bolts

b)

set screws

c)

cotter pins

d)

Rivets

123.

Given the picture Which choice cooriates best?

a)

Hanger bolts

b)

set screws

c)

cotter pins

d)

Rivets

124.

Choose the bolt

a)
b)
c)
d)
125.

Choose the lock washer

a)
b)
c)
d)
126.

Choose the machine screw

a)
b)
c)
d)
127.

Choose the standard nut

a)
b)
c)
d)
128.

NAME THE HARDWARE

a)

CARRIAGE BOLT

b)

HEX BOLT

c)

LAG BOLT

d)

LAG SCREW

129.
What type of nut is this?
a)
Acorn
b)
Semifinished
c)
Slotted
d)
Wing
130.
What type of nut is this?
a)
Acorn
b)
Semifinished
c)
Slotted
d)
Wing
131.
What type of nut is this?
a)
Acorn
b)
Semifinished
c)
Slotted
d)
Wing
132.
What type of washer is shown in the illustration?
a)
Flat washer
b)
Lock washer
c)
Toothed lock washer
d)
Nylon washer
133.
what type of head is this?
a)
Phillips head screw
b)
hex head
c)
flat head screw
d)
slotted
134.
what type of head is this?
a)
combination
b)
slotted
c)
pan screw head
d)
round screw head
135.
a)

hex nut

b)

box nut

c)

square nut

d)

machine nut

136.
a)

Finishing Washer

b)

Set Screw

c)

Finish Nail

d)

Torx Head Screws

137.

What type of nut is pictured

a)

Coupling

b)

Castle

c)

Sloted

d)

K-lock

e)

Square

138.

What type of nut is pictured

a)

Coupling

b)

Castle

c)

Sloted

d)

K-lock

e)

Square

139.

What type of nut is pictured

a)

Coupling

b)

Castle

c)

Sloted

d)

K-lock

e)

Square

140.

What type of nut is pictured

a)

Coupling

b)

Castle

c)

Sloted

d)

K-lock

e)

Square

141.

What type of rivet is pictured

a)

Solid rivet

b)

Blind rivet

c)

Threaded inserts

d)

Drive rivet

e)

Semi-Tubular rivet

142.

What type of rivet is pictured

a)

Solid rivet

b)

Blind rivet

c)

Threaded inserts

d)

Drive rivet

e)

Semi-Tubular rivet

143.

What type of rivet is pictured

a)

Solid rivet

b)

Blind rivet

c)

Threaded inserts

d)

Drive rivet

e)

Semi-Tubular rivet

144.

What type of rivet is pictured

a)

Solid rivet

b)

Blind rivet

c)

Threaded inserts

d)

Drive rivet

e)

Semi-Tubular rivet

145.

What type of rivet is pictured

a)

Solid rivet

b)

Blind rivet

c)

Threaded inserts

d)

Drive rivet

e)

Semi-Tubular rivet

146.

What is the most common type of washer?

a)

Square washer

b)

Lock washer

c)

Conical washer

d)

Flat washer

147.

Which type of washer is used to distribute force and protect the attached item?

a)

Wave washer

b)

Spherical washer

c)

Flat washer

d)

Rivet washer

148.

What shape are lock washers typically made in?

a)

Split, coiled, or star shape

b)

Round and spherical

c)

Flat and circular

d)

Square and flat

149.

Which washer is used to prevent bolts or fasteners from loosening?

a)

Wave washer

b)

Insulator washer

c)

Countersunk washer

d)

Lock washer

150.

What is another name for conical washers?

a)

Belleville washers

b)

Push nuts

c)

Wave washers

d)

Shoulder washers

151.

Which washer is used in higher-friction applications to absorb vibration and shock?

a)

Square washer

b)

Flat washer

c)

Conical washer

d)

Rivet washer

152.

What type of washer is raised on the sides and flat in the center?

a)

Spherical washer

b)

Wave washer

c)

Lock washer

d)

Countersunk washer

153.

Which washer is used with flat- or oval-head bolts for a finished appearance?

a)

Flat washer

b)

Rivet washer

c)

Countersunk washer

d)

Square washer

154.

What is another name for insulator washers?

a)

Wave washers

b)

Push nuts

c)

Belleville washers

d)

Shoulder washers

155.

Which washer is typically made of nylon and blocks electrical currents?

a)

Lock washer

b)

Flat washer

c)

Insulator washer

d)

Square washer

156.

What is another name for retaining washers?

a)

Wave washers

b)

Push nuts

c)

Shoulder washers

d)

Belleville washers

157.

Which washer is effective at securing assemblies in environments subject to vibration or corrosion?

a)

Retaining washer

b)

Flat washer

c)

Countersunk washer

d)

Wave washer

158.

What type of washer is used exclusively with blind rivets?

a)

Lock washer

b)

Flat washer

c)

Square washer

d)

Rivet washer

159.

Which washer is effective for fastening to soft or brittle materials?

a)

Flat washer

b)

Spherical washer

c)

Wave washer

d)

Rivet washer

160.

What type of washer is often made of softer materials to form a seal?

a)

Sealing and cushioning washer

b)

Flat washer

c)

Lock washer

d)

Square washer

161.

Which washer is used to reduce noise and vibration?

a)

Wave washer

b)

Sealing and cushioning washer

c)

Rivet washer

d)

Countersunk washer

162.

What type of washer features a two-piece equalizing assembly?

a)

Spherical washer

b)

Square washer

c)

Flat washer

d)

Lock washer

163.

Which washer eliminates unequal thread loads and stress from misaligned parts?

a)

Rivet washer

b)

Flat washer

c)

Wave washer

d)

Spherical washer

164.

What shape are square washers?

a)

Flat and square

b)

Round and spherical

c)

Flat and circular

d)

Split and coiled

165.

Which washer is used to protect against damage to wood fibers in construction?

a)

Square washer

b)

Flat washer

c)

Wave washer

d)

Lock washer

166.

What type of washer is curved in two directions like a wave?

a)

Spherical washer

b)

Flat washer

c)

Square washer

d)

Wave washer

167.

Which washer acts as a spring when compressed to maintain fastener tension?

a)

Wave washer

b)

Countersunk washer

c)

Lock washer

d)

Flat washer

168.

Which washer is used in structural leveling and shimming applications?

a)

Wave washer

b)

Structural washer

c)

Flat washer

d)

Square washer

169.

What is the primary purpose of flat washers?

a)

To block electrical currents

b)

To absorb vibration

c)

To prevent loosening

d)

To distribute force

170.

Which washer is commonly used in automotive applications?

a)

Countersunk washer

b)

Wave washer

c)

Flat washer

d)

Retaining washer

171.

What material are insulator washers typically made of?

a)

Black phosphate

b)

Nylon

c)

Steel

d)

Aluminum

172.

Which washer is used to limit sound levels and vibration in seismic applications?

a)

Lock washer

b)

Flat washer

c)

Square washer

d)

Wave washer

173.

What type of washer is used to bond to metallic washers?

a)

Sealing and cushioning washer

b)

Flat washer

c)

Lock washer

d)

Wave washer

174.

Which washer compensates for nonparallel surfaces?

a)

Spherical washer

b)

Flat washer

c)

Structural washer

d)

Wave washer

175.

What type of washer is used in low-strength fastening applications?

a)

Flat washer

b)

Square washer

c)

Wave washer

d)

Lock washer
