SS Technical Meet 09_02_2023

Total questions: 15

Worksheet time: 8mins

Name
Class
Date
1.

 In Pipe Conveyor,  belt overlap is nearly

a)

20% of belt width

b)

10% of belt width

c)

5% of belt width

d)

25% of belt width

2.

In gearbox, the viscosity should not change more than

a)

+/-15% of the original value.

b)

+/-10% of the original value.

c)

+/-20% of the original value.

d)

+/-5% of the original value.

3.

As per Tata Steel Technical Standard on ‘DC Electromagnetic Brakes’, Which is NOT among the  Tests to be conducted by supplier and the Test Certificates to be submitted?

a)

Torque rating Test

b)

Insulation Value Test

c)

High Voltage Test

d)

Vibration Test

4.

Which grade of Load Chain is to be used for Chain Block and Electric Hoist as per Tata Steel Guideline.

a)

Grade 30

b)

Grade 60

c)

Grade 100

d)

Grade 1000

5.

As per  Tata Steel Technical Standard on ‘Motorized Gear Unit’ ,The motor shall have Insulation Class?

a)

A

b)

B

c)

F

d)

H

6.

As per  Tata Steel Technical Standard on ‘Wire ropes’ The Factor of Safety based on nominal breaking strength and safe working load of the rope,

a)

Shall not be less than 8 for hot metal

b)

Shall not be less than 10 for hot metal

c)

Shall not be less than 6 for hot metal

d)

Shall not be less than 4 for hot metal

7.

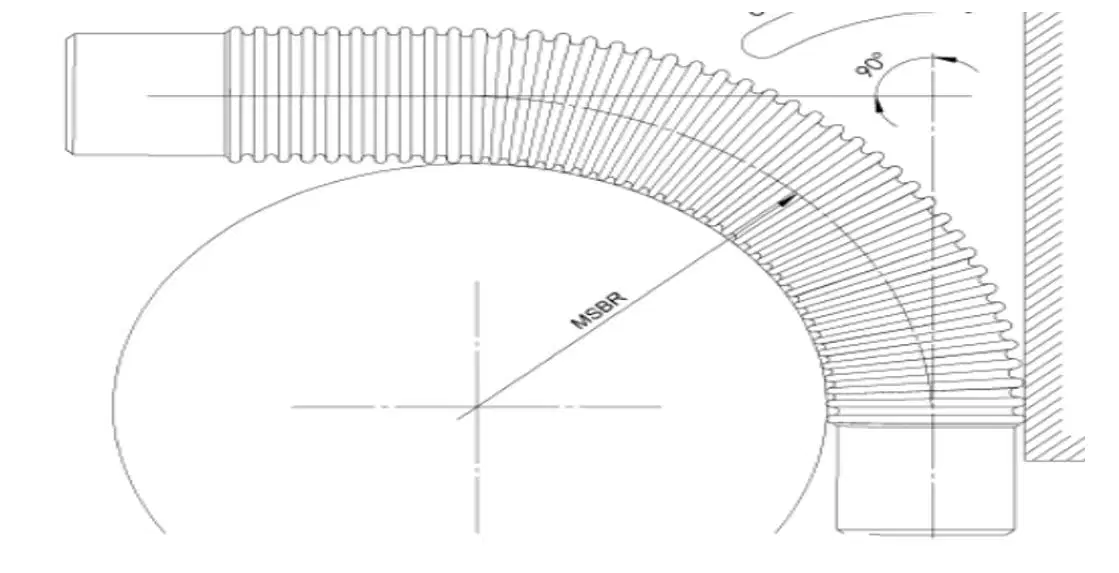

In context of Stainless Steel Corrugated Metallic Hose, The Bend Test in the figure shown is called

a)

U Bend Test

b)

Cantilever Bend Test

c)

Pliable Test

d)

Cyclic Test

8.

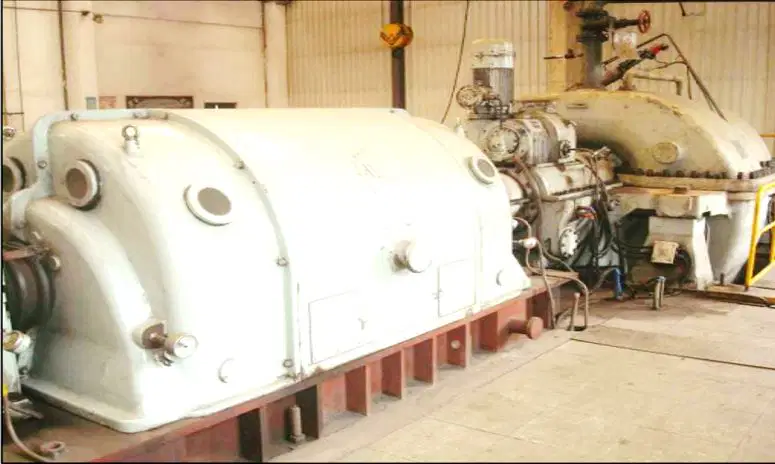

TRTG (Top Recovery Turbo Generator) is used at

a)

Blast Furnaces

b)

Coke Ovens

c)

LD

d)

Pellet Plant

9.

Setting for metal detection (Magnetic separator with metal detector) in Conveyor belt system is to be done once in a Year.

This is done by setting it

a)

Equal to Noise Signals

b)

Less than Noise Signals

c)

More than Noise Signals

10.

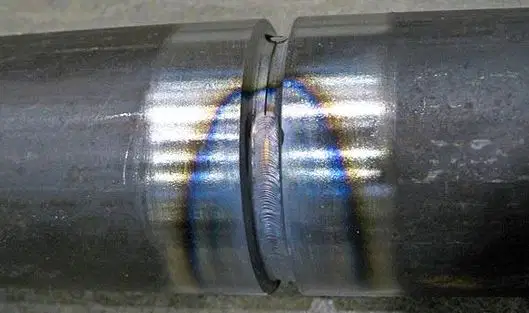

HAZ is the area of base metal, which is not melted and has had its microstructure and properties altered by welding. What is the expanded form HAZ?

a)

Heat Altered Zone

b)

Highly Affected Zone

c)

Heat Affected Zone

d)

Homogenously Affected Zone

11.

Unlike iron and steel this metal does not rust or corrode in moist conditions. Its surface is protected by a natural layer of its oxide. This prevents the metal below from coming into contact with air and oxygen.

a)

Copper

b)

Lead

c)

Silver

d)

Aluminium

12.

The manufacturing of steel without the use of fossil fuels is termed as

a)

Eco Steel

b)

Green Steel

c)

Circular Economy

d)

All of the above

13.

This property of material measures the energy absorbed by material in Elastic range. The area under the linear portion of a stress-strain curve is the gives this property of the material.

a)

Toughness

b)

Hardness

c)

Resilience

d)

Proof Stress

14.

What is this process of Gear cutting called?

a)

Hobbing

b)

Shaping

c)

Generating

d)

Knobbing

15.

The term X is derived from  an Ancient Greek word meaning "deficiency" or "lagging behind". It was coined to describe the behaviour of magnetic materials.

a)

Permeability

b)

Susceptibility

c)

Hysteresis

d)

Coercivity
