WorksheetsHow to install an outlet
Total questions: 10
Worksheet time: 3mins
How many safety considerations are necessary to install an outlet?
5
4
6
7
These are some tools your will need to install an outlet.
Non-contact voltage tester
Cable ripper
Cutting pliers or utility knife
pliers
scissors
wires
contact voltage tester
a big box
outlets
plugs
screws
cords
Prepare the cables is the second step to install the outlet
True
False

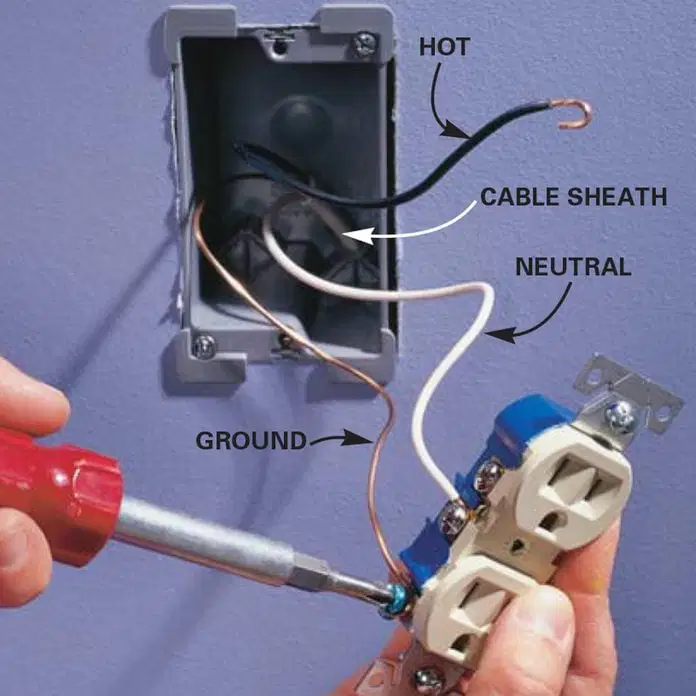

Connect the ground wire to:
(a)
Before touching any wires in an (a) , always test for power with a non-contact voltage tester to make sure the power is off.
Press the receptacle's mounting strap (the metal strip at the top and bottom) against the box, then secure it by threading the mounting screws into the top and bottom of the box. Belongs to the following step:
6- Attach the neutral and hot wires to the receptacle
7- Attach the receptacle to the box
4- Attach pigtail wires to circuit wires
2- Prepare the cables
Have you ever installed an outlet?
What is the first step in the process of installing an outlet?
3- Attach the receptacle to the box
1- Turn off the power at the circuit breaker
2- Prepare the cables
4- Test the outlet
Which tool is essential for ensuring the power is off before starting the installation?
Drill
Non-contact voltage tester
Wire stripper
Screwdriver
Is it necessary to use a ground wire when installing an outlet?
False
True
