WorksheetsSTEM 7 Unit 1 Assessment
Total questions: 12
Worksheet time: 7mins
Name
Class
Date
1.
What is the most accurate measurement of the RED line?
a)
3/4"
b)
7/8"
c)
1/2"
d)
9/16"
2.
What is the most accurate measurement of the GREEN line?
a)
1/4"
b)
1"
c)
1/16"
d)
5/16"
3.
Which measurement tool is most appropriate to measure the height or the length of a room?
a)
Ruler
b)
Measurement wheel
c)
Laser
4.

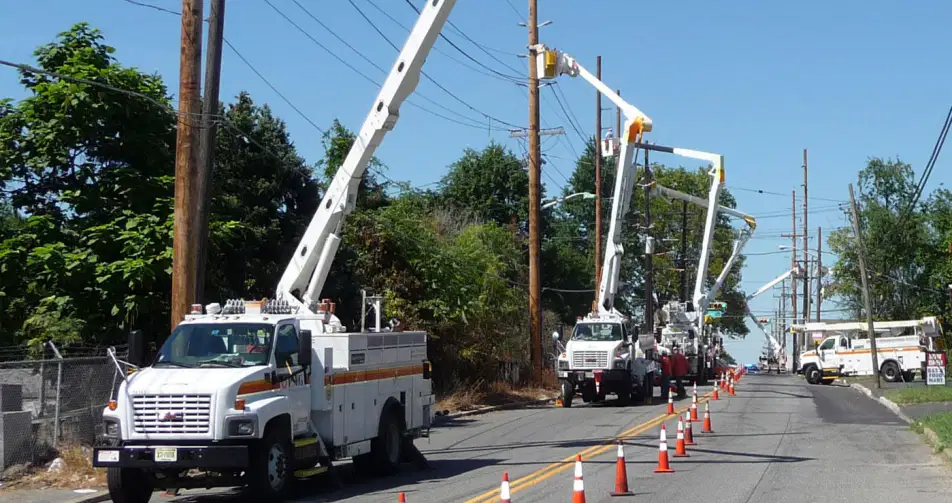

Which measurement tool is most appropriate to measure the street?
a)
Measurement tape
b)
Ruler
c)
Measurement wheel
d)
Laser
5.
Which measurement tool is most appropriate to kitchen cabinets?
a)
Measurement tape
b)
Ruler
c)
Measurement wheel
d)
Laser
6.

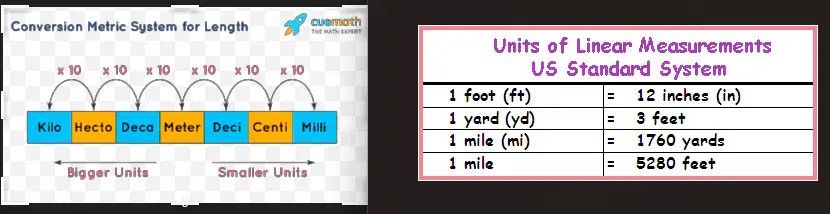

Which is true about the metric system?
a)
There is only one unit of measurement for each measured quantity.
b)
It is a decimal-based system.
c)
It is based on multiples of ten.
d)
All of the above
7.
What is the name of "join objects"
a)
Workplan
b)
Group
c)
Ungroup
d)
Mirror
8.
What are the measurements of the thick blue lines, the major grid lines
a)
1 cm = 10 mm
b)
10 cm = 100mm
c)
100 mm
d)
1 mm
9.
what are the measurements of the THIN blue lines, minor grid lines
a)
100 mm
b)
10 mm
c)
1 mm
d)
0.5 mm
10.

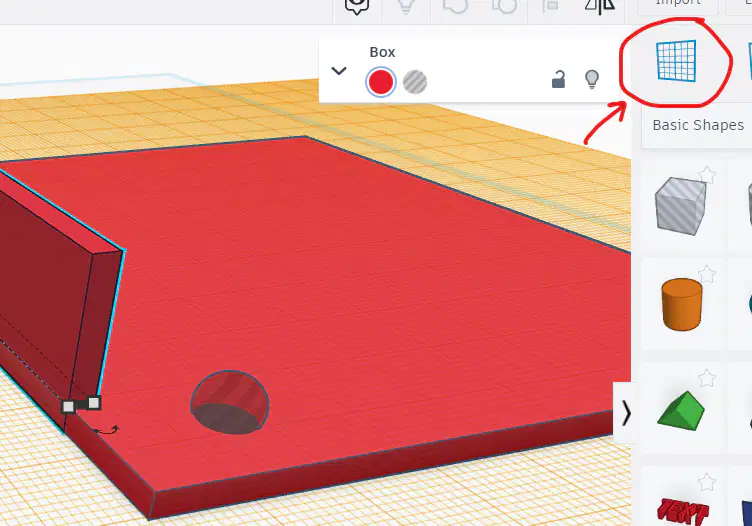

What is the name of the "floor" used as a handy way to add objects flush against the surface of your design (shapes, text, holes).
a)
Ruler
b)
Mirror Image
c)
Graph
d)
Workplane
11.
What is the commonly file format used for 3D printing and computer-aided design (CAD).
a)
OBJ - object file
b)
STL - stereolithography
c)
SVG - scalable vector graphics
d)
GLTF - GL transmission format
12.
Match the following units of measurement:
a)
1'
1.
12 inches
b)
100 mm
2.
10 cm
c)
3 feet
3.
36"
d)
25 mm
4.
2.5 cm
e)
3 3/4"
5.
3.75 inches
