WorksheetsMOCK EXAM SET 1A-PART 2
Total questions: 150
Worksheet time: 8hrs 30mins
Name
Class
Date
1.
in a typical continuous RC beam, top bars are spliced where?
a)
at midspan
b)
at the supports
c)
near the supports
d)
anywhere
2.
a typical grade 40 reinforcing steel bar is painted ______ on one or both of its ends.
a)
yellow
b)
white
c)
blue
d)
red
3.
at mid span of span of a single reinforced beam, reinforcing bars are provided on ________.
a)
bottom side
b)
top side
c)
left side
d)
right side
4.
what do you call the required embedment length of rebar of RC structural member to another RC structural member (i.e. beams to columns)?
a)
development length
b)
hook length
c)
splice length
d)
rebar length
5.
in a round column with circular ties, what is the minimum number of longitudinal bars?
a)
4 bars
b)
3 bars
c)
6 bars
d)
8 bars
6.
which type of paint also has a waterproofing effect
a)
elastomeric paint
b)
quick dry enamel
c)
automotive lacquer paint
d)
latex paint
7.
which of the following is not an example of cementitious waterproofing material
a)
rain or seal
b)
plexobond
c)
super thoroseal
d)
mortaflex
8.
what is the typical width of commercially available PE foam insulation?
a)
1,000 mm
b)
600 mm
c)
1,500 mm
d)
1,200 mm
9.
in a basement wall, a negative side waterproofing material is applied on which side?
a)
interior side
b)
exterior side
c)
both sides
d)
integral to concrete
10.
which of the following is not a material used as blanket insulation
a)
polystyrene
b)
fiberglass
c)
mineral wool
d)
natural fibers
11.
which of the following is not used to designate a particular structural steel beam section?
a)
cross sectional area
b)
initial indicating the type of section
c)
nominal linear weight
d)
depth of the beam
12.
in steel construction, what does HSS mean?
a)
Hollow structural steel
b)
H-section steel
c)
Hard steel size
d)
Hollow sized steel
13.
which type of welding does not require a gas cylinder?
a)
Stick welding
b)
MIG welding
c)
TIG welding
d)
None of the above
14.
A325 is a grade of which steel product?
a)
structure bolt
b)
structural girder
c)
structural angle
d)
structural concrete
15.
which structural steel product has stopped in bottom flanges sticking out only on one side of the web?
a)
structural channel
b)
structural plate
c)
structural beam
d)
structural angle
16.
what is the minimum width of wall footing?
a)
300mm
b)
500mm
c)
400mm
d)
600mm
17.
a _____ is a shared the wall constructed along the joining property lines of two buildings
a)
partywall
b)
partition
c)
fire wall
d)
abutment
18.
a worker referred so a particular nail as "medya". What does he mean?
a)
The nail is halfinch long
b)
The nail is 1 in long
c)
The nail is medium size
d)
The nail is galvanized iron.
19.
in a typical reinforced CHB wall, horizontal rebars are placed every _______ of CHB.
a)
3 layers
b)
2 layers
c)
4 layers
d)
layer
20.
The load bearing capacity of CHB's typically determined by its _______
a)
compressive strength
b)
thickness
c)
Weight
d)
layer
21.
which of the following is not characteristic of ACP?
a)
load bearing
b)
low maintenance
c)
lightweight
d)
easy to install
22.
which of the following is named as the " Marble Capitan of the Philippines"?
a)
Romblon
b)
Bataan
c)
Davao
d)
Palawan
23.
which term refers to the non-structural covering materials installed on exterior walls providing thermal insulation and weather protection?
a)
cladding
b)
blasting
c)
damproofing
d)
lining
24.
which of the following is not manufacturer of supplier of stone cladding
a)
Virtuoso
b)
GT Stoneworks
c)
Decostone
d)
EZ rocks
25.
what do you call the thin sheets of natural or manufactured stone used as wall cladding?
a)
veneers
b)
sidings
c)
slabs
d)
sheathing
26.
which of the following types are typically threaded
a)
Galvanized Iron pipe
b)
Copper tubing
c)
HDPE
d)
CPVC
27.
which type of lavatory is more ideal for a small-spaced bathroom?
a)
corner
b)
tabletop
c)
pedestal
d)
undermount
28.
which of the following water heaters is tankless?
a)
singlepoint water heater
b)
storage water heater
c)
heat pump water heater
d)
solar water heater
29.
a 3 storey apartment building has three apartment units on each floor. Each unit has a standard T&B with one water closet, 1 lavatory, 1 floor drain, 1 shower head and 1 shower drain. How many p-traps are needed for all T&B
a)
27 pcs
b)
30 pcs
c)
36 pcs
d)
18 pcs
30.
which of the following is installed during plumbing rough-in?
a)
pipe fitting
b)
accessories
c)
fixtures
d)
lavatory
31.
which of the following is considered as active fire protection?
a)
fire sprinklers
b)
fire doors
c)
fireproofing coatings
d)
firewall
32.
any person in an unsprinklered building shall travel a minimum distance of _______ towards any fire exit door
a)
None of the above
b)
15 m
c)
45 m
d)
60 m
33.
The following materials can be used as firestop except ______
a)
polyethylene
b)
vermiculite
c)
intumescent
d)
silicone
34.
Fire-resistance ratings of buildings materials and assemblies are typically given in _______
a)
hours
b)
minutes
c)
seconds
d)
days
35.
spray-applied fireproofing is typically applied to ______
a)
structural steel frames
b)
foundation footings
c)
concrete shear walls
d)
flooring
36.
which type of thermal insulation can also seal cracks in crevices?
a)
Fig. 4
b)
Fig. 3
c)
Fig. 2
d)
Fig. 5
37.
Refer to Figure 5, what is the most common material used for this type of insulation?
a)
cellulose
b)
steel
c)
silicone
d)
rubber
38.
which of the following can be a made from XPS, EPS and ISO?
a)
Figure 3
b)
Figure 2
c)
Figure 1
d)
Figure 5
39.
refer to Figure 2, the shiny reflective outer layer this type of insulation is typically made of what?
a)
aluminum
b)
steel
c)
copper
d)
paper
40.
refer to Figure 1, the typical width of this type of insulation is based on what?
a)
typical spacing of stud framing
b)
typical distance of columns
c)
typical span of beams
d)
typical height of door opening
41.
what type of door is usually used for closing commercial shops in large access openings in industrial and commercial building?
a)
rolling door
b)
revolving door
c)
overhead door
d)
sliding door
42.
which of the following is present in flush door?
a)
none of the above
b)
meeting stile
c)
top rail
d)
muntin
43.
what is the typical thickness of commercially available door jambs?
a)
2"
b)
3"
c)
4"
d)
5"
44.
which part of a typical staircase is designed to support the threads and risers?
a)
stringer
b)
Newel
c)
joist
d)
baluster
45.
which can be used to change the direction of a service without using landings?
a)
winders
b)
bracket
c)
newel post
d)
treads
46.
which of the following is a known brand of air conditioners
a)
Daikin
b)
Koten
c)
Royu
d)
Omni
47.
Refer to Figure 1, which of the following items is also known as FCU?
a)
Item C
b)
Item A
c)
Item B
d)
Item D
48.
Refer to Figure 1, which of the following items is also known as ACCU?
a)
Item D
b)
Item C
c)
Item A
d)
Item B
49.
Refer to Figure 2, this type of cooling equipment uses what principle?
a)
evaporative cooling
b)
absorptive refrigeration
c)
compressive refrigeration
d)
magnetic cooling
50.
in HVAC, R22, R32, and R410 are all what?
a)
Types or refrigerant
b)
Types of coil
c)
Types of compressor
d)
Types of insulation
51.
which of the following is concealed within the transom header bar?
a)
Figure 2
b)
Figure 1
c)
Figure 3
d)
Figure 5
52.
which of the following is mortised into the edge of the door panel?
a)
Figure 5
b)
Figure 4
c)
Figure 3
d)
Figure 2
53.
which of the following is ideal for fire door assembly?
a)
Figure 4
b)
Figure 5
c)
Figure 3
d)
Figure 1
54.
which of the following is the most common type of overhead door closer?
a)
Figure 1
b)
Figure 3
c)
Figure 5
d)
Figure 4
55.
which of the following is commonly used in frameless glass door assembly?
a)
Figure 3
b)
Figure 5
c)
Figure 2
d)
Figure 1
56.
what type of paint is generally used for concrete surfaces?
a)
latex
b)
oil-based paint
c)
lacquer paint
d)
fast drying enamel
57.
what should not be used on concrete surfaces to prevent saponification defect?
a)
oilbased paint
b)
primer
c)
latex paint
d)
neutralizer
58.
The "Duco finish" is a common term used for painting a surface with what?
a)
automotive lacquer paint
b)
latex paint
c)
neutralizer
d)
quick drying enamel
59.
which coating is used to ensure better adhesion of paint to a substrate?
a)
primer
b)
intermediate coat
c)
finish coating
d)
top coating
60.
which of the following is a brand name of paint family is manufactured by Davies?
a)
Megacryl
b)
Permacoat
c)
Roofgard
d)
Elastikote
61.

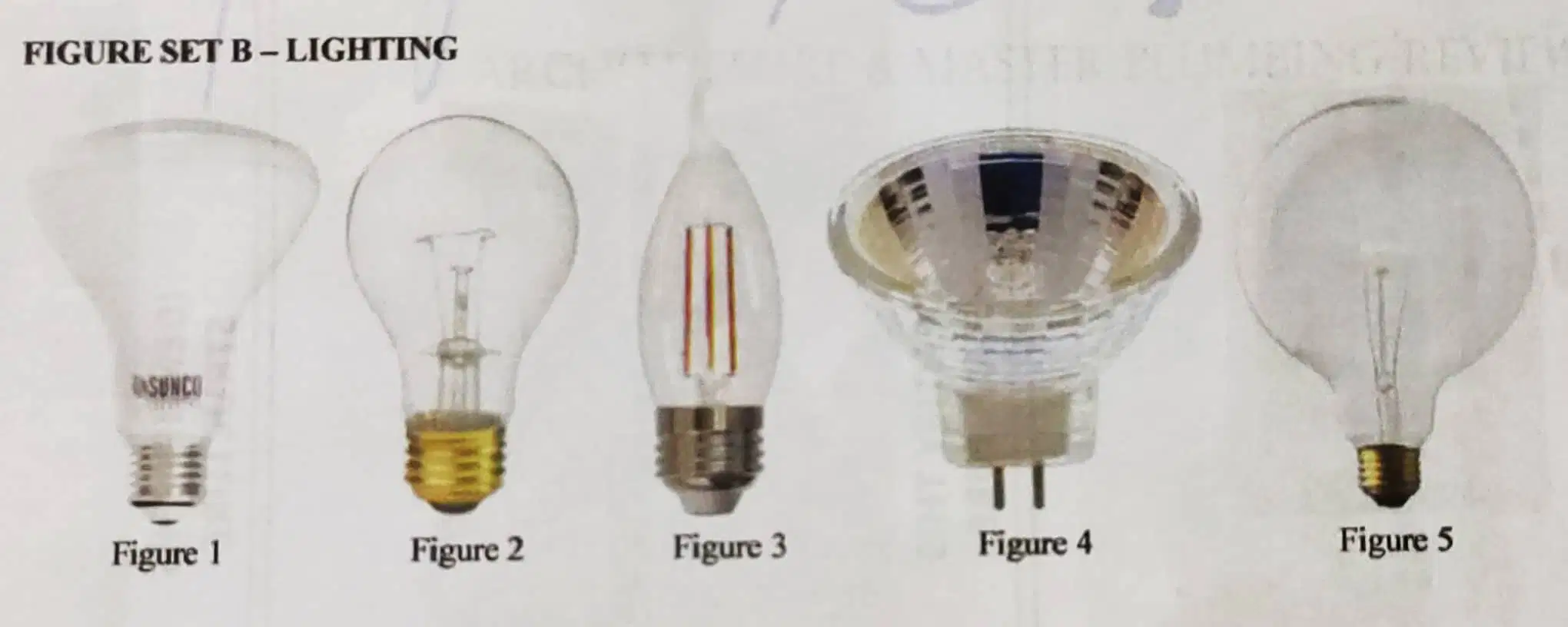

Refer to Figure 3, what do you call this device required in LEDs?
a)
driver
b)
ballast
c)
battery
d)
switch
62.
Refer to Figure 5, what do you call this new lighting technology?
a)
OLED
b)
LiFi
c)
Lighting Sheet
d)
Vray
63.
which of the following is ideal for ambient lighting?
a)
figure 4
b)
figure 1
c)
figure 3
d)
figure 5
64.
which of the following can be used for lighting a wide space such as roads, parking or courts?
a)
figure 2
b)
figure 3
c)
figure 1
d)
figure 4
65.
which of the following is ideal for task or accent lighting?
a)
figure 1
b)
figure 2
c)
figure 3
d)
figure 5
66.
which of the following is not typically supplied to residential structures?
a)
three phase power
b)
220V power
c)
alternating current (AC) power
d)
single phase power
67.
whhch type of electrical fault happens when the current passes through an alternative but through the ground and back to its source?
a)
ground fault
b)
short circuit fault
c)
closed circuit fault
d)
open circuit fault
68.
which type of panel board enclosure can be installed outdoors?
a)
Nema3R
b)
NEMA-I
c)
bolt-on
d)
plug-type
69.
I worker referred to a particular utility box as "AMCO box". The utility box is _______
a)
surface mounted
b)
for switches
c)
embedded to concrete
d)
for outlets
70.
in specifying electrical wires, AWG refers to what?
a)
thickness of wire
b)
material of wire
c)
length of wire
d)
insulation of wire
71.
which of the following is used for removing debris and trash from a structure?
a)
Figure 3
b)
Figure 1
c)
Figure 5
d)
Figure 2
72.
which of the following is used for lifting panels using suction?
a)
Figure 4
b)
Figure 3
c)
Figure 2
d)
Figure 1
73.
which of the following is used to lift cars from below?
a)
Figure 2
b)
Figure 1
c)
Figure 3
d)
Figure 4
74.
which of the following is used for delivering concrete in another location?
a)
Figure 1
b)
Figure 2
c)
Figure 3
d)
Figure 4
75.
which of the following is used to compact soil
a)
Figure 5
b)
Figure 3
c)
Figure 1
d)
Figure 4
76.
ready mixed concrete is ordered by _______
a)
volume
b)
number of truck
c)
coverage area
d)
number of coatings
77.
which type of sand is not ideal for reinforced concrete construction?
a)
beach sand
b)
concrete sand
c)
River sand
d)
industrial sand
78.
which type of sand is typically used for finishing or plastering?
a)
Vibro Sand
b)
White Sand
c)
S1
d)
Lahar Sand
79.
which of the following is used to connect rebars end-to-end without lapping?
a)
rebar couplers
b)
rebar adhesive
c)
rebar epoxy
d)
rebar tape
80.
which class of concrete is used for lean concrete and footpaths?
a)
Class D
b)
Class AA
c)
Class B
d)
Class C
81.
which moisture protection for basement foundation is enough for structures built on higher ground?
a)
Dampproofing
b)
Waterproofing
c)
Lean concrete
d)
Thermal Insulation
82.
what do you call the upper level of underground zone where the soil or rocks are permanently saturated with water?
a)
water table
b)
water bottom
c)
ground line
d)
aquifer
83.
the locally known "black screw" is typically used for what?
a)
drywall
b)
concrete
c)
metal
d)
roofing
84.
which type of hammer is typically used for tile installation?
a)
rubber mallet
b)
ball pein hammer
c)
wood mallet
d)
claw hammer
85.
a ripcut saw is used to cut wood in which direction?
a)
along the grain
b)
any direction
c)
across the grain
d)
perpendicular to the grain
86.
which of the following is appropriate for making small holes or pilot holes in wood?
a)
Item 2
b)
Item 1
c)
Item 5
d)
Item 3
87.
which of the following is generally used for making holes on concrete?
a)
Item 3
b)
Item 2
c)
Item 1
d)
Item 4
88.
which of the following is appropriate for making small holes on metal or HSS?
a)
Item 1
b)
Item 2
c)
Item 3
d)
Item 5
89.
which of the following is known as hole saw?
a)
Item 6
b)
Item 5
c)
Item 4
d)
Item 3
90.
which of the following is known as spaced drill bit?
a)
Item 4
b)
Item 2
c)
Item 3
d)
Item 5
91.
Refer to Figure 4, what do you call this type of gate?
a)
corner sliding gate
b)
barn sliding gate
c)
side swing gate
d)
overhead rolling gate
92.
Refer to Figure 5, this type of door is commonly made of which material?
a)
aluminum
b)
galvanized iron
c)
laminate
d)
uPVC
93.
which of the following is also called barn door?
a)
Figure 2
b)
Figure 1
c)
Figure 3
d)
Figure 5
94.
Refer to Figure 1, this door style is also called what?
a)
Dutch door
b)
American door
c)
Japanese door
d)
French door
95.
Refer to Figure 3, what do you call this type of sliding door?
a)Pocket
b)
Side
c)
Folding
d)
Insert
96.
which of the following is installed outdoors
a)
Figure 1
b)
Figure 3
c)
Figure 2
d)
Figure 5
97.
which of the following is considered tamper-resistant?
a)
Figure 4
b)
Figure 1
c)
Figure 2
d)
Figure 3
98.
Refer to Figure 2, which of the following is the most common in simplest type of this device?
a)
PIR
b)
Ultrasonic
c)
Microwave
d)
Thermal
99.
Refer to Figure 3, what do you call this item?
a)
telephone outlet box
b)
internet hub
c)
router
d)
CAT 7
100.
Refer to Figure 5, this time of connector transmits what?
a)
Both audio & video
b)
audio only
c)
video only
d)
power supply only
101.
which engineered wood product has body made from present thin wood veneers perpendicular to each other
a)
plywood
b)
plyboard
c)
OSB
d)
good lumber
102.
which engineered wood product has a core of wood strips squeeze between veneer panels?
a)
Plyboard
b)
OSB
c)
Particle board
d)
MDF
103.
coconut fiber nets are also used for what?
a)
erosion protection
b)
waterproofing
c)
concrete curing
d)
vapor barrier
104.
which of the following wood defects is natural?
a)
knots
b)
twisting
c)
cupping
d)
warp
105.
for the formwork framing of a concrete column, what is the typical dimension of lumber used?
a)
2" x 2"
b)
2" x 4"
c)
3" x 3"
d)
2" x 3"
106.
Refer to Figure C, what type of arch is used in this structure?
a)
inverted catenary
b)
inverted semi-circular
c)
inverted segment
d)
inverted ogee
107.
Refer to Figure E, what type of dome is constructed in this famous museum?
a)
geodesic dome
b)
cloister vault
c)
solid rib dome
d)
schwedler dome
108.
Refer to Figure A, what do you call the structural system used in the famous structure Shown?
a)
concrete thin shell
b)
space trusses
c)
folded plates
d)
hyperbolic frame
109.
Refer to Figure B, the shown is skyscraper is famous example of which tubular structural system?
a)
Bundled tube
b)
Tube-in-tube
c)
Banked tube
d)
Space trusses
110.
Refer to Figure D, what do you call the supporting structures inspired by three branches?
a)
Dendriforms
b)
Columnar
c)
Folded plate
d)
Biomimicry
111.
which type of plastic can be reheated to change its shape?
a)
thermoplastics
b)
thermosets
c)
polymers
d)
silicone
112.
backing rods are typically made from what?
a)
polyethylene
b)
rubber
c)
polymer
d)
polycarbonate
113.
Teflon is technically known as what
a)
PTFE
b)
ETFE
c)
PVC
d)
GFRC
114.
which of the following is not included in the 3Rs of environmental protection?
a)
remove
b)
reduce
c)
reuse
d)
recycle
115.
in plastics, EPS means what?
a)
expanded polystyrene
b)
expanded polyvinyl sheet
c)
extended polymer sheet
d)
extruded polyvinyl chloride
116.
what is the purpose of gaps between polycarbonate roofing sheets when installing them?
a)
for thermal expansion
b)
for decoration
c)
for sealant
d)
for sustainability
117.
lean concrete is a concrete mixture with lower _______ content.
a)
cement
b)
water
c)
sand
d)
aggregates
118.
______ is also known as sprayed concrete
a)
gunite
b)
sandblast
c)
perlite
d)
vermiculite
119.
self-leveling mortar is commonly used as what?
a)
underlayment
b)
scratch coat
c)
plastering
d)
joint compound
120.
sag rod is a component of what?
a)
Roof framing
b)
Floor framing
c)
Stair framing
d)
Wall framing
121.
Rebokada is a local term for what?
a)
scratch coat
b)
final coat
c)
finishing
d)
smooth coat
122.
which term refers to systematic arrangement of bricks or other building units composing a wall?
a)
bond
b)
veneer
c)
glazing
d)
course
123.
which CHB thickness is commonly used as load bearing?
a)
6"
b)
5"
c)
4"
d)
7"
124.
type of brake used for kilns
a)
refractory
b)
heavy-duty
c)
load-bearing
d)
vitreous
125.
how many CHBs can we use per square meter of wall area?
a)
12.5
b)
11.5
c)
15
d)
10
126.
Refer to Figure 1, what do you call the material used in this wall or partition?
a)
channel glass
b)
corrugated glass
c)
vertical cladding glass
d)
linear glass
127.
Refer to Figure 2, what type of glass is used in the facade of this famous Frank Garry's work?
a)
fritted glass
b)
Channel glass
c)
wired glass
d)
Glass fiber reinforced concrete
128.
Refer to Figure 5, what architectural material is used for this paneling?
a)
lasercut panels
b)
wood strips
c)
molded stone panels
d)
opaque glass panels
129.
Refer to Figure 4, this waterproofing wood finish by charring the wood surface is called what?
a)
Shou Sugi Ban
b)
Fusuma
c)
Tokonoma
d)
Kofun Ban
130.
Refer to Figure 3, what material is used for this intricate facade?
a)
glass fiber reinforced concrete
b)
fiber concrete
c)
steel reinforced concrete
d)
glulam
131.
which of the following is used to prevent soil erosion?
a)
Riprap
b)
pavement
c)
drain field
d)
batterboard
132.
which of the following is not considered as earthworks?
a)
mobilization
b)
excavation
c)
embankment
d)
backfilling
133.
which of the following is considered as natural process?
a)
soil consolidation
b)
soil excavation
c)
soil compaction
d)
soil poisoning
134.
which equipment is primarily used to push materials?
a)
dozer
b)
grader
c)
mulcher
d)
excavator
135.
what do you call the steepest angle in which soil can be piled without slumping?
a)
Angel of repose
b)
safety angle
c)
material inclination
d)
slump limit
136.
which of the following is most often used for chandeliers?
a)
Figure 3
b)
Figure 2
c)
Figure 1
d)
Figure 4
137.
which of the following is most often used without enclosures due to its elegant shape?
a)
Figure 5
b)
Figure 1
c)
Figure 2
d)
Figure 4
138.
which of the following is the most common
a)
Figure 2
b)
Figure 1
c)
Figure 3
d)
Figure 4
139.
which of the following is most appropriate for directional floodlighting?
a)
Figure 1
b)
Figure 5
c)
Figure 3
d)
Figure 4
140.
which of the following has the narrowest beam appropriate for spot lights?
a)
Figure 4
b)
Figure 2
c)
Figure 1
d)
Figure 3
141.
the type of pump is used to pump out accumulative water in the basement?
a)
Sump pump
b)
Fire pump
c)
Jockey pump
d)
Booster pump
142.
what type of pump is submerged in water storage tank?
a)
submersible pump
b)
positive displacement pump
c)
booster pump
d)
jockey pump
143.
what type of pump is activated when sprinkler heads were open due to fire?
a)
Fire pump
b)
Jockey pump
c)
Booster pump
d)
Centrifugal pump
144.
what type of pump is used to increase the low water pressure?
a)
Booster pump
b)
Positive displacement pump
c)
Fire pump
d)
Utility pump
145.
what type of pump is used to mainly pressure fire sprinkler systems if no sprinkler heads are open
a)
jockey pump
b)
fire pump
c)
centrifugal pump
d)
sump pump
146.
which of the following is used as Eave soffit?
a)
Figure 1
b)
Figure 2
c)
Figure 5
d)
Figure 3
147.
which of the following can be used to reduce sound transmission?
a)
Figure 2
b)
Figure 1
c)
Figure 4
d)
Figure 3
148.
which of the following is used in stud wall framing?
a)
Figure 3
b)
Figure 2
c)
Figure 1
d)
Figure 4
149.
which of the following is used for finishing corners where drywalls meet?
a)
Figure 5
b)
Figure 2
c)
Figure 1
d)
Figure 4
150.
which of the following is used in lighting?
a)
Figure 4
b)
Figure 2
c)
Figure 3
d)
Figure 5
100 %
