WorksheetsACAD Study Guide [Annotation]
Total questions: 13
Worksheet time: 7mins
Where is the view panel located?
Under the Home tab
Under the View tab
Under the Annotate tab
Under the Insert tab
How do you find the height of a text object?
Select the text object, right-click and select Properties, the text height is listed under the TEXT panel
Select the text object and type text height
Select the text object and type Dsettings
Select the text object and type Dimsettings
On which panel is the multiline text option?
Object
Layer
Annotation
Home
Which action places a single line text box on the screen?
Clicking and dragging to draw a box
Clicking to establish a starting point
Typing DT in the Command Line
Typing T in the Command Line
What command do you use to find the value of a dimension?
DIMSTYLE
DSETTINGS
DIMLINEAR
DIM

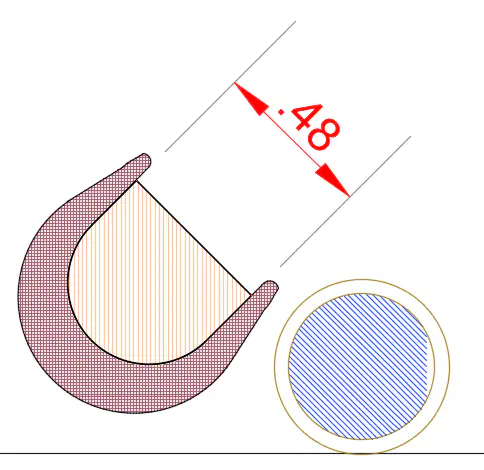

What dimension would you use to find the value of this drawing?
ALIGNED
LINEAR
ANGULAR
DIAMETER
What type of dimension would you use to find the value of this drawing?
ALIGNED
ANGULAR
LINEAR
ARC LENGTH
What type of dimension is shown in the image?
RADIUS
DIAMETER
LINEAR
ANGULAR
What type of dimension is shown in the image?
ALIGNED
RADIUS
DIAMETER
LINEAR
What type of dimension is shown in the image?
ANGULAR
COORDINATE
LINEAR
ALIGNED
When using dimension styles, which tab in the New Dimension Style dialog box controls how text interacts with a dimension?
Fit
Dimension
Text
Style
Which types of dimensions are used for horizontal dimensions?
Linear
Radial
Objective
Endpoint
Once dimension styles are established, how can individual dimensions be manipulated?
Through the Fit tab control
Through breaking the link to their styles
Through changing the dimension style
Through the Properties box
