Worksheets0654 Multiple choice 4
Total questions: 13
Worksheet time: 13mins
What is the difference between speed and velocity?
Speed has magnitude and direction; velocity has magnitude only.
Speed has magnitude and direction; velocity has direction only.
Speed has magnitude only; velocity has magnitude and direction.
Speed has magnitude only; velocity has direction only.
The diagram shows a car of mass 1000 kg travelling along a straight, horizontal road. The driving force from the car’s engine is 3000N. The total resistive force acting on the car is 2500 N.
What is the acceleration of the car along the road?
2.0 m /s²
0.50 m / s²
5.5 m / s²
3.0 m / s²
An object moving at speed v has kinetic energy E. What is the speed of the object when its kinetic energy is 4.0E?
2.0 v
4.0 v
0.25 v
16 v
A passenger lift (elevator) has a total weight of 4000 N, including the people inside it. The power output of the lift motor is 800 W.
How much time does it take for the lift to rise 12 m vertically?
6.0 s
24 s
60 s
2.4 s
What happens to the temperature of a substance as it is melting and as it is boiling?
A
B
C
D
The diagram shows how a thin, converging lens forms an image of an object. One principal focus of the lens is labelled F.
How is the image described?
enlarged, upright and virtual
enlarged, upright and real
diminished, inverted and virtual
diminished, inverted and real
Which statement about sound is correct?
Sound waves travel more quickly in a vacuum than in air.
An echo is produced by refraction of sound waves.
The amplitude of a sound wave affects the pitch of a sound.
The approximate range of audible frequencies for a human is 20 Hz–20kHz.
A plastic rod is rubbed with a cloth and the rod becomes positively charged. Why does this happen?
Protons move from the cloth to the rod.
Protons move from the rod to the cloth.
Electrons move from the cloth to the rod
Electrons move from the rod to the cloth.
The resistance of a wire is 20 . A second wire is made of the same material. The second wire is four times as long and has half the cross-sectional area of the first wire.
What is the resistance of the second wire?
40Ω
80Ω
160Ω
10Ω

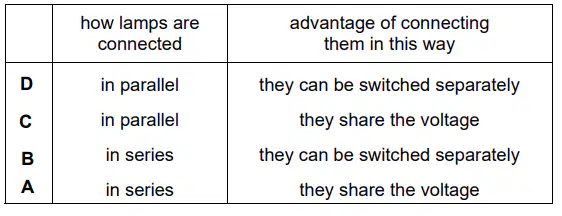

Which row shows how lamps are connected in a lighting circuit in a house and gives an advantage of connecting them in this way?
A
B
C
D
A transformer increases the voltage from a power station in order to transfer electricity along transmission cables.
How does increasing the voltage affect the current in the cables and how does it affect the efficiency of energy transfer?
A
B
C
D
An atom of beryllium is represented by ⁹₄Be.
How many neutrons are in the nucleus of this type of beryllium atom?
9
13
4
5
A beam of α-particles and β-particles passes into an electric field between two horizontal parallel plates in a vacuum.
Which row shows what happens to the beam?
