WorksheetsEnd of course exam 2
Total questions: 20
Worksheet time: 11mins
What is this picture showing ?
A schematic
A site plan
A scale drawing
A work schedule
State an hazard when lifting floors ?
No hazard i know what i am doing
Pipes & cables
Damaging the floor
State 2 actions that should be carried out before work starts in a customers property ?
Lay dust sheets down
Put the kettle on
Ask for valuable items to be removed
Look around to see what state the place is in
State which regulation covers the notching of joists ?
Regulation C
Regulation D
Regulation B
Regulation A
State 2 ways to maintain good working relationships with other trades ?
Good communication
Lend the other trades your tools
Make them tea
Resolve any disputes
List A common hand tool for installing waste pipe ?
Multipurpose saw
A pipe slice
An adjustable spanner
A blow tourch
The purpose of this tool is to ........?
Mark out a straight line
Plumb a line down
Show the direction of gradient in gutter systems
Show the spacing between gutter fascia brackets

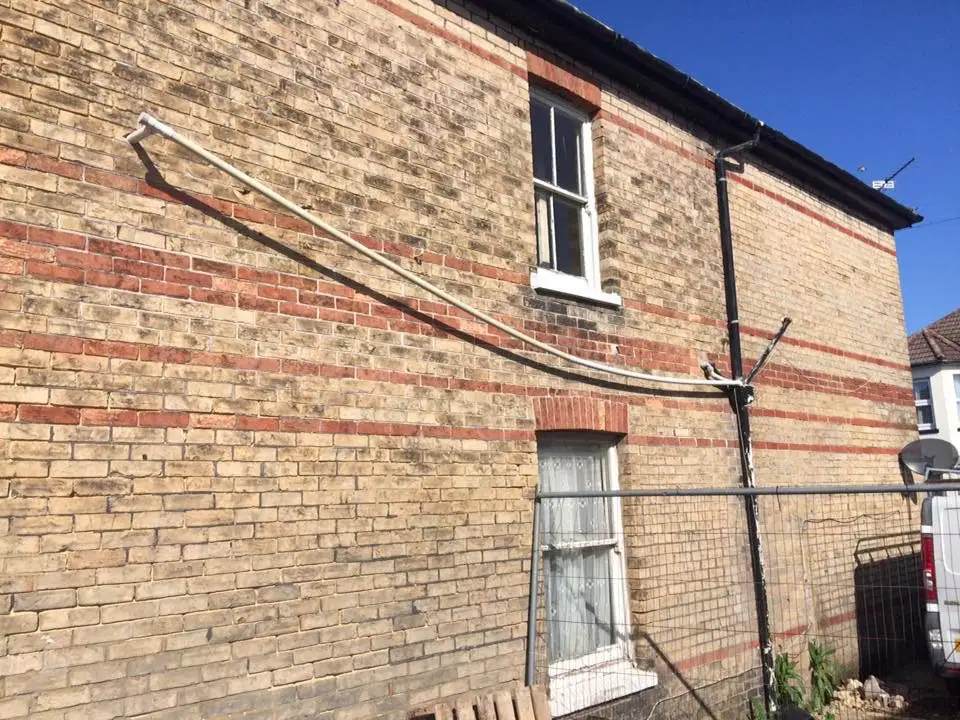

Why is this plastic waste pipe sagging so badly?
it's in a sunny location
no room for exapansion
it's not clipped correctly
all of the above
The correct gradient a gutter should be installed to is?
600:1
1:60
1:600
60:1
The maximum spacing for gutter fascia bracket is?
1mm
1.8m
1.5m
1m
Where should gas cylinders be stored?
In a locked room
Outside
Outside in a secure well ventilated area
Outside upright
Which tool uses rollers on an adjustable spindle to cut copper pipe?
Scissor Bender
Pipe slice
Adjustable pipe cutter
Adjustable spanner
How does a Push-Fit fitting create a watertight seal?
Solder
Olive
Sleeve
O-ring
How does a compression fitting create a watertight seal?
Grab ring
Solder
Olive
Sleeve
What is the horizontal clipping distance for 22mm ?
18M
18mm
2400mm
1800mm

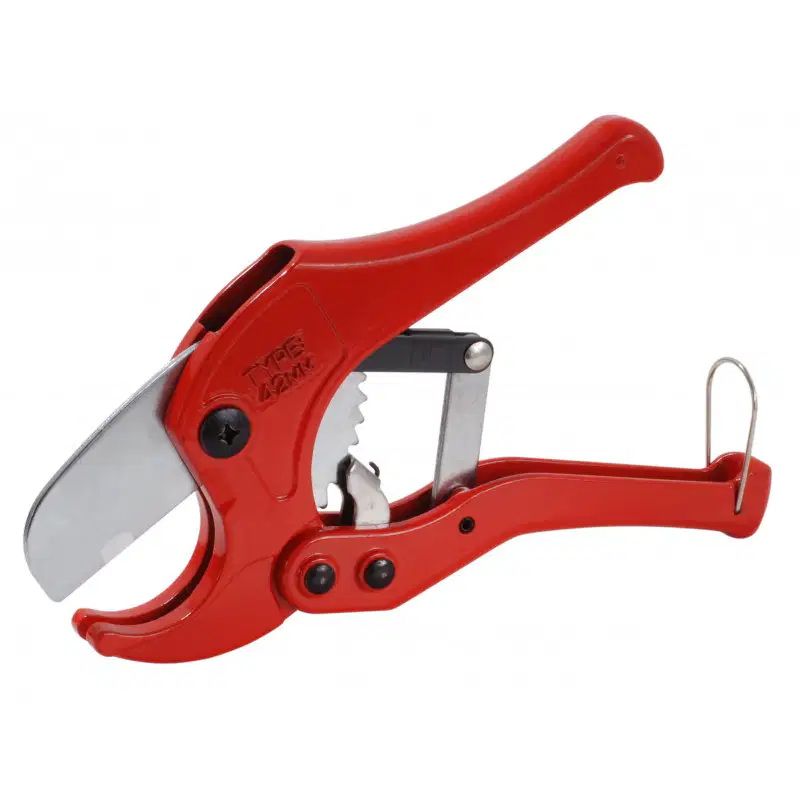

Identify this tool ?
Pipe cutter
Pipe slice
Plastic pipe cutter
Cable cutter
What are the 2 methods of joining plastic pipe ?
Compression & pushfit
Compression & threaded
Soldered & threaded
Threaded & pushfit
What is the clipping distance for 15mm layed horizontal ?
3000mm
500mm
300mm
800mm
What are these called ?
Hinged clips
Nailed clips
Snap in clips
Cable ties
When using plastic pipe on heating systems. You must make sure its ?
Sealed pipe
Unbarriered pipe
Barrier pipe
Steel line pipe
