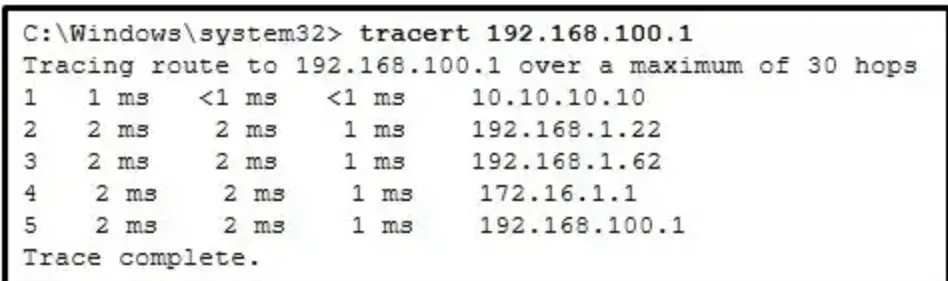

Refer to the exhibit. On the basis of the output, which two statements about network connectivity are correct? (Choose two.)
This host does not have a default gateway configured.
There are 4 hops between this device and the device at 192.168.100.1.
There is connectivity between this device and the device at 192.168.100.1.
The connectivity between these two hosts allows for videoconferencing calls.
The average transmission time between the two hosts is 2 milliseconds.
Why would a Layer 2 switch need an IP address?
to enable the switch to send broadcast frames to attached PCs
to enable the switch to function as a default gateway
to enable the switch to be managed remotely
to enable the switch to receive frames from attached PCs
Refer to the exhibit. A network engineer has been given the network address of 192.168.99.0 and a subnet mask of 255.255.255.192 to subnet across the four networks shown. How many total host addresses are unused across all four subnets?
to enable the switch to send broadcast frames to attached PCs
to enable the switch to function as a default gateway
to enable the switch to be managed remotely
to enable the switch to receive frames from attached PCs
A client is using SLAAC to obtain an IPv6 address for its interface. After an address has been generated and applied to the interface, what must the client do before it can begin to use this IPv6 address?
It must send a DHCPv6 INFORMATION-REQUEST message to request the address of the DNS server.
It must send a DHCPv6 REQUEST message to the DHCPv6 server to request permission to use this address.
It must send an ICMPv6 Router Solicitation message to determine what default gateway it should use.
It must send an ICMPv6 Neighbor Solicitation message to ensure that the address is not already in use on the network.
Refer to the exhibit. If PC1 is sending a packet to PC2 and routing has been configured between the two routers, what will R1 do with the Ethernet frame header attached by PC1?
nothing, because the router has a route to the destination network
open the header and use it to determine whether the data is to be sent out S0/0/0
open the header and replace the destination MAC address with a new one
remove the Ethernet header and configure a new Layer 2 header before sending it out S0/0/0
What three requirements are defined by the protocols used in network communcations to allow message transmission across a network? (Choose three.)
message size
message encoding
connector specifications
media selection
delivery options
Which value, that is contained in an IPv4 header field, is decremented by each router that receives a packet?
Header Length
Differentiated Services
Time-to-Live
Fragment Offset
What would be the interface ID of an IPv6 enabled interface with a MAC address of 1C-6F-65-C2-BD-F8 when the interface ID is generated by using the EUI-64 process?
0C6F:65FF:FEC2:BDF8
1E6F:65FF:FEC2:BDF8
C16F:65FF:FEC2:BDF8
106F:65FF:FEC2:BDF8
The global configuration command ip default-gateway 172.16.100.1 is applied to a switch. What is the effect of this command?
The switch can communicate with other hosts on the 172.16.100.0 network.
The switch can be remotely managed from a host on another network.
The switch is limited to sending and receiving frames to and from the gateway 172.16.100.1.
The switch will have a management interface with the address 172.16.100.1.
A network administrator is adding a new LAN to a branch office. The new LAN must support 10 connected devices. What is the smallest network mask that the network administrator can use for the new network?
255.255.255.192
255.255.255.248
255.255.255.224
255.255.255.240
What characteristic describes identity theft?
the use of stolen credentials to access private data
software on a router that filters traffic based on IP addresses or applications
software that identifies fast-spreading threats
a tunneling protocol that provides remote users with secure access into the network of an organization
What characteristic describes adware?
a network device that filters access and traffic coming into a network
software that is installed on a user device and collects information about the user
the use of stolen credentials to access private data
an attack that slows or crashes a device or network service
What is the subnet ID associated with the IPv6 address 2001:DA48:FC5:A4:3D1B::1/64?
2001:DA48::/64
2001:DA48:FC5::A4:/64
2001:DA48:FC5:A4::/64
2001::/64
A company has a file server that shares a folder named Public. The network security policy specifies that the Public folder is assigned Read-Only rights to anyone who can log into the server while the Edit rights are assigned only to the network admin group. Which component is addressed in the AAA network service framework?
automation
accounting
authentication
authorization
A new network administrator has been asked to enter a banner message on a Cisco device. What is the fastest way a network administrator could test whether the banner is properly configured?
Enter CTRL-Z at the privileged mode prompt.
Exit global configuration mode.
Power cycle the device.
Reboot the device.
Exit privileged EXEC mode and press Enter .

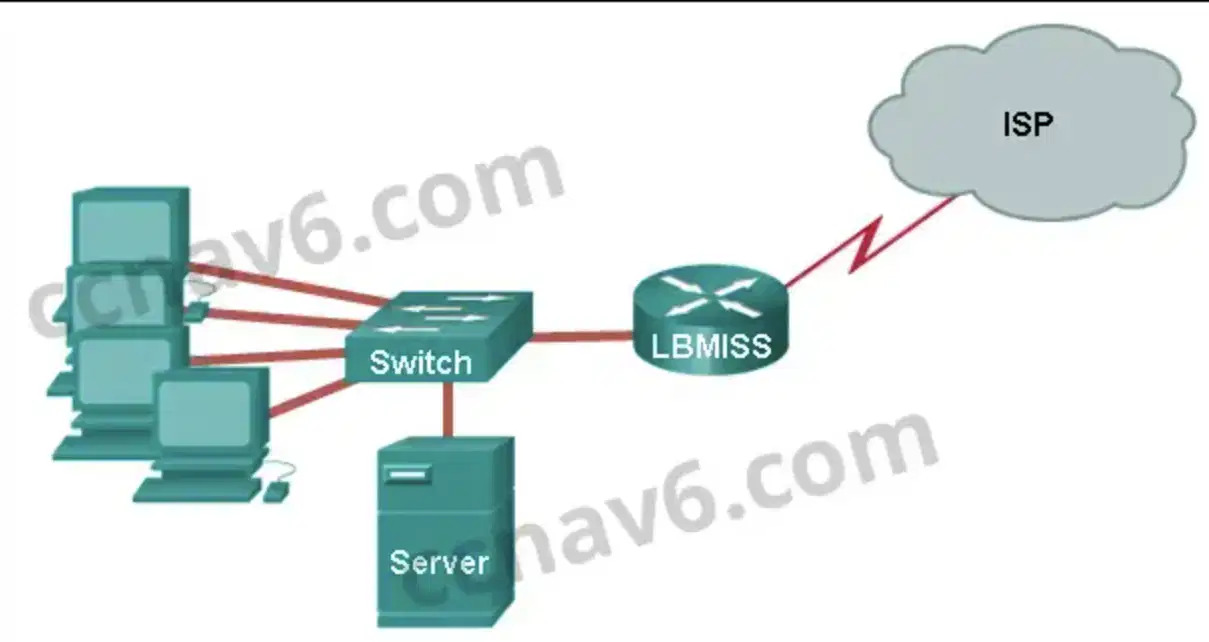

Refer to the exhibit. The network administrator has assigned the LAN of LBMISS an address range of 192.168.10.0. This address range has been subnetted using a /29 prefix. In order to accommodate a new building, the technician has decided to use the fifth subnet for configuring the new network (subnet zero is the first subnet). By company policies, the router interface is always assigned the first usable host address and the workgroup server is given the last usable host address. Which configuration should be entered into the properties of the workgroup server to allow connectivity to the Internet?
IP address: 192.168.10.65 subnet mask: 255.255.255.240, default gateway: 192.168.10.76
IP address: 192.168.10.38 subnet mask: 255.255.255.240, default gateway: 192.168.10.33
IP address: 192.168.10.38 subnet mask: 255.255.255.248, default gateway: 192.168.10.33
IP address: 192.168.10.41 subnet mask: 255.255.255.248, default gateway: 192.168.10.46
IP address: 192.168.10.254 subnet mask: 255.255.255.0, default gateway: 192.168.10.1

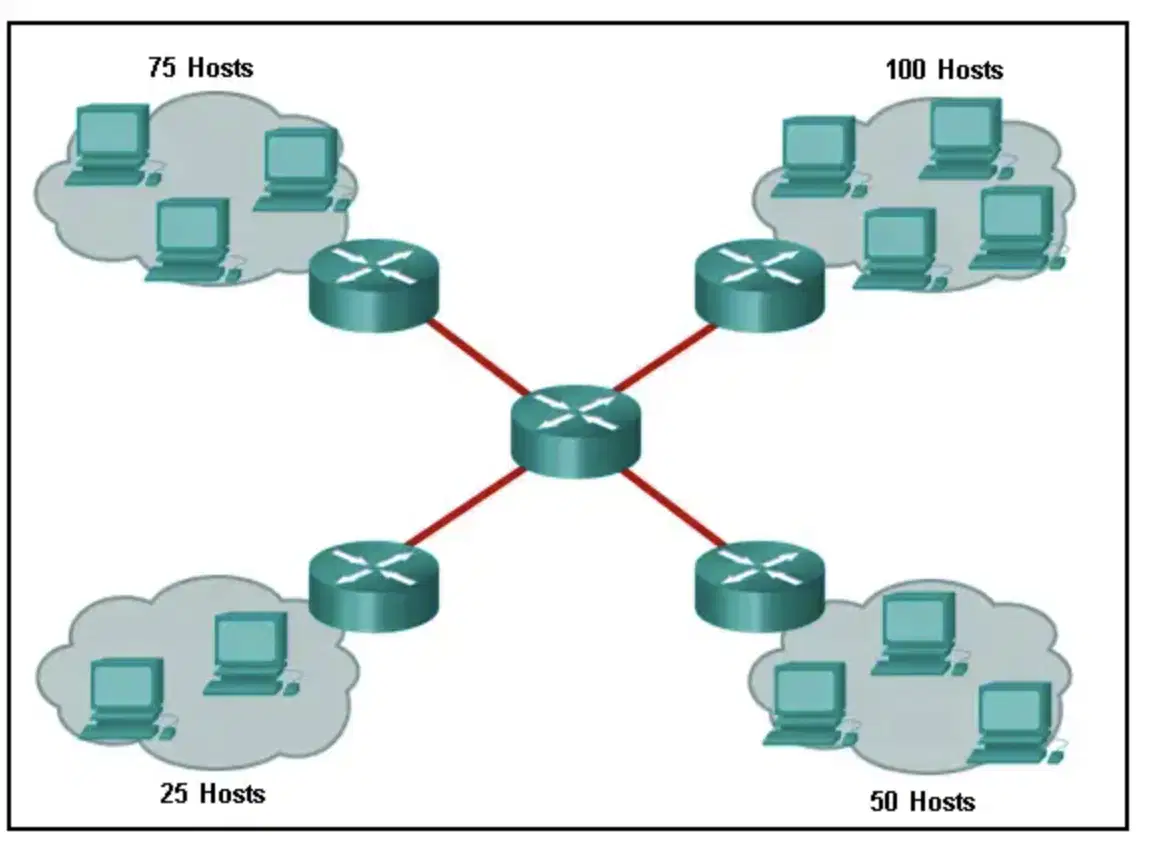

Refer to the exhibit. A company uses the address block of 128.107.0.0/16 for its network. What subnet mask would provide the maximum number of equal size subnets while providing enough host addresses for each subnet in the exhibit?
255.255.255.192
255.255.255.0
255.255.255.128
255.255.255.240
255.255.255.224
A user is complaining that an external web page is taking longer than normal to load.The web page does eventually load on the user machine. Which tool should the technician use with administrator privileges in order to locate where the issue is in the network?
ping
nslookup
tracert
ipconfig /displaydns
A network administrator is adding a new LAN to a branch office. The new LAN must support 25 connected devices. What is the smallest network mask that the network administrator can use for the new network?
255.255.255.128
255.255.255.128
255.255.255.224
255.255.255.240
What subnet mask is needed if an IPv4 network has 40 devices that need IP addresses and address space is not to be wasted?
255.255.255.0
255.255.255.240
255.255.255.128
255.255.255.192
255.255.255.224
What characteristic describes a virus?
a network device that filters access and traffic coming into a network
the use of stolen credentials to access private data
an attack that slows or crashes a device or network service
malicious software or code running on an end device
A network administrator is adding a new LAN to a branch office. The new LAN must support 4 connected devices. What is the smallest network mask that the network administrator can use for the new network?
255.255.255.248
255.255.255.0
255.255.255.128
255.255.255.192
