WorksheetsST2 CSS 10 4th Quarter
Total questions: 20
Worksheet time: 3mins
1. What networking media is used for telephone communications and most modern Ethernet networks?
a. coaxial cable
b. fiber optic cable
c. router
d. twisted pair
2. What is a small network constrained to a small geographic area?
a. Internet
b. LAN
c. MAN
d. WAN
3. What type of network is frequently used by remote workers or companies with remote offices to share private data and network resources?
a. Internet
b. LAN
c. MAN
d. VPN
4. What refers to the concept of sharing the work involved in processing data between the client computer and the server computer?
a. client – server network
b. peer to peer network
c. virtual private network
d. wide area network
5. What networking cable contains optical fibers coated in plastic that are used to send data by pulses of light?
a. coaxial
b. fiber optic
c. STP
d. UTP
6. What computer networking device builds the connection with the other bridge networks which use the same protocol?
a. bridge
b. hub
c. repeater
d. switch
7. What are computers that hold shared programs, files, and the network operating system?
a. clients
b. nodes
c. servers
d. terminals
8. Which of the following is an example of networking media?
a. coaxial cable
b. hub
c. repeater
d. router
9. Which of the following is an example of networking device?
a. coaxial cable
b. STP
c. switch
d. UTP
10. What is a unique identifier of each host and is associated with the NIC (Network Interface Card) which is also known as the physical address of a device?
a. host address
b. host name
c. IP address
d. MAC address
11. What material composes the central core of a coaxial cable?
a. aluminum
b. copper
c. glass
d. PVC
12. What material usually composes the central core of a fiber optic cable?
a. aluminum
b. copper
c. glass
d. PVC

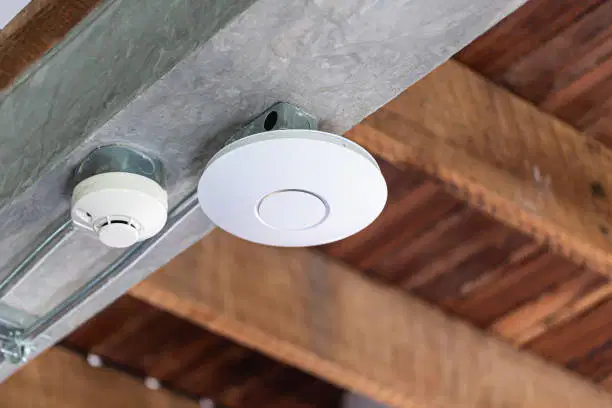

13. What networking device is depicted in this picture ?
a. patch panel
b. repeater
c. router
d. wireless access point

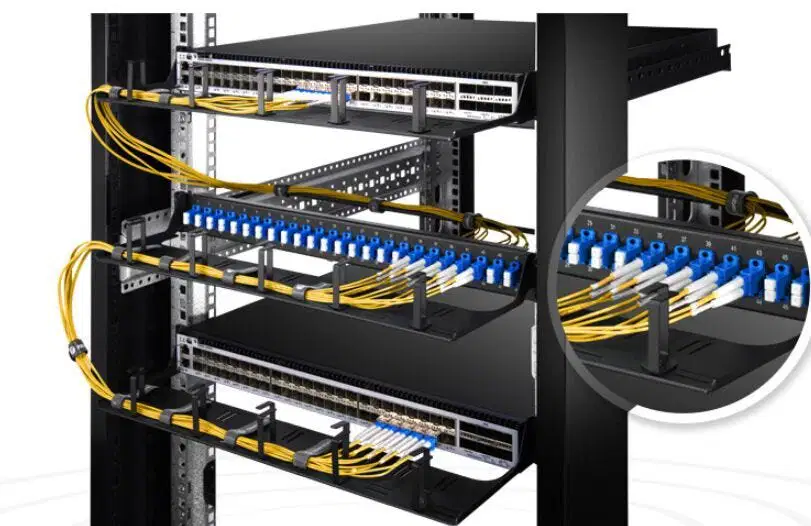

14. What networking device is depicted in this picture ?
a. patch panel
b. repeater
c. router
d. wireless access point
15. Which of the following is an example of MAN?
a. You are sending a file to a friend living overseas.
b. A network communicating at a computer shop.
c. You are sending a file to a friend living in the same city.
d. You sending a file to a friend living in the same barangay.
16. Which of the following arrangement of network sizes is CORRECT?
a. LAN-MAN-WAN
b. LAN-WAN-MAN
c. MAN-LAN-WAN
d. WAN-LAN-MAN
17. Which of the statements is CORRECT between hubs and switches?
a. Hubs are generally cheaper than switches.
b. Hubs provide more connections than switches.
c. Switches are faster in routing data in a network compared to hubs.
d. Switches are slower in routing data in a network compared to hubs.
18. Which of the following is TRUE about single mode fiber optic cable?
a. It has a maximum cable length of 2 km.
b. It is capable of lower bandwidth and lesser distances coverage.
c. It is capable of higher bandwidth and greater distances coverage.
d. It is often used for workgroup applications and intrabuilding application.
19. James just opened a posh coffee shop in San Gabriel as tourism is still promising despite the pandemic. It’s a two – storey building with free Internet access to customers dropping for their daily coffee sips in – store or takeouts. What is the BEST set – up James would do to provide Internet connection to their customers?
a. Configure wireless connection to limit access time to only 3 minutes.
b. Provide stationary desktops on one side so that customers can log in.
c. Provide iPads for rent for customers to connect to the wireless network.
d. Configure the router so that customers can connect using their devices.
20. After 2 years of operation, James coffee shop grew and he expanded the building to accommodate more customers and sell more. One time, customers on the new part of the building are having a hard time getting a good connection from their wireless connection. How would James address this concern?
a. Change their router to a new one.
b. Switch to a new Internet service provider.
c. Install a separate router to the new part of the building.
d. Install repeater or wireless access points to extend WiFi coverage.
