WorksheetsGWM Cannon Technical Training 1/3
Total questions: 20
Worksheet time: 10mins
GWM Cannon is using which engine?
4C20
4D20
4D20M
4B20
What is an emission standard for CANNON?
GB-6B
Euro iv
Euro V
Euro vi
What is the maximum Nm for Cannon?
120
300
400
500
Do cannon passenger version using balance shaft?
Yes
No
What is the component A name?
Thermostat
Alternator
Fuel high pressure pump
High pressure nozzle

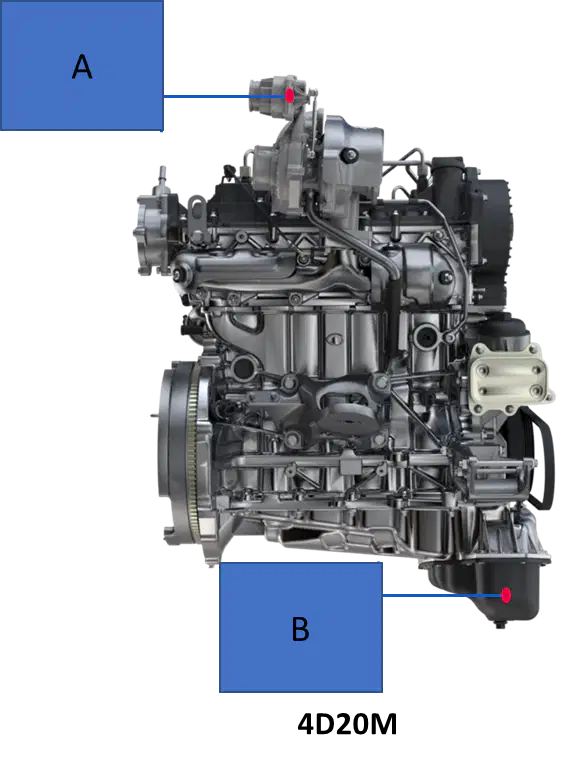

What is the component A & B name ?
A: Turbo
B: Drain plug
A: Bi-turbo
B: Oil Pan
A: Supercharge
B: Drain plug
A: VGT Turbo
B: Oil Pan
What is the function of vortex control valve at intake manifold?
To maximum exhaust gas output form the combustion chamber
To keep best opening angle during engine working to adjust air intake vortex condition
To keep best opening angle during engine working to adjust exhaust gas vortex condition
To keep the exhaust gas in vortex condition easy to push turbocharge system

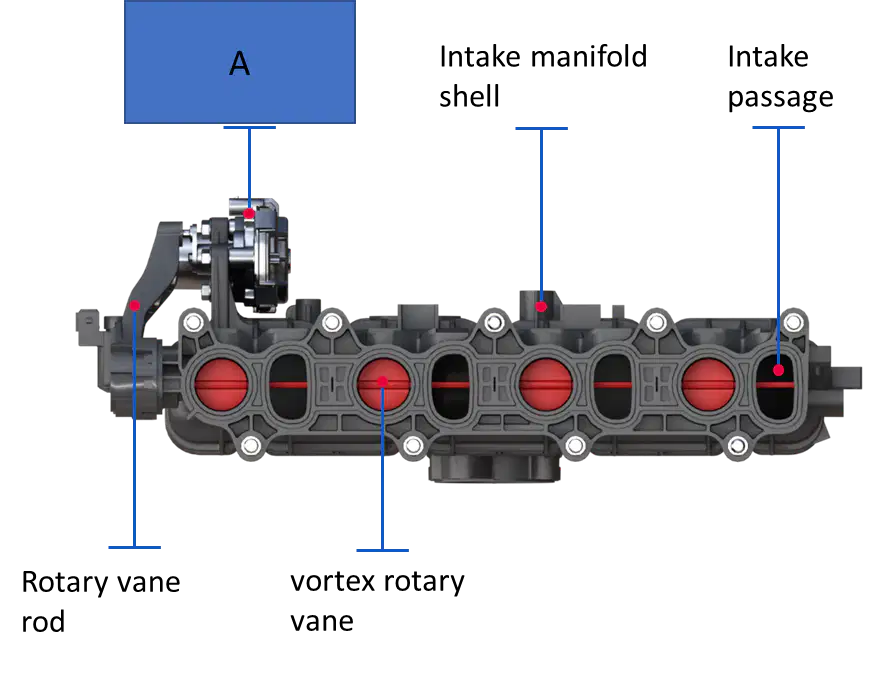

What is the name and function of component A?
VGT turbo motor to control waste gate pressure.
Intake manifold motor to control vortex rotary vane let more fresh air enter to combustion chamber.
Exhaust manifold motor to control vortex rotary vane let pressurized exhaust gases enter to turbo system.
Vortex control motor to control rotary vane rod when it need to open to let more fresh air enter to engine.
What is the advantage of variable vortex intake manifold like the diagram?
It can increase the fresh air amount to the combustion chamber.
It can push more exhaust gases out of combustion chamber.
It can pressurized exhaust gases pressure before enter turbo system.
It can increase cooling efficiency of the engine block.

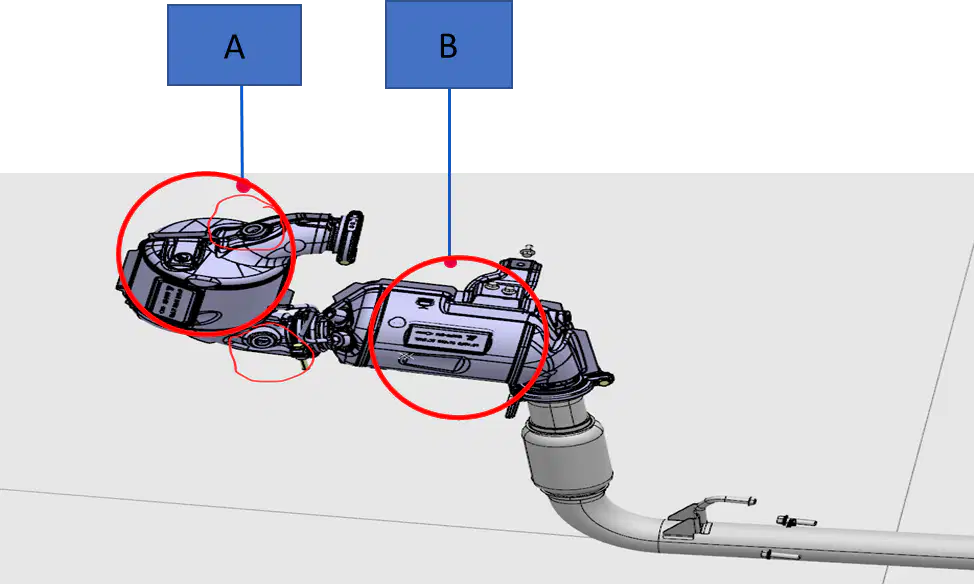

What is the name of component A & B?
A: Lean Nitrogen Trip
B: Carbon diesel part filter
A: Leaned NOx Trip
B: Coating diesel particulate filter
A: Lean NOx Trap
B: Coated diesel particulate filter
A: Can-Lin NOx trap
B: Coated petrol filter

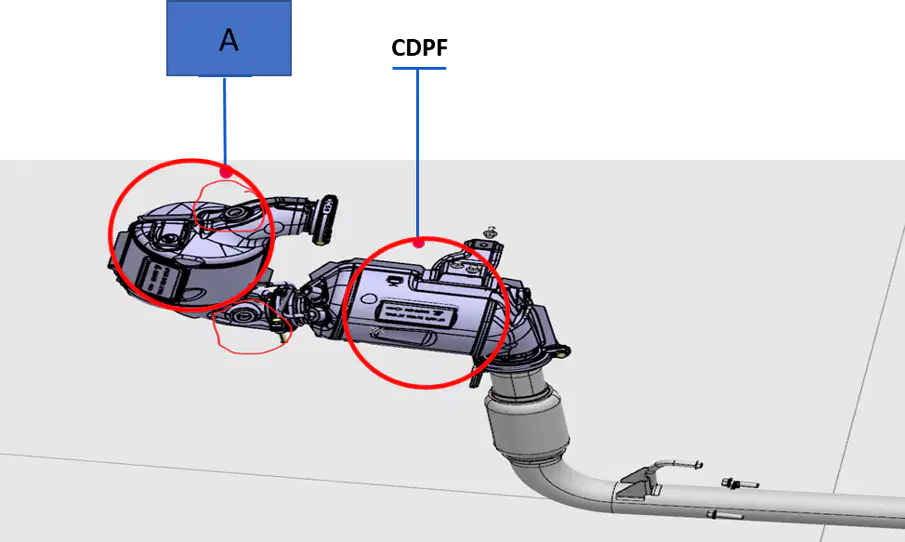

What is the function of component A?
To reduce and trap particulate matter in diesel exhaust gas.
To reduce and trap NOx in petrol exhaust gas.
To reduce and control emission system for petrol engine
To reduce NOx and exhaust gas that produce by diesel engine.

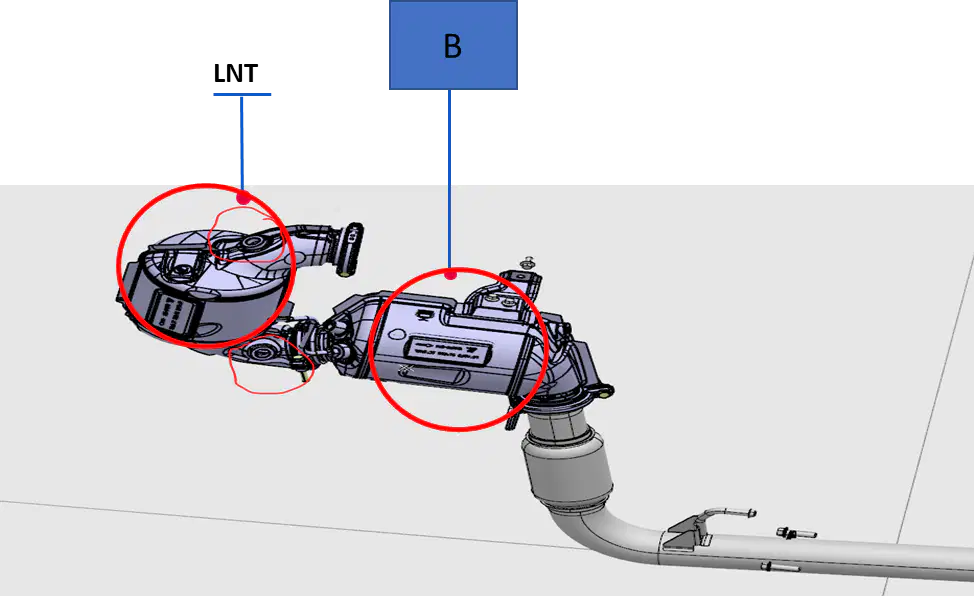

What is the function of component B?
To increase torque of diesel engine.
To increase exhaust pressure before entry to turbo.
To reduce particulate matter of diesel exhaust gas.
To reduce exhaust and make sure perfect injection.
Which number is the correct location of oxygen sensor will be located for engine 4D20M?
1
2
3

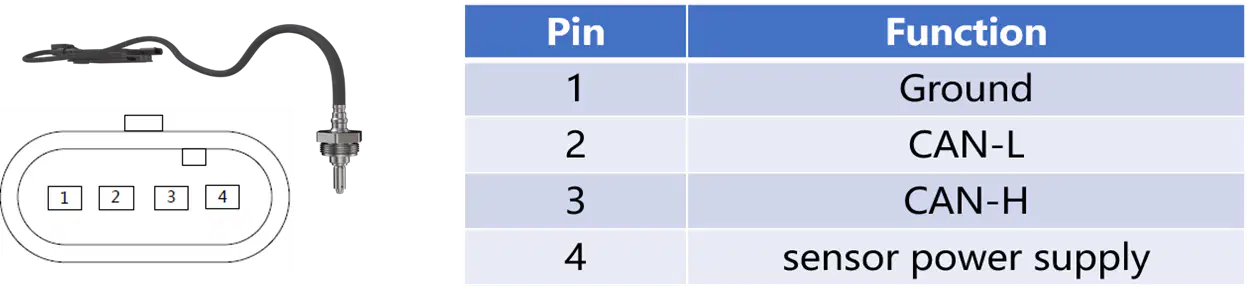

How to diagnose a particulate sensor of engine 4D20M?
Use continuity to check pin 2 & pin 3.
Use volt meter to check pin 1 & 4.
Use ohm meter to check pin 2 & 4.
Use amp meter to check pin 1 & 4
What is the engine oil grade for engine 4D20M?
0W20 fully synthetic engine oil
0W30 Semi synthetic engine oil
5W30 fully synthetic engine oil
5W40 fully synthetic engine oil
How long for GWM Cannon need to service?
6 month / 10,000km
3 month / 5,000km
9 month / 15,000km
1 years / 20,000km
How long need to change brake fluid?
1 year / 20,000km
18 months / 30,000 km
24 months / 40,000km
30 months / 50,000km
How long need to change differential fluid?
18 months / 30,000km
24 months / 40,000km
42 months / 70,000km
54 months / 90,000km
How long need to change transfer case fluid?
3 months / 5,000km
12 months / 20,000km
30 months / 50,000km
48 months / 80,000km
How long need to change air filter?
12 months / 20,000km
24 months / 40,000km
36 months / 60,000km
48 months / 80,000km
