Worksheetssecond year part 3
Total questions: 29
Worksheet time: 15mins
What is the type of angle plate?
Plain
Box
Swivel
Slotted
What is the type of angle plate?
Plain
Slotted
Box
Swivel
What is the name of angle plate?
Plain angle plate
Slotted angle plate
Box angle plate
Swivel type angle plate
What is name of angle plate?
Plain
Box type
Slotted
Swivel type
What is the name of part marked as ‘x’?
Counter weight
Face plate
Work piece
Angle plate
What is the name of device marked as ‘x’?
Cat head
Roller steady
Fixed steady
Follower steady
What is the part marked as ‘X’?
Angle plate
Face plate
Counter weight
Work piece
What is the name of device marked as ‘X’?
Four jaw chuck
Faceplate
Driving plat
Driving plate
What is the purpose of part marked as ‘X’ in the angle plate?
Holding the job
Increase the weight
For good appearance
Avoid distortion
Which part is marked as ‘X’ in copying attachment?
Master profile
Stylus
Work piece
Rear tool slide
Which part is marked as ‘X’ in copying attachment?
Master profile
Stylus
Rear tool slide
Control lever for hydraulic slide
Which part in marked as ‘X’ in copying attachment?
Master profile
Stylus
Work piece
Rear tool slide
What is the name of attachment?
Taper turning attachment
Milling attachment
Grinding attachment
Copying attachment
What is the name of attachment?
Taper turning attachment
Milling attachment
Grinding attachment
Copying attachment

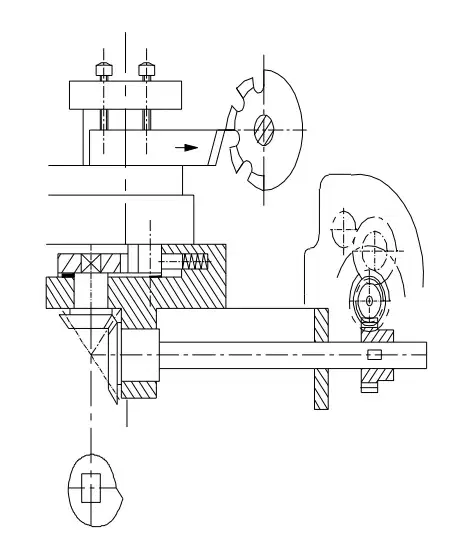

What is the name of operation?
Grinding
Gear cutting
Relieving a gear cutter
Spherical turning
What is the name of attachment?
Copying attachment
Gear cutting attachment
Grinding attachment
Taper turning attachment
What is the type of checking?
Checking effective diameter using 3 wire method
Checking effective diameter using prism
Checking minor diameter using micrometer
Checking major diameter using 3 wire method
What is the name of gauge?
Screw thread micrometer
Screw thread ring gauge
Screw thread plug gauge
Screw thread caliper gauge
What is the name of gauge?
Thread ring gauge
Thread plug gauge
Plain ring gauge
Thread caliper gauge

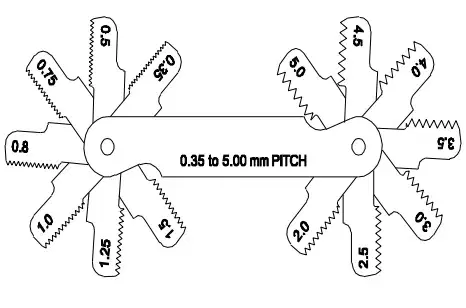

What is the name of gauge?
Screw pitch gauge
Snap gaugeScrew pitch gauge
Feeler gauge
Caliper gauge
What is the name of part marked as ‘X’ in thread measurement?
Taper parallelsSlip gauge
Micrometers
Vee prism
Slip gauge
What is the name of part marked as ‘X’?
Precision roller
Slip gauges built up
Parallel blocks
Taper parallels
What is the name of device?
Milling machine
Optical projector
Grinding machine
Slotting machine

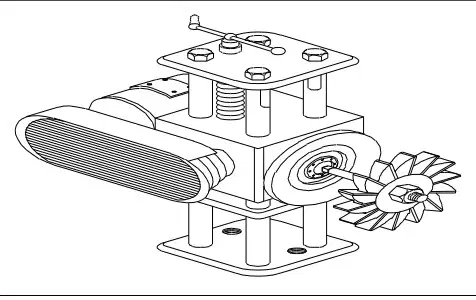

What is the name of lathe attachment?
Grinding attachment
Milling attachment
Copying attachment
Taper turning attachment

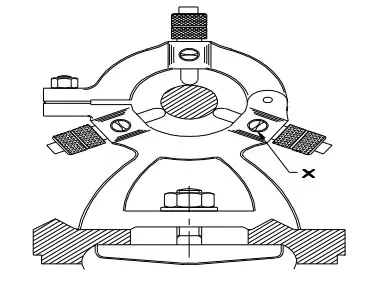

What is the purpose of locking screw marked as ‘x’ in steady rest?
To lock the bearing pad
To clamp the steady rest
To lock the top portion of steady rest
To adjust the bearing pad
What is the name of process?
Milling cutter manufacturing
Dressing a grinding wheel
Resharpening of milling cutter
Turning a grinding wheel
What is the name of operation?
Gear cuttingGrinding
Turning
Taper turning
What is the type of measurement?
Measuring major diameter
Measuring pitch diameter
Measuring minor diameter
Measuring effective diameter
What measurement is checked?
Measuring major diameter
Measuring core diameter
Measuring pitch diameter
Measuring effective diameter
