WorksheetsCar Wiring Components
Total questions: 5
Worksheet time: 6mins

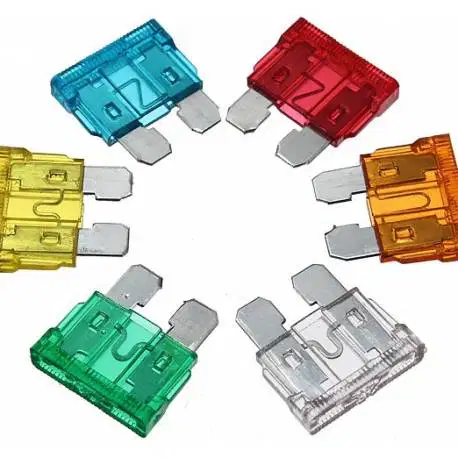

What is the primary function of a fuse in a vehicle's electrical system?
Controlling the flow of current
Amplifying the voltage
Protecting circuits from overcurrent situations
Regulating the temperature of electrical components
Arrange the following components in the correct order of their involvement in an electrical circuit:
Fuse
Bus bar
Relay
Crimp connector
Match the component to its corresponding function:
Provides a centralized connection for multiple wires or circuits
Block connector
Creates a secure and permanent bond between electrical components
Solder joint
Controls high-current circuits using a low-current control signal
Relay
Which of the following components is commonly used to consolidate and distribute electrical power in a vehicle's electrical system?
Fuse
Crimp connector
Solder joint
Bus bar
The (a) provides protection against overcurrent situations.
The (b) centralizes and distributes electrical power or signals.
The (c) controls the opening and closing of high-current circuits.
