WorksheetsUnit #4 Study Guide
Total questions: 12
Worksheet time: 18mins
Is this circuit in series or parallel?
Series
Parallel
A bowling ball has a mass of 2.
The bowling ball is pushed from a height of 6 feet.
Determine its potential energy
PE = m x g x h (g = 9.81 m/sec)
9.81 Joules
19.62 Joules
58.86 Joules
117.72 Joules
R1 = 6, R2 = 4, R3 =3, R4= 4, R5 = 12
What is the voltage?
25 Ohms
27 Ohms
29 Ohms
30 Ohms

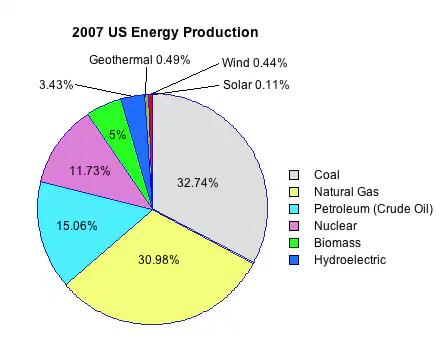

Which energy consumptions are 11.73% and 30.98%?
Hydroelectric and Petroleum
Nuclear and Natural Gas
Natural Gas and Coal
Nuclear and Biomass
True or False. Nonrenewable energy resources take thousands or millions of years to become created.
True
False
Which of the following is not an insulator?
Copper
Plastic
Rubber
Wood
A light bulb would be an example of a:
Negative terminal
Positive terminal
Load
Power Source
Which of the following is a renewable resource?
Oil
Natural gas
Biomass
Coal
Which of the following parts of a circuit is where the electricity is stored?
Power source
Positive terminal
Negative terminal
Load
Energy can only be transformed from one source of energy into another.
True
False

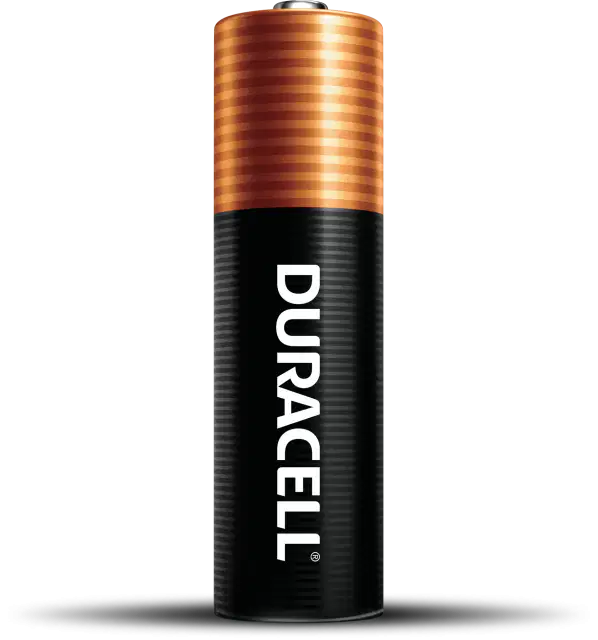

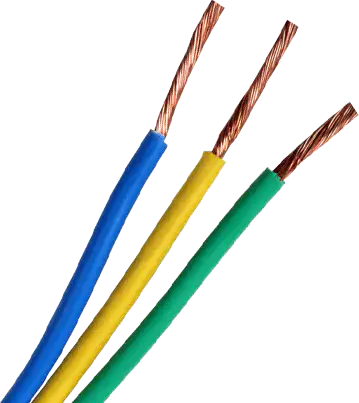

Which of the following image is an example of a load?
True or False. A parallel circuit has only one pathway for the electrons to pass through the wire.
True
False
