WorksheetsDrone Concepts and Vocab Assessment Practice
Total questions: 21
Worksheet time: 11mins
How high can you legally fly your drone?
200 ft
300 ft
400 ft
500 ft
You can fly over people if
they are your friends
you tell them what your are doing
they are part 107 pilots
they are part of your operation
Which aircraft is the most efficient?
drone
plane
helicopter
flying car
What will the drone do if motors 3 and 4 spin faster?
It will move backwards
It will move forwards
It will fly right
It will yaw.
If your drone weighs ______ grams or more it must be registered with the FAA.
200
249
250
300
This component sends a receives a signal from the remote transmitter.
receiver
ESC
Flight Controller
VTX
This components has majority of the sensors and is the main computer for the drone
receiver
ESC
Flight Controller
VTX
This component tells the motors how much power to use
reciever
ESC
Flight Controller
VTX
This component sends the video signal to the goggles or other viewing screens
receiver
ESC
Flight Controller
VTX
Which is the correct order for an input signal?
FC=flight controller
VTX-->Receiver-->FC -->ESC-->motors
Transmitter->Receiver->FC->ESC->motor
motor->receiver->vtx->ESC
FC->receiver->transmitter->ESC->motor

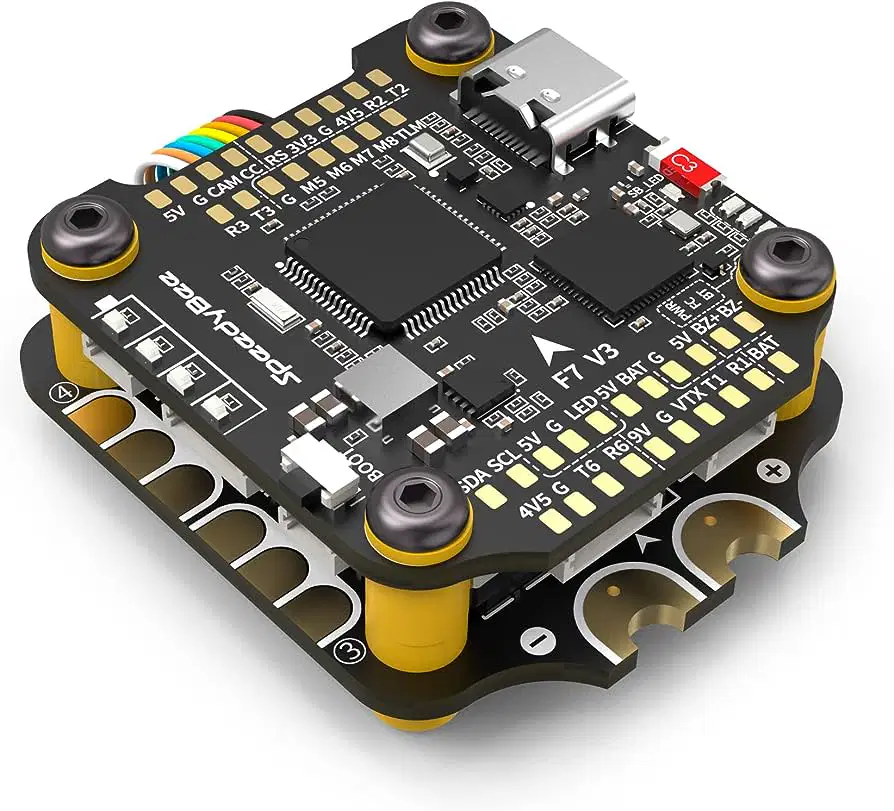

A UART can
receive info
send info
send and receive info
make phone calls
T1 on a UART is
Transmission port
Receiver port
UART port
Port 1
If my VTX is connect on UART2 I can connect my receiver to
T1
T2
R1
R2
Which change would help me increase flight time?
more aggressive propeller pitch
less aggressive propeller pitch
more propeller blades
smaller propeller
Which change would help me increase flight time?
larger battery
higher c-rating
more cells/voltage
larger battery AND lower c-rating

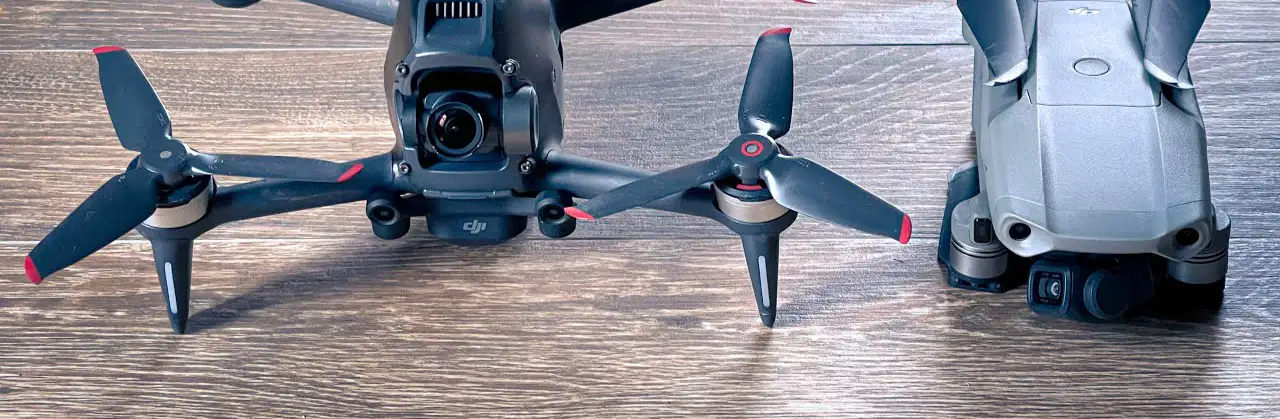

Which type of drone typically is faster and more agile?
FPV
Photography

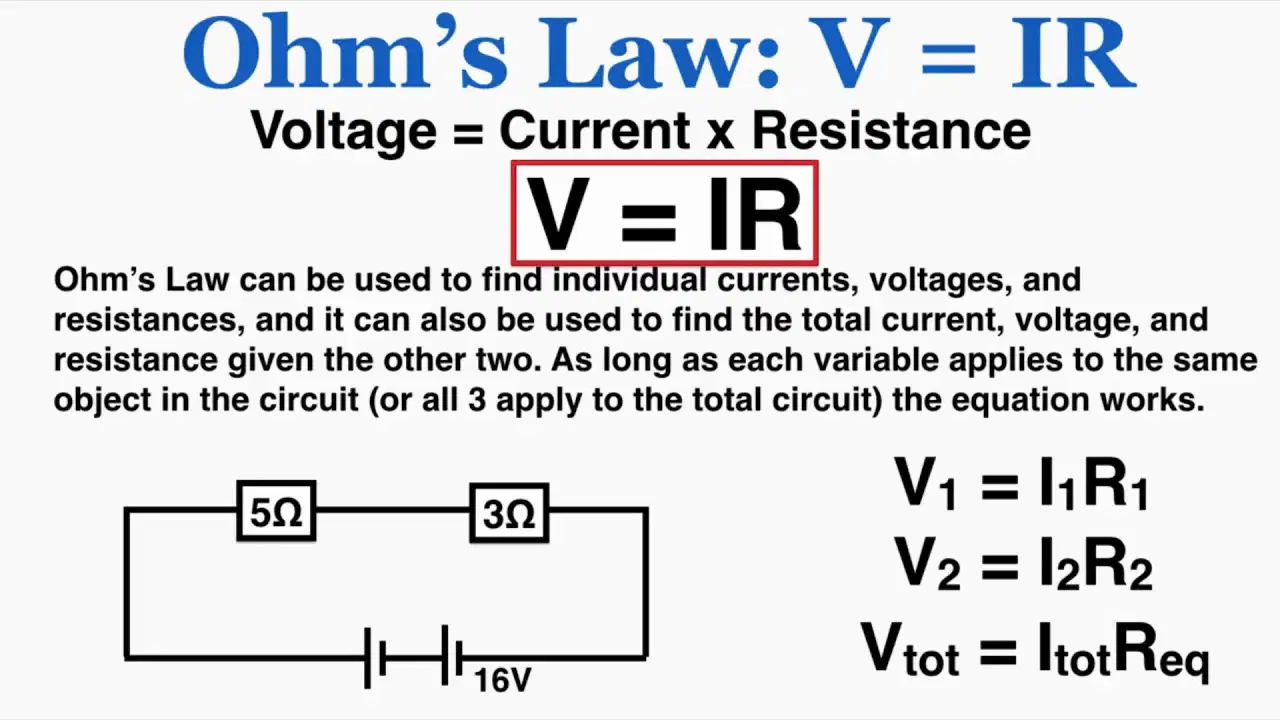

IF V=IR then if I increase resistance what happens to my current if voltage stays the same?
it also increases
it decreases
nothing
the battery will explode

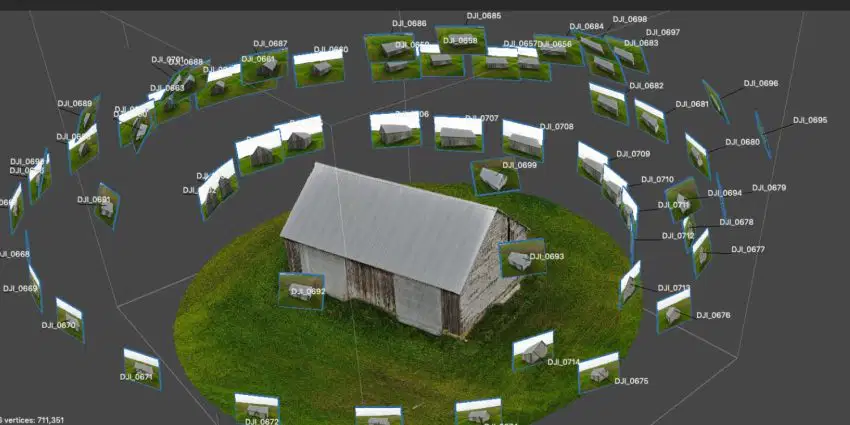

Photogrammetry is
using photography to take pictures and map and measure
Looking at the heat distribution
taking videos
fun
Taking pictures that overlap and at different heights is necessary for
photogrammetry
thermography
flying a drone
FPV

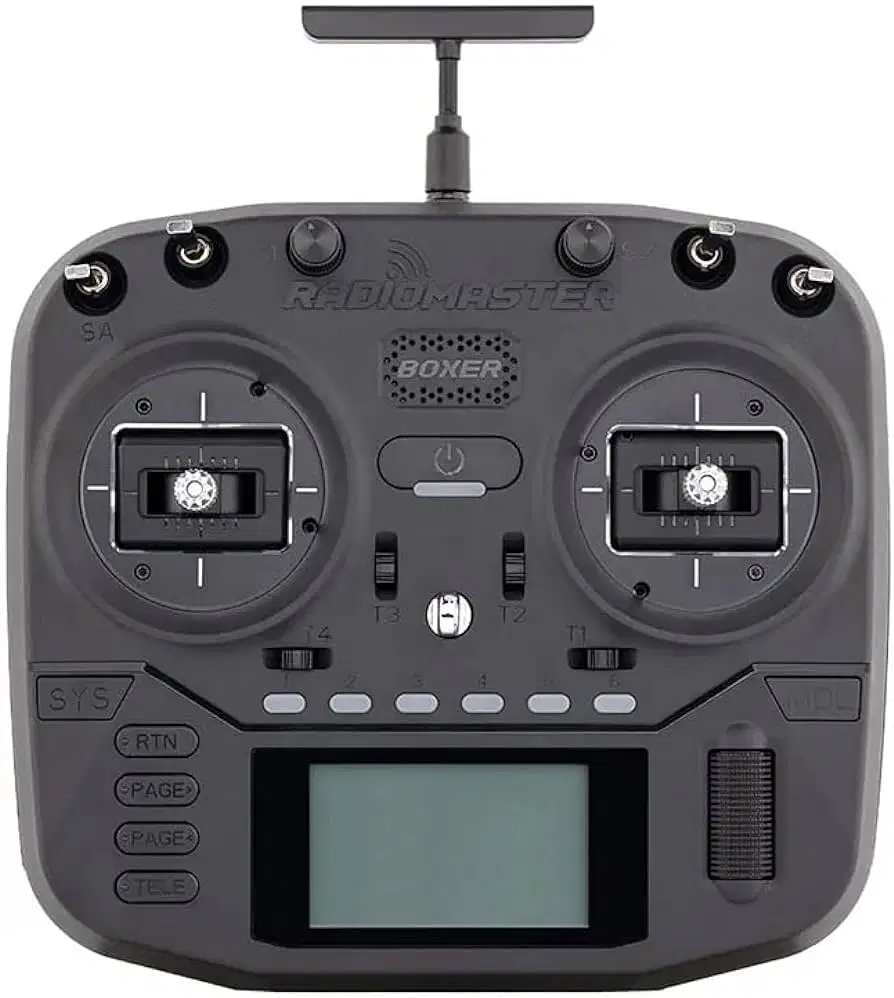

The right stick on your drone controls
Throttle/Yaw
Pitch/Roll
Throttle/Pitch
Yaw/Roll
Pitch controls
Up/Down
Left/Right
Rotation
Forward/Back
