Worksheets11EBN20F
Total questions: 20
Worksheet time: 31mins

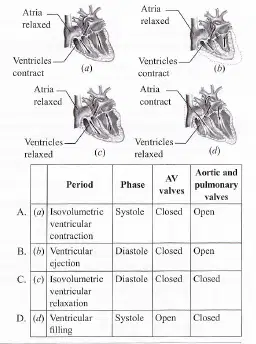

Refer to the given figures (a — d) regarding mechanical
events during a cardiac cycle and select the correct
option regarding them.
A
B
C
D
Read the given passage where few words have been italicised.
The adrenal cortex is composed of three distinct layers. The cells Of outer layer zona fasciculata have enzymes required for converting corticosterone to androgen. The major hormones of adrenal cor'tex are aldosterone, antidiuretic hormone and cortisol, Aldosterone is a mineralocorticoid, regulating the Nav and H20 balance in the body. Production of aldosterone is under control Of angiotensinogen, which acts on plasma membrane receptors to activate inositol triphosphate second-messenger pathway.
Select the correction regardin it.
A
B
C
D
Refer to the given figure of male reproductive system Of Periplaneta americana. Identify the labelled parts P — S and select the incorrect statement regarding them.
A. P represents male gonads which lie on dorso—
lateral side of 4th to 6th abdominal segments and become non-functional in adults .
B.Q is mushroom gland, Its secretion firms inner layer of spermatophore and also nourishes the sperms.
C. R is utricular gland, its secretion forms the outerlaver of spermatophore.
D. S is ejaculatory duct, which secretes middle layer of spermatophore
Read the given statements and select the option with
aII correct statements.
Which Of the given structures of nucleotides is correct?
choose the correct option.
A
B
C
D
Read the given steps of urine formation in humans, carefully.
(i) Reabsorption of glucose, amino acids, hormones, vitamins, water, urea etc. from filtrate in PCT makes it isotonic to blood plasma.
ii ) Reabsorption of Na+, K+, Ca2+, Mg2+ from filtrate makes it hypotonic to blood plasma.
(iii) The filtrate becomes hypertonic to blood plasma due to reabsorption of water.
(iv) Filtration of water and dissolved substances from the blood into lumen Of the Bowman's capsule.
(v) Active reabsorption of Na+ under the influence of aldosterone.
The correct sequence of steps is .......
Read the given examples Of structural evidences in
favour of evolution and select the option that correctly
groups them under the given columns.
Convergent evolution Divergent evolution
Convergent evolution Divergent evolution
Convergent evolution Divergent evolution
Refer to the given graph showing bacterial population
measured in the river from the point of agricultural
waste discharge. Identify the correct statement.
What is the function of ATP in skeletal muscle
contraction?

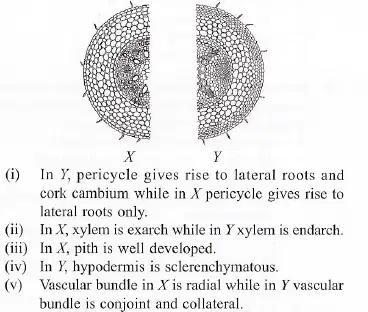

Refer to the given figure representing transverse section
Of roots X and Y. Identify them and select the correct
statements.
Rafer to the given figures representing two tvpes of
life cycle pattern (X and Y) found in algae and list
of organisms that follows it.
Four children belonging to Mr Mehra and Ms Mehra
have thc blood groups A. B. AB and O. The genotypes
Ms Mehra are
Refer to the given nittogen cyele and identify
microorganisms involved at Steps (ii). (iii) and (iv)।
Which of thc following statements is incorrect ?
Refer to the given citric acid cycle. In which steps out
Of K — O, both decarboxylation and dehydrogenation
processes are involved ?
M and N only
L and M only
K, M and O only
L, N and O only
Which of the following options is correct
if a diploid cell has four sets of chromosomes and the total amount of DNA is denoted by x before DNA replication ?
A
B
C
D

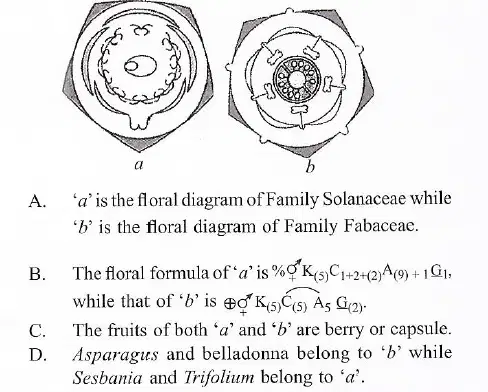

Which of the following options is correct regarding
the given floral diagrams a and b ?
A
B
C
D
Which of the following pyramids of number would
most likely correspond with the given food chain?
