WorksheetsEMTECH POP QUIZ
Total questions: 14
Worksheet time: 7mins
It is the programming language used to program the Arduino board.
Arduino
C++
HTML
SQL
It is the command use to set the given variable either an INPUT or an OUTPUT.
int
pinMode
digitalWrite
digitalRead
It is the command use to set a certain electronic device either HIGH or LOW.
int
pinMode
digitalWrite
digitalRead
It is the command use to accept input/s from a certain electronic device.
int
pinMode
digitalWrite
digitalRead
Where do we set declared variable/s whether it is an input or an output?
void setup
void loop
void variables
void input/output
Setting a certain LED 'HIGH' means supplying the electronic device with 5 volts.
TRUE
FALSE

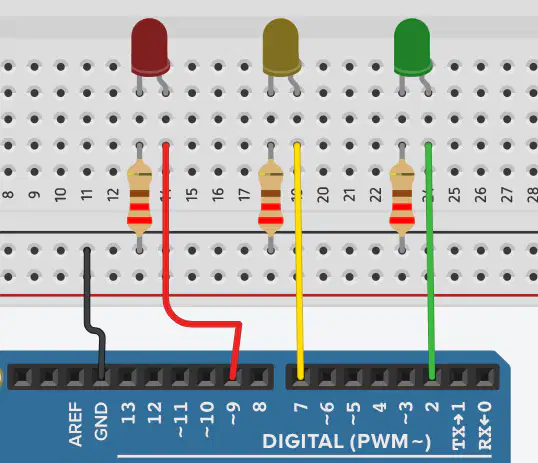

How do we light up the red led?
digitalWrite(red, HIGH)
digitalWrite(red, LOW)
digitalWrite(red, high)
digitalWrite(red, low)
LED
Light Emitting Diode
Light Emitting Device
Lunar Emitting Diode
Lunar Emitting Device
What is the main function of a resistor?
To regulate the flow of electrical current.
To increase the voltage supplied to a component.
To store electrical charge for later use.
To convert electrical energy into light.
Identify the electronic device/component.
Male-to-Male Jumper Wires
Female-to-Female Jumper Wires
Male-to-Female Jumper Wires
All of the choices

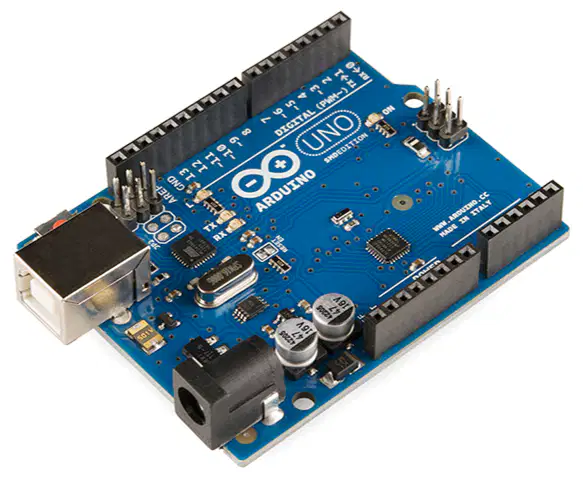

Identify the electronic device/component.
Breadboard
Arduino Board
Resistor
LED

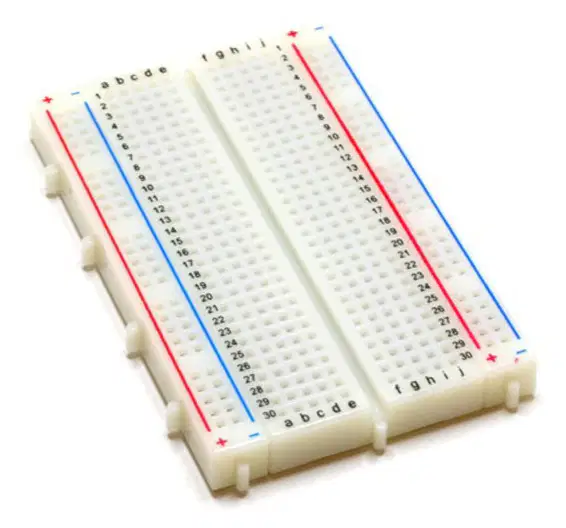

Identify the electronic device/component.
Breadboard
Arduino Board
Resistor
LED
It is the only language that a computer can understand.
Arduino
Machine Language
High-Level Language
C++
How many GND pins does an Arduino board have?
1
2
3
4
