Worksheets8202/6035L2/3SANQ1
Total questions: 18
Worksheet time: 54mins
According to BS EN 12056, what is a recommended method to minimize the need for separate ventilation pipes in a primary vented stack system?
Using larger diameter discharge pipes.
Grouping appliances closely together.
Introducing more bends and branches for airflow.
Increasing the gradient to 10⁰ per meter.
What is a crucial consideration when installing a vertical discharge stack according to the provided guidelines?
Use of knuckle bends to facilitate smoother flow.
Incorporating at least three 90⁰ bends for stability.
Installation of 2 x 45⁰ bends or a long radius bend at the base.
Ensuring the stack has a diameter twice the size of the radius.
Why should knuckle bends be avoided in the installation of a vertical discharge stack according to the guidelines?
Knuckle bends cause increased pipe stability.
They facilitate smoother flow of discharged materials.
Knuckle bends create compression within the pipe.
They enable easier maintenance and cleaning of the stack.
What is the closest distance from the drain invert level for the lowest connection to the soil stack in a two-storey 'low-rise' building according to the guidelines?
450mm
650mm
550mm
750mm
According to the guidelines, how much does the distance from the drain invert level increase for buildings from 3 to five storeys in terms of the lowest connection to the soil stack compared to two-storey buildings?
300mm
750mm
200mm
3000mm
What system is recommended to prevent the loss of trap seals on larger installations due to waste pipe runs?
Primary vented stack system
Ventilated branch discharge system
Secondary drainage system
Isolated trap system
How far should a vent pipe be located from any appliance to protect water trap seals from induced or self-siphonage?
500mm
1000mm
300mm
1200mm
What purpose do air admittance valves (AAV) serve in a drainage system?
They allow foul odors to escape into the dwelling.
They prevent air from entering the system.
They allow air into the system and stop smells from leaving.
They assist in increasing pressure within the drainage pipes.
What distinguishes air admittance valves (AAV) from other ventilation systems in a drainage system?
They facilitate foul odors' escape into the dwelling.
They allow air into the system but prevent foul odors from escaping into the dwelling.
They provide high-pressure ventilation to the system.
They rely on natural air circulation without mechanical assistance.
According to the rules for installing branch ventilating pipes, where should the connection to the discharge stack be made in relation to the appliance's spillover level?
Below the spillover level
Directly at the appliance level
Above the spillover level
At the same level as the spillover
What is the minimum diameter requirement for a ventilating pipe unless it exceeds a length of 15m?
15mm
25mm
32mm
50mm
What is the minimum diameter specified for the main ventilating stack or any dry part of the primary ventilating stack in this system?
15mm
32mm
50mm
75mm
What is the minimum diameter requirement for a ventilating pipe if it exceeds a length of 15m or services more than one appliance
15mm
32mm
32mm
50mm

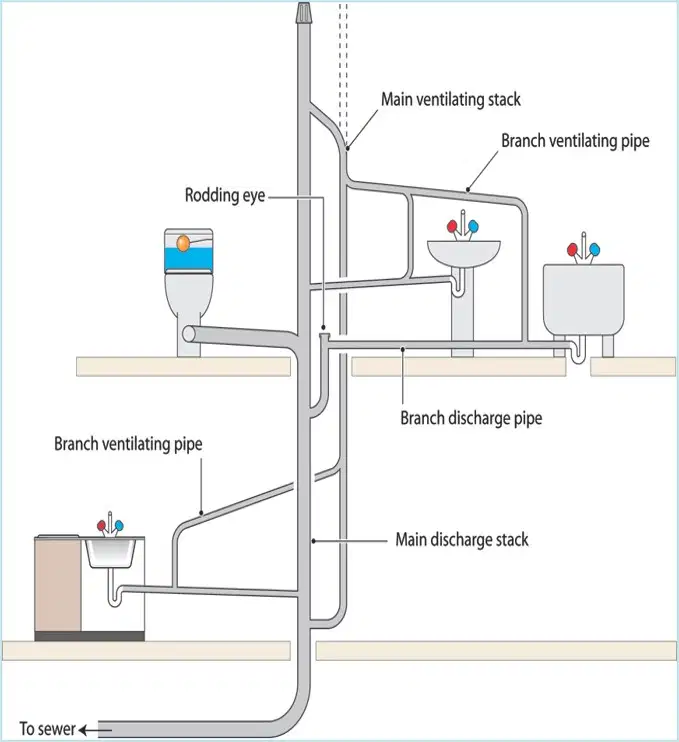

What type of syatem is this?
Primary entilated stack
Secondary ventilated stack
Ventilated branch
Stub stack

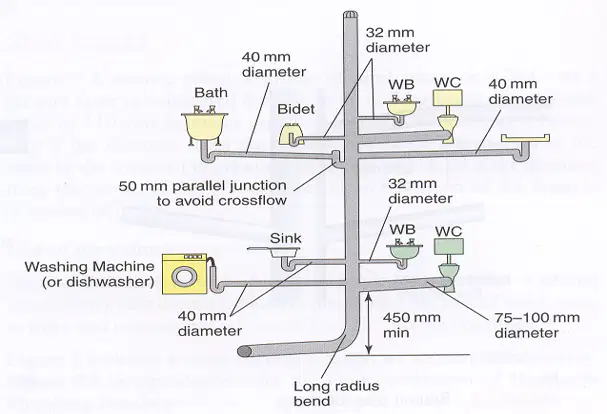

What type of system is this?
Primary ventilated stack
Stub stack
Ventilated branch stack
Secondary ventilated system
What is the maximum length a 32mm pipe can be run on a Primary ventilated stack?
1.7m
3m
2m
1.8m
What is the maximum length a 40mm pipe can be run on a Primary ventilated stack?
1.7m
3m
1.8m
2m
What is the maximum length a 110mm branch pipe can be run on a Primary ventilated stack?
1.7m
3m
6m
8m
