WorksheetsTopic 2.1.3
Total questions: 20
Worksheet time: 13mins
There 4 type of network topology:
1. Bus Network
2. Star Network
3. Mesh network
4. (a) network
________________ uses a single central cable to which all computers and devices are connected
Bus Network
Star Network
Mesh Network
Hybrid Network
Data in ________ network can only travel in one direction; if data is being sent between devices then other device cannot transmit
Bus
Star
Mesh
Hybrid
Which of the following is a disadvantages of Bus Network?
If central hub/switch fails, then the whole network goes down
If the main cable fails, the whole network goes down
Which of the following is a disadvantages of Star Network?
If central hub/switch fails, then the whole network goes down
If the main cable fails, the whole network goes down
Which of the following is the advantages of Bus Network?
Even if one node fails, the remainder of the network continues to function
It is more secure network since security methods can be applied to the central nose and packets only travel to nodes with the correct address
Any broken links in the network do not affect the other nodes
Which of the following is the advantages of Star Network?
Even if one node fails, the remainder of the network continues to function
It is more secure network since security methods can be applied to the central nose and packets only travel to nodes with the correct address
Any broken links in the network do not affect the other nodes
This network uses a central hub/switch and each computer/device is connected to the hub/switch
Bus Network
Star Network
Mesh Network
Hybrid Network
In this network topology, data going from host to host is directed through the central hub/switch
Bus Network
Star Network
Mesh Network
Hybrid Network
In star Network topology, each computer has its own dedicated connection the central node such as hub or (a) .
How the packet are handled in Bus Network?
Each node looks at each packet and determines whether or not the address of the recipient in the package matches the node address
Depends on whether the central node is a switch or a hub
Depend on which combination topologies are used
How the packet are handled in Star Network?
Each node looks at each packet and determines whether or not the address of the recipient in the package matches the node address
Depends on whether the central node is a switch or a hub
Depend on which combination topologies are used
In star network, if the central node is a ______________, then
1) all the packets will be sent to every/node on the star network
2) if the address in the packet matches that if the node, it will be accepted
3) otherwise, it is ignored
hub
switch
Which topology should be use if the device will be frequently added and removed from the network?
Bus Network
Star Network
Mesh Network
Hybrid Network
There are two types of mesh network topologies: Routing and (a)
In Mesh Network, (a) works by giving the nodes routing logic, so that data is directed to its destination by the shortest route and can be re-routed if one of the nodes in the route has failed.
In Mesh Network, (a) sends the data via all the nodes and uses no routing logic, which can lead to unnecessary loading on the network
(a) network is a mixture of two or more different topologies.

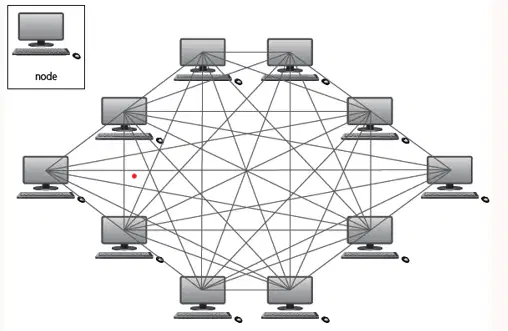

The given image is an illustration of _________ Network
Bus
Star
Mesh
Hybrid
The given image is an illustration of _________ Network
Bus
Star
Mesh
Hybrid
