WorksheetsTECH-8th-DIAGNOSTIC TEST
Total questions: 10
Worksheet time: 7mins
The funtion of the arduino is:
Connect system components without soldering.
Control components for a specific purpose through programming.
Regulate the voltage of the sensors
Detect the humidity in the soil and send the signal to the sensor

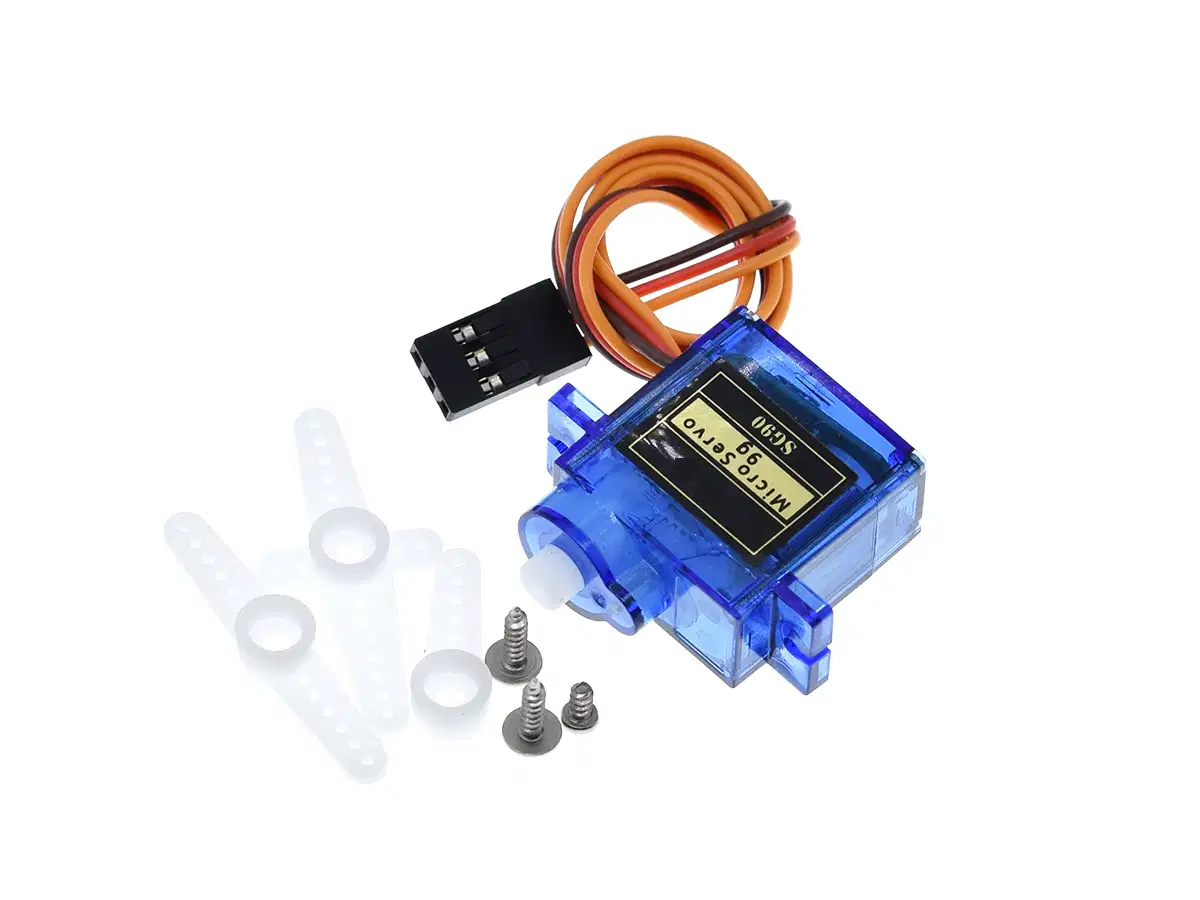

Servomotors have the particularity that they can be programmed exactly how much we want them to turn (0°-180°)
False
True
Servo motors have the ability to rotate 360 degrees
False
True

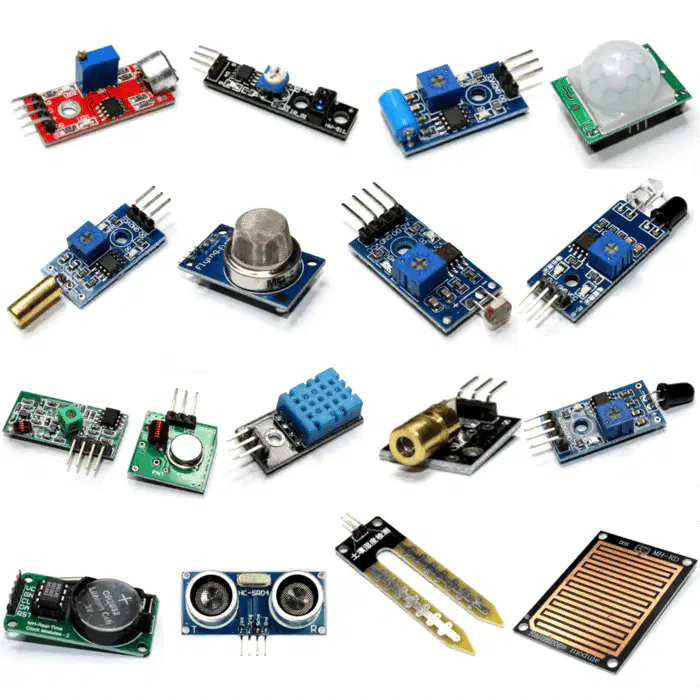

Select a sensor
Components shown in the image have GND and VCC ports
True
False
At what magnitude is voltage measured?
Volts
Ohms
Amper
In what magnitude is intensity of current measured?
Volts
Ohms
Amper
Identify the mistake in the wiring
the led is upside down
the led is not connected to the positive
the resistor is not connected to the ground
the resistor is upside down
What is the Arduino pin that has to be HIGH for green to be on?
10
13
7
5
What is the name of the device in the image?
Arduino device
dimple plate
Breadboard
