Worksheets776 Revision - Paper 3
Total questions: 23
Worksheet time: 12mins
Name
Class
Date
1.
Select your group from the list below
a)
Mechanical Level 1 group A
b)
Mechanical Level 1 group B
c)
Mechanical Level 1 group C
d)
Mechanical Level 1 group D
e)
Mechanical Level 1 group E
2.
What do you use to measure electrical current?
a)
Ammeter
b)
Voltmeter
c)
Ohmmeter
3.
What does SIP stand for?
a)
Side Impact Protection
b)
Safety In Person
c)
Sent Internal Post
4.
What do the abbreviation GRP stand for?
a)
Glass Reinforced Plastic
b)
Glass Roof Panel
c)
Gloss Red Paint
d)
Glow Red Plug
5.
Name three safety checks that need to be carried out on an electric power drill?
a)
Check electrical cable, drill body and plug
b)
Check drill bit, plug socket and chuck
c)
Check chuck key, drill bit and electrical cable
6.
What type of equipment should you oil regularly?
a)
Pneumatic
b)
Electrical
c)
Rechargeable
7.
If a circuit has a resistance of 12 ohms and 2 amps of current is flowing, what is the voltage applied?
a)
24v
b)
12v
c)
6v
d)
9v
8.
What is the function of a resistor?
a)
Restrict the flow of electrical current
b)
Allow the flow of electrical current
c)
To act as a one way valve to electrical current
d)
To light up when power goes through it
9.
What is the function of crumple zones and why are they used?
a)
To absorb impact to protect passengers
b)
To prevent impact and protect passengers
c)
To make the car stronger and safer
d)
To make the car more rigid and tough
10.
Which of the below are three different units of pressure.
a)
PSI, K pascals and bar
b)
Volts, amps and ohms
c)
mm, cm and m
d)
g, kg and tonnes
11.
Which are three hazards associated with using tyre machines?
a)
Compressed air, crushing and loose clothing
b)
Mains voltage, dermatitis, and toe injuries
c)
Hydraulics, fume inhalation and dust inhalation
12.
What do the abbreviations DTI stand for? State the main function of this piece of equipment?
a)
Dial Test Indicator
b)
Disc Thickness Indicator
c)
Drum Taper Indicator
d)
Distance Trial Indicator
13.
What is the name of the piece of equipment used to measure a thread pitch?
a)
Screw pitch gauge
b)
Dial Test Indicator
c)
Thread file
d)
Feeler gauge
14.

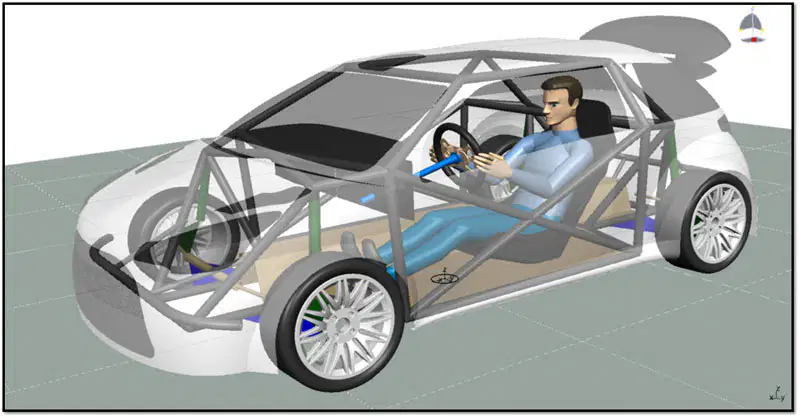

Name the type of chassis design from the pictures below.
a)
Spaceframe chassis
b)
Ladder chassis
c)
Backbone chassis
15.
Name the type of chassis design from the pictures below.
a)
Spaceframe chassis
b)
Ladder chassis
c)
Backbone chassis
16.
Name the type of chassis design from the pictures below.
a)
Spaceframe chassis
b)
Ladder chassis
c)
Backbone chassis
17.

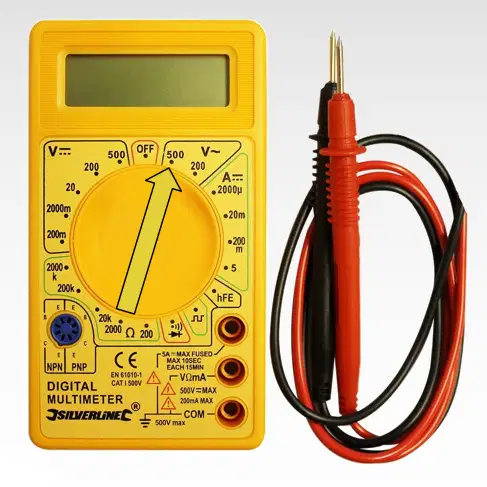

What is the multimeter below set to measure?
a)
Voltage DC
b)
Voltage AC
c)
Current
d)
Resistance
e)
18.

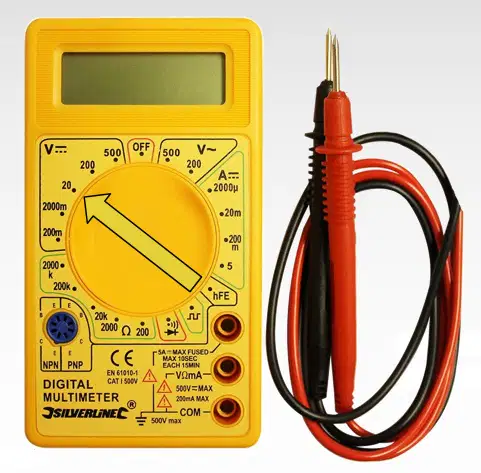

What is the multimeter below set to measure?
a)
Voltage DC
b)
Voltage AC
c)
Current
d)
Resistance
e)
19.

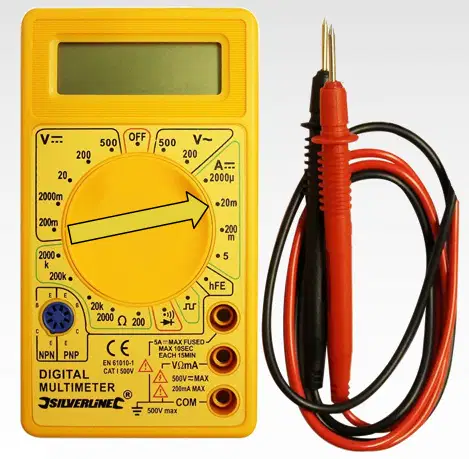

What is the multimeter below set to measure?
a)
Voltage DC
b)
Voltage AC
c)
Current
d)
Resistance
20.

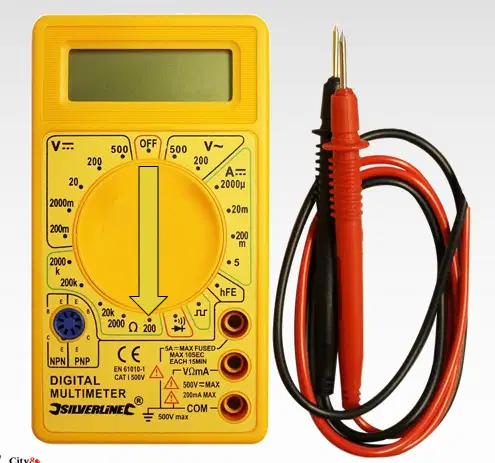

What is the multimeter below set to measure?
a)
Voltage DC
b)
Voltage AC
c)
Current
d)
Resistance
21.
Which safety feature is most likely to include pyrotechnics?
a)
Airbag
b)
Collapsible steering column
c)
Laminated windscreen
d)
Adaptive cruise control
22.
What is the name of the hand tool shown below?
a)
Crimping tool
b)
Pliers
c)
Side cutters
d)
Circlip pliers
23.
Approximately how often should the vehicle indicators flash?
a)
60 - 120 flashes per minute
b)
90 flashes per minute
c)
50 flashes per minute
d)
140 flashes per minute
