WorksheetsG32 Thread Cutting Coordinates
Total questions: 16
Worksheet time: 16mins
Fill in the first X value to create the thread
(a)
Fill in the second X value to create the thread
(a)
Fill in the F value to create the thread
(hint: TPI = Thread Per Inch)
(a)
Fill in the first Z value to create the thread
(a)
Fill in the first Z value to create the thread
(a)

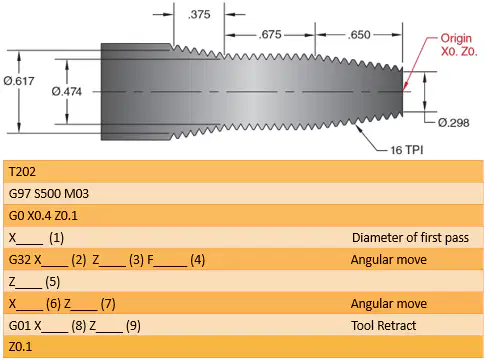

Fill in the first X (1) value to create the thread
(a)
Fill in the second X (2) value to create the thread
(a)
Fill in the first Z (3) value to create the thread
(a)
Calculate the Feed F (4) value to create the thread
(a)
Fill in the second Z (5) value to create the thread
(a)
Fill in the third X (6) value to create the thread
(a)
Fill in the third Z (7) value to create the thread
(a)
Fill in the first X (1) value to create the thread
(a)
Fill in the second X (2) value to create the thread
(a)
Fill in the first Z (3) value to create the thread
(a)
Calculate the feed (4) value to create the thread
(a)
