WorksheetsUnderstanding Ports/Connectors
Total questions: 20
Worksheet time: 10mins

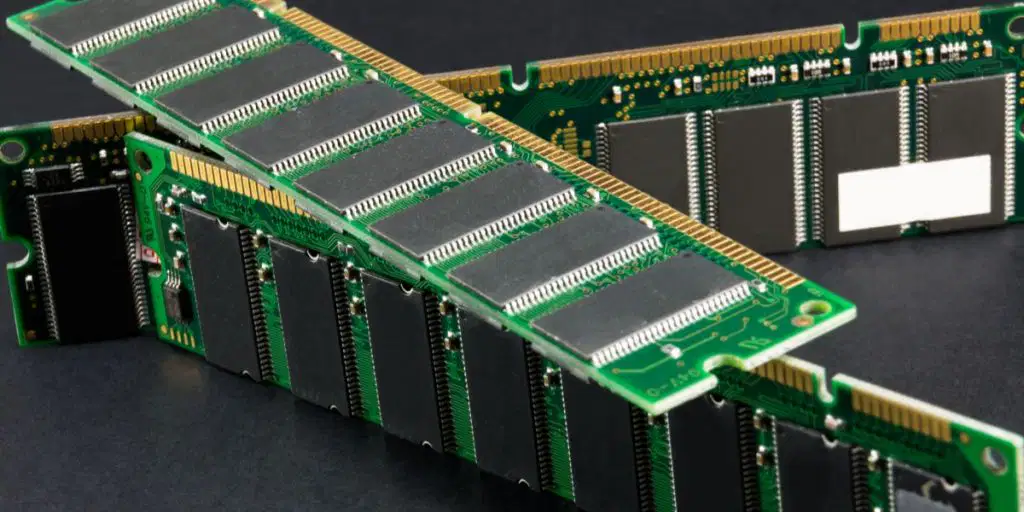

What type of memory modules are inserted into RAM slots on a motherboard?
DIMMs
SSDs
HDDs
CPUs

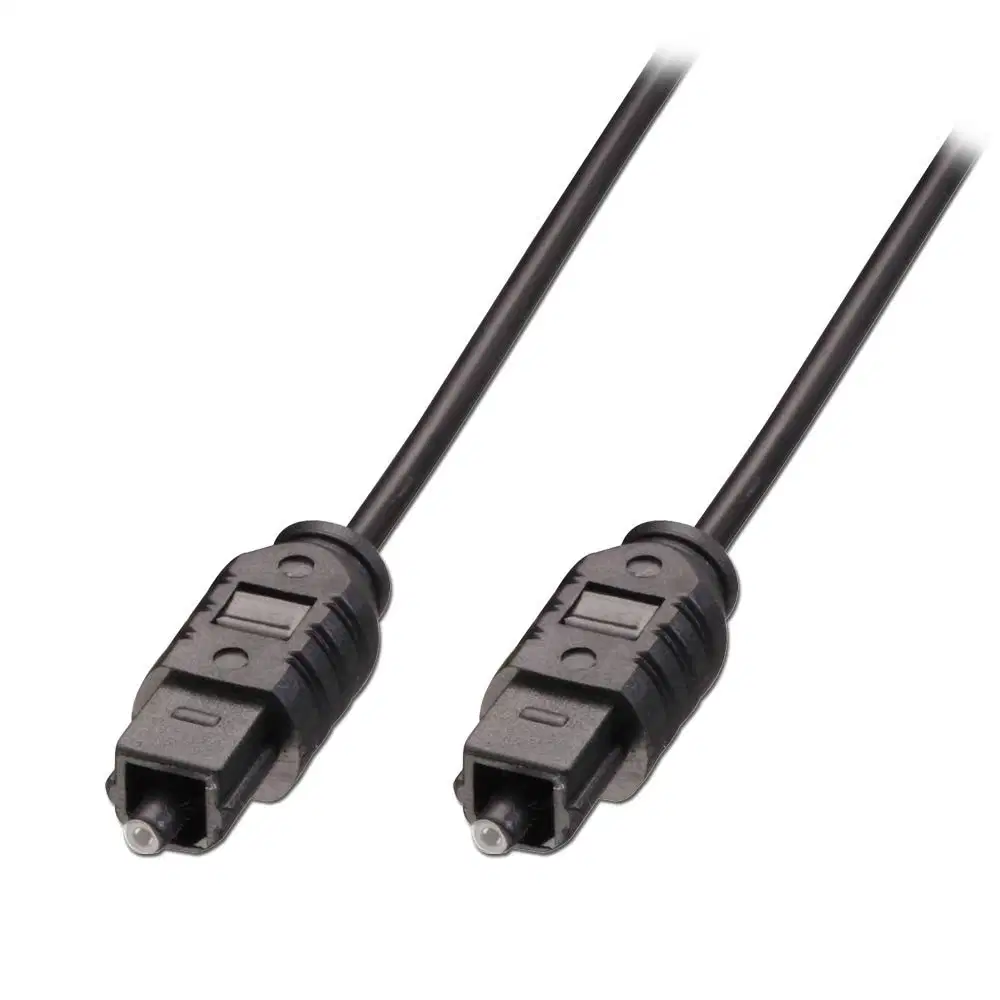

Which of the following connectors is used for digital audio?
Line-In
Line-Out
Mic-In
SPDIF
What type of connector is used for connecting legacy keyboards and mice?
USB Port
Thunderbolt Port
PS/2 Port
Ethernet Port
Which of the following is NOT a video connector commonly found on motherboards?
HDMI
DisplayPort
Thunderbolt
VGA
Which port is used for connecting external displays?
USB Port
Thunderbolt Port
HDMI Port
Ethernet Port
Which component of a motherboard holds the firmware necessary for booting up the system and managing hardware settings?
CPU
RAM
BIOS/UEFI Chip
GPU
What type of slot is commonly used for connecting graphics cards and other high-speed peripherals?
PCI
SATA
PCIe
USB
Which header is used for connecting case fans and CPU fans on a motherboard?
RGB Headers
Fan Headers
Front Panel Connectors
TPM Header
What does BIOS stand for?
Basic Input/Output System
Basic Internal Operating System
Binary Input/Output System
Binary Internal Operating System
Which connector is used for connecting a Trusted Platform Module for hardware-level security?
COM Port Header
TPM Header
RGB Headers
Thunderbolt Header
What is the purpose of a Thunderbolt header on a motherboard?
To connect additional USB ports
To add Thunderbolt capability
To provide power to the CPU
To connect M.2 SSDs
What type of connectors are used for connecting internal USB ports on a motherboard?
Rear USB Ports
Ethernet Ports
Internal USB Headers
Thunderbolt Headers
Which of the following is NOT a storage interface commonly found on motherboards?
SATA
M.2
USB
U.2
What is the primary function of PCIe x1 slots on a motherboard?
Connecting graphics cards
Connecting sound cards
Providing power to the CPU
Providing power to the RAM
Which port is used for connecting to a wired network?
USB Port
Thunderbolt Port
Ethernet Port
HDMI Port
What is the purpose of M.2 slots on a motherboard?
To connect external storage devices
To install RAM modules
To connect M.2 SSDs
To connect additional USB ports
Which connector is used to connect additional USB ports on a computer case to the motherboard?
Rear USB Ports
Ethernet Port
Internal USB Headers
Thunderbolt Header
What type of connector is used for connecting SATA hard drives, SSDs, and optical drives?
SATA Connectors
M.2 Slots
U.2 Connectors
Thunderbolt Header
Which connector is used to provide power to the CPU?
24-pin ATX Power Connector
4-pin/8-pin EPS Power Connector
PCIe Power Connector
SATA Power Connector
Which type of slot is commonly used for connecting sound cards, network cards, etc.?
PCIe x16 Slots
PCIe x1 Slots
PCI Slots
RAM Slots
