WorksheetsElectronic Circuits Quiz
Total questions: 7
Worksheet time: 11mins
a container consisting of one or more cells, in which chemical energy is converted into electricity and used as a source of power.
Inductor
Capacitor
Battery
Magnet
Any type of circuit component with the ability to electrically control electric charge flow
Passive device
Active device
Capasitor
Transistor
L.E.D. means
Light Energy Device
Light Emitting Device
Light Enhancing Device
Light Emitting Diode
What are the 2 electronic component?
Capacitor and Transistor
Resistor and I.C's
Amplifier and speaker
Active and Passive
is a passive component made to provide a definite amount of resistance. In circuits, it limits current flow or provides voltage drop.one point to another
Resistor
Transistor
Power switch
LED

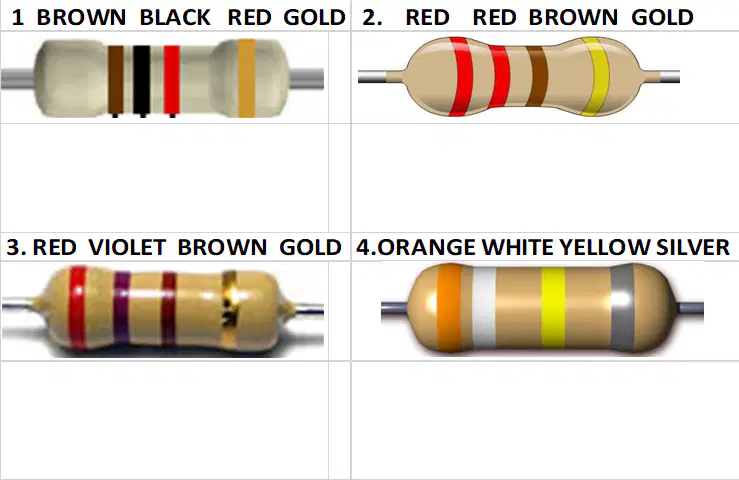

II. Decode and Compute the value of the Resistors (20pts).
What is the difference between Active and Passive Device. (10points)
