WorksheetsELECTROSTATIC FORCE
Total questions: 6
Worksheet time: 9mins
Name types of electric charge.
(a)
Why this situation happen?

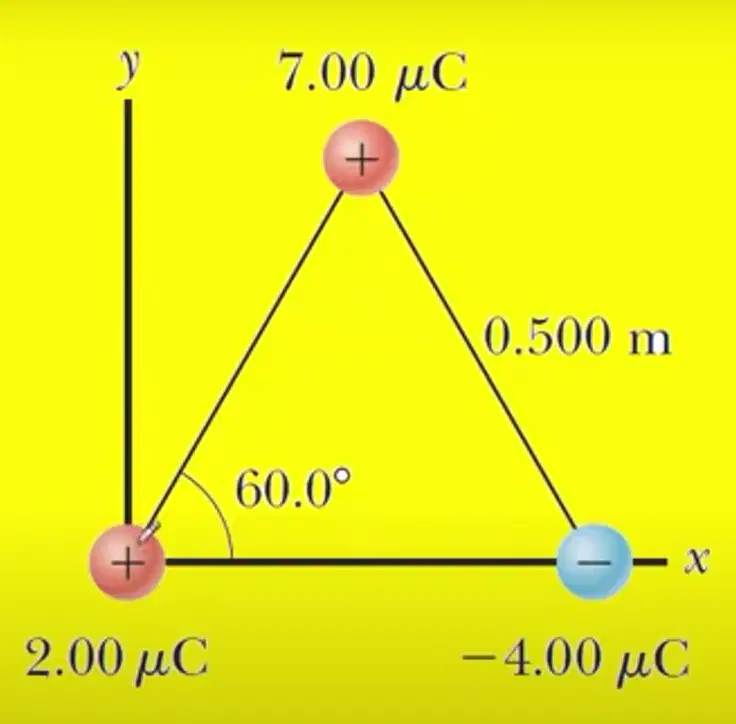

Three point charges are located at the corners of an equilateral triangle as in figure below. Find the magnitude and direction of the net electric force on 2.00 μC charge.
0.438 N ; 85.2° below the positive x-axis
0.145 N; 85.2° below the positive x-axis
0.438 N ; 85.2° above the positive x-axis
0.145 N; 85.2° above the positive x-axis
Three point charges are alligned along the x-axis as shown in the figure. Find the electric field at the position x=2.0 m, y=0.
12.1 N/C
20.5 N/C
24.2 N/C
52.9 N/C
Explain the interaction occur between the charges.

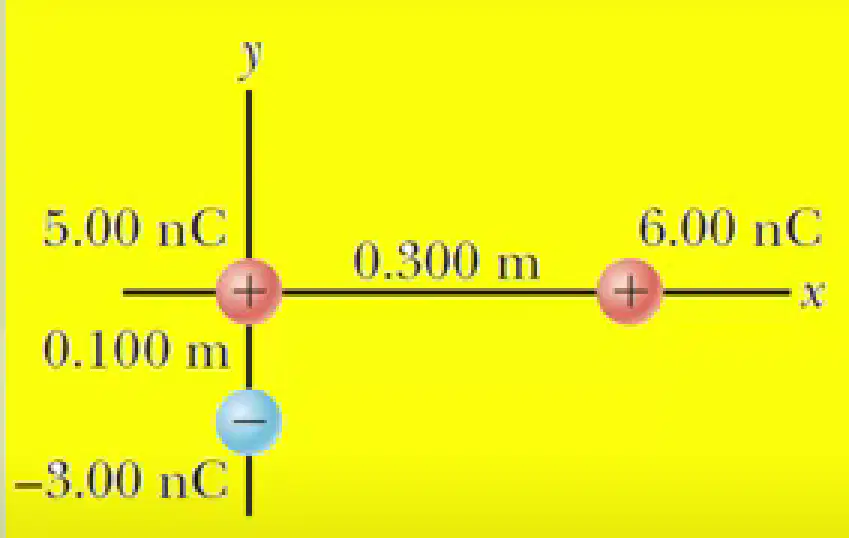

Three charges are arranged as shown in figure. Find the magnitude and direction of the electrostatic force on the charge at the origin.
4.25 x 10-5 N ; 77.5º above negative x-axis
1.35 x 10-5 N ; 77.5º above negative x-axis
3 x 10-6 N ; 77.5º below negative x-axis
1.38 x 10-5 N ; 77.5º below negative x-axis
