WorksheetsAEN Module 1 Set 2
Total questions: 9
Worksheet time: 32mins
Name
Class
Date
1.
According to ohms law the current is _______ to potential difference
a)
directly proportional
b)
inversely proportional
2.
Figure below represents
a)
Kirchhoff's Potential Law
b)
Kirchhoff's Voltage Law
c)
Kirchhoff's Current Law
d)
Kirchhoff's Energy Law
3.
I = ??.
(a)
4.
V=??
a)
14.4
b)
-14.4
c)
9.6
d)
-9.6
5.
Consider Ia=0.4A. Find value of Vc?
(a)
6.
Find the value of Vo.
(a)
7.
Find current through 4ohm.
(a)
8.
Find all the node voltages in the given circuit containing dependent sources.
a)
10V, 20V, 30V, 40V
b)
15V, -25V, -35V, 40V
c)
10V, -20V, 30V, -40V
d)
-15V, 25V, -35V, 40V
9.

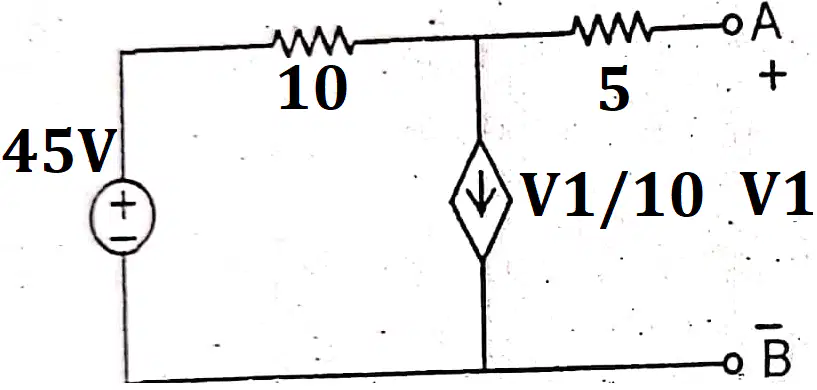

Find Thevenin's equivalent.
a)
Vth=45.23V, Isc=1.96A, Rth=23.08ohm.
b)
Vth=12V, Isc=1.5A, Rth=8ohm.
c)
Vth=22.5V, Isc=3A, Rth=7.5ohm.
d)
Vth=33.57V, Isc=2.82A, Rth=11.90ohm.
