WorksheetsExploring Types of Bridges
Total questions: 23
Worksheet time: 17mins
Which type of bridge is characterized by its curved structure that transfers the weight of the bridge and its loads to the supports at either end?
Beam Bridge
Suspension Bridge
Arch Bridge
Truss Bridge
What is the primary structural element of a beam bridge?
Cables
Trusses
Beams
Arches
Which type of bridge uses cables suspended between towers to support the bridge deck?
Beam Bridge
Suspension Bridge
Arch Bridge
Truss Bridge
In a cable-stayed bridge, what is the role of the cables?
They support the bridge deck directly from the towers.
They form the main structure of the bridge.
They are used to anchor the bridge to the ground.
They are used to decorate the bridge.
Which type of bridge is known for its triangular units that distribute loads?
Beam Bridge
Suspension Bridge
Arch Bridge
Truss Bridge
Identify the type of bridge that typically has a horizontal beam supported at each end by piers.
Beam Bridge
Suspension Bridge
Arch Bridge
Cable-Stayed Bridge
Which type of bridge is often used for long spans and has a deck supported by vertical cables connected to main cables?
Beam Bridge
Suspension Bridge
Arch Bridge
Truss Bridge
Which type of bridge is most likely to be used for short spans and is the simplest form of bridge?
Beam Bridge
Suspension Bridge
Arch Bridge
Cable-Stayed Bridge
What is the main advantage of using a truss bridge?
It can span very long distances without intermediate supports.
It is aesthetically pleasing.
It distributes loads efficiently through its triangular units.
It is easy to construct.
What does tension mean in engineering?
What does compression mean in engineering?
Choose the suspension bridge.
Choose the arch bridge.

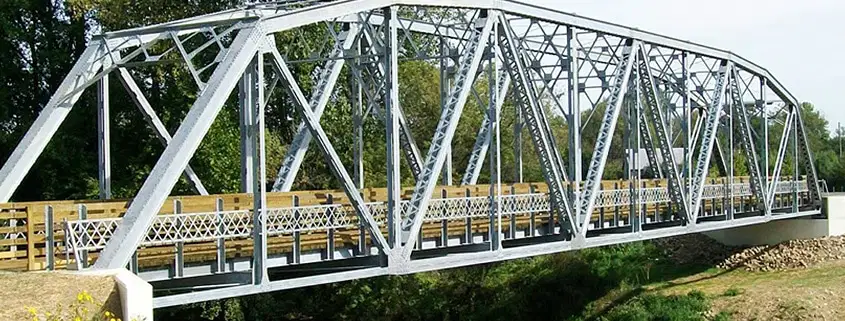

Choose the truss bridge.

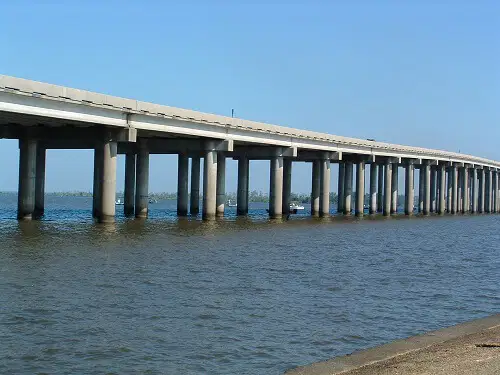

Choose the beam bridge.

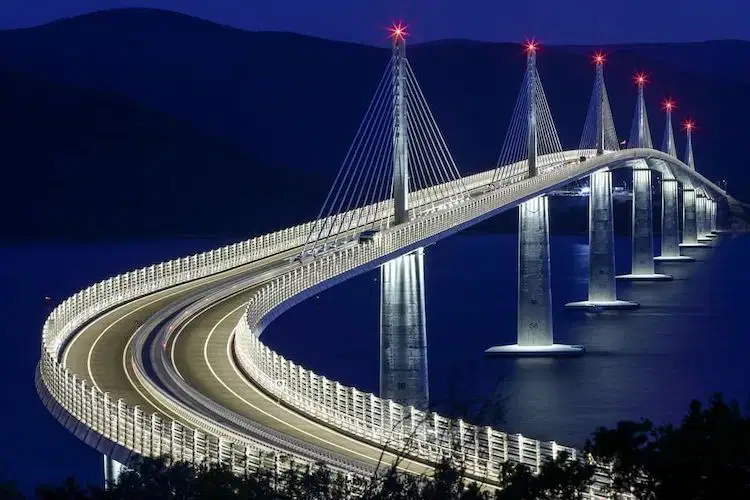

Choose the cable-stayed bridge.
