WorksheetsPipework, Joints and Unions
Total questions: 10
Worksheet time: 10mins
Water pipe is generally measured by the?
Width
Nominal diameter
Length
Nominal pipe size - NPS
Which of the pipe characteristics can be controlled through production? (Select all that apply)
End finish
Diameter
Wall thickness
Resistance to vibration
Length
What is a main advantage that a steel fitting has over other materials?
Resistant to creep and corrosion
They look nice
They are cheap
You can weld them

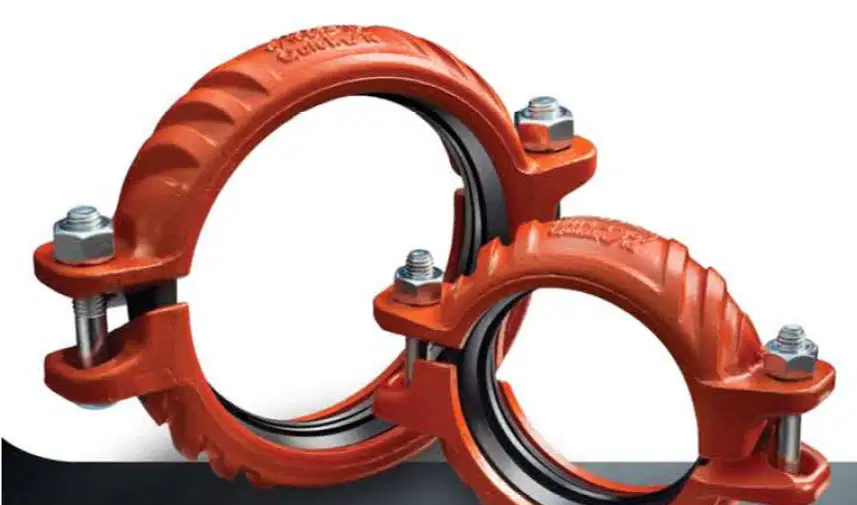

What type of pipe fitting/coupling is displayed in the image below?
Expansion loop
Victaulic
Centrifugal coupling
Hydraulic coupling
Which type of pipework is preferred for extended pipe runs such as for gas or oil transportation?
Welded pipework
Jointed pipework
Hoses
None of the above
How can we make pipework expansion less severe?
Installing more elbows
Installing less fittings
Installing expansion loops
Installing more supports
What is the standard unit of measurement for pipe length in the UK?
Feet
Metres
Miles
Inches
Which material is commonly used for pipes in high-temperature applications?
PVC
Copper
Steel
Aluminium
What is the primary purpose of a pipe flange?
To reduce pipe diameter
To connect pipes
To increase pipe length
To insulate pipes
Which of the following is a common method for joining copper pipes?
Welding
Soldering
Gluing
Clamping
