WorksheetsPS 3-2, 3-2, 3-4, 3-5 Review
Total questions: 10
Worksheet time: 5mins

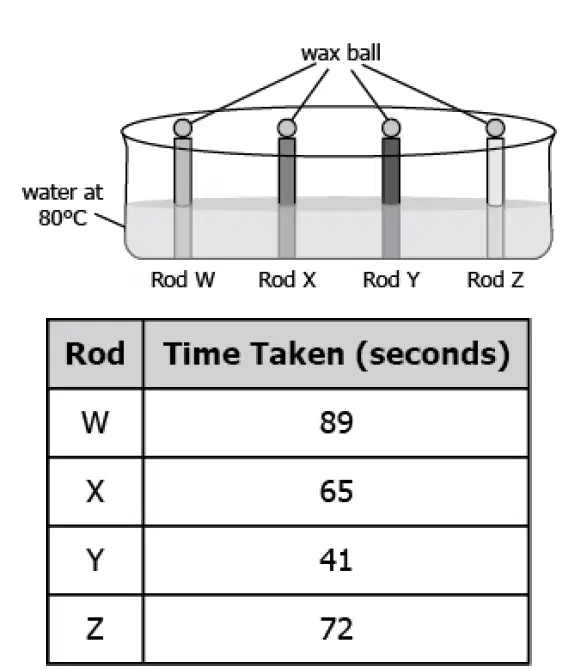

A scientist performs an activity to study how different materials are affected by heat. She fills a container with water at 80°C and places four rods made of different materials in the container. The scientist mounts a wax ball of the same size on each rod, as shown and records the time for each wax ball to melt completely.
Which materials are the 2 BEST conductors?
Y
W
X
Z
A scientist performs an activity to study how different materials are affected by heat. She fills a container with water at 80°C and places four rods made of different materials in the container. The scientist mounts a wax ball of the same size on each rod, as shown and records the time for each wax ball to melt completely.
Which materials are the 2 BEST insulators?
Y
W
X
Z
Which of the following has stored elastic potential energy?
a trampoline that is not being used
a rubber ball that is falling from a height
a spring sitting at rest on the top of a table
a rubber band stretched between two fingers
It takes 3 seconds for the arrow to hit the target after it is released. Which data table best explains the transformation of energy?
A student fills a plastic tube with water at 10°C and places caps at the ends to prevent the water from leaving the tube. The student submerges the tube in a bucket of warm water at 35°C. After 20 minutes,the student observes that the tube has the same shape and records that the temperature of the water in the tube rises to 22°C.
What will happen if the student repeats the activity with a METAL tube instead of the PLASTIC tube?
The metal tube will break when put in the warm water because the tube absorbs radiation from the warm water.
The metal tube will bend when put in the warm water because the tube is insulated from the warm water.
The temperature of the water in the metal tube will rise much faster because metal is a better conductor of heat than plastic.
The temperature of the water in the metal tube will rise at the same rate because the starting temperature of the water remains unchanged.

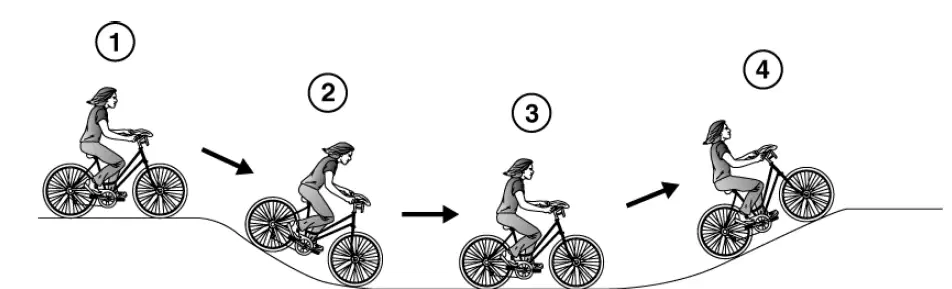

Myra rides her bicycle as shown. At what point does Myra have the most potential energy?
1
2
3
4

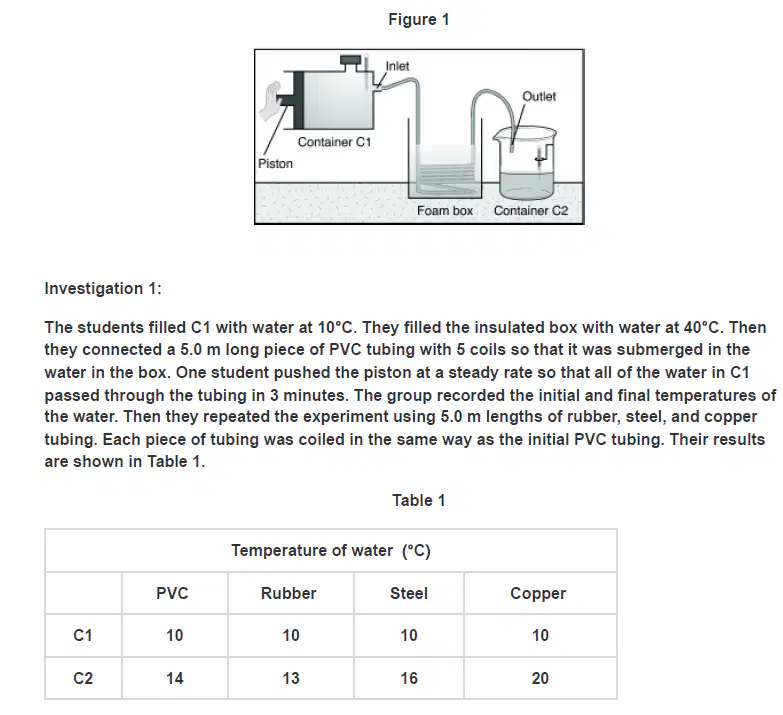

Which tubing material transfers the MOST heat? It is the best CONDUCTOR.
PVC
rubber
steel
copper
Which tubing material transfers the LEAST heat? It is the best INSULATOR.
PVC
rubber
steel
copper
Three books are placed on two shelves, as shown in the image.
Which of the following changes will result in an INCREASE in the total gravitational potential energy of the three books?
Move Book A so that it is on the upper shelf, to the right of Book B.
Move Book A so that it is on the lower shelf, to the left of Book C.
Move Book B so that it is on the lower shelf, to the left of Book C.
Move Book C so that it is on the upper shelf, to the right of Book B.
Three fundamental states of matter are represented in the diagrams below.
Select the diagram number AND state of matter that has the middle/medium kinetic energy.
I
II
III
gas
liquid
