Worksheetsunit 202: Roofing Eaves Quiz
Total questions: 21
Worksheet time: 11mins

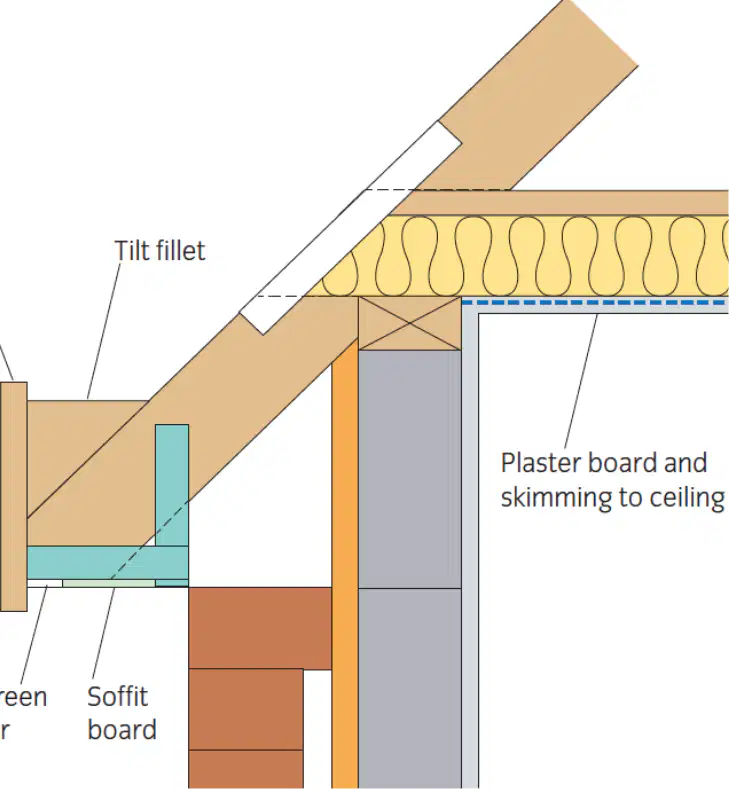

What is the purpose of leaving a gap in flush eaves?
For aesthetic purposes
To allow for ventilation
To reduce construction costs
To increase insulation

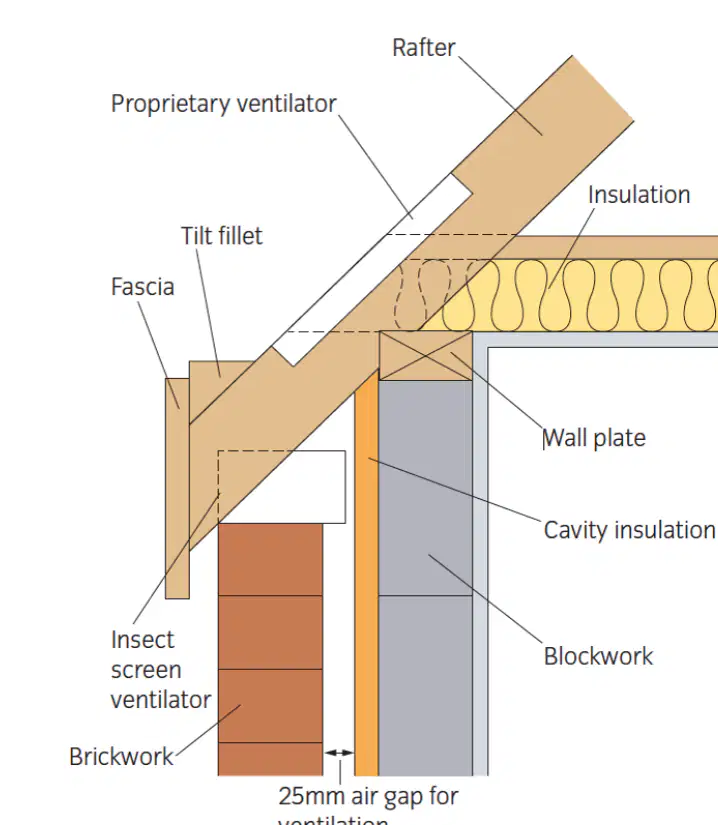

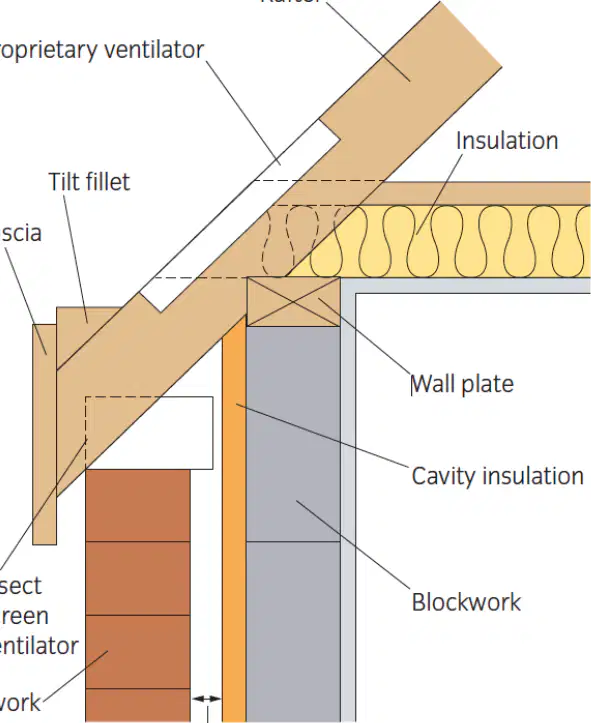

Which component is directly above the wall plate in the flush eaves structure?
Brickwork
Insulation
Tilt fillet
Blockwork

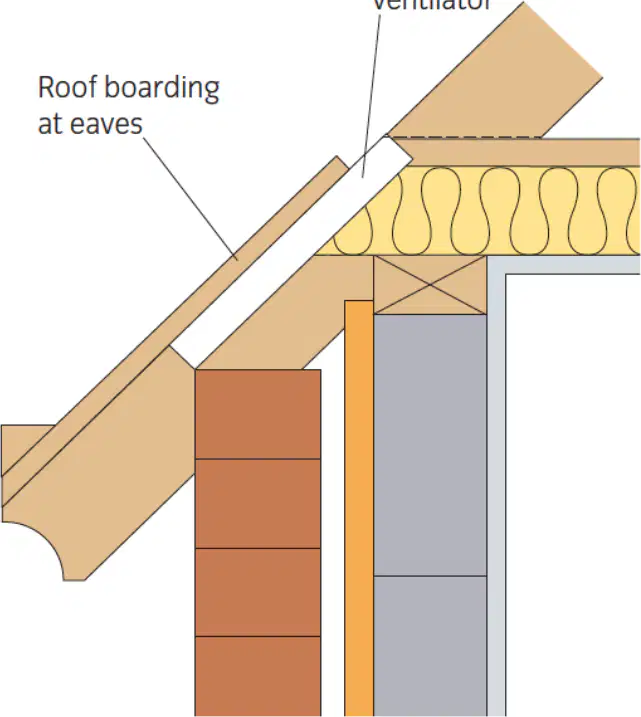

What is the purpose of open eaves in site carpentry?
To allow rafter feet to project beyond the wall and fix boards on top of the rafter.
To provide insulation for the roof.
To enhance the aesthetic appearance of the building.
To support the weight of the roof tiles.
What is a key feature of closed eaves in site carpentry?
They are completely open to allow airflow.
They are completely boxed in with no ventilation.
They are completely boxed in, but include a ventilation strip or holes in the soffit.
They are partially open with no need for ventilation.

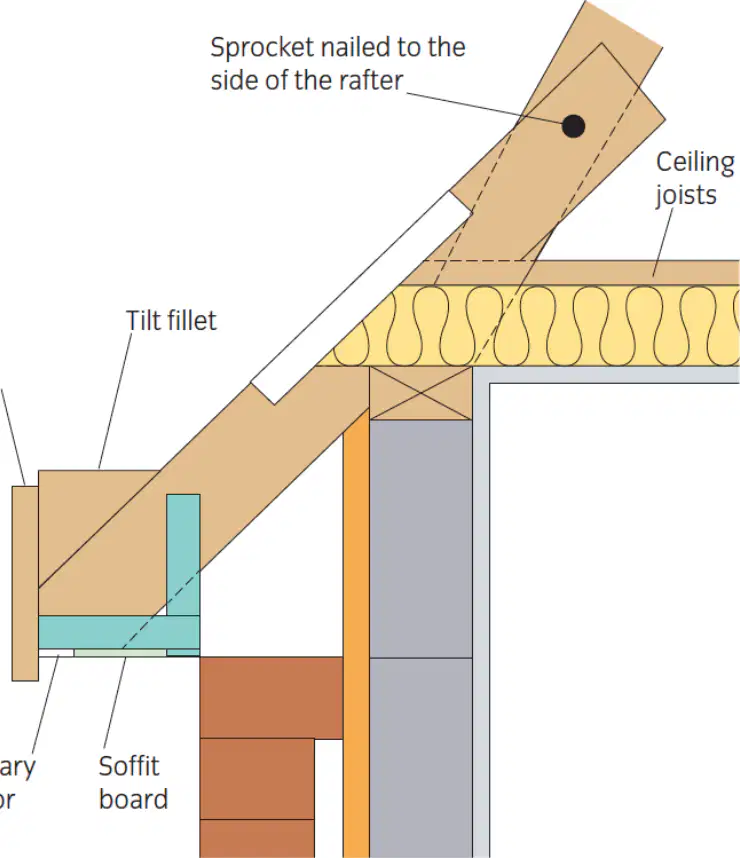

What is the purpose of sprocketed eaves in site carpentry?
To increase the pitch at the eaves level
To slow down rainwater and prevent it from overshooting the cutter
To enhance the aesthetic appeal of the roof
To provide additional insulation

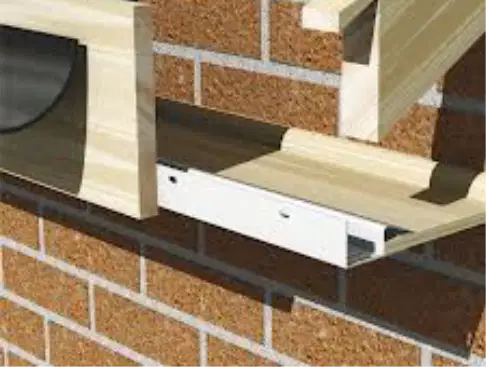

What are the two types of ventilation used in eaves as shown in the image?
Strip ventilation and hole ventilation
Circular ventilation and square ventilation
Mesh ventilation and panel ventilation
Slot ventilation and grid ventilation
What is the primary purpose of roof ventilation?
To increase the temperature in the attic
To allow the natural flow of air inside an attic or under the roof
To trap moisture inside the attic
To prevent air from entering the attic
What happens if there is no proper ventilation in the attic?
The attic will become cooler
Hot air and moisture will escape easily
Hot air and moisture will never escape the attic
The attic will remain dry
How does heat affect the room temperature in other parts of the house?
It causes the temperature to decrease
It has no effect on the temperature
It causes the temperature to rise
It makes the temperature constant
What is an important consideration when planning and selecting equipment for working at heights?
The color of the equipment
The brand of the equipment
How long the job will last
The weight of the worker
Which factor is crucial to determine how often a job at heights will be carried out?
The weather conditions
The type of safety harness
The frequency of the task
The number of workers
What type of platform is important for providing safe access when working at heights?
A wooden ladder
A stable platform
A rope swing
A metal pole
What is the main purpose of a soffit in site carpentry?
To provide structural support to the roof
To enhance the aesthetic appearance of the building
To cover the underside of the eaves and provide ventilation
To increase the insulation of the attic
Which material is commonly used for constructing fascia boards?
Concrete
Wood
Glass
Metal
What is the function of a bargeboard in roofing?
To support the roof tiles
To provide a decorative finish to the gable end
To increase the pitch of the roof
To enhance the insulation of the roof
What is the function of a fascia board in site carpentry?
To support the roof tiles
To provide a decorative finish to the roof edge
To increase the pitch of the roof
To enhance the insulation of the roof
Why is it important to have proper flashing in roofing?
To prevent water leakage
To enhance the aesthetic appearance
To increase the roof's pitch
To provide additional insulation
What is the role of a ridge board in roof construction?
To support the weight of the roof tiles
To provide a decorative finish to the roof
To serve as the highest point of the roof structure
To enhance the insulation of the roof
What is the main function of a gable vent in roof ventilation?
To block airflow into the attic
To allow hot air to escape from the attic
To increase the attic's temperature
To trap moisture inside the attic
Which type of eaves is designed to allow maximum airflow?
Closed eaves
Flush eaves
Open eaves
Sprocketed eaves
What is the purpose of using a soffit vent in site carpentry?
To provide structural support to the roof
To enhance the aesthetic appearance of the building
To allow air to flow into the attic space
To increase the insulation of the attic
