WorksheetsNetwork Cables Quiz
Total questions: 55
Worksheet time: 28mins
What are the two main categories of network cables based on their transmission medium?
Copper and plastic
Electricity and light
Fiber and coaxial
Wireless and wired
What type of cable uses copper wires inter-twined into pairs?
Coaxial cable
Fiber optic cable
Twisted pair cable
HDMI cable
Which UTP category is rated for 1000 Mbps (1 Gbps)?
Category 5
Category 5e
Category 6
Category 7
What is the transmission medium used by fiber optic cables?
Copper wires
Glass or plastic
Aluminum foil
Rubber
Which cable is rated for 10 Gbps?
Cat 5
Cat 5e
Cat 6a
Cat 3
Which wiring standard is most commonly used according to the TIA?
568A
568B
568C
568D
What color is the wire for Pin 1 in the 568B standard?
White/green
White/orange
White/blue
White/brown
What is the colloquial name for the connector used with twisted pair networks?
RJ45
RJ11
RJ9
RJ12
How many wires does an RJ45 plug contain?
Eight
Four
Six
Ten
What should you check if a computer cannot connect to the network?
Network cable connection
Router
WiFi AP
Yo-Self

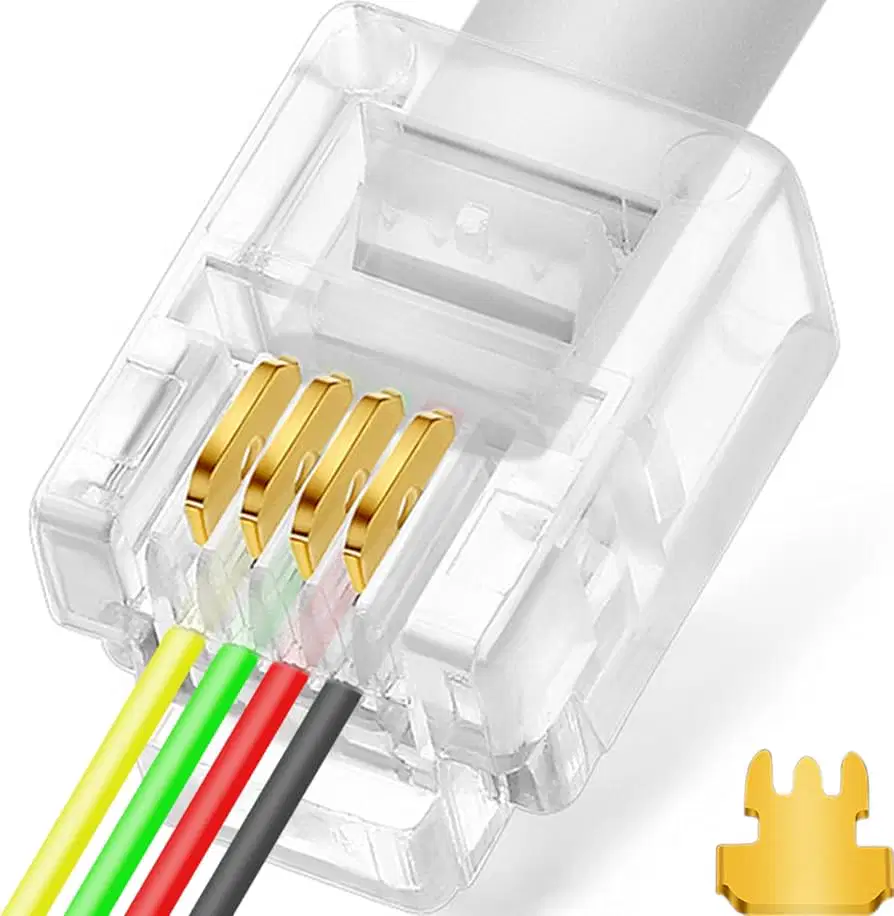

What is the maximum number of wires an RJ11 plug can hold?
Six
Eight
Four
Ten
What type of cable is used to connect a computer directly to another computer?
Straight-through cable
Crossover cable
Coaxial cable
Fiber optic cable
What is a disadvantage of UTP cables?
They are expensive
They are difficult to install
They are susceptible to electromagnetic interference
They have a short lifespan
What is the maximum recommended length for a UTP cable before signal attenuation occurs?
50 meters
100 meters
150 meters
200 meters
What is the primary reason municipalities require plenum-rated cables in certain areas?
To reduce the cost of installation
To prevent unauthorized network access
To meet fire safety codes
To improve signal quality
What is a key characteristic of shielded twisted pair (STP) cables?
They are more flexible than UTP cables
They include metal shielding over each pair of wires
They are less expensive than UTP cables
They do not require grounding
What is a disadvantage of using STP cables?
They are more susceptible to EMI
They are not suitable for outdoor use
They have a higher cost and require grounding
They degrade quickly when exposed to elements
What type of cable should be used for outdoor installations that require burial?
Plenum-rated cable
Direct burial cable
Shielded twisted pair cable
Unshielded twisted pair cable
What is the primary use of RG-6 coaxial cable?
Connecting to fiber optic networks
Cable Internet connections and TV set-top boxes
Wireless data transmission
Satellite communication
What is the minimum bandwidth of a typical RG-6 cable and what is the distance it can be ran?
500 MHz
100FT-500FT
1 GHz
500FT-1000FT
2 GHz
750FT-1500FT
100 MHz
50FT-250FT
Which type of RG-6 cable is referred to as "quad shield"?
RG-6/U
RG-6/UQ
RG-59
RG-11
What is a key advantage of optical cables over copper-based cables?
Higher susceptibility to EMI
Slower data transmission
More secure and faster signal transmission
Easier to splice
What is the primary use of single-mode fiber cables?
Short-distance data transmission
Long-distance data transmission
Connecting peripheral devices
Transmitting audio signals
Which type of connector is similar in appearance to the SC connector?
ST connector
LC connector
FC connector
MTP connector
What is the typical data transmission distance for multimode cables?
100 meters
600 meters
1000 meters
10 kilometers
Which type of fiber optic cable is commonly used in server rooms, or when creating network backbone connections between buildings in a campus?
Single-mode
Multimode
Coaxial
Twisted pair
What is the data transfer rate of USB 3.0?
480 Mbps
5 Gbps
10 Gbps
20 Gbps
Which USB version is known as SuperSpeed+?
USB 2.0
USB 3.0
USB 3.1
USB 1.1
What is the data transfer rate of USB 2.0?
480 Mbps
5 Gbps
10 Gbps
20 Gbps
Which USB version provides a data transfer rate of 10/20 Gbps?
USB 2.0
USB 3.0
USB 3.1
USB 3.2
What is the data transfer rate provided by the USB4 specification?
USB4 is also compatible with Thunderbolt 3.
480 Mbps
5 Gbps
10 Gbps
40 Gbps

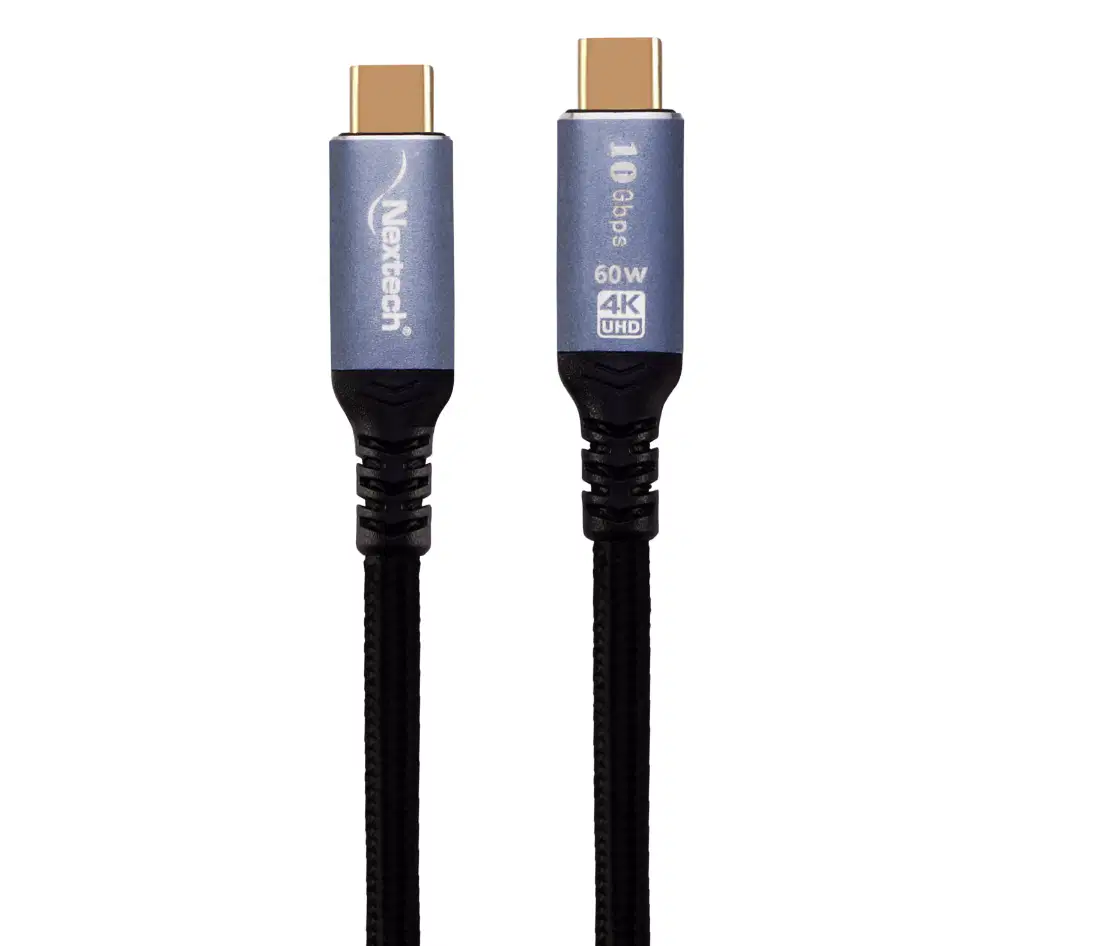

What is one of the main advantages of the USB-C connector compared to older versions of USB?
It only charges devices.
It has a lower power flow.
It can be used as an audio and video connection.
It can only transmit data.
How much current can a USB-C connector provide?
1 amp
2 amps
3 amps
5 amps
What type of connector does the Lightning port use?
USB Type-C
30-pin dock
8-pin connector
DisplayPort
Which version of Thunderbolt uses the USB Type-C connector?
Version 1
Version 2
Version 3
Version 4

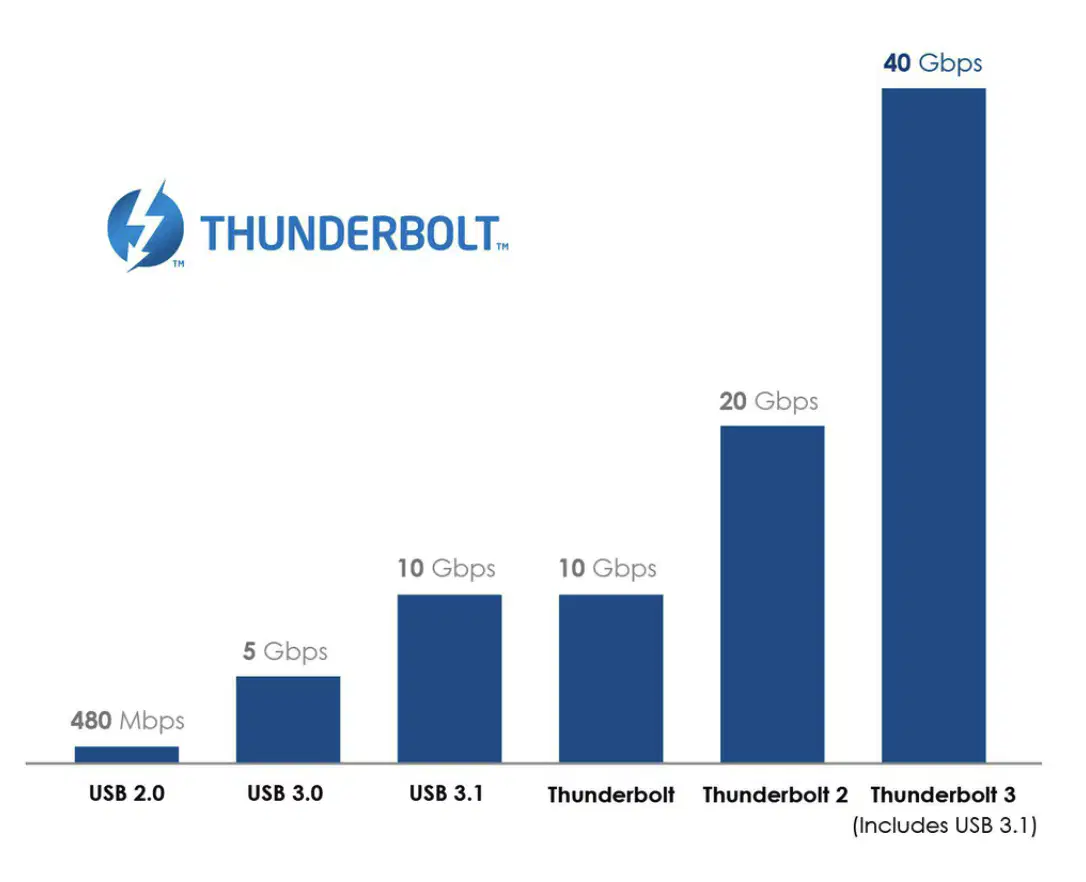

What is the data transfer rate of Thunderbolt Version 2?
10 Gbps
20 Gbps
30 Gbps
40 Gbps
Which technology does Thunderbolt combine with PCI Express?
USB 3.0
HDMI
DisplayPort
Lightning
What is the RS-232 standard primarily used for?
Wireless communication
Serial connections for peripheral devices
Optical fiber connections
Ethernet connections
How many wires does a DE-9 (also known as DB9) connector have?
15 wires
25 wires
9 wires
12 wires
Which organization publishes the RS-232 and other Recommended Standards?
they also published the 568B cabling standard
IEEE
TIA
ISO
ANSI
What type of connector is commonly used for RS-232 data transmissions?
HDMI
VGA
DE-9
DB25
Which of the following is NOT a common output for today's PCIe video cards?
DVI
HDMI
DisplayPort
RS-232
What does DVI stand for?
Digital Visual Interface
Digital Video Input
Display Video Interface
Dynamic Video Integration
Which type of DVI connection supports both digital and analog signals?
DVI-I
DVI-D
DVI-A
DVI-B
What is the primary use of HDMI?
High-definition television
Audio-only signals
Analog video connections
Low-resolution displays
Which HDMI type is used in portable devices?
Type C
Type A
Type B
Type E

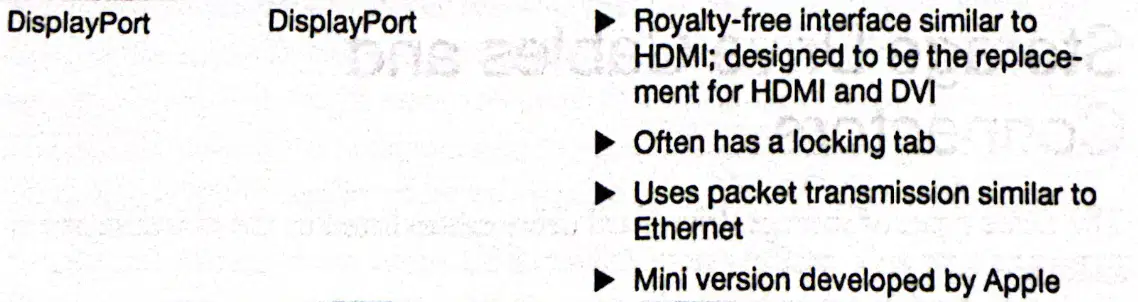

What is a key feature of DisplayPort?
Royalty-free interface
Analog signal support
Limited bandwidth
No locking tab
What is the common pin count for VGA connectors?
15-pin
10-pin
20-pin
25-pin

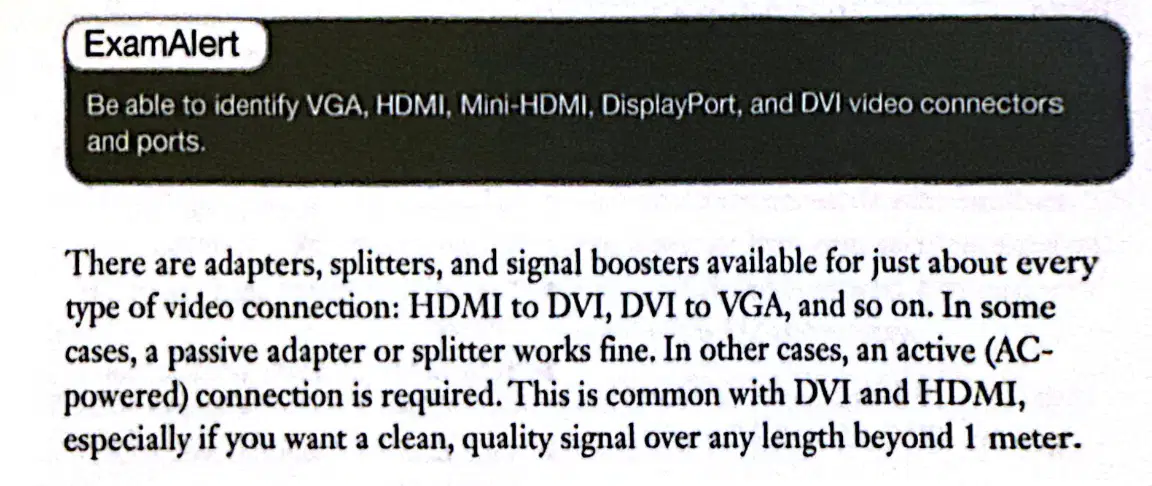

Which of the following video ports is known for providing a clean, quality signal over any length beyond 1 meter, especially when using an active (AC-powered) connection?
VGA & SVGA
HDMI & DVI
RG6 & RS232
Can you repeat the question?
What type of storage drive cable uses a 7-pin data connector and a 15-pin power connector?
Integrated Drive Electronics (IDE)
DisplayPort
Serial ATA (SATA)
VGA
Which storage drive cable type runs in parallel, using a 40-pin ribbon cable for data?
Serial ATA (SATA)
HDMI
Integrated Drive Electronics (IDE)
DVI
What is a common type of SCSI that can transfer data as fast as 22.5 Gbps?
Parallel SCSI
Serial Attached SCSI (SAS)
IDE
eSATA
What is the purpose of an adapter in computer connections?
To increase data speed
To match incompatible devices and cables
To store data
To power devices
Which type of adapter is commonly used to connect USB ports to an Ethernet network?
USB-to-VGA adapter
USB-to-HDMI adapter
USB-to-Ethernet adapter
USB-to-DVI adapter
Why might you need an audio cable when using an HDMI-to-DVI adapter?
DVI carries both video and audio signals
HDMI does not carry video signals
DVI does not normally carry audio signals
HDMI does not carry audio signals
