Worksheetsmeter cert 2
Total questions: 15
Worksheet time: 8mins
What does an Analog-to-Digital (A/D) converter do?
Converts digital signals to analog signals
Converts AC voltage to DC voltage
Converts an applied DC voltage into a digital output
Converts mechanical energy to electrical energy
What is the effect of excessive amperage draw when checking voltage?
Increases circuit efficiency
Damages meter circuitry
Enhances voltage accuracy
Reduces resistance

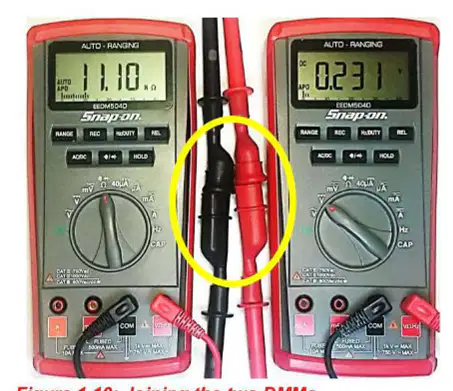

What is the purpose of connecting the test leads from DMM #1 to DMM #2?
To measure temperature
To measure internal impedance
To measure frequency
To measure resistance
What type of conditions does CAT IV rating handle?
Low voltage conditions
High voltage/current conditions
Single phase loads
Limited transient voltages
What is the relationship between a meter system and its components?
As strong as the weakest link
As fast as the slowest component
As light as the heaviest part
As expensive as the cheapest part
What is the recommended action if you encounter multiple voltage ratings?
Choose the highest category rating
Choose the lowest category rating
Choose based on color
Choose based on size
What is the function of the rotary dial selector on a multimeter?
To display measurement readings
To select the measurement mode
To connect test leads
To adjust the display brightness
Which button on a DMM activates the recording of minimum and maximum values?
RANGE
REL
REC
HOLD
What is the purpose of the REL button on a DMM?
Toggles between Auto Ranging or Manual Ranging
Activates Relative Mode
Freezes a value on the display
Toggles between AC or DC
What does the HOLD button do on a DMM?
Sets display to zero
Freezes a value on the display
Toggles between Frequency or Duty Cycle
Activates recording of MIN and MAX values
What does the Continuity feature test on a DMM?
Frequency and Duty Cycle
Opens, shorts, broken wires
MIN and MAX values
AC and DC
What is the function of the outer layer of test leads?
To conduct electricity.
To provide color.
To protect the inner layer.
To make it heavier.
What should the Dial setting be rotated to for checking test leads?
V (Volts)
A (Amps)
Ω (Ohms)
Hz (Hertz)
What does the Ω setting on the dial represent?
Voltage
Current
Resistance
Frequency
What does OL indicate when testing a fuse?
A good fuse
A bad fuse
A fully charged battery
A successful test
