WorksheetsIDA RF Quiz 11/7
Total questions: 10
Worksheet time: 5mins
The centrifugal switch is used to disconnect the start winding from the circuit when the motor reaches approximately ____% of the rated speed.
100
75
85
10
Electronic relays remove that run windings from the circuit after shut down.
True
False
This is describing single phase operation.
True
False
What type of motor is this?
Capacitor start
Three-phase
Capacitor Start, Capacitor Run
Centrifugal

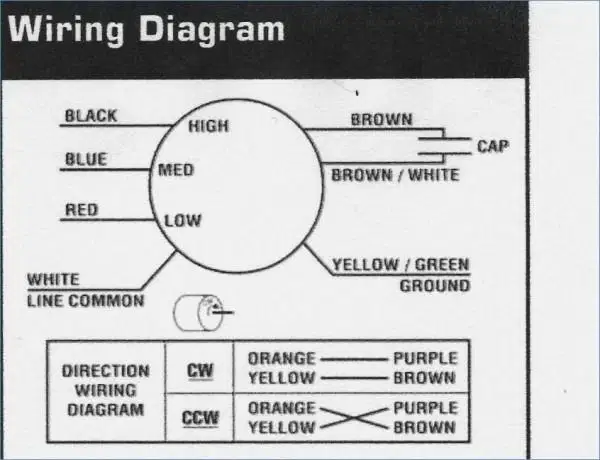

Which speed has the most resistance?
HIgh
Medium
Low
There is no difference in resistance.
This drawing is describing a three-phase motor.
True
False
This is a wye winding.
True
False

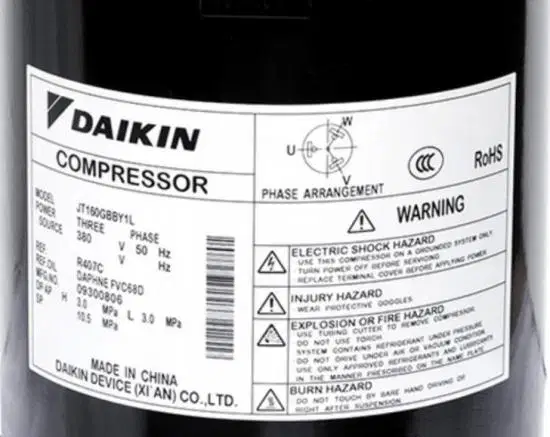

This compressor will run with no issues in a standard American (USA) home.
True
False
The red wire would have the _____ resistance.
Highest
Lowest
The capacitances of two capacitors in parallel add their values
True
False
