WorksheetsInternal Combustion Engine
Total questions: 8
Worksheet time: 80secs
Name
Class
Date
1.
Name the three main types on engine
a)
V shape, Flat, Inline
b)
Flat, Square, Inline
c)
Inline, V-shape, Closed
2.
True or False the ‘Connecting Rod’ connects the crankshaft to the piston?
a)
True
b)
False
3.
Which of these elements is NOT part of a 4 stroke gas engine?
a)
Piston
b)
Connecting rod
c)
Alternating level
d)
Crankshaft
4.
What is the 4-stroke cycle otherwise known as?
a)
Combustion Cycle
b)
Otto Cycle
c)
Engine Cycle
d)
Bang Cycle
5.

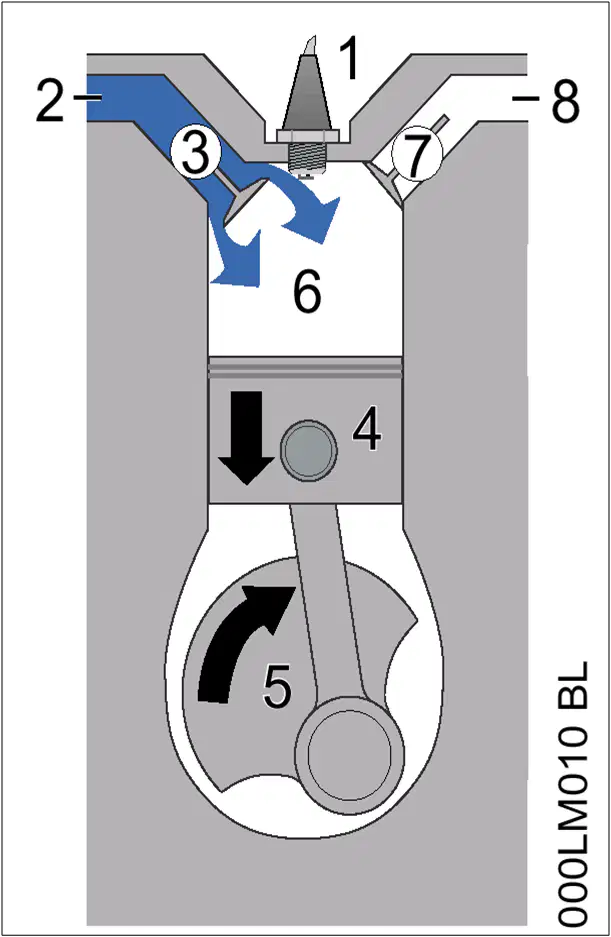

What stroke is this of a 4 stroke engine?
a)
Exaust
b)
Power
c)
Intake
d)
Compression
6.

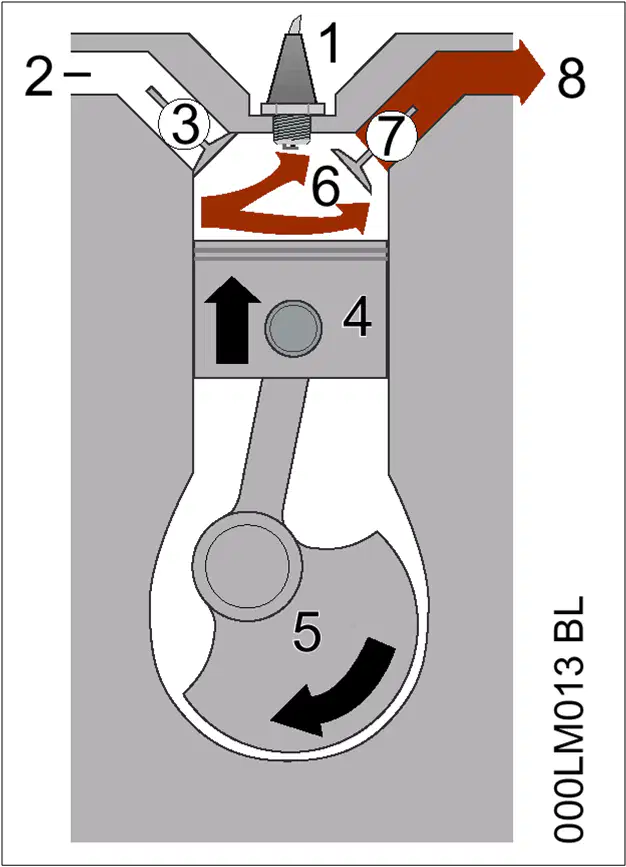

What stroke is this of a 4 stroke engine?
a)
Intake
b)
Exaust
c)
Power
d)
Compression
7.
What stroke is this of a 4 stroke engine?
a)
Intake
b)
Exaust
c)
Power
d)
Compression
8.
What order is the ‘Otto Cycle’ in?
a)
Intake, Power, Compression, Exhaust
b)
Power, Compression, Intake, Exhaust
c)
Compression, Power, Intake Exhaust
d)
Intake, Compression, Power, Exhaust
