WorksheetsWelding Blueprint Reading Lines Quiz
Total questions: 16
Worksheet time: 11mins

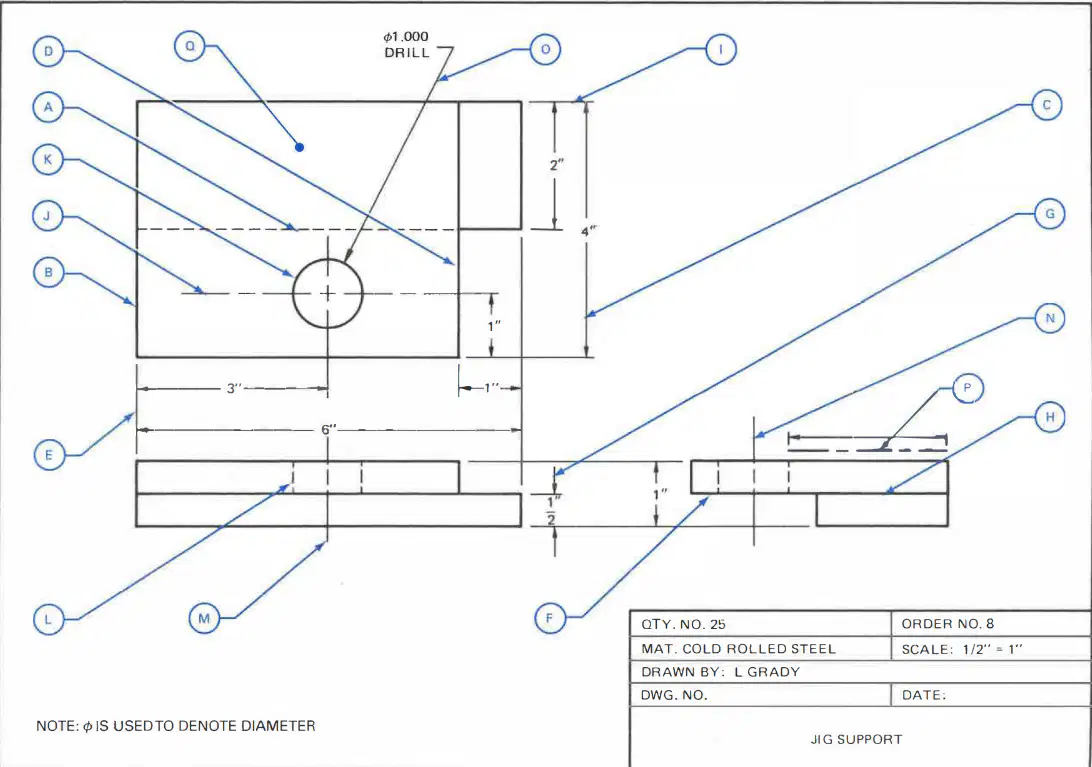

What type of line is being pointed to by letter "A". Click on picture to see in more detail.
Object Line
Hidden Line
Phantom Line
Center Line
What type of line is being pointed to by letter "B". Click on picture to see in more detail.
Object Line
Hidden Line
Dimension Line
Extension Line
What type of line is being pointed to by letter "C". Click on picture to see in more detail.
Object Line
Hidden Line
Dimension Line
Extension Line
What type of line is being pointed to by letter "D". Click on picture to see in more detail.
Object Line
Hidden Line
Dimension Line
Extension Line
What type of line is being pointed to by letter "E". Click on picture to see in more detail.
Object Line
Hidden Line
Dimension Line
Extension Line
What type of line is being pointed to by letter "F". Click on picture to see in more detail.
Object Line
Hidden Line
Dimension Line
Extension Line
What type of line is being pointed to by letter "G". Click on picture to see in more detail.
Object Line
Hidden Line
Dimension Line
Extension Line
What type of line is being pointed to by letter "H". Click on picture to see in more detail.
Object Line
Hidden Line
Dimension Line
Extension Line
What type of line is being pointed to by letter "I". Click on picture to see in more detail.
Object Line
Hidden Line
Dimension Line
Extension Line
What type of line is being pointed to by letter "J". Click on picture to see in more detail.
Object Line
Center Line
Phantom Line
Short Break Line
What type of line is being pointed to by letter "K". Click on picture to see in more detail.
Object Line
Center Line
Phantom Line
Short Break Line
What type of line is being pointed to by letter "L". Click on picture to see in more detail.
Object Line
Center Line
Hidden Line
Short Break Line
What type of line is being pointed to by letter "M". Click on picture to see in more detail.
Object Line
Center Line
Hidden Line
Short Break Line
What type of line is being pointed to by letter "N". Click on picture to see in more detail.
Object Line
Center Line
Hidden Line
Short Break Line
What type of line is being pointed to by letter "O". Click on picture to see in more detail.
Leader Line
Phantom Line
Hidden Line
Short Break Line
What type of line is being pointed to by letter "P". Click on picture to see in more detail. I honestly have no idea on that one.
