WorksheetsPressurization Modes
Total questions: 30
Worksheet time: 15mins
In the isobaric mode, the cabin pressure is established at the ______ foot level and remains at this level.
8,000
10,000
6,000
12,000
In isobaric mode, what does the pressurization system maintain?
Constant temperature
Constant pressure
Constant volume
Constant humidity
What is the typical rate of change for cabin pressure?
100 to 200 fpm
300 to 500 fpm
600 to 800 fpm
Where is the position of the outflow valve(s) normally located in an aircraft?
Near the cockpit
At the tail section
Under the wings
In the cargo hold
What does the pressurization panel from an 800 series Boeing 737 control?
Cabin pressure
Fuel levels
Engine thrust
Landing gear
How is modern pressurization control in aircraft automated according to the passage?
Through manual adjustments by the pilot
Using advanced computer systems
By monitoring cabin pressure manually
With the help of flight attendants
What role does the FMS play in the pressurization control of an aircraft as described in the passage?
It directly controls the cabin pressure.
It provides data to assist in pressurization control.
It has no role in pressurization control.
It overrides manual pressurization settings.
What is described as the manual mode of pressurization control in the passage?
Automatic adjustment of cabin pressure
Manual adjustment of cabin pressure
Use of electronic sensors for pressure control
Automatic emergency pressure release

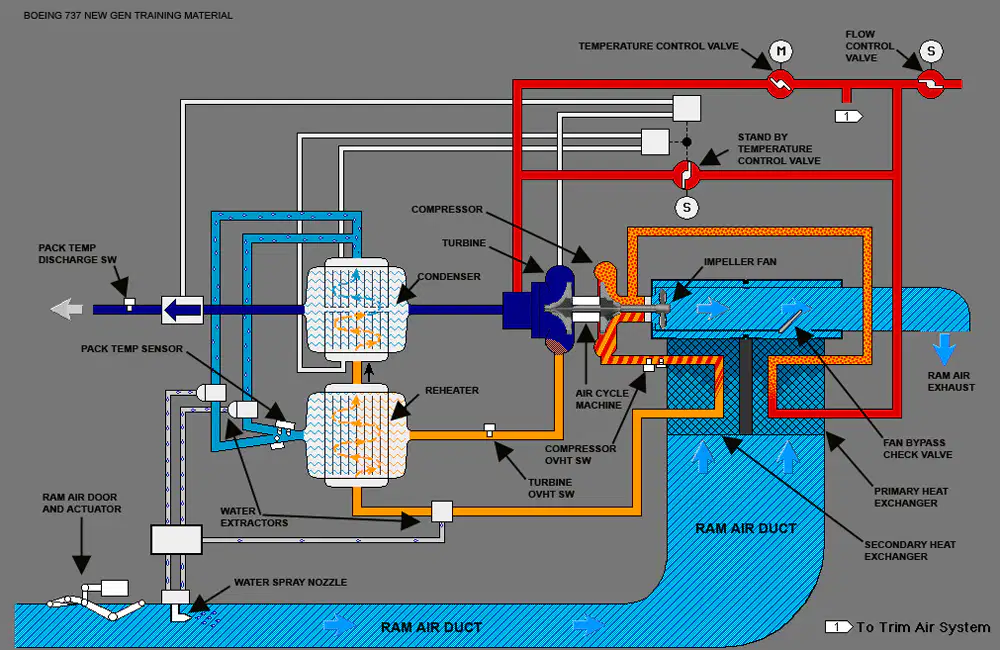

How is cabin pressurization controlled in an aircraft?
By adjusting the throttle settings
Through the use of air conditioning packs and outflow valves
By changing the wing flaps
Through the pilot's manual control
What is the function of the 'True static atmosphere connection' in the all-pneumatic cabin pressure regulator?
To measure cabin altitude
To provide a reference for pressure regulation
To control cabin temperature
To supply air to the cabin

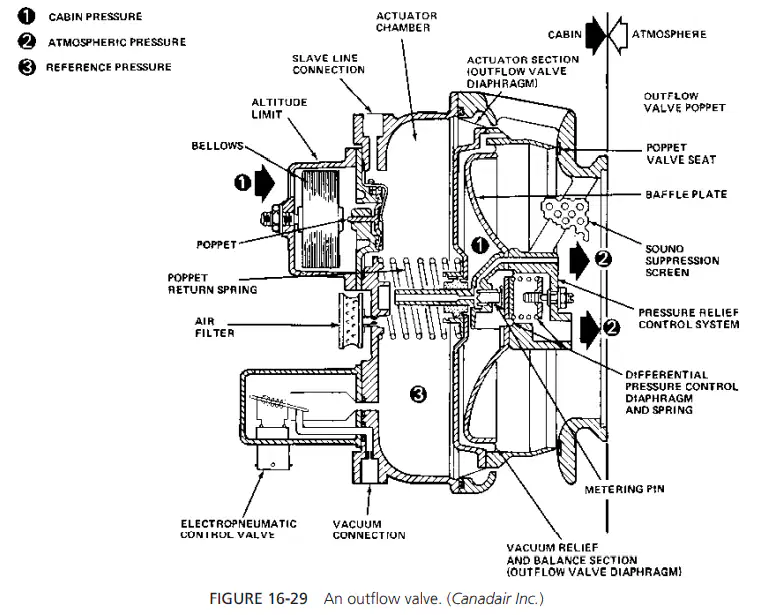

What is the role of the 'Baffle plate' in the diagram?
To support the structure
To direct the flow of air
To provide insulation
To act as a filter
What is a common method for operating outflow valves?
Pneumatic operation of outflow valves is considered simple and reliable because:
it requires less maintenance and has fewer moving parts.
it is more complex and requires frequent adjustments.
it is dependent on electrical systems for operation.
it is less efficient compared to hydraulic systems.
What components are used to sense and manipulate cabin and ambient air pressures in pneumatic outflow valves?
What is the function of the cabin air pressure controller in air transport category aircraft?
To regulate the temperature inside the cabin
To control the cabin lighting system
To maintain a safe and comfortable cabin pressure
To manage the aircraft's fuel efficiency

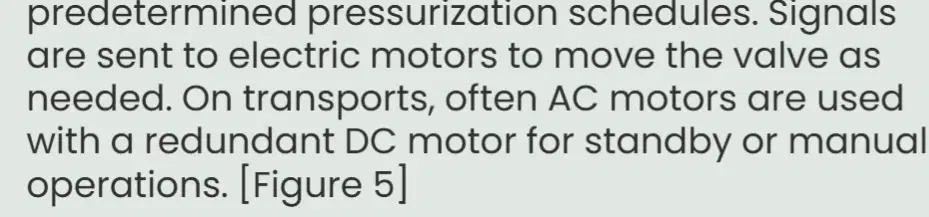

Which type of motors are often used on transports for standby or manual operations?
AC motors
DC motors
Both AC and DC motors
None of the above.
What type of motor normally operates the outflow valve on a transport category aircraft?
AC motor
DC motor
Hydraulic motor
Pneumatic motor
What is the purpose of aircraft pressurization systems?
To increase speed
To limit human and structural damage
To improve fuel efficiency
To enhance passenger comfort
A cabin air safety valve is set to open at a predetermined ________ differential.
pressure
temperature
humidity
altitude
On most aircraft, safety valves are set to open between ________ psid.
8 and 10
5 and 7
10 and 12
12 and 14
What is shown in Figure 6 on a Boeing 747?
Two pressurization safety valves
Two engines
Two landing gears
Two wings
What is the purpose of pressurization safety valves in aircraft cabins?
To regulate cabin temperature
To maintain cabin pressure
To control cabin humidity
To provide fresh air
Pressurization safety valves open at a preset differential pressure to allow air to flow out of the cabin.
True
False
What is the function of the pilot valve in outflow valves?
To control the main valve operation
To measure the pressure difference
To regulate the temperature
To provide a backup system
How do cabin altitude limiters function?
They maintain cabin pressure by controlling the outflow valve.
They adjust the aircraft's altitude to match cabin pressure.
They regulate the oxygen levels in the cabin.
They control the temperature inside the cabin.
Which of the following is a function of the outflow valve?
Increase cabin pressure
Decrease cabin pressure
Prevent further pressurization
None of the above
What is the purpose of a negative pressure relief valve on pressurized aircraft?
To maintain cabin pressure above atmospheric pressure
To prevent cabin pressure from dropping below atmospheric pressure
To increase cabin pressure during descent
To equalize cabin pressure with outside pressure during ascent
What happens if the air pressure outside the aircraft exceeds the cabin air pressure?
The cabin will maintain its pressure.
The cabin will depressurize.
The aircraft will fly faster.
The aircraft will slow down.
What are pressurization dump valves used for in aircraft?
To control cabin temperature
To release cabin pressure
To manage fuel flow
To adjust wing flaps
True or False: Pressurization dump valves can only be operated manually by a switch in the cockpit.
True
False
