WorksheetsLEGO Robotics: The Rhino
Total questions: 14
Worksheet time: 7mins
This is called the...
Motor
Hub
Computer
Brick
This is called a...
Peg
Connector
Pin
Clip
This is called a...
Rollerball
Wheel
Sphere
This is called a...
Wheel
Engine
Motor
Spinner
This is called a...
Wire
Cord
Connector
Cable
This is called a...
Port
Plug
Connector
These are called...
Fasteners
Cable Clips
Holders

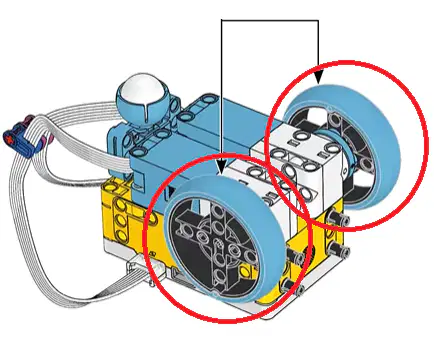

These are called...
Rollerballs
Cycles
Wheels
The function of these structures is to..
Secure the wheels to the motors
Help the programmer count wheel rotations
Both of these are correct
This structure is called a ...
Distance Sensor
Force sensor
Color Sensor
Gyro Sensor
The function of the force sensor is to...
Detect sound
Detect distance from other objects
Detect color changes
Detect when the robot hits an object
This diagram tells us...
the type of robot we're building.
how to program our robot.
where the cables go in the hub.
These icons represent...
The force sensor and where the cables go on the hub.
the motors and where the cables go on the hub.
The color sensor and where the cables go on the hub.
This icon represents...
The force sensor and where the cable goes on the hub.
the motors and where the cables go on the hub.
The color sensor and where the cables go on the hub.
