WorksheetsQuiz on Copper tool Usage and Maintenance
Total questions: 51
Worksheet time: 26mins
Why is it important to identify and use the correct tools when fabricating copper pipe?
To save time
To ensure safety
To maintain quality
To reduce costs
What is a key reason for maintaining tools in good condition?
To make them look new
To ensure they last a long time
To increase their weight
To change their color
What is a pipe cutter used for?
Cutting a range of copper pipe sizes
Measuring pipe lengths
Welding pipes together
Painting pipes
How is the handle of a pipe cutter adjusted?
By pushing it up and down
By turning it clockwise or anti-clockwise
By sliding it left and right
By pressing a button
What is the function of the adjustment handle in the hand tool shown?
To tighten the cutting disc
To adjust the size of the tool
To secure the rollers
To replace the retaining screw
Which part of the hand tool is responsible for cutting?
Rollers
Adjustment thread
Cutting disc
Body
What is the purpose of the retaining screw in the hand tool?
To hold the adjustment thread
To secure the cutting disc
To attach the rollers
To fix the body in place
What is the primary function of the rollers in a pipe cutter?
To cut the pipe
To hold the pipe against the cutting disc
To lubricate the pipe
To measure the pipe length
How often should the adjustment handle be tightened when using a pipe cutter?
After every turn
After every second turn
After every third turn
After every fourth turn
What needs to be done when the cutting disc of a pipe cutter needs replacement?
Tighten the adjustment handle
Loosen the retaining screw
Lubricate the rollers
Replace the adjustment thread
Why is it important to lubricate the adjustment thread of a pipe cutter?
To prevent rust
To allow free movement up and down the thread
To increase cutting speed
To reduce noise
What is the function of a pipe slice in plumbing?
To measure the diameter of pipes
To cut a single size of copper pipe
To join two pipes together
To bend pipes into shape
Which sizes of copper pipe does a plumber need individual cutters for when using a pipe slice?
10mm, 20mm, 30mm
15mm, 22mm, 28mm
12mm, 24mm, 36mm
18mm, 25mm, 32mm
What is the function of the cutting disc in a hand tool used in plumbing?
To hold the tool in place
To rotate the tool
To cut through materials
To provide grip
Which part of the hand tool indicates the direction of rotation?
Body
Grip
Cutting disc
Direction of rotation
What is the purpose of the rollers in the hand tool?
To cut materials
To provide support and movement
To indicate direction
To grip the tool
What is the purpose of the spring-loaded cutting disc in a pipe slice tool?
To hold the cutter in position
To increase the speed of cutting
To reduce noise during operation
To prevent the tool from rusting
How is the cutting disc replaced in a pipe slice tool?
By tightening the screws
By loosening the screws
By applying more lubrication
By rotating the tool in the opposite direction
What maintenance is required for the rollers and cutting disc of a pipe slice tool?
Regular sharpening
Regular lubrication and cleaning
Regular painting
Regular replacement
What is one of the main tools a plumber will use for shaping copper pipes?
Pipe cutter
Scissor bender
Wrench
Hammer
What sizes of copper pipe can a scissor bender shape?
10mm and 20mm
15mm and 22mm
18mm and 25mm
12mm and 24mm
Which of the following is NOT a feature of a scissor bender?
Two handles
One roller
Three formers
Two slips
What can a scissor bender form when used correctly?
Circles and spirals
Angles and sets
Squares and triangles
Waves and curves

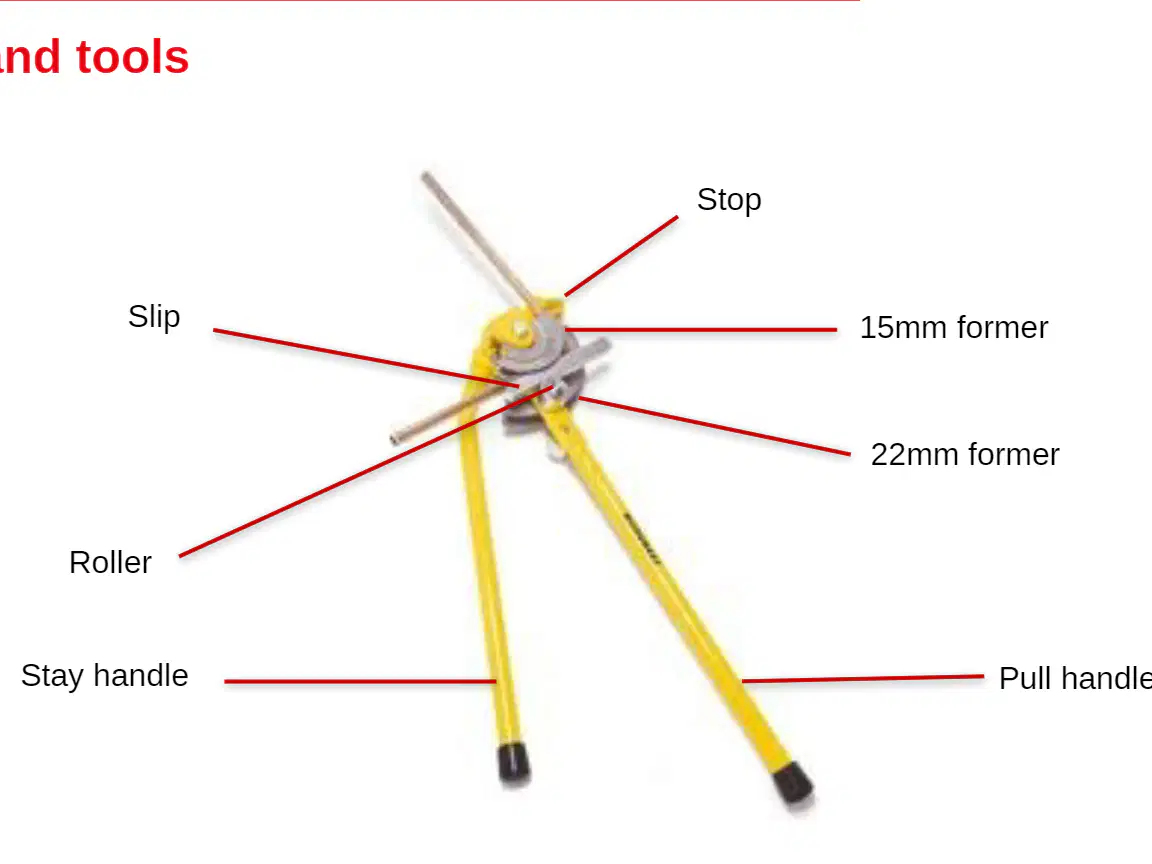

What is the purpose of the "15mm former" in the hand tool diagram?
To bend pipes of 15mm diameter
To cut pipes of 15mm diameter
To measure pipes of 15mm diameter
To join pipes of 15mm diameter
Which part of the hand tool is used to apply force during operation?
Slip
Roller
Pull handle
Stop
What is the function of the "Roller" in the hand tool diagram?
To guide the pipe during bending
To measure the angle of bend
To cut the pipe
To hold the pipe in place
What is the primary function of a scissor bender?
To cut copper pipes
To bend copper pipes
To weld copper pipes
To measure copper pipes
What maintenance does a scissor bender require?
Regular lubrication, cleaning, and tightening
Occasional painting
Frequent sharpening
Daily replacement of parts
What might need replacing on a scissor bender due to damage?
The handle
The slip
The roller
The stop
How long should a good-quality scissor bender last if maintained well?
A few months
A few years
A decade
A lifetime
What sizes of copper pipe is a microbore scissor bender used for?
6, 8, and 10mm
22, 28, and 35mm
12, 15, and 18mm
20, 25, and 30mm
What sizes of copper pipe is a stand scissor bender used for?
6, 8, and 10mm
22, 28, and 35mm
12, 15, and 18mm
20, 25, and 30mm
What is a junior hacksaw primarily used for in plumbing?
Cutting large metal sheets
Cutting small pipework up to 22mm
Drilling holes in walls
Sanding wooden surfaces
Why is a junior hacksaw useful for cutting pipe in situ?
It is very expensive
It requires a power source
It is useful where access is difficult or removal is too costly
It is only used for decorative purposes
What is the part of the hand tool labeled as "Blade" used for?
Cutting materials
Holding the tool
Supporting the structure
Marking measurements
Which part of the hand tool is used to grip and control the tool?
Bow
Handle
Blade
Location lugs
What is the function of the "Location lugs" on the hand tool?
To cut materials
To provide grip
To position the blade
To measure angles
What holds the tension of the blade in a junior hacksaw?
The handle
The frame of the hacksaw
The teeth of the blade
The cutting edge
Why must care be taken to ensure the teeth of the hacksaw blade are facing forwards?
To prevent rust
To allow the cutting action to take place on the forwards motion
To reduce noise
To increase blade lifespan
What is the primary function of a blowtorch in LPG equipment?
To cool down the flame
To control the size of the flame
To provide electricity
To measure gas pressure
What safety precaution should be taken when using a blowtorch?
Wear rubber gloves
Use in a dark room
Be cautious of the hot nozzle after use
Keep it submerged in water
What components do blowtorches have to control the flame?
A thermometer and a timer
An isolator and gas regulator
A fan and a filter
A battery and a switch
What is the function of the nozzle in a hand tool used in plumbing?
To control the flow of gas
To ignite the gas
To release gas
To direct the flame
Which part of the plumbing hand tool is responsible for igniting the gas?
Nozzle
Lock
Gas release and ignitor
Injector inside body
What is the role of the gas isolator and regulator in a plumbing hand tool?
To connect the tool to the gas source
To regulate and isolate the gas flow
To lock the tool in place
To inject gas into the body
What is one of the maintenance requirements for the nozzle and injector of a blowtorch?
Painting regularly
Cleaning to remove debris
Replacing every month
Lubricating with oil
What might need to be changed if a blowtorch fails to spark?
The nozzle
The gas tank
The ignitor
The handle
Why does the rubber seal on the gas connection of a blowtorch require inspection?
To ensure it is colorful
To ensure it is gas-tight
To ensure it is flexible
To ensure it is clean
What is the primary use of an adjustable spanner?
Cutting wires
Tightening or loosening nuts
Measuring distances
Drilling holes
Why should a spanner be used instead of grips for adjusting nuts?
Grips are more expensive
Spanners are more colorful
Spanners minimize slip
Grips are too small
How is the head of an adjustable spanner designed to be positioned on a nut?
Randomly
In any direction
One way to ensure correct force direction
Upside down
