Worksheetsunit 108 Rainwater Gutter Quiz
Total questions: 42
Worksheet time: 21mins
What is the purpose of a rainwater gutter on a building?
To collect and channel rainwater to a downpipe
To provide insulation for the roof
To enhance the aesthetic appeal of the building
To support the roof structure
Which part of the rainwater guttering system is responsible for directing water from the roof to the ground?
Gutter
Box end
Downpipe
Soffit
What is the function of the facia in a rainwater guttering system?
To support the gutter
To direct water to the ground
To cover the roof edge
To collect rainwater
What is the main purpose of a rainwater system?
To increase water pressure in pipes
To remove rainwater from the property to a safe place
To provide drinking water
To heat water for household use
What is a soakaway in a rainwater system?
A device to heat rainwater
A method to store rainwater for later use
A place where rainwater is allowed to soak back into the ground
A type of water filter
Where can rainwater be taken for treatment in a rainwater system?
Surface water sewer
Underground reservoir
Rainwater tank
Evaporation pond
What factors determine the expected flow of a rainwater system?
The color of the roof
The size of the roof area
The number and position of outlets
How much rain falls
Which of the following is NOT a factor affecting the flow of a rainwater system?
How much rain falls
The number and position of outlets
The material of the roof
The size of the roof area

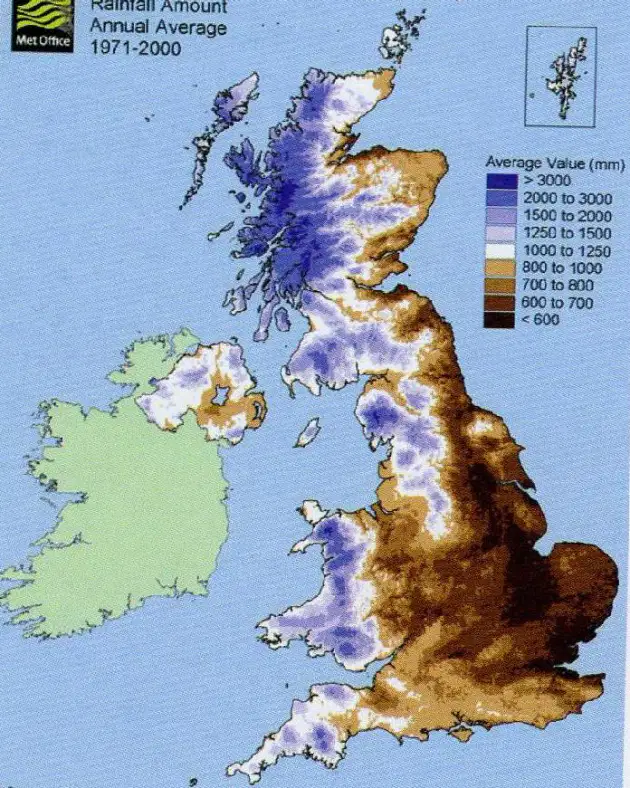

Where in the UK does heavier rainfall tend to occur?
East coast of Britain
West coast of Britain
South coast of Britain
North coast of Britain
According to British Standards, what is the recommended fall for gutters per meter length?
1-3 mm
5-10 mm
10-15 mm
20-25 mm
What should the gradient of the eaves gutter prevent?
Rainwater running off the roof and missing the gutter
Rainwater pooling on the roof
Rainwater flowing back into the house
Rainwater evaporating quickly
What is the standard gutter gradient ratio accepted in the trade for rainwater systems?
1:600
1:500
1:700
1:800
How much drop is there for every 600mm length in the standard gutter gradient?
1mm
2mm
3mm
4mm
What is the total drop in millimeters over a 15m length according to the standard gutter gradient?
25mm
20mm
30mm
35mm
What is the most common material used for standard domestic guttering and downpipes?
A) Aluminum
B) PVCu
C) Copper
D) Steel
What effect does warm or hot weather have on guttering?
A) It contracts and goes brittle
B) It melts completely
C) It expands in length
D) It changes color
What happens to guttering in cold weather?
A) It expands and becomes flexible
B) It contracts and goes brittle
C) It melts
D) It changes color
What can affect PVCu guttering when used on soffits and fascias?
A) Water
B) Dust
C) Wood preservatives and paints
D) Sunlight
What is one of the benefits of using plastic guttering?
Difficult to install
Heavy to handle
Requires minimal maintenance
Expensive
Which of the following is NOT a benefit of plastic guttering?
Corrosion-free
Economical
Requires frequent maintenance
Long life expectancy
Plastic guttering is known for being:
Heavy and cumbersome
Corrosion-free
High maintenance
Short life expectancy
Which characteristic of plastic guttering contributes to its ease of installation?
Heavyweight
Complex design
Lightweight to handle
Requires special tools
What is the standard shape for domestic properties in rainwater systems?
Half-round
Deep flow
Square
Rectangular
Which guttering shape is used for steep-angled roofs or high-intensity rainfall?
Half-round
Deep flow
Square
Rectangular
What type of rainwater system is used in conjunction with a squared downpipe?
Square line
Ogee
Half-round
Circular
Which rainwater system is used to give a period look to a property?
Square line
Ogee
Half-round
Circular
What is the main topic of the learning material?
Rainwater systems
Electrical systems
Heating systems
Ventilation systems
What type of guttering is discussed in the material?
Metal guttering
Wooden guttering
Plastic guttering
Concrete guttering
What is the standard size for plastic gutter systems mentioned in the document?
100mm
112mm
120mm
150mm
Which of the following is a type of gutter angle shown in the document?
45° gutter angle
60° gutter angle
90° gutter angle
180° gutter angle
What is the purpose of an external stop end in gutter systems?
To connect two gutters
To stop the flow of water at the end of a gutter
To change the direction of water flow
To increase water flow speed
What is the standard size for downpipe systems mentioned in the document?
50mm
68mm
75mm
80mm

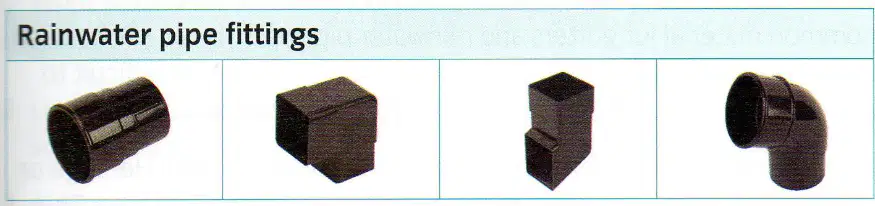

What shape is the 62mm fitting for the downpipe systems?
Circular
Square
Triangular
Hexagonal
What is the purpose of a running outlet in a rainwater system?
To connect the gutter to the roof
To cope with water flowing from two directions
To block water flow
To increase water pressure
Where is the position of the running outlet usually based?
On the height of the building
On the color of the roof
On the location of the drains of the property
On the size of the gutter
What is the primary function of a union bracket in rainwater systems?
To act as a decorative element
To support the gutter run and connect two lengths of gutter
To filter rainwater
To measure rainfall
What is the function of an external stop-end in a rainwater system?
To connect two gutter sections
To stop rainwater from pouring out of the gutter
To increase water flow in the gutter
To support the gutter from below
Where is the external stop-end located in a gutter system?
Inside the gutter run
At the top of the gutter
On the outside of the gutter run
Below the gutter
What is the function of the internal stop-end in a gutter system?
To connect two gutter sections
To stop rainwater from pouring out of the gutter
To increase water flow speed
To filter debris from rainwater
Where is the internal stop-end located in a gutter system?
On the outside of the gutter run
At the top of the gutter
On the inside of the gutter run
At the bottom of the gutter
What is the purpose of a downpipe connector in rainwater systems?
To connect the downpipe to the underground drainage pipework
To filter rainwater before it enters the gutter
To increase the water pressure in the downpipe
To prevent leaves from entering the drainage system
What might be required to maintain a water-tight seal in a downpipe connector?
A rubber boss
A metal clamp
A plastic cover
A silicone ring
