WorksheetsBidet Quiz
Total questions: 57
Worksheet time: 29mins
What is a bidet often described as?
A) A sit-on wash basin
B) A standing shower
C) A kitchen sink
D) A bathtub
What material are bidets typically made of?
A) Stainless steel
B) Vitreous china
C) Plastic
D) Wood
Which of the following is NOT a design type for bidets?
A) Over-the-rim bidet
B) Ascending-spray bidet
C) Wall-mounted bidet
D) Floor-mounted bidet
What might wall-hung bidets require?
A) Additional support brackets
B) Extra plumbing
C) More water pressure
D) Larger space
What is the minimum waste size required for bidets?
15mm
32mm
50mm
10mm
What type of air gap should be maintained over the rim of a bidet?
AUK1
AUK2
AUK3
AUK4
What is the size of the hot and cold feed for bidets?
10mm
20mm
15mm
25mm
How are bidet taps connected?
1/4” BSP connections
1/2” BSP connections
3/4” BSP connections
1” BSP connections
What is the most common style of bidet mentioned in the document?
Over-the-rim bidet
Wall-mounted bidet
Floor-standing bidet
Electronic bidet
What is required to maintain when connecting an over-the-rim bidet to a mains-fed system?
AUK2 air gap
Pressure valve
Water filter
Thermal insulator
What type of mixer tap can be used with an over-the-rim bidet?
Monobloc mixer tap
Single lever tap
Double handle tap
Touchless tap
Why does a hand spray with hose need special treatment when used with an over-the-rim bidet?
It could drop into contaminated water
It might cause water overflow
It can lead to high water pressure
It may cause leaks
What is important to maintain between the spillover level of the sanitary appliance and the outlet of the tap in an over-the-rim bidet?
AUK2 air gap
Water pressure
Temperature control
Pipe length

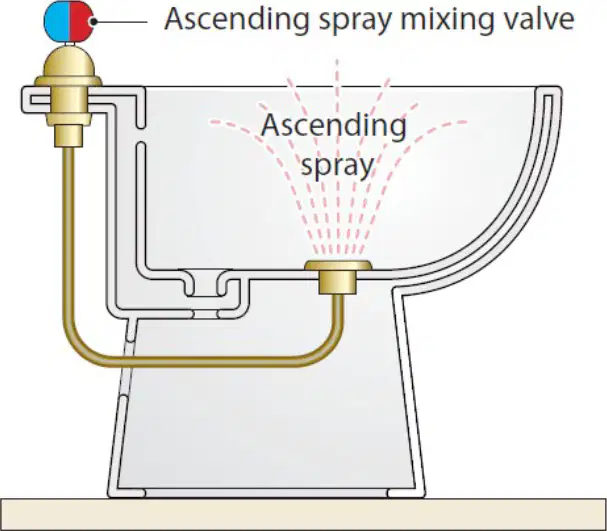

What is a unique feature of the ascending-spray bidet compared to other types?
It uses a special mixer tap to spray upwards from the base.
It has a built-in heater for the water.
It is commonly used in the UK.
It can be connected to mains-fed systems.
Why do special installation considerations apply to ascending-spray bidets?
They require a large amount of water.
There is no air gap between the spill over level and the outlet.
They are very heavy and need extra support.
They need to be installed outdoors.
Why can't ascending-spray bidets be connected to mains-fed systems?
They use too much electricity.
The outlet is in direct contact with foul water.
They are too expensive to maintain.
They require a special type of plumbing.

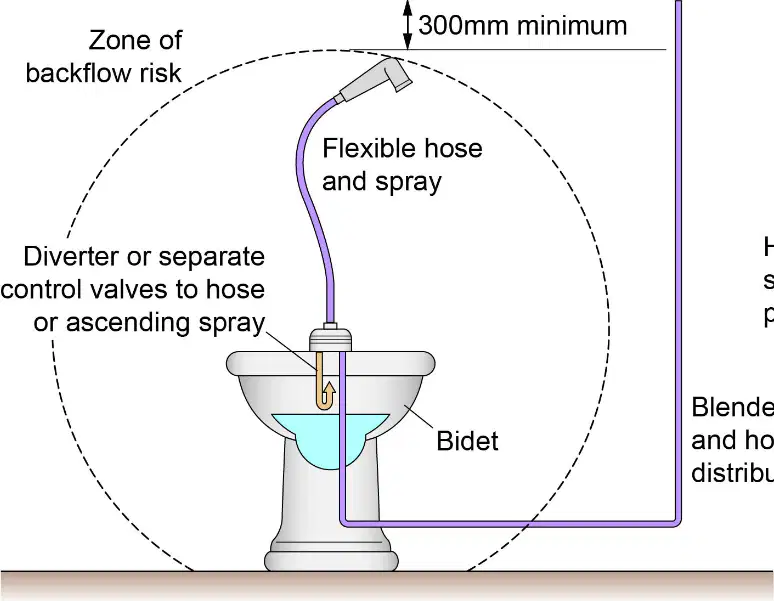

What is the minimum height required for the air gap in a flexible-hose bidet to prevent backflow?
100mm
200mm
300mm
400mm
Which type of backflow prevention device is mentioned for use with a flexible-hose bidet?
Type AA
Type BB
Type CC
Type DD
What is the purpose of the diverter or separate control valves in a flexible-hose bidet?
To control water temperature
To switch between hose and ascending spray
To adjust water pressure
To filter water impurities
What fluid category risk is associated with bidets that have flexible hose and spray handset fittings below the spillover level?
Fluid category 5
Fluid category 3
Fluid category 2
Fluid category 1
What type of backflow prevention arrangements are suitable for bidets with flexible hoses?
Type AA, AB, or AD
Type BA, BB, or BD
Type CA, CB, or CD
Type DA, DB, or DD
What is the minimum elevation required for the spray outlet of a bidet above the spillover level?
300mm
200mm
100mm
400mm
What is the typical worktop height for most common sinks?
800mm
850mm
900mm
950mm
According to Water Regulations, what type of air gap is required between the spillover level of the appliance and the outlet of the tap?
AUK1
AUK2
AUK3
AUK4
Which of the following is a type of kitchen sink design?
Triple bowl and drainer
Single bowl and drainer
Quadruple bowl and drainer
Circular bowl and drainer
What material is mentioned as being easily chipped?
Stainless steel
Polycarbonate
Granite
Vitreous china
Which material used for kitchen sinks allows for electrical earth bonding?
Polycarbonate
Granite
Stainless steel
Vitreous china
What is a feature of some "bowl and a half" kitchen sinks?
They are made of polycarbonate
They have a waste for a disposal unit
They are easily chipped
They are double drainer
What is the first step in the installation method for a kitchen sink?
Place the manufacturer's rubber washer in the top of the waste body.
Push the overflow tube onto each spigot.
Remove only enough protective wrapping to allow for the fitting of the taps and waste.
Place the manufacturer's washer in position on the underside of the waste grate.
What size combined waste and overflow is required for the installation?
1.0 inch
1.5 inch
2.0 inch
2.5 inch
Where should the manufacturer's washer be placed during the installation?
On the top of the waste body
On the underside of the waste grate
Inside the overflow tube
On the spigot
What should be removed from the tap(s) during the installation of a kitchen sink?
The top nut
The back nut
The side nut
The front nut
What should be applied to the base of the taps during installation?
A setting compound
A non-setting compound or silicon
A metal washer
A rubber gasket
Which tool might be required to tighten the back nut on the taps?
A hammer
A screwdriver
A tap spanner, box spanner, or basin wrench
A plier
What additional component may be required for a pressed-steel sink?
A rubber seal
A top hat spacer/washer
A metal clamp
A plastic ring

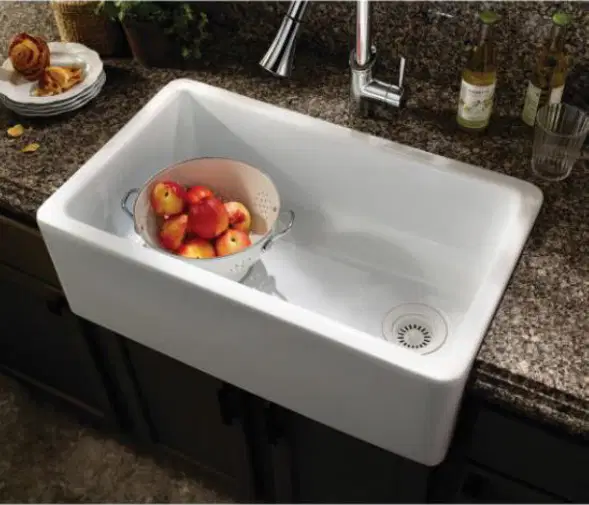

What material is a Belfast sink made of?
Stainless steel
Fire clay
Porcelain
Granite
Where are Belfast sinks typically installed?
Modern apartments
Period houses
Office buildings
Outdoor kitchens
What type of overflow does a Belfast sink have?
Circular overflow
Integral weir type overflow
Linear overflow
No overflow
How are taps typically mounted for a Belfast sink?
Directly on the sink
Above the appliance or from the worktop
On the side of the sink
Under the sink
What is a key difference between a London sink and a Belfast sink?
The London sink has an overflow.
The London sink is smaller in size.
The London sink does not have an overflow.
The London sink is made of metal.
What is the installation height of a butler's sink to allow a bucket to be mounted on the grate?
450mm
350mm
250mm
550mm
What feature do butler's sinks have to prevent water from splashing out?
Detachable grate
Integral splashback
Adjustable height
Built-in soap dispenser
What type of taps are mounted above a butler's sink?
Mixer taps
Bib taps
Sensor taps
Lever taps
What is another name for butler's sinks?
Kitchen sinks
Utility sinks
Cleaners sinks
Farmhouse sinks
What is the minimum waste size required for standard kitchen sinks?
30mm
40mm
50mm
60mm
What size is the hot and cold feed for standard kitchen sinks?
10mm
15mm
20mm
25mm
What type of connection do taps have in standard kitchen sinks?
1/4" BSP
1/2" BSP
3/4" BSP
1" BSP
What must be maintained to ensure proper installation of sinks?
AUK 1 air gap
AUK 2 air gap
AUK 3 air gap
AUK 4 air gap
What are the two styles of shower cubicles mentioned in the text?
Free standing and corner style
Wall mounted and ceiling mounted
Single door and double door
Enclosed and open
What is sometimes installed in modern buildings instead of a traditional shower?
Bathtub
Wet room
Sauna
Steam room
What is the primary function of shower trays in a bathroom?
To retain water inside the cubicle
To provide a decorative element
To heat the water
To store toiletries
What feature of shower trays allows tiles to drain water into the tray?
A raised lip
A flat surface
A sloped edge
A smooth finish
What materials can shower trays be made from?
Acrylic and fireclay
Wood and metal
Glass and stone
Plastic and rubber
What type of waste do showers use due to the absence of an overflow?
Slotted waste with a plug
Unslotted waste with no plug
Slotted waste with no plug
Unslotted waste with a plug
What feature does the trap for a shower often have for cleaning purposes?
A removable integral filter
A fixed filter
A non-removable screen
A permanent mesh
What is the minimum waste size for a shower?
30mm
35mm
40mm
45mm
What is the typical feed size to a shower within 1 meter before it reduces?
10mm to 5mm
22mm to 15mm
25mm to 20mm
30mm to 25mm
