WorksheetsKitchen Wiring
Total questions: 10
Worksheet time: 7mins
What is the minimum number of small appliance circuits required in a kitchen.
(a)

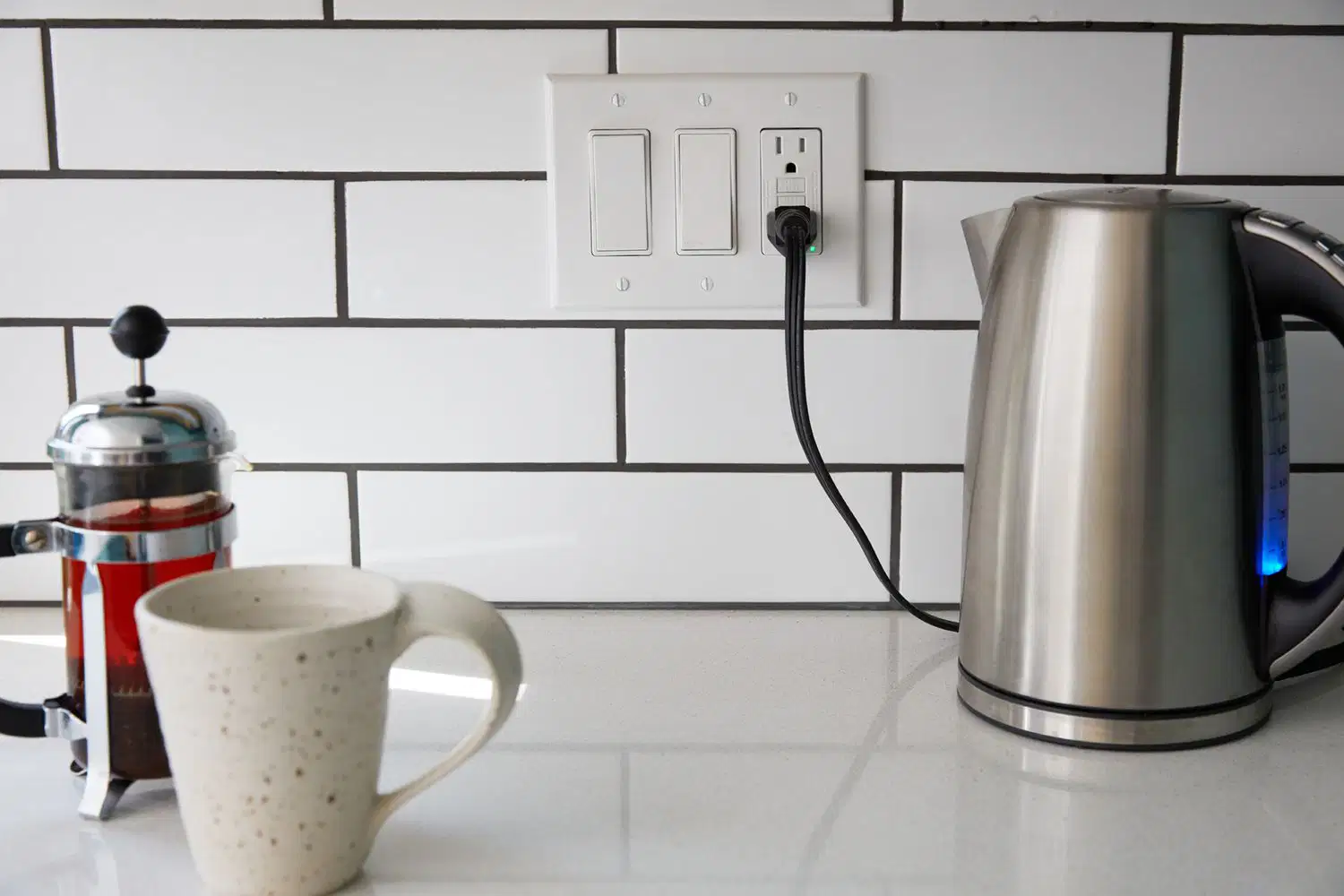

A receptacle outlet be within (a) feet of any point along the countertop.
What awg cable is required for the receptacle outlets in a kitchen?
(a)

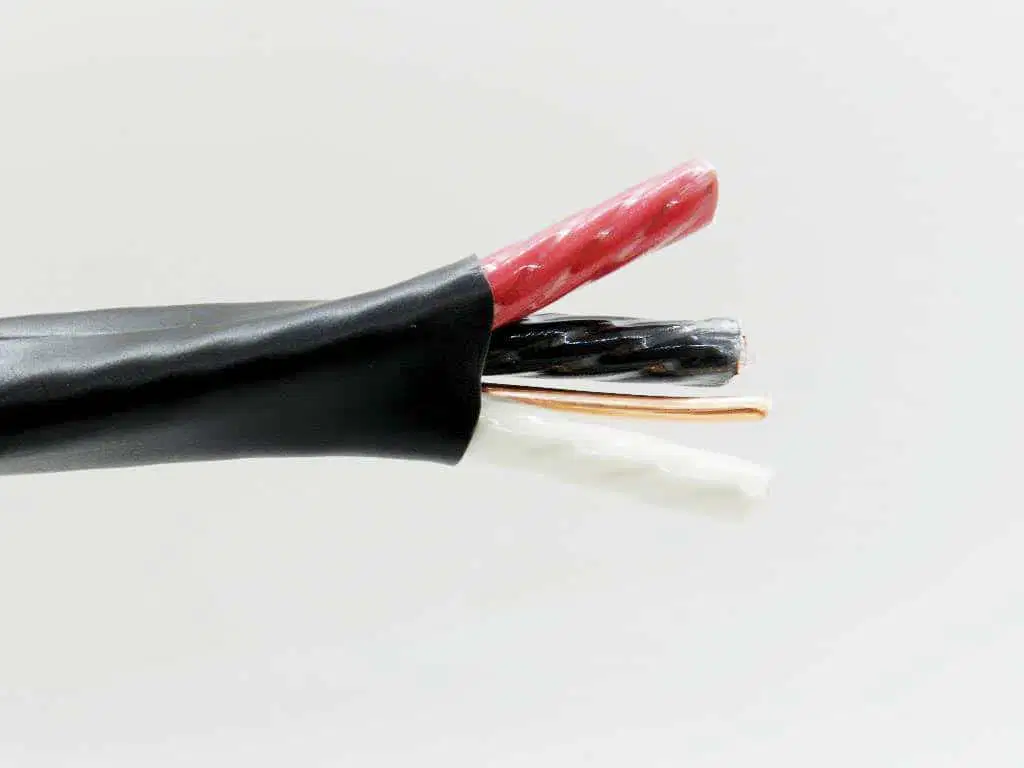

An electric stove usually requires a 50 amp circuit? What is the minimum size NM required for this?
10-3 nm
12-3 nm
6-3 nm
8-3 nm

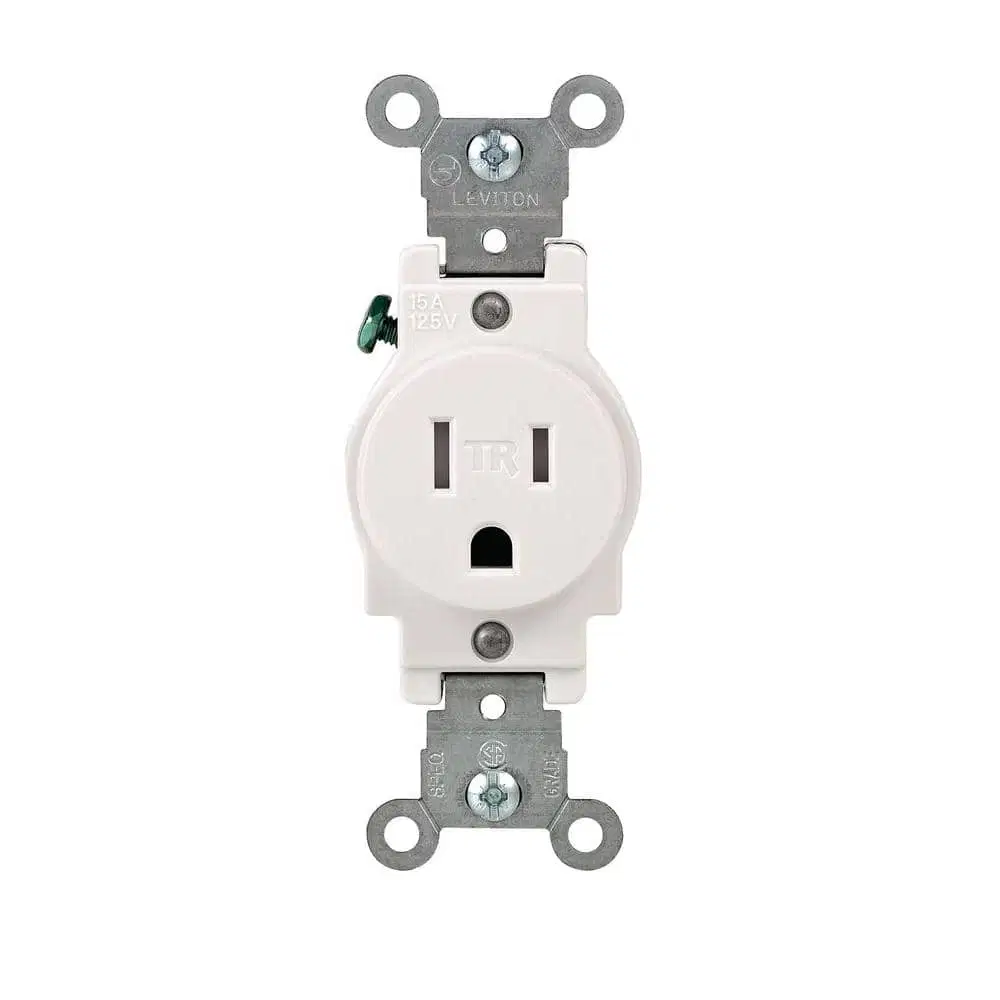

What type of receptacle outlet is required for a hang on microwave?
GFCI
AFCI
Weatherproof outlet
single outlet
Which of the below is considered a disconnecting means, something used to turn off the power so that an appliance can be safely worked on?
single pole switch
Circuit breaker, either within sight or with a lockout device
cord and plug
all of the answers listed

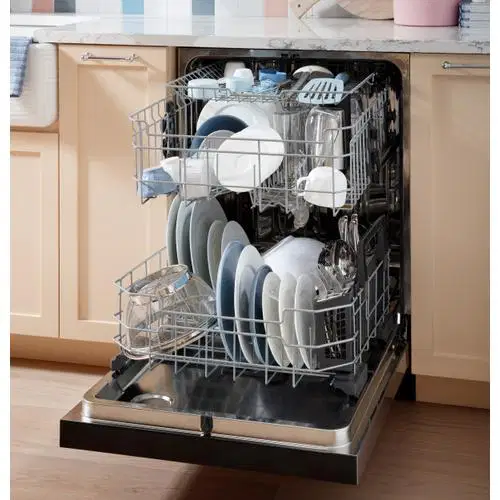

True or False. It is recommended that a dishwasher plug into a GFCI outlet. That outlet will be located in the cabinet to the left or right of the appliance.
(a)

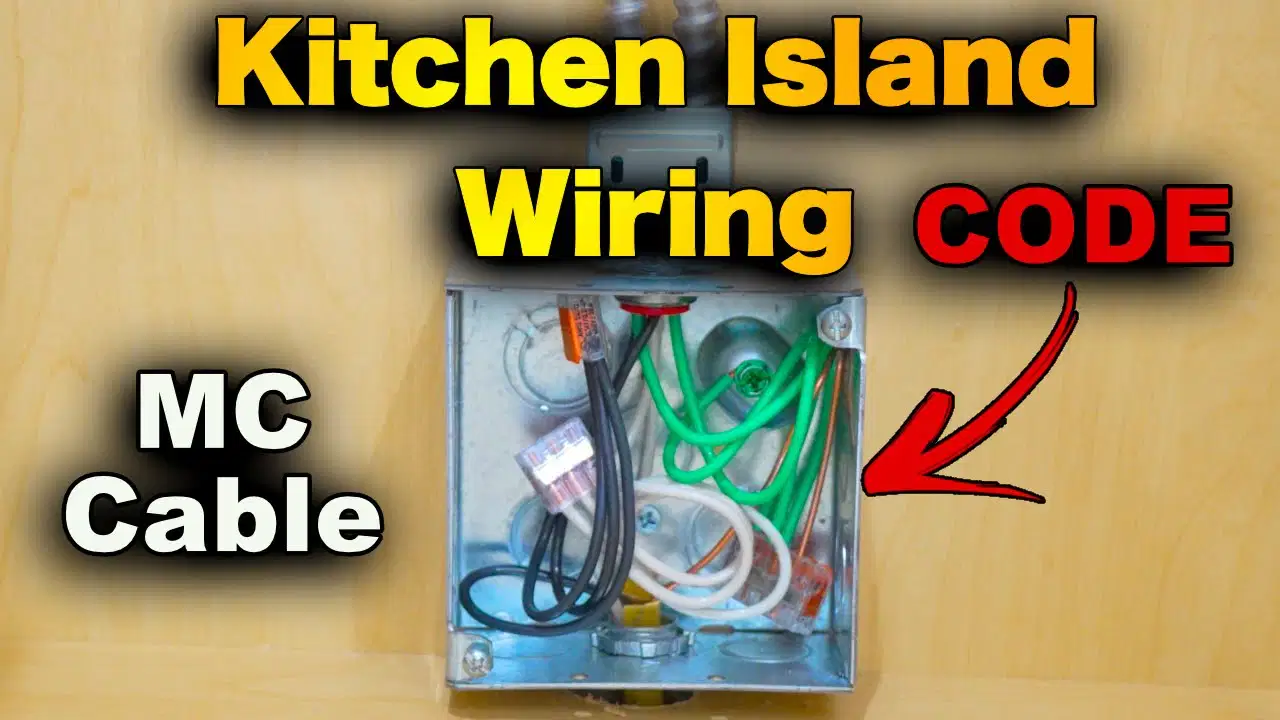

If something more durable than romex is required for wiring in a kitchen cabinet, which of the below are we likely to use?
PVC
EMT
MC
Rigid

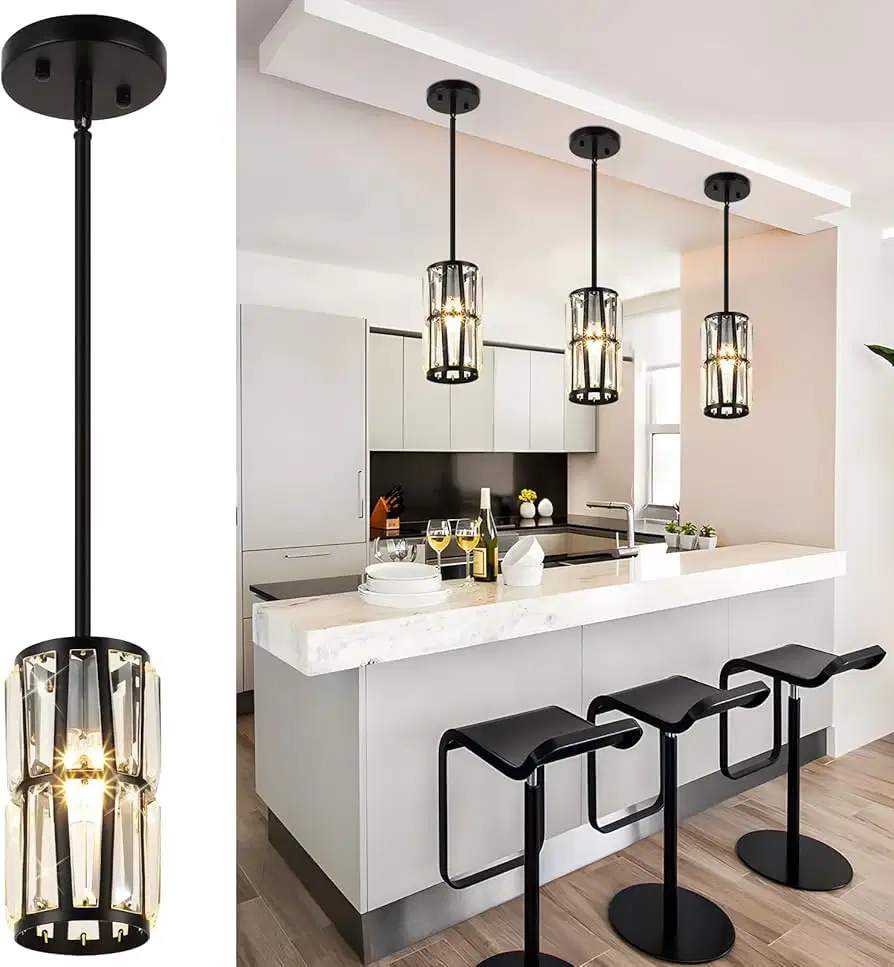

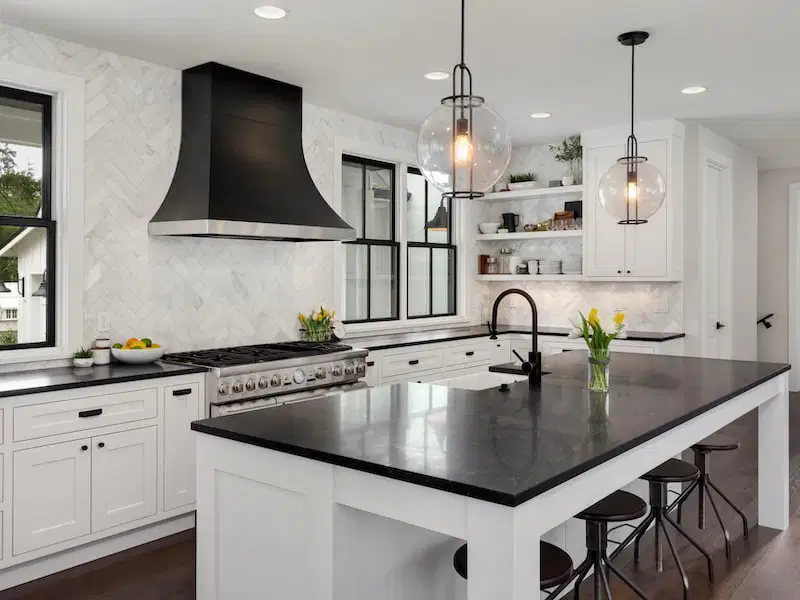

What are the (3) lights over the countertop called?
Recessed lights
Wafer Lights
Pendant lights
Dome lights
A kitchen hang on microwave, mounted over the stove is required to be on a dedicated circuit. If it draws 1.6 kilowatts, how many amps it that?
8
11
12
13
