WorksheetsAUTO1405 - Circuits/adaptive cruise/rain-sense/seats
Total questions: 21
Worksheet time: 11mins
What is this symbol?
Capacitor
Inductor
Resistor
Diode
Identify the symbol.
NC pushbutton (normally closed)
NO pushbutton (normally open)
SPDT switch (single-pole, double-throw)
SPST switch (single-pole, single-throw)
Identify the symbol.
NC pushbutton (normally closed)
NO pushbutton (normally open)
SPDT switch (single-pole, double-throw)
SPST switch (single-pole, single-throw)
Identify the symbol.
NC pushbutton (normally closed)
NO pushbutton (normally open)
SPDT switch (single-pole, double-throw)
SPST switch (single-pole, single-throw)
The adaptive cruise control system is comprised
of the PCM, the ABS module, the C-CM.
True
False
Which component provides the main input for adaptive cruise control systems?
The forward-looking radar
The abs module
The PCM
The steering wheel mounted controls are the only method of "cancelling" the cruise control set speed.
True
False
Which electrical protection devise acts like a fuse, but can be "reset"?
Push button
Larger Fuse
momentary switch
circuit breaker
When performed a voltage drop test, the circuit must be isolated and de-powered.
true
false
Rain sense wiper systems have a windshield mounted sensor which detects the present of water by use of which of the following?
infrared light
White LED light
Vibration oscillation
solar radar
Steering wheel control switches are momentary switches requiring their own 2 wire dedicated circuits.
false
true
Which components are not found in climate controlled seats?
Air filter
Seat heater mat
Evaporator core
Blower motor
If a Voltmeter is installed backwards, what happens to the reading?
OL
0volts
Negative volts
Positive volts
The acronym "TED" refers to...
Thermal Emitter Drive
Temperature Electric Drive
John Bennett's bear friend
Thermal Electric Device
A load in a series circuit should ....
consume all of the voltage available from the battery
be a light bulb
operate independent of the circuit control
share the voltage equally
What does this schematic symbol represent?
toothed assembly
DC signal
pulse width modulation
heat element

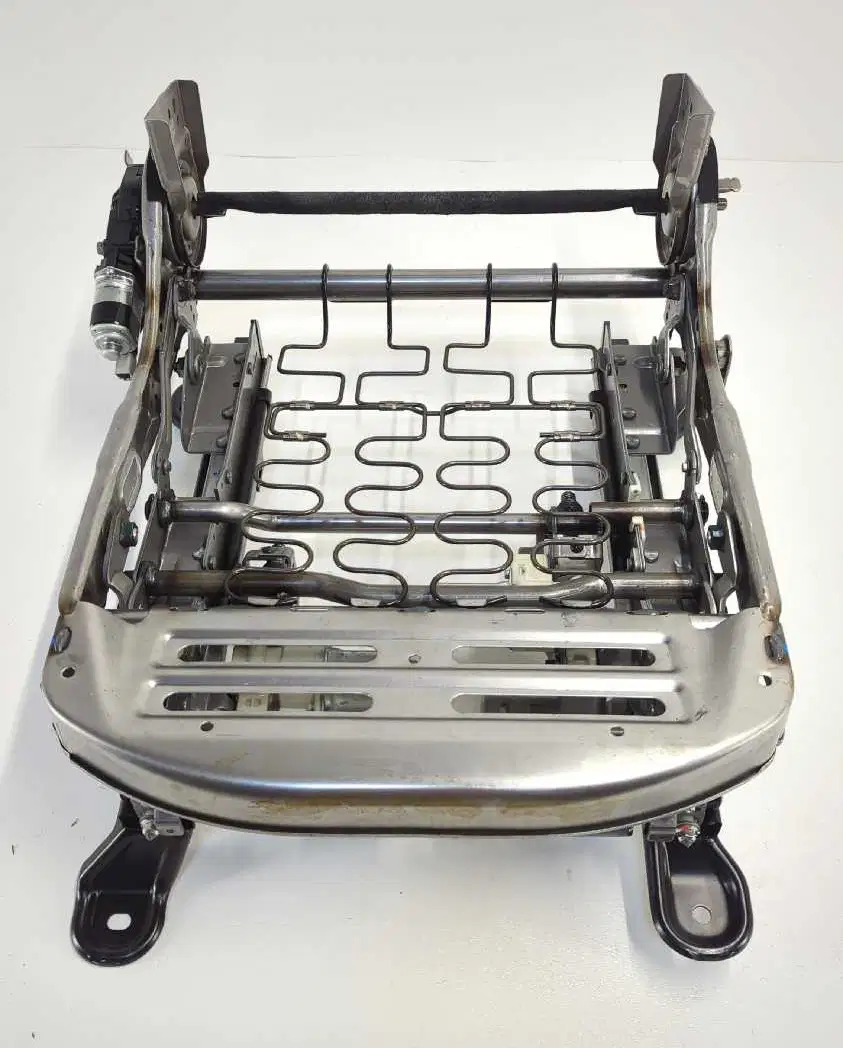

Which of the following best describes the image?
Seat bottom
Seat track and frame
Seat Track
TED

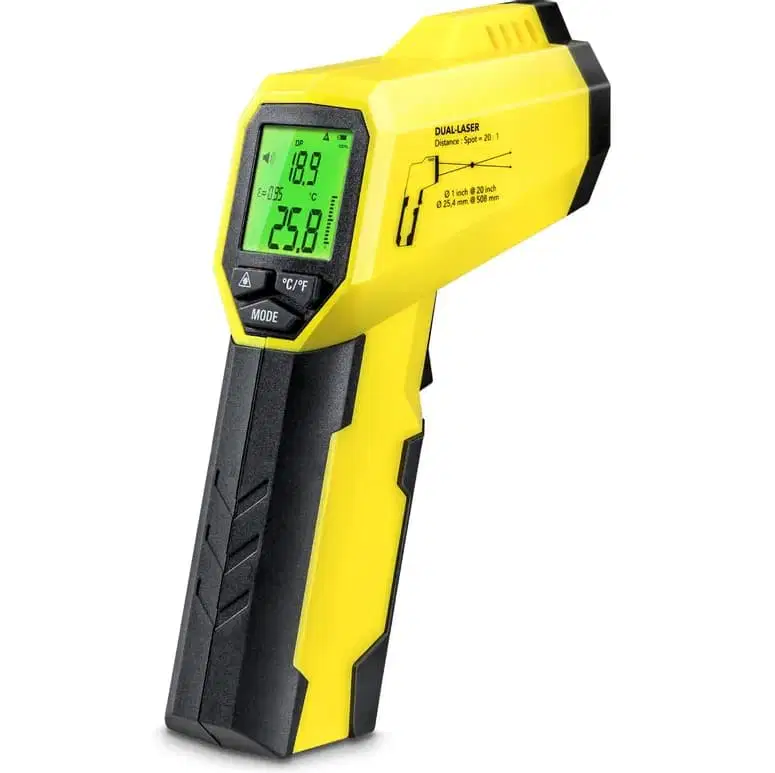

Which tool can be used to check temperature ?
